iFLIGHT SucceX 50A 2-6S BLHeli_32 Dshot600 4 in 1 ESC

SucceX 50A 2-6S BLHeli_32 Dshot 600 4-in-1 ESC

Features:

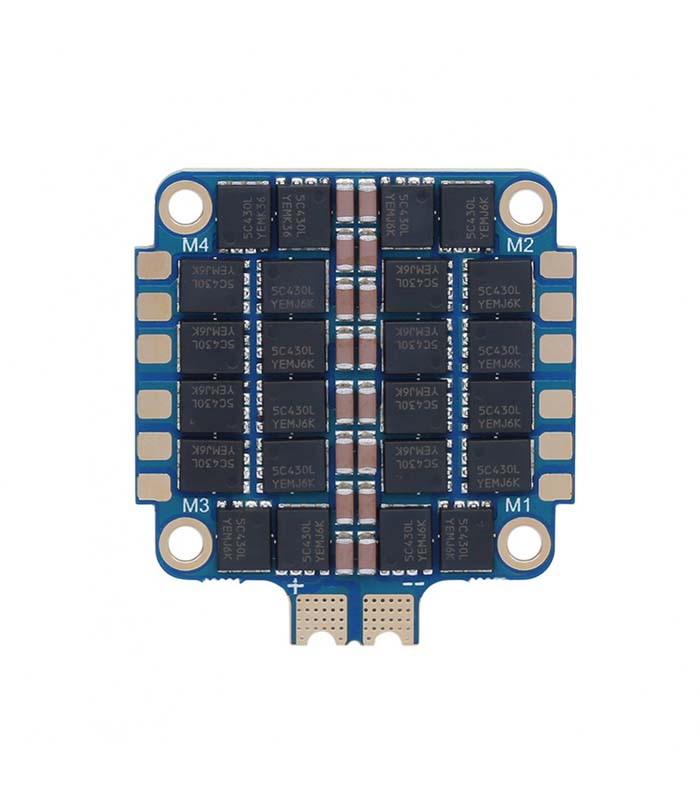

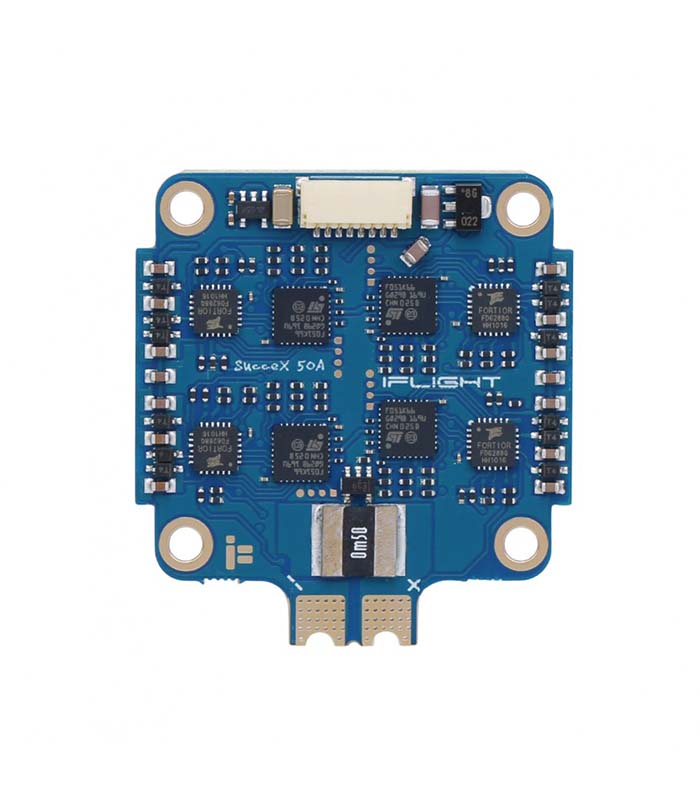

– 8 layers double-sided PCB board;

– 4oz 1.6mm thick power board(0.9mm copper ratio),better operating load capacity;

– 32bit G071 MCU, 48mHz maximum clock speed;

– TDK MLCC Low ESR ceramic capacitors;

– Top grade NTMFS5C430NL MOSFET;

– Rational layout, countersunk holes on extended solder pads to ensure PCB layer connection

Changelog:

Due to some global supply issues, the Barometer and Flash component was updated as well as some circuit improvements implemented.

Before F051 MCU changed to G071 MCU

Specification:

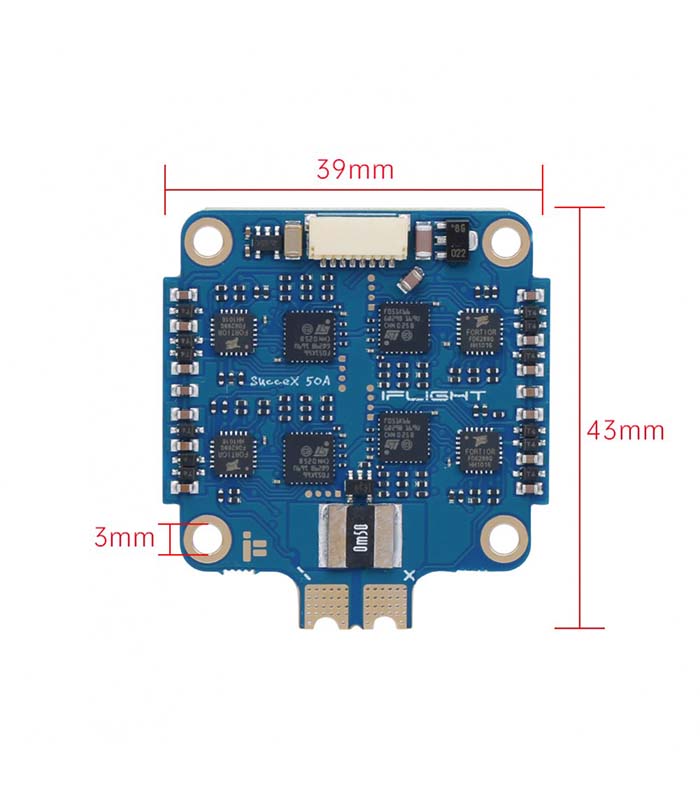

– Dimension: 43*39mm

– Mounting Holes: 30.5*30.5mm/Φ3mm

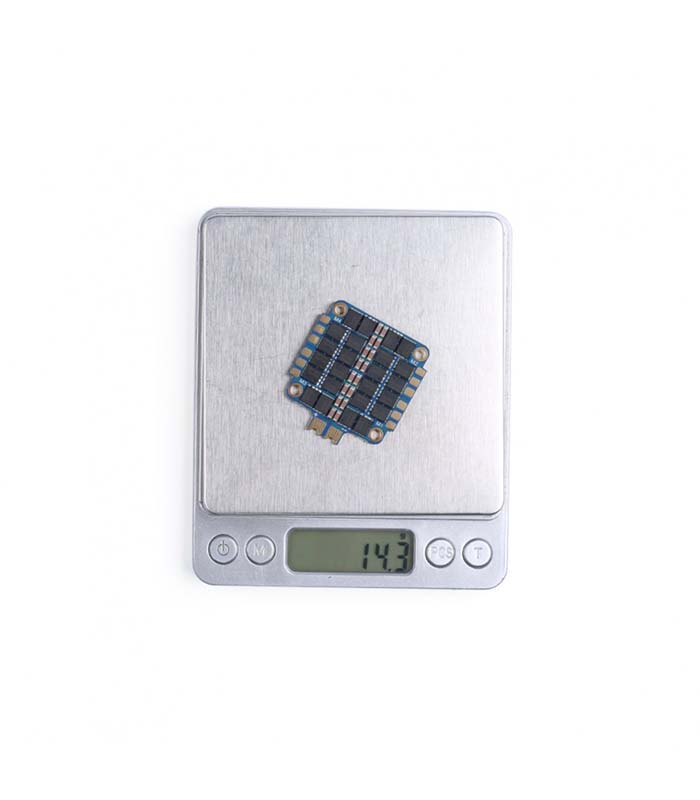

– Weight:14.3g

– Volts input: 2-6S

– STM32G071 MCU, 48Mhz Runs BLHELI 32.X Firmware

– Current sensor: Yes

-Telemetry：Supported

– BEC: No

– Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.

– Target: iFlight-BL32-4IN1

– BLHeliSuite download (BL32): https://github.com/blheli-configurator/blheli-configurator/releases

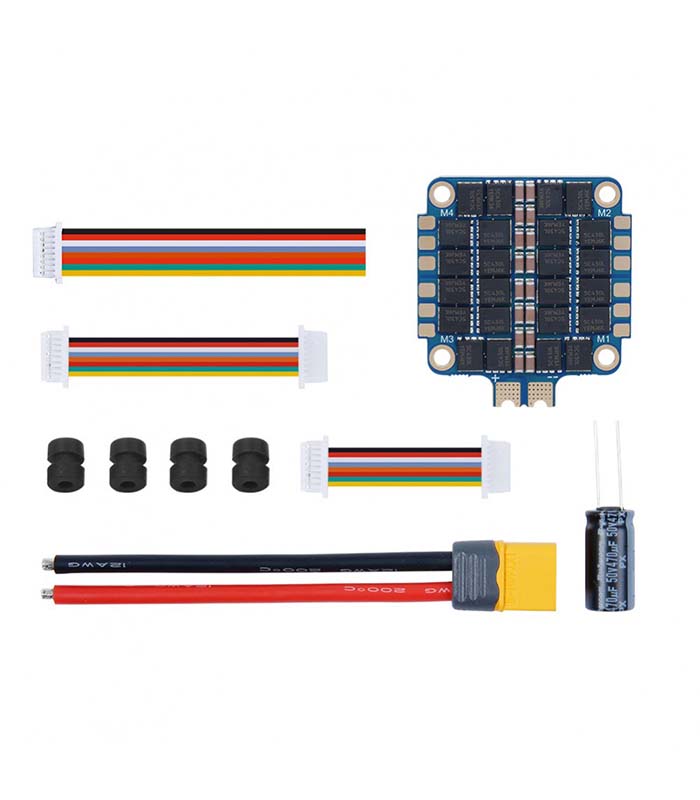

Package included:

– 1 x SucceX 50A 2-6S BLHeli_32 Dshot600 4-in-1 ESC
