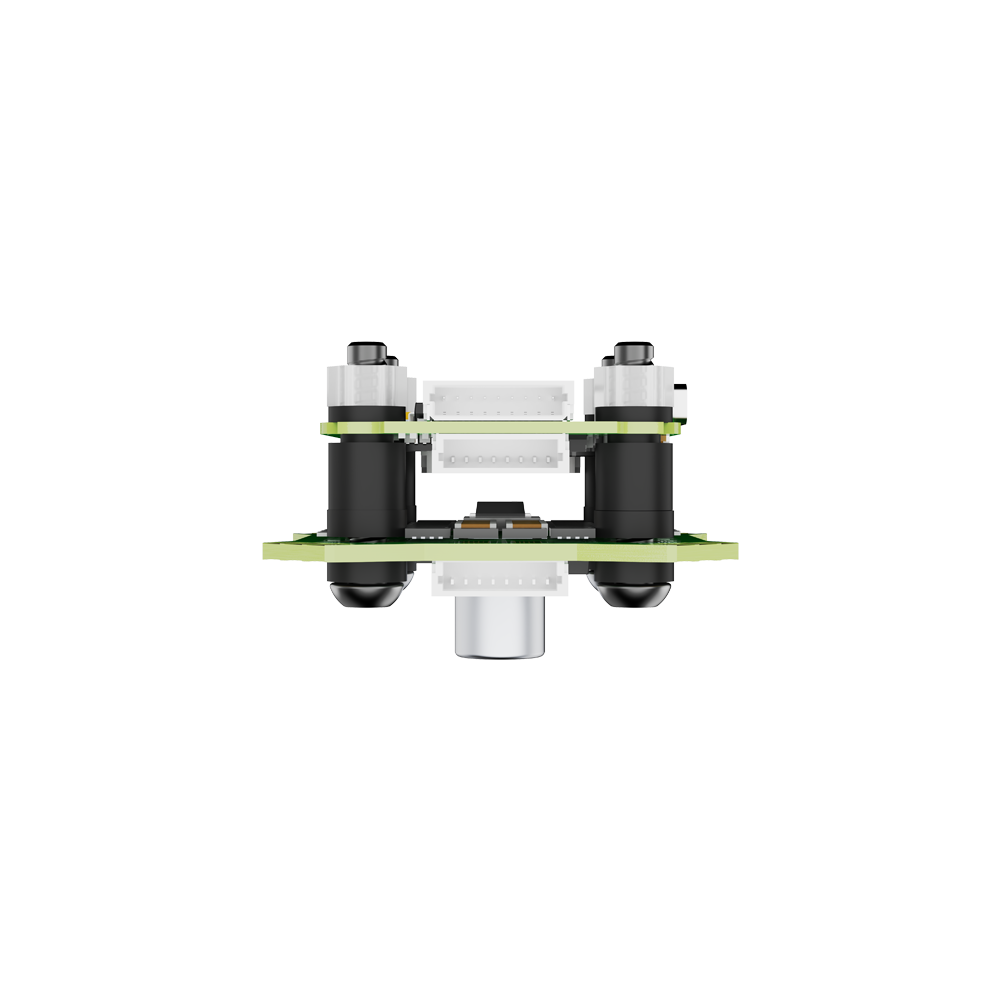

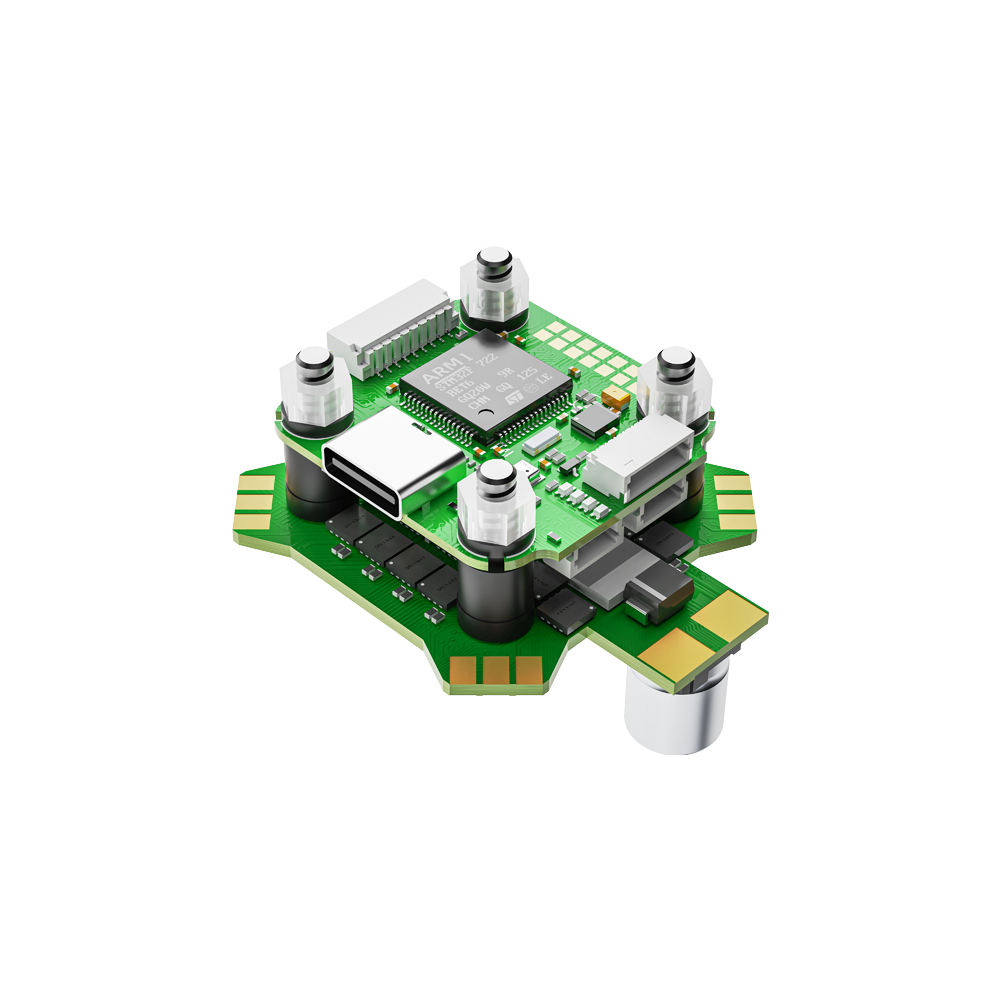

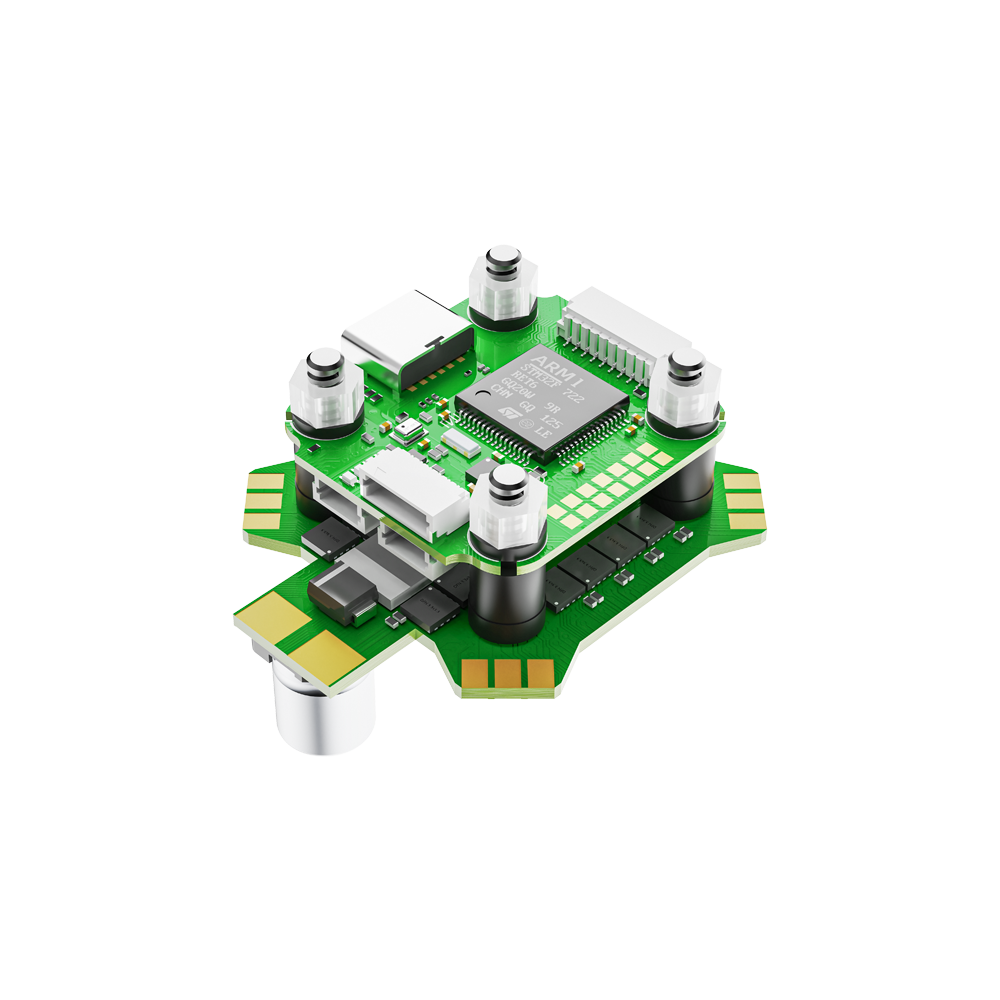

iFlight BLITZ Mini F7 Stack (Mini F7 V1.1 + 55A 4in1 ESC)

PRODUCT DESCRIPTION

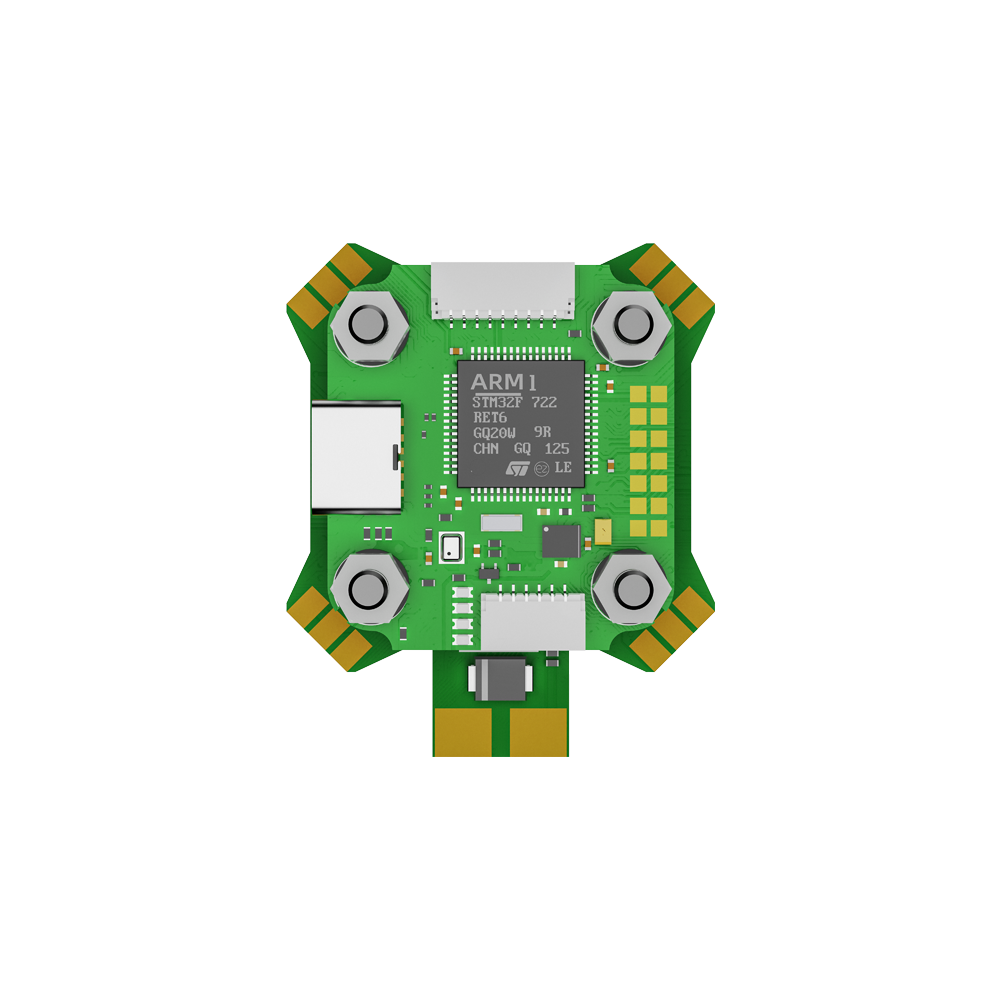

FC // BLITZ Mini F7 V1.1 Flight Controller

• Top Features:– DJI HD VTX CONNECTOR (PLUG-AND-PLAY / NO SOLDERING REQUIRED)
  – 2022/FEB: VERSION UPDATED TO V1.1 / GYRO CHANGED TO BOSCH BMI270 DUE TO AVAILABILITY & PRICE ISSUES WITH MPU6000.
  MCU:   STM32 F722BAROMETER:   DPS310FLASH:   16MB (BLACKBOX FLASH)MOTOR OUTPUTS:   4X (SH1.0 CONNECTOR)SMARTAUDIO / IRC TRAMP VTX PROTOCOL SUPPORTEDBEEPER PAD:   YESMOUNT PATTERN:   20X20 MM / 4MM PCB HOLE DIAMETER, SILICON GROMMETS FOR M3 SCREWSWEIGHT:   5GWIRING SUGGESTION:– UART 2 FOR A RECEIVER- UART 6 FOR ESC TELEMETRYTIPS2. SBUS, CRSF, ELRS, IBUS, DSM ETC… CAN BE CONNECTED TO ANY UNUSED UART_RX, WE SUGGEST YOU CONNECT TO UART_RX24. F.PORT CAN BE CONNECTED TO ANY UNUSED UART_TX, WE SUGGEST YOU CONNECT TO UART_TX2
• 3. FRSKY SMARTPORT, TRAMP & SMARTAUDIO CAN BE CONNECTED TO ANY UNUSED UART_TX, WE SUGGEST YOU CONNECT TO UART_TX1
• 1. F722 MCU HAS AN INNER INVERTER.
• – UART 3/4/5 FOR GPS OR OTHER SENSORS THAT REQUIRE A SERIAL PORT
• – UART 1 FOR VTX HD / ANALOG
• DIMENSIONS:   30.5X27 MM
• FIRMWARE TARGET:   IFRC-IFLIGHT_BLITZ_F722
• LED CONTROLLER:   YES
• I2C SERIAL:   SDA / SLA PADS
• UARTS:   6
• OSD CHIP:   AT7456
• GYRO:   BMI270
• Specs:
• CHANGELOG:
• – FC INDICATOR LEDS FOR VISUAL DEBUGGING
• – IMPROVED CIRCUIT DESIGN, BETTER COMPONENTS AND LOWER ELECTRICAL NOISE!

ESC // BLITZ Mini E55 4-IN-1 2-6S ESC

• SPECIFICATION:
  – MOUNTING HOLES: 20*20MM/Φ4MM- SUPPORTS 2-6S LIPO INPUT- CONSTANT: 55 AMPS – CURRENT SENSOR: YES- CURRENT RATE: 100
  – FIRMWARE: BLHELI 32
• – TARGET:   IFLIGHT_BLITZ_G1
• – SUPPORTS: DSHOT DSHOT150/300/600/MULTISHOT/ ONESHOT ETC.
• – BEC: NO
• – BURST: 60 AMPS
• – MCU： G071
• – WEIGHT: 11.3G
• – DIMENSION: 35*42MM

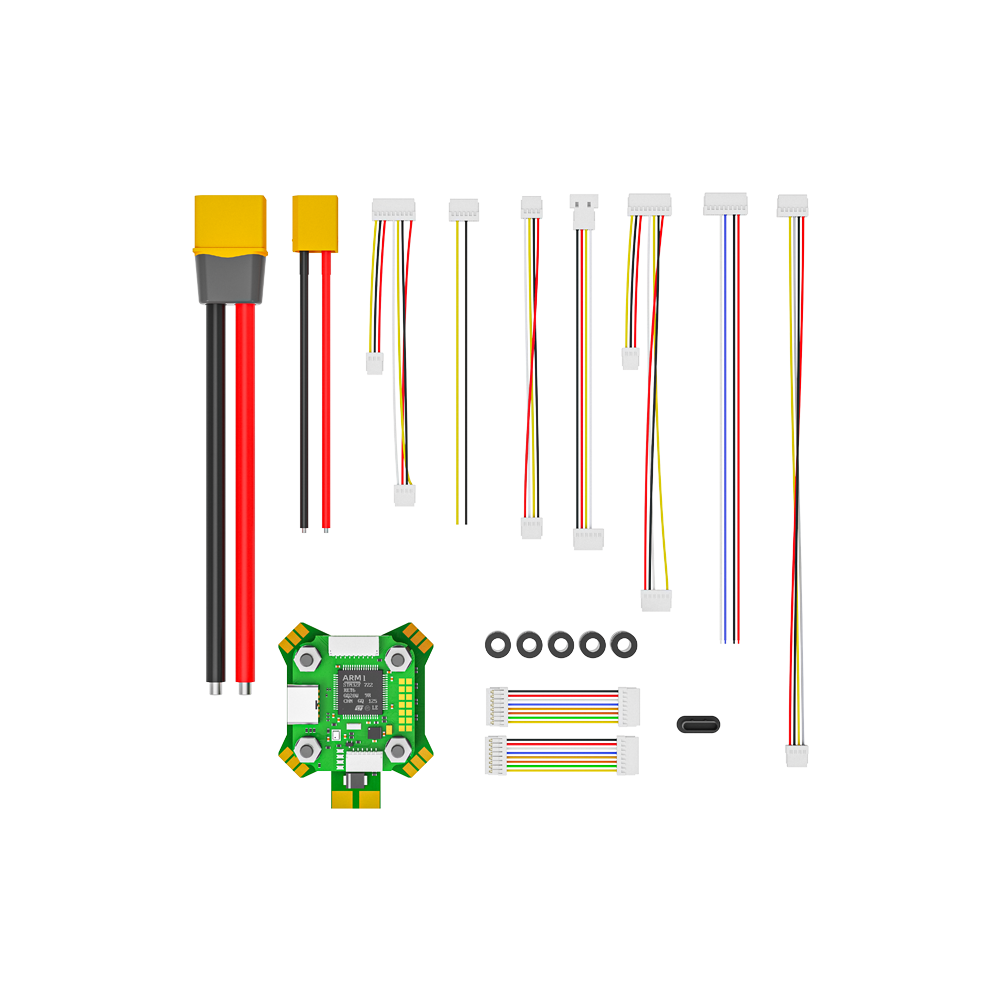

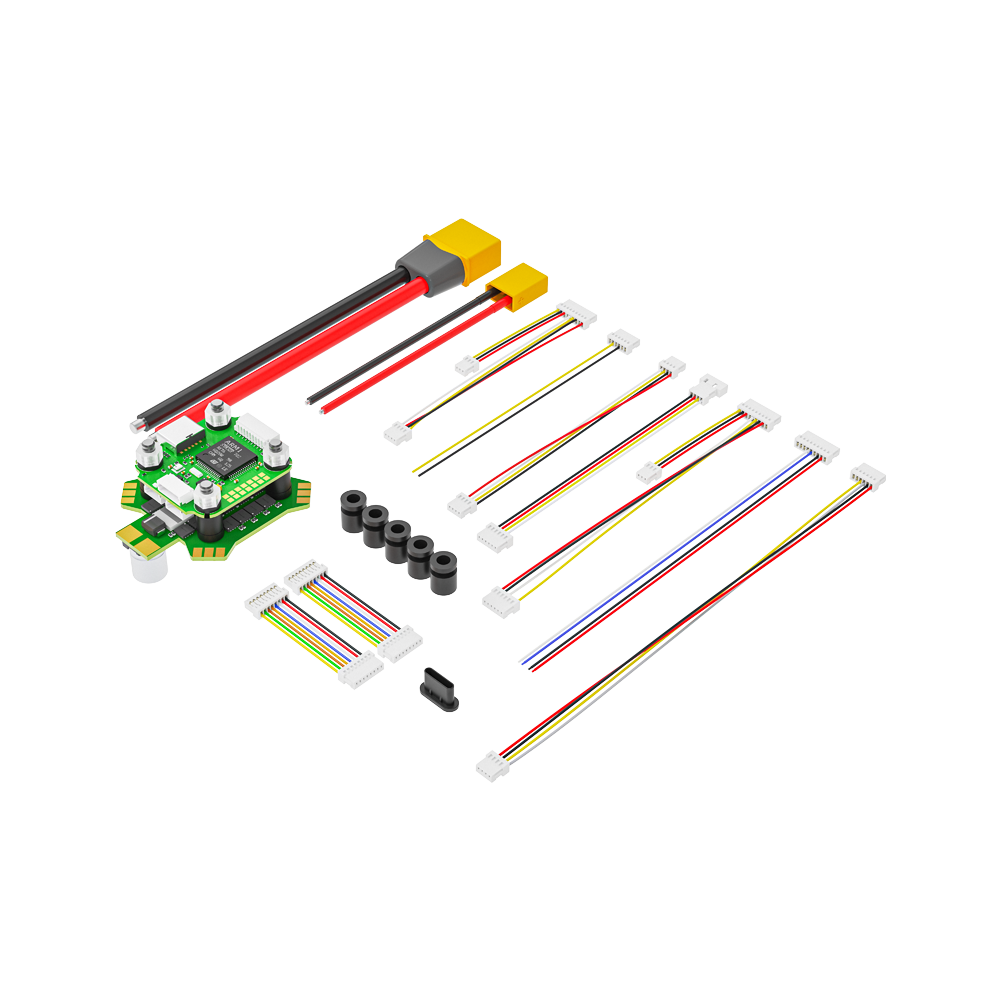

Package included:

– 1pc x BLITZ Mini F7 V1.1 Flight Controller

– 1pc x BLITZ Mini E55 4-IN-1 2-6S ESC

– 1set x silicon grommets

– 1set x wire harness for F7 Flight controller
