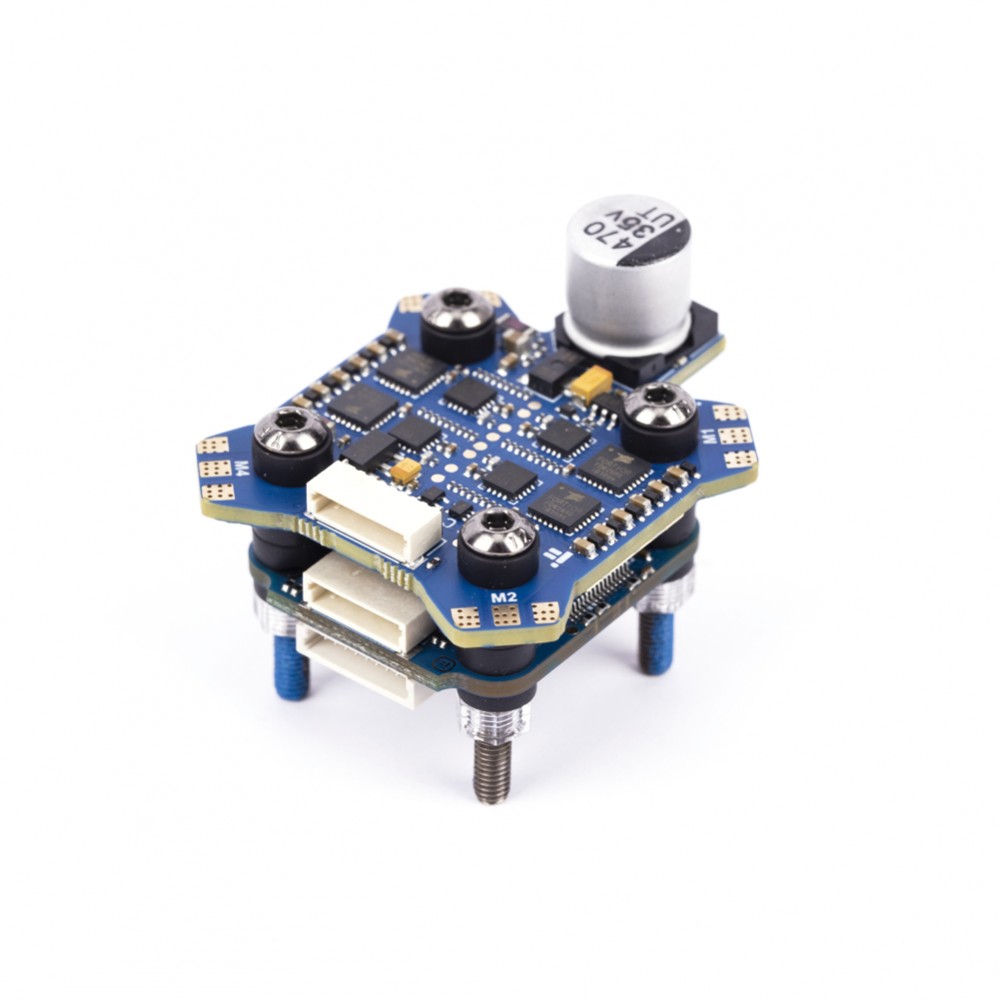

PRODUCT DESCRIPTION
Top Features:
– Improved circuit design, better components and lower electrical noise!
– DJI HD VTX Connector (Plug-and-Play / No soldering required)
– FC indicator LEDs for visual debugging

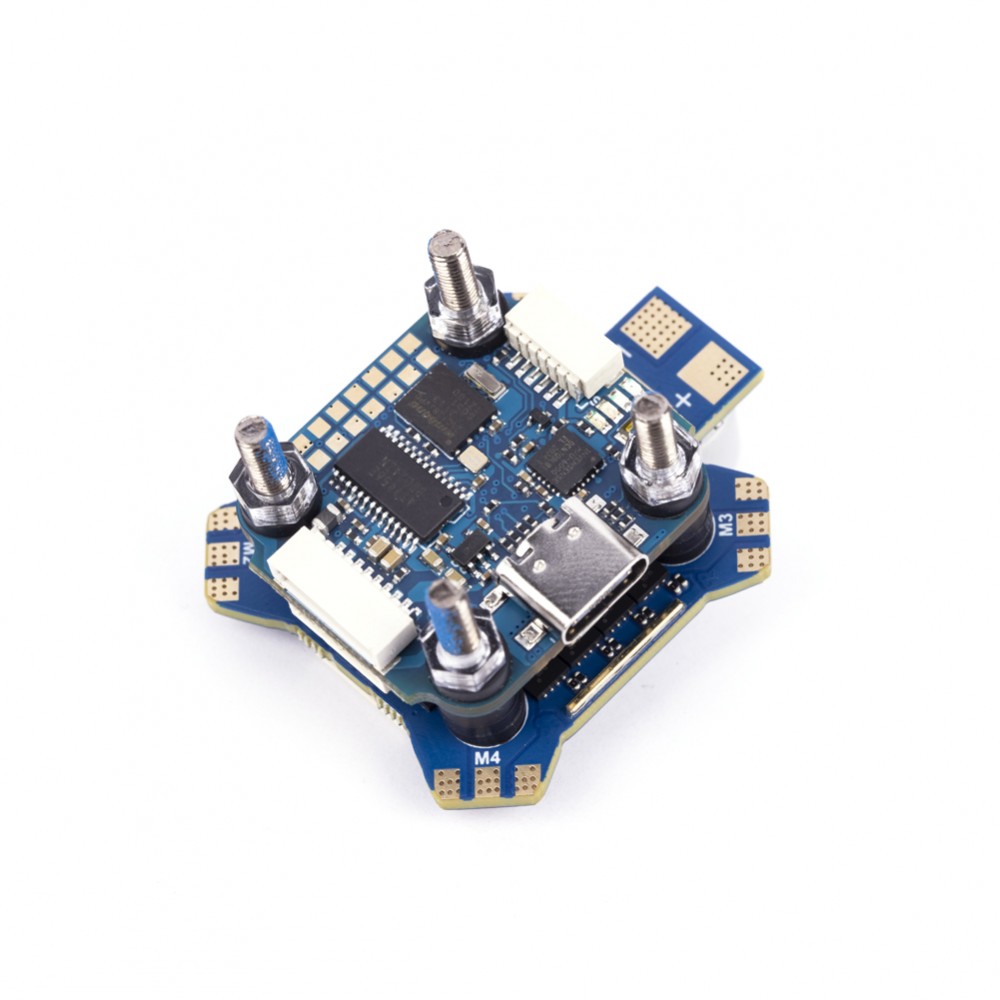

SPECS:
– MCU：STM32F405
– GYRO：MPU6000
– BARO: NO
– BETAFLIGHT OSD: IFLIGHT OSD （AT7456E)
– BLACKBOX: 16MB
– UARTS: 6
– I2C SERIAL: SDA / SLA PADS
– SMARTAUDIO / IRC TRAMP VTX PROTOCOL SUPPORTED
– LED CONTROLLER: YES
– BEEPER PAD: YES
– FIRMWARE TARGET : IFRC-IFLIGHT_BLITZ_F405
– MOUNTING：20*20MM/Φ4
– DIMENSIONS：30.5*27MM

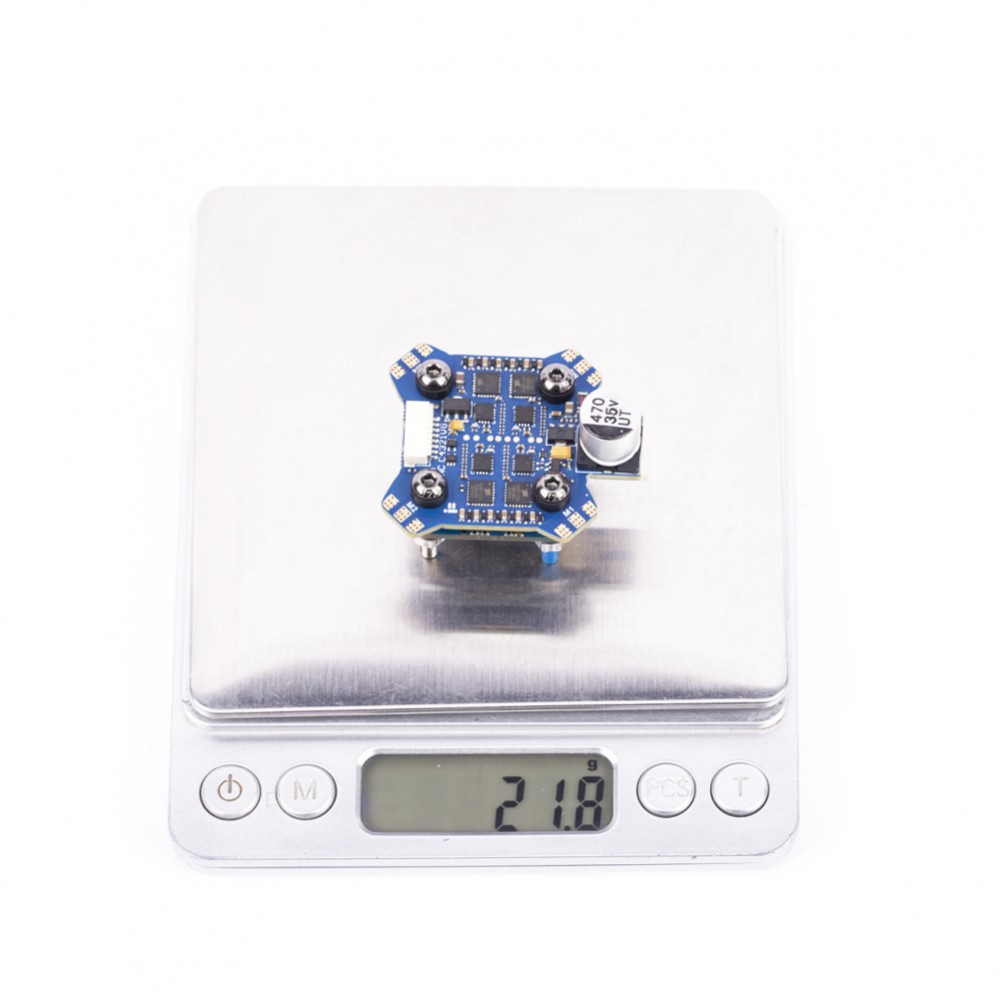

– WEIGHT：5.0G
WIRING SUGGESTION:
– UART 1 FOR VTX HD / ANALOG
– UART 2 FOR A RECEIVER
– UART 3/4 FOR GPS OR OTHER SENSORS THAT REQUIRE A SERIAL PORT
– UART 6 FOR ESC TELEMETRY
TIPS
1. F405 MCU HAS NOT INNER INVERTER
2. SBUS、CRSF、ELRS、IBUS、DSM ETC… CAN BE CONNECTED TO ANY UNUSED UART_RX, WE SUGGEST YOU CONNECT TO UART_RX2
3. FRSKY SMARTPORT, TRAMP & SMARTAUDIO CAN BE CONNECTED TO ANY UNUSED UART_TX, WE SUGGEST YOU CONNECT TO UART_TX1
4. F.PORT CAN BE USED, NEED TO BE CONNECTED TO UART_TX2 AND SETUP THE INNER INVERTER

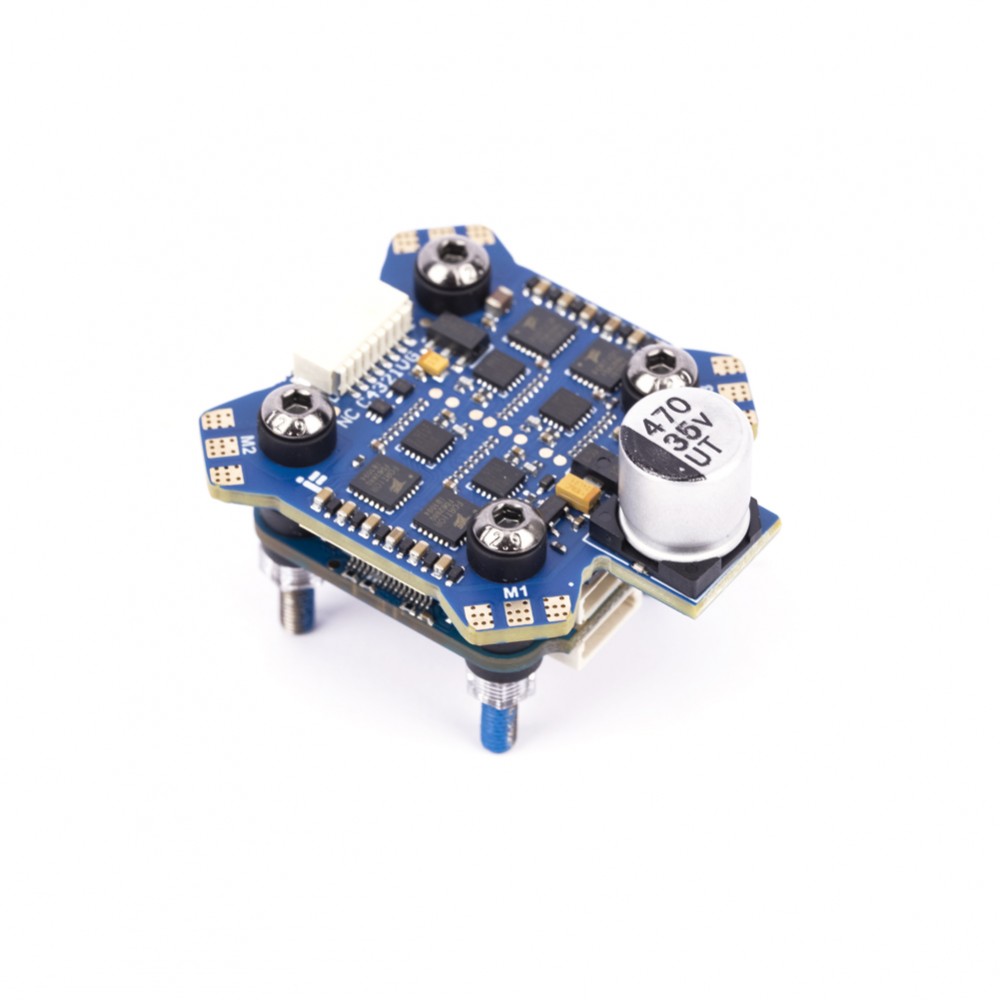

ESC // BLITZ MINI E55S 4-IN-1 2-6S ESC
Specification:
– Mounting Holes: 20*20mm/Φ4mm
– Weight: 11.3g
– Supports 2-6S lipo input
– MCU：BB21
– Constant: 55 Amps
– Burst: 60 Amps
– Current sensor: Yes
– BEC: No
– Current rate: 100
– Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
– Target: QH-50 16.7

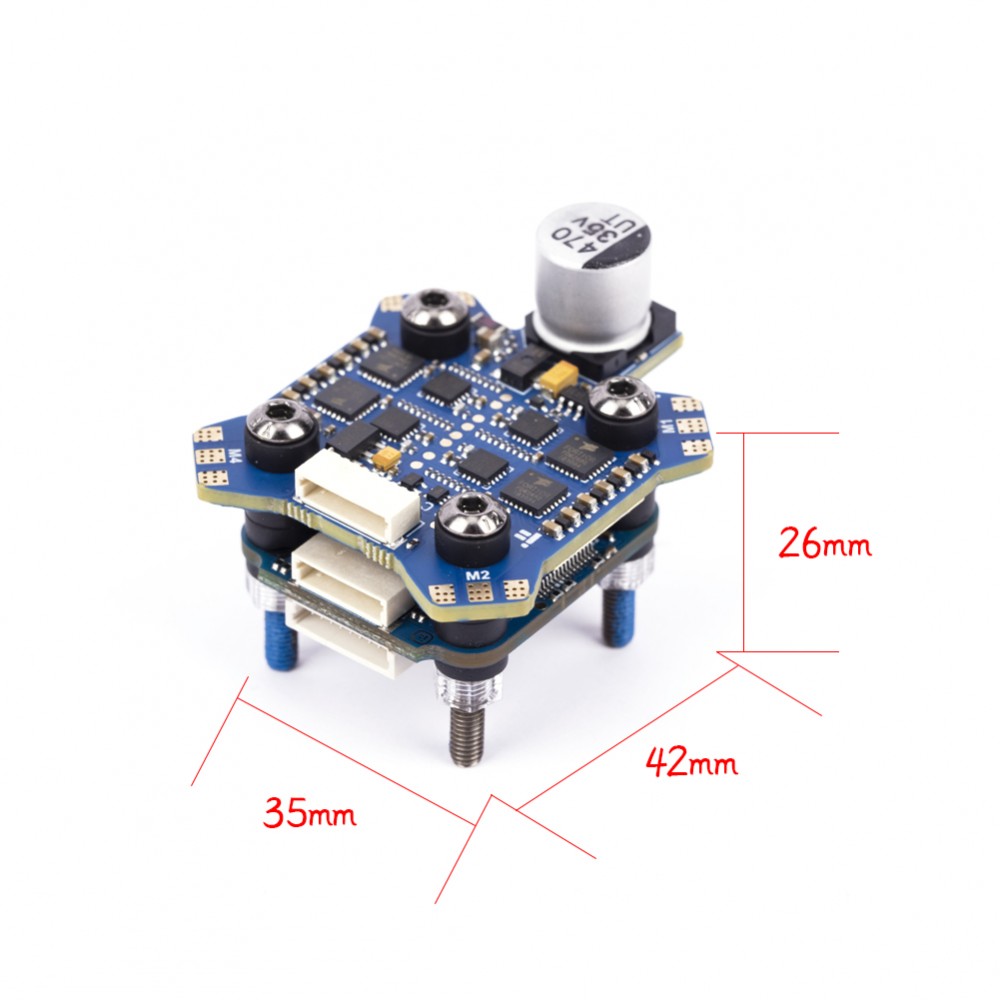

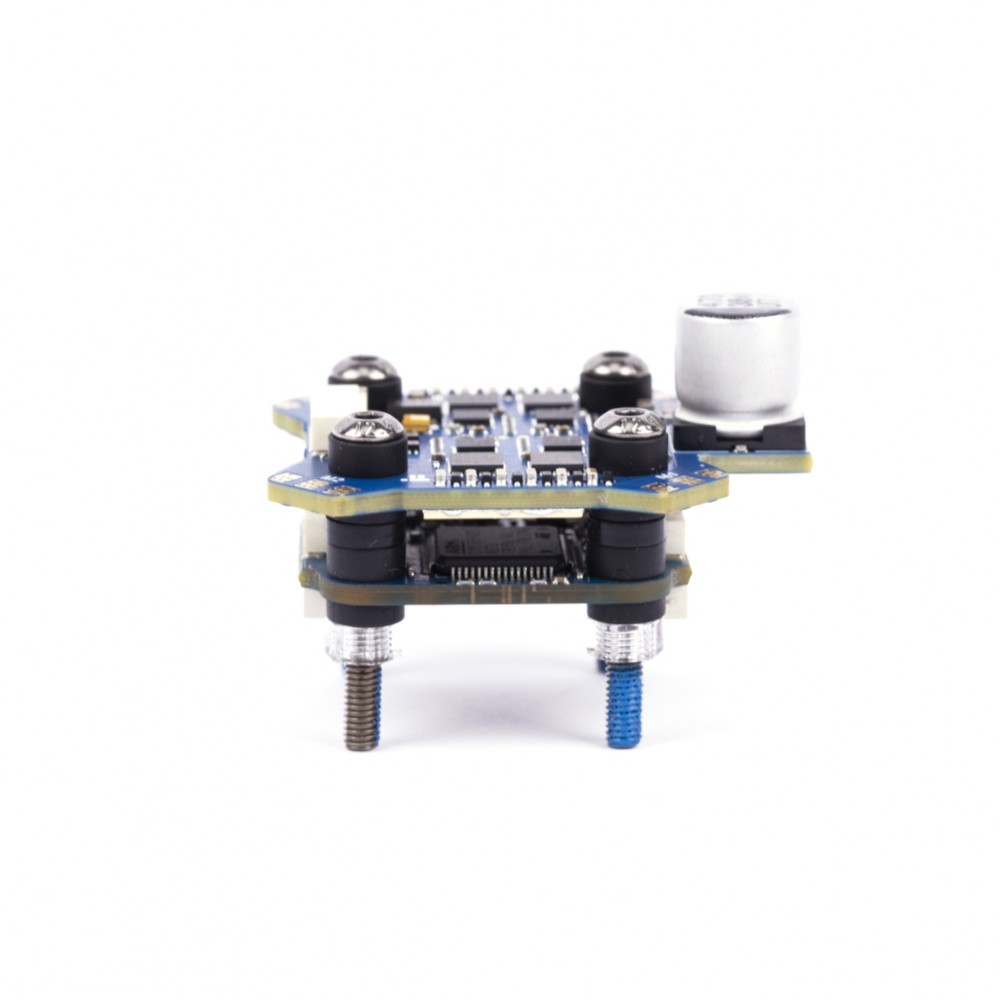

– Dimension: 35*42mm
Package included:
– 1pc x BLITZ Mini F4 Flight Controller
– 1pc x BLITZ Mini E55S 4-IN-1 2-6S ESC
– 1SET X SILICON GROMMETS
– 1SET X WIRE HARNESS FOR F4 FLIGHT CONTROLLER
