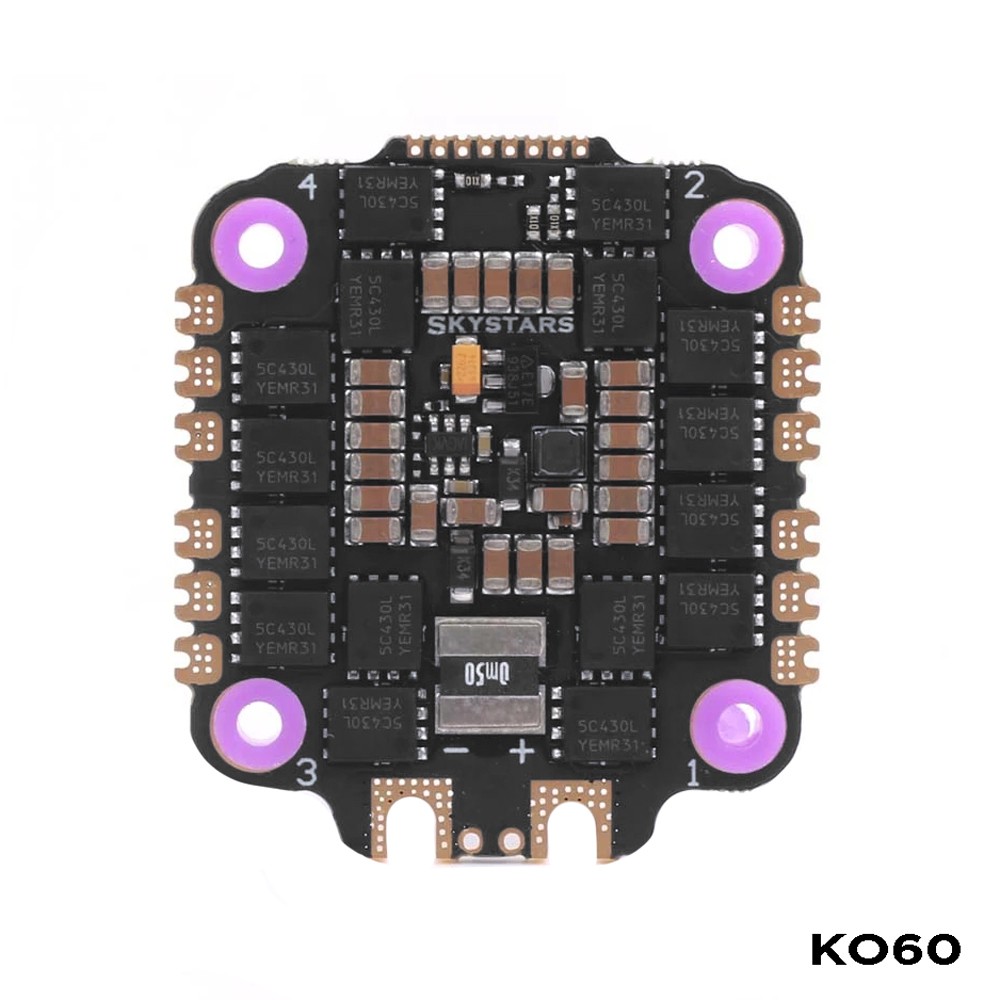

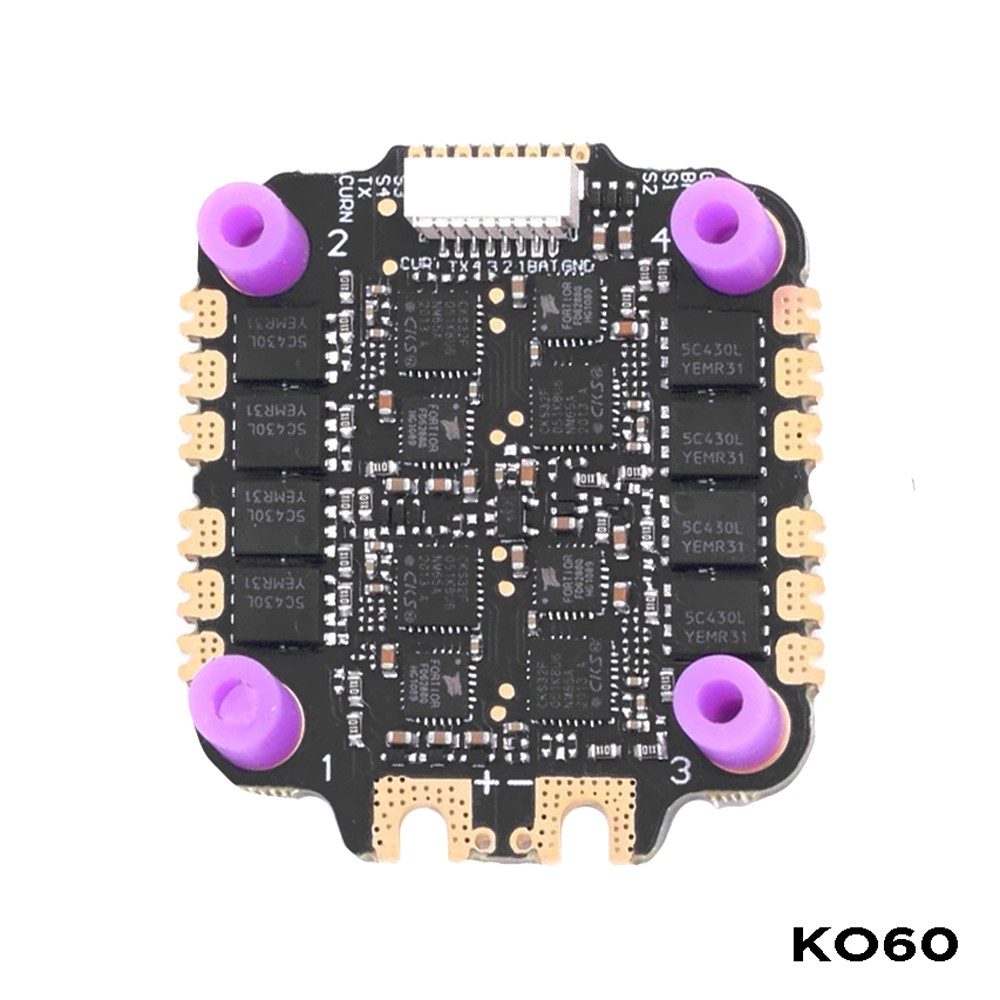

SkyStars KO60 BLHeli_32 4-in-1 3-6S 30×30 ESC – 60 A
The Skystars KO series BLHeli_32 4-in-1 ESCs have a 6-layer design and over-current capabilities. And with BLHeli_32 firmware, you won’t be bottlenecked by your ESC.
Features
- Supports telemetry functions (including Voltage, RPMS, & Current)
- Toshiba standard 40V 5×6 Mosfet & electronics
- Lead-free SMT Processing technology
- ESC Onboard Current Sensor
- Over-Current Capabilities
- Supports 6S Batteries
- 6-layer Layout Design
- BLHeli_32 Firmware
Specifications
KO60 – 60A
- Drive signal: Dshot300-1200 / Proshot1000 / Oneshot / Multishot / PWM
- MCU: STM32F051 Operation frequency: 48MHz
- Peak current [5 seconds]: 65A
- Mount: 30.5mm x 30.5mm
- Continuous current: 60A
- Firmware: BLHeli_32
- ESC weight: 12g
- Supports 3-6S
- BEC: No

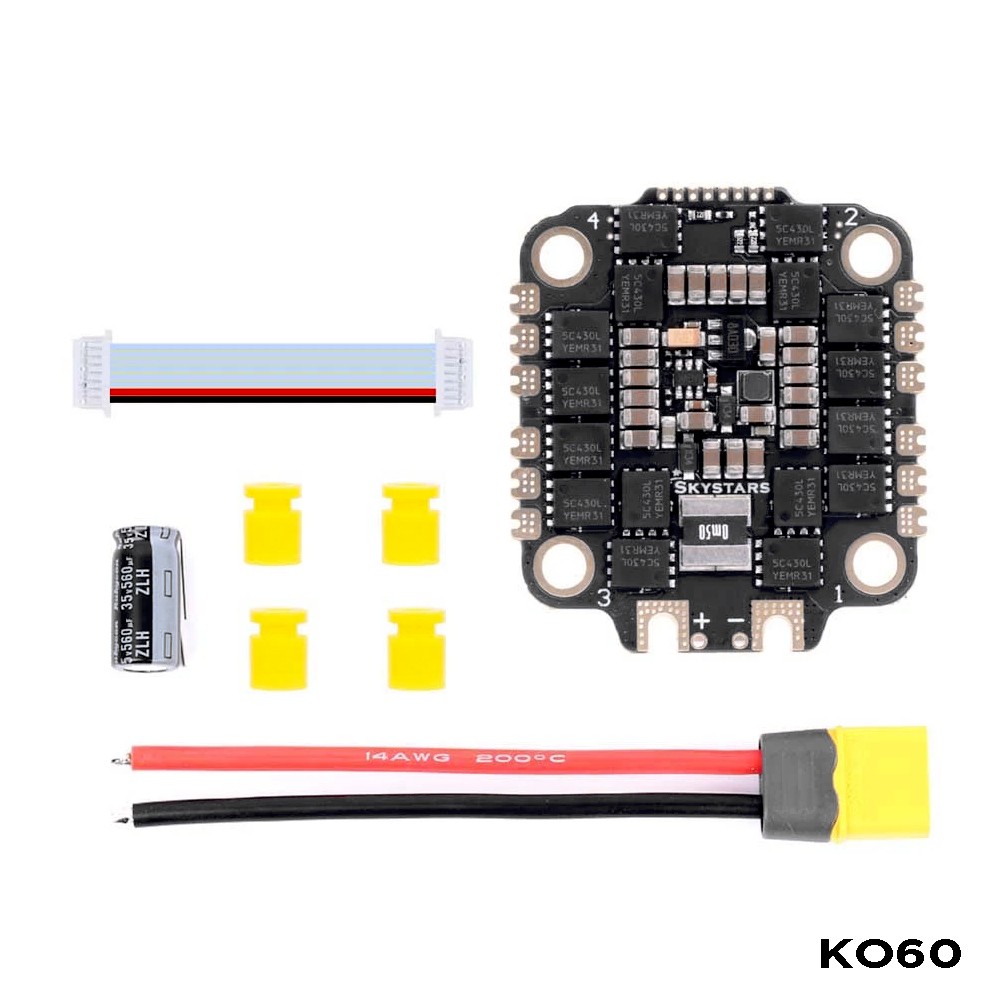

Includes
- 1x Skystars BLHeli_32 4-in-1 3-6S 30×30 ESC
- 1x 35v 560uf Capacitor
- 4x Rubber Grommet
- 1x Wire Harness
- 1x XT60 Cable
