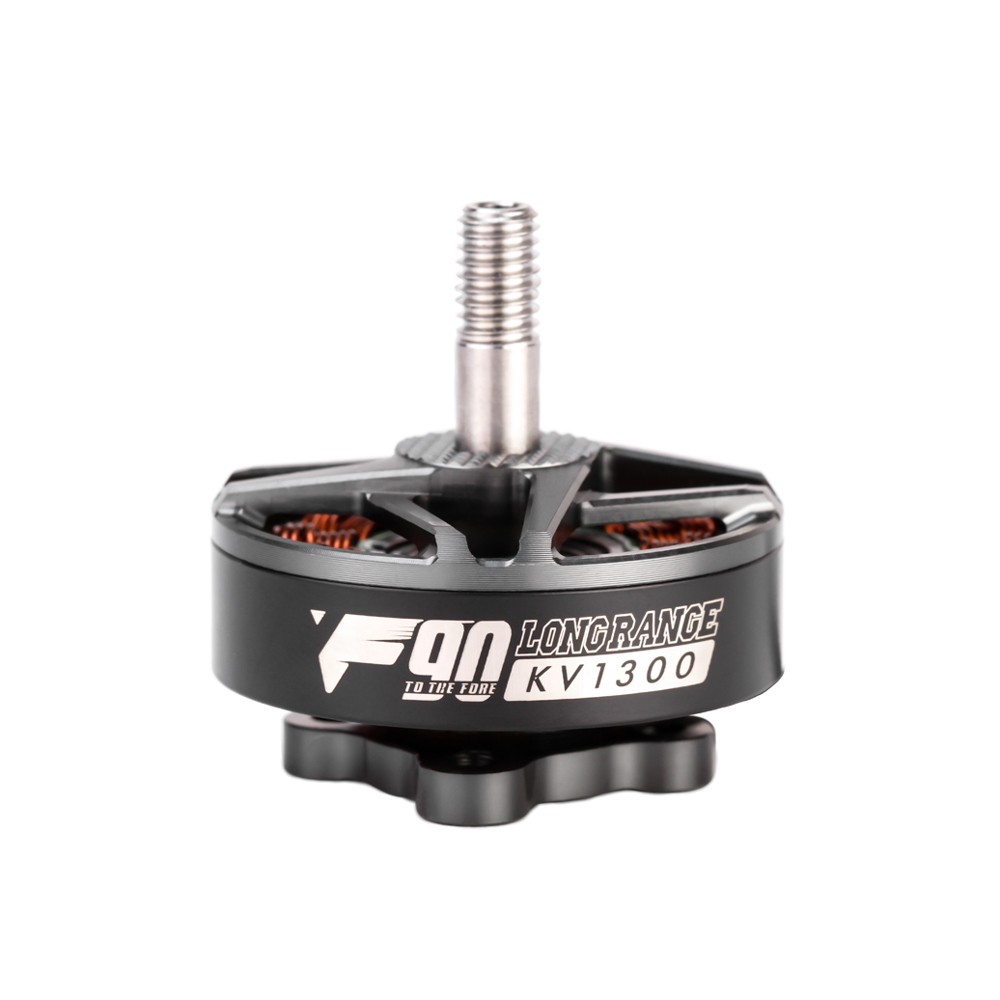

T-Motor F90 2806.5 Motor – 1300KV/1500KV/1950KV

Get a longer flight time with the T-Motor F90 Motor! This motor is designed for Cinelifter X8 FPV build or similar and can carry a heavy camera. The F90 is a stable motor and smooth motor that comes in two KV’s:1300KV, 1500KV.

Specifications

KV: 1300

• Configuration: 12N14P
• Shaft Diameter: 4mm
• Motor Dimensions (Dia.*Len): Ø33.4*34.7mm
• Weight Including Cables (g):46.6g
• No.of Cells (Lipo): 5-6S
• Peak Current (60S): 45.1A
• Internal Resistance: 76mΩ
• Max Power (60S): 1059W
• Idle Current (10V): 0.95A

KV: 1500

• Configuration: 12N14P
• Shaft Diameter: 4mm
• Motor Dimensions (Dia.*Len): Ø33.4*34.7mm
• Weight Including Cables (g):46.7g
• No.of Cells (Lipo): 5-6S
• Peak Current (60S): 47.4A
• Internal Resistance: 62mΩ
• Max Power (60S): 1089W
• Idle Current (10V): 1.2A

Includes

• 1 x T-Motor F90 1300KV/1500KV Motor
