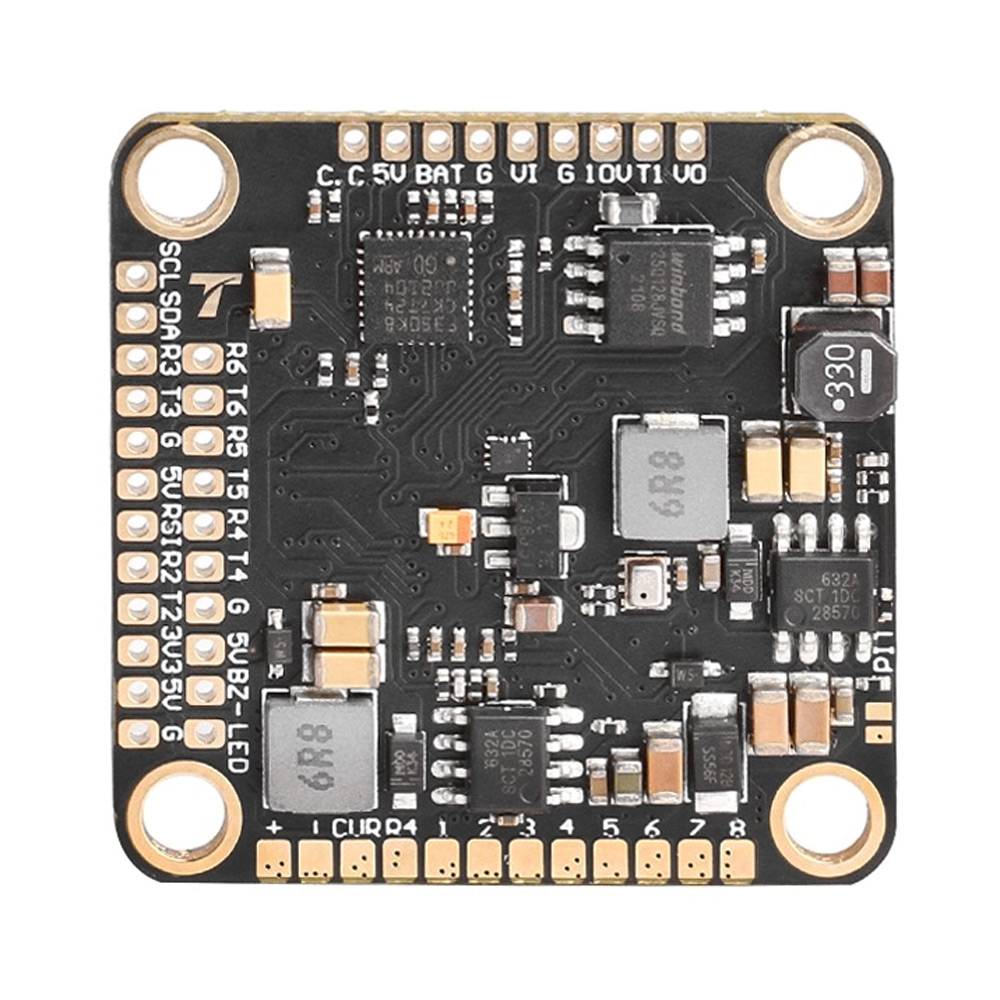

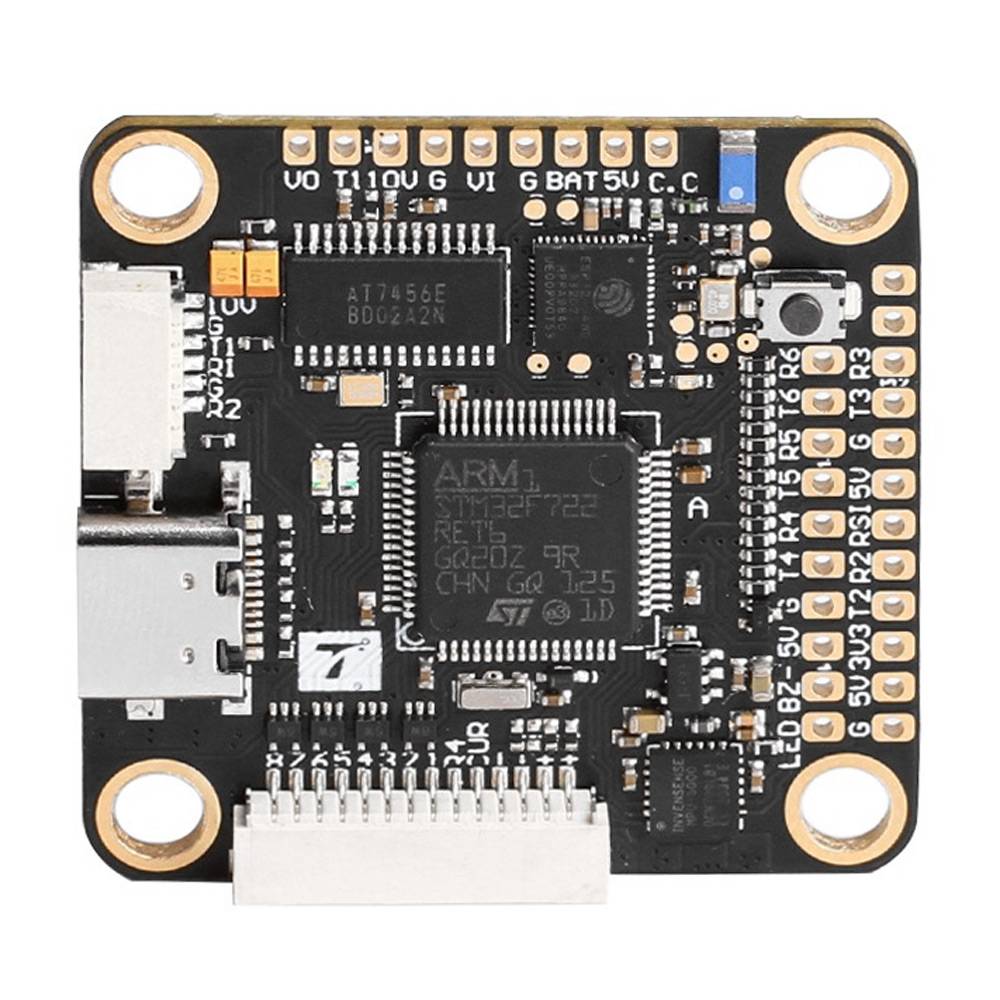

T-Motor F7 PRO Flight Controller w/ WiFi + Bluetooth

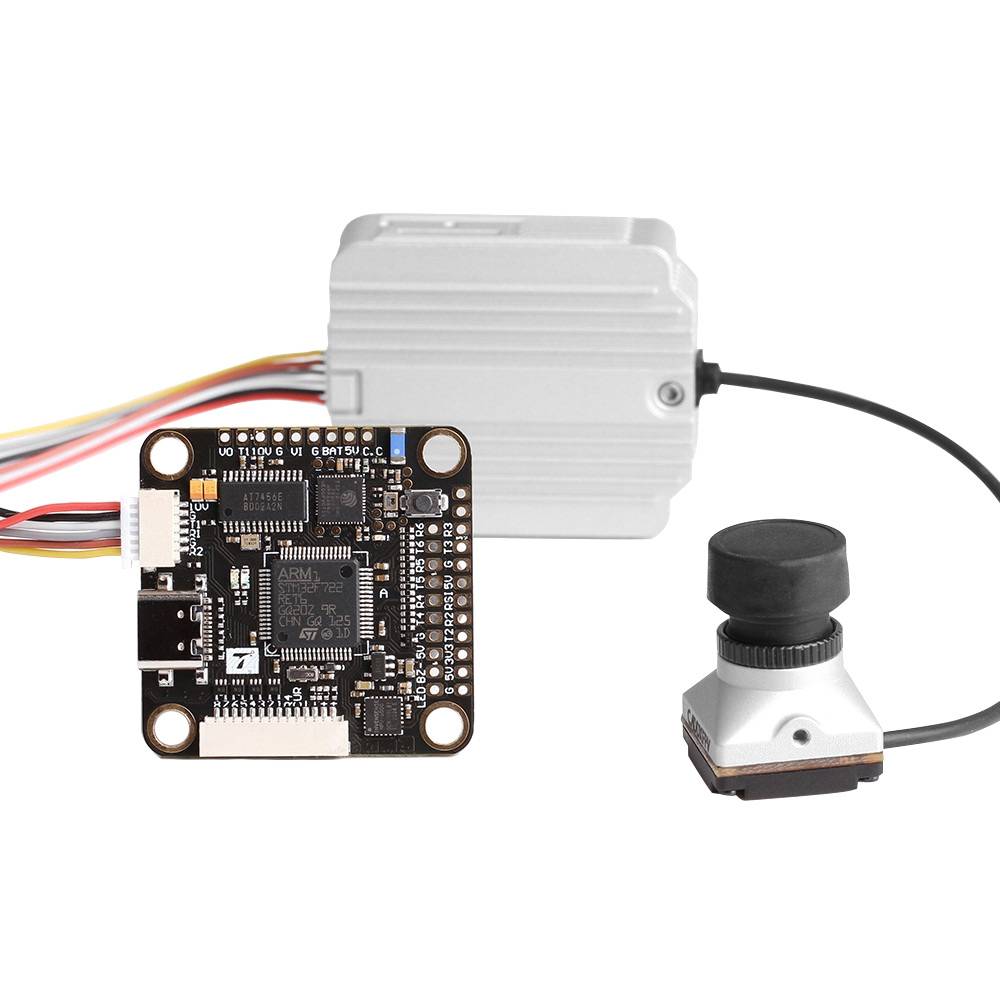

T-Motor’s F7 Pro Flight Controller has arrived! Enjoy full function in a wireless state! Great for cinematic professional use. This FC features 8 UARTS, WiFi and Bluetooth capabilites, and a 30.5×30.5 mounting pattern. Using the DJI FPV System? This FC has Plug and Play compatibility designed just for the DJI FPV Air Unit.

Features

• Supports a maximum of 8 PWM outputs
• Analyze Blackbox Data Wirelessly
• Set Motor Directions Wirelessly
• DJI Plug and Play Compatible
• Supports INAV and BetaFlight
• SpeedyBee APP Compatible
• Wireless BetaFlight Tuning
• Wireless Flash Firmware
• VTX Switch Jumper
• Built-In WiFi

Specifications

• Mounting Pattern: 30.5×30.5mm/M3
• Dimensions: 37x37x7.5mm
• MCU: STM32F722 RET6
• Target: TMOTOR F7 V2
• Blackbox: 16MB Flash
• Built-in OSD: AT7456
• ESC Signal: M1-M8
• BEC: 10V/2A, 5V/3A
• Barometer: BMP280
• Input Voltage: 3-8S
• Motor Outputs: 8
• IMU: MPU6000
• USB: Type-C
• Weight: 8.1g
• UARTS: 6
• WiFi: Yes

Includes

• 1x T-Motor F7 PRO Flight Controller
• 4x Vibration Dampeners
• 2x FC to ESC Cable
