SucceX F4 V2 1S 5A AIO Whoop Board with Built-in D8 Receiver

TOP FEATURES:

• Power supply: 1S
• Super light only 4.8g
• MCU：STM32F411
• Gyro: MPU6000
• Support BLHeliSuite programmable
• 5A continuous  current
• Built-in VTX
• Built-in D8 Receiver

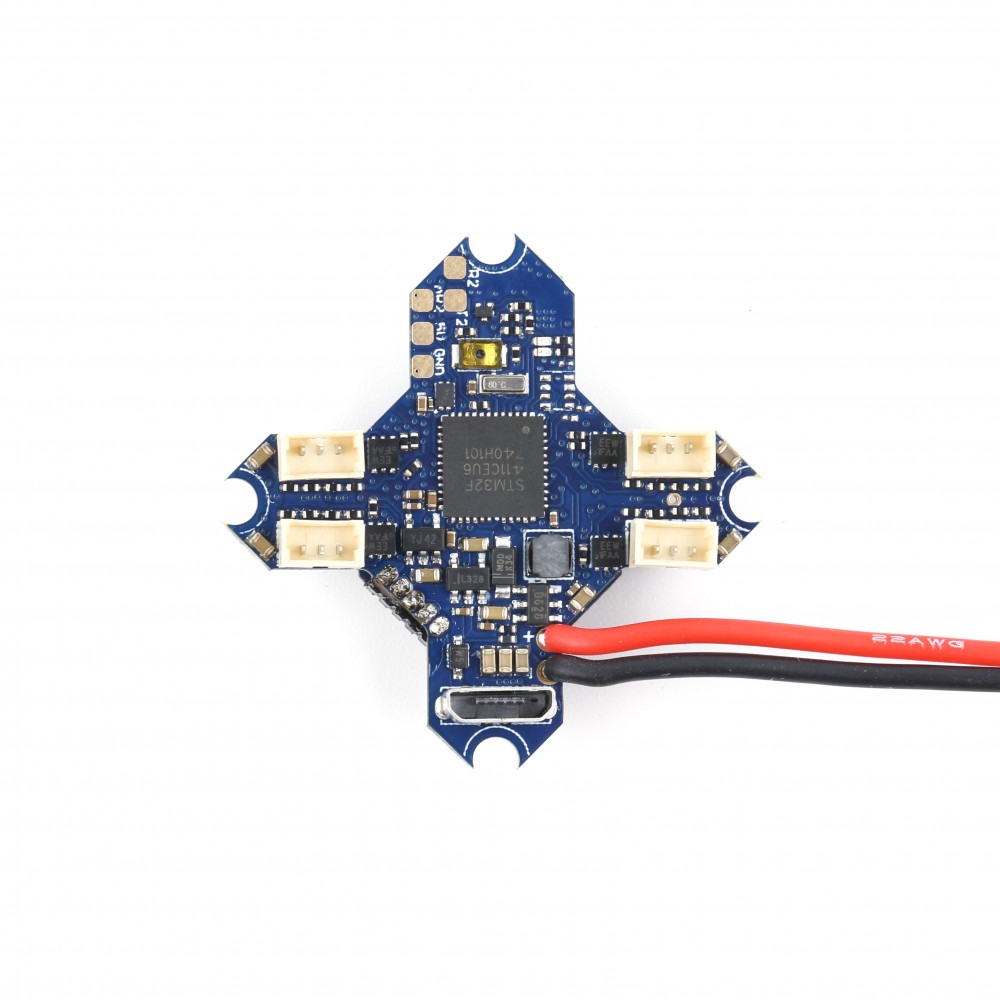

FC // SucceX-1S Whoop AIO Board

Size：29*29mm

Mounting pattern: 25.5*25.5mm/φ3mm （half-hole)

Connector：Micro-USB

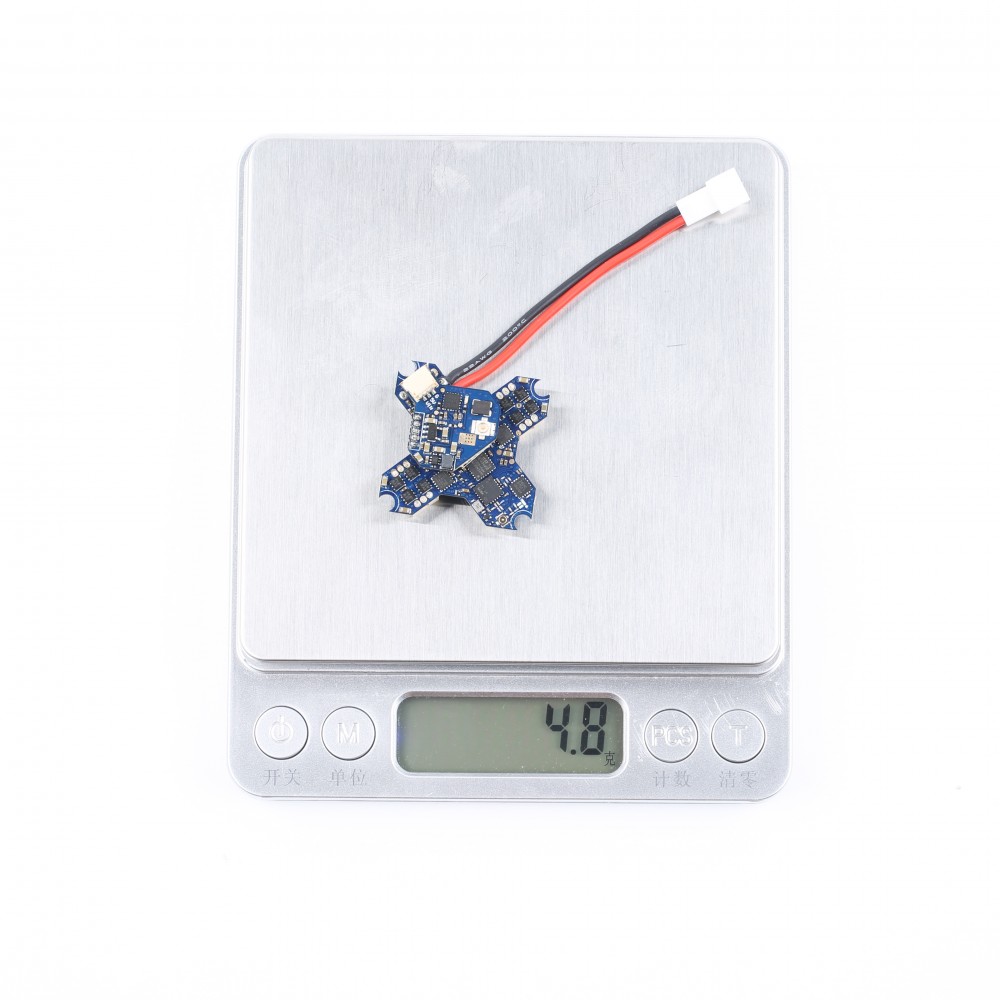

Weight: 4.8g (with power cable, VTX, and VTX antenna)

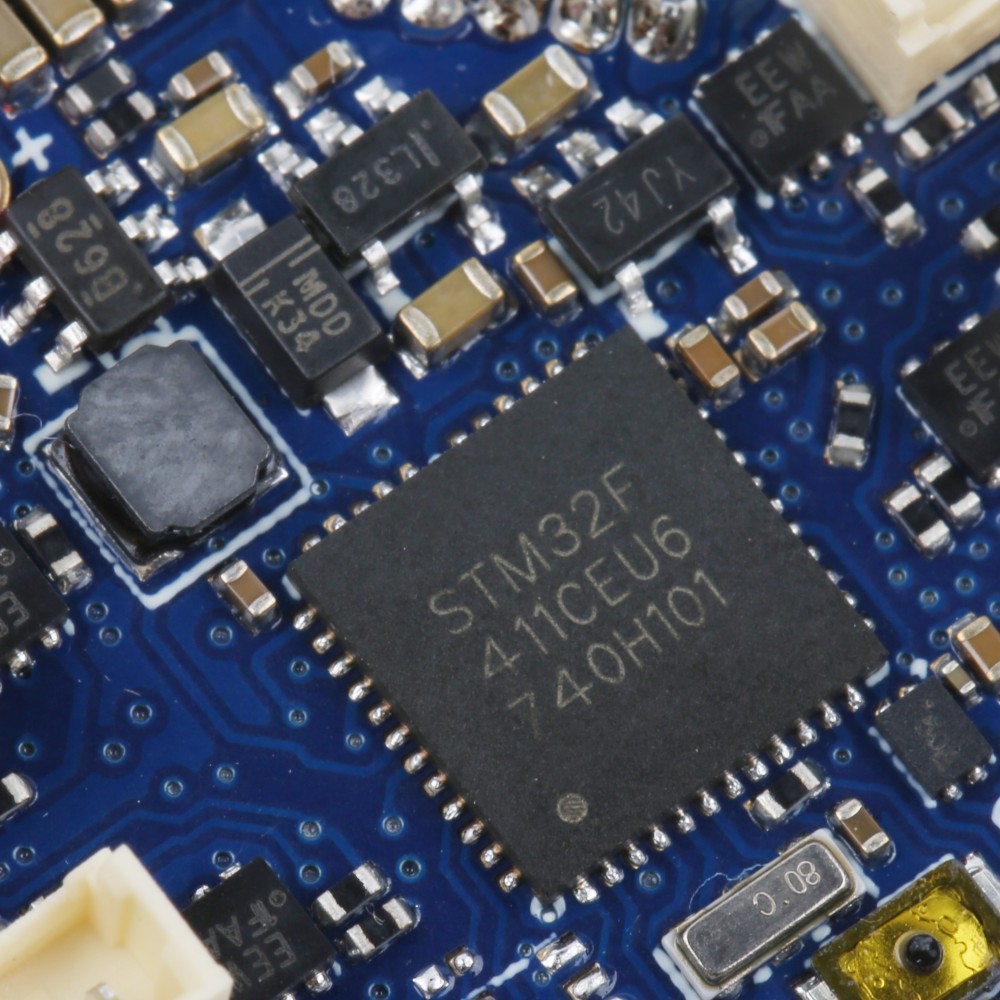

MCU：STM32F411

Gyro：MPU6000

Blackbox：no

BEC output：5V 1.2A

INA pad：n uart2

Barometer：no

FC Firmware：MatekF411RX

NOTE: F.PORT protocol RX input support, telemetry not supported.

ESC // 5A

Current: 5A continuous and peak 6A

Current scale: 400

Input：1S

Signal Support: Dshot，Oneshot，Multishot

Current sensor：yes

BLHeli：BLHeli-S

ESC Telemetry：no

ESC Firmware：O_H_05 16.8

VTX：

Input voltage: 5V

Channels: 48CH

Power: PIT/25/50mW

Connector: UFL/IPEX

Protocol: Smart audio

Package Includes:

1 x SucceX F4 V2 1S 5A Whoop F4 AIO Board V2 (MPU6000)

1x Whip antenna
