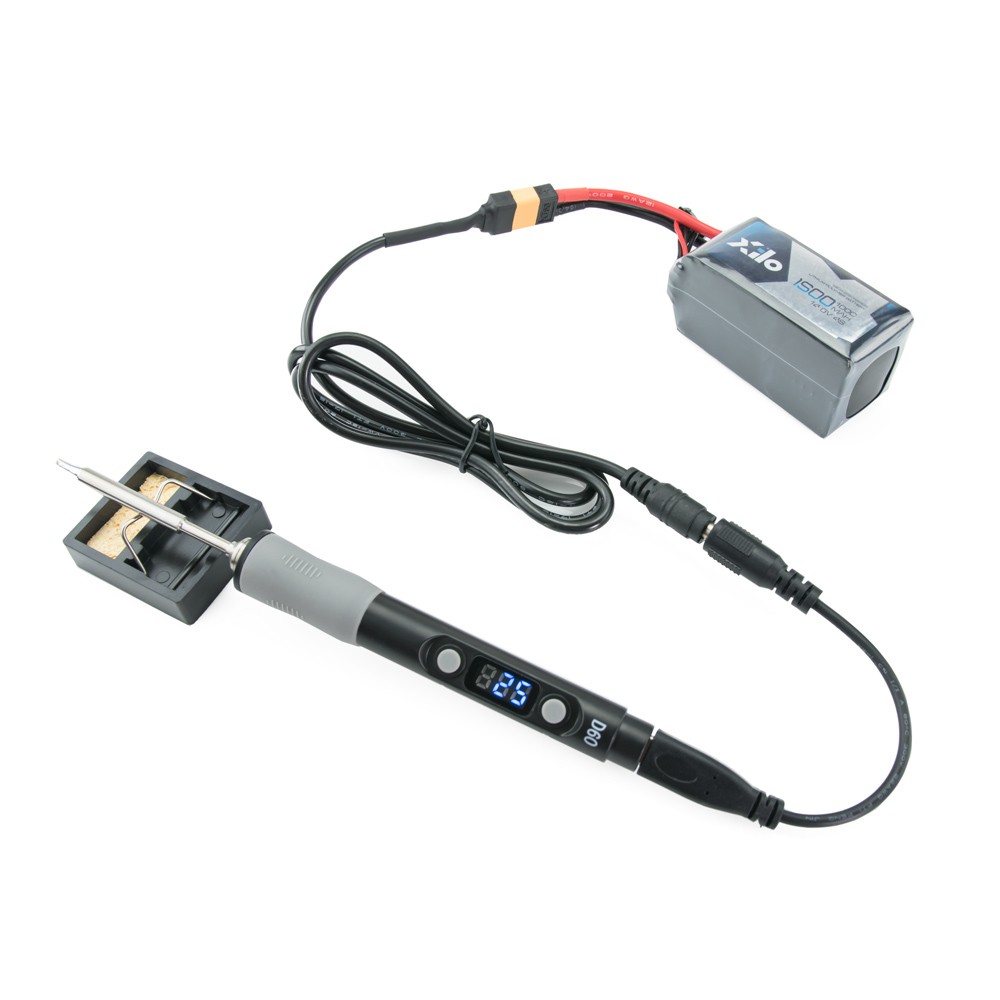

The SQ-D60 is equipped with a SQ-001 soldering iron head and uses TYPE-C power supply, “A section” LED display and “B section” digital tube display.
SQ-D60B with humanized functions such as automatic sleep shutdown, induction wake-up, etc., it is a portable intelligent constant temperature electric soldering iron.
The operation is simple and easy, the temperature rises quickly and stably, and the round and small body is full of simplicity and luxury. It is an essential welding tool for electronic players.
SQ-D60B adopts integrated TYPE-C power supply interface. The circuit design is stable and safe. The built-in processor, dual temperature sensor and motion sensor are the perfect combination to make SQ-D60 freely switch between various temperature ranges. Wake-up, over-temperature and high-pressure alarm, etc., truly realize intelligent intelligent constant temperature electric iron.
|* The heating end uses an internal heating core|
|* Temperature stability range: ± 5 ℃|
|* Temperature range: A version: 280 ℃, 350 ℃, 400 ℃（Choices）
B version: 100-400 ℃ (Adjustable)
Comparison of A and B soldering irons:
If you use PD power adapter, we suggest to buy our power cable which bring the PD protocol chip.
Please use proper power supply and accessories to ensure safe use.
Before replacing the soldering iron head, you must cut off the power.
Do not touch the tip of the soldering iron after the temperature has risen to avoid burns.
The electric soldering iron is used for the first time. It may be slightly smoked due to the heating of the heating element. This is normal.

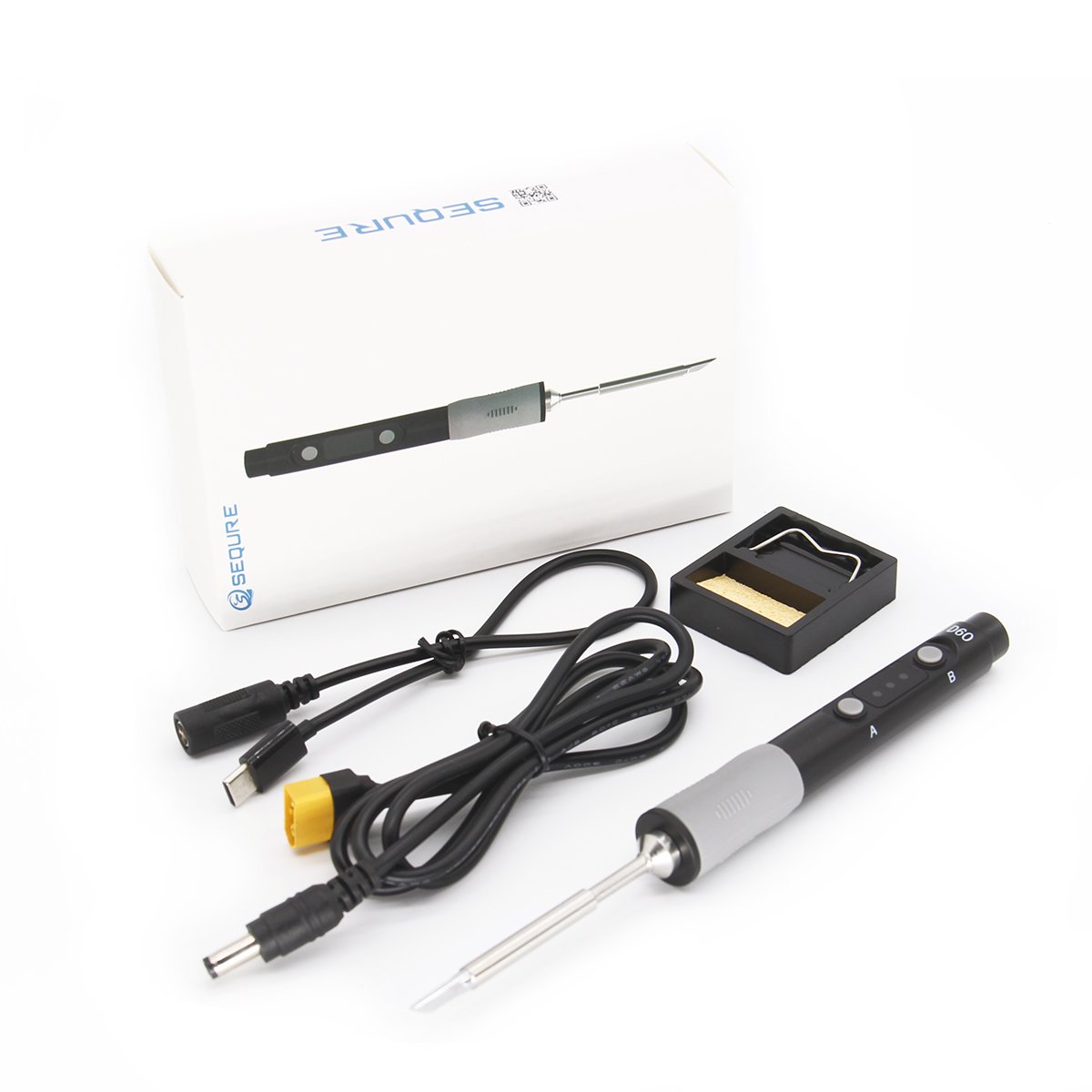

Soldering Iron Kit Packing list:
1 x Mainframe
1 x Soldering Iron Tip
1 x Conversion Line
1 x Instruction Manual
1 x Soldering Iron Stand
1 x Hex Key
1 x XT60 Power Cable
