PVC heat shrinkable sleeve has the special function of shrinking when heated to 98 ℃, easy to use. It has the advantages of good flame retardant, environmental protection, insulation, softness, stable performance, low shrinkage temperature and fast shrinkage.The product has good high-temperature resistance and no secondary shrinkage. It can play the role of anti-counterfeiting and beautifying the packaging materials, and it has the effect of insulation, moisture-proof, anti-corrosion, dust-proof and other aspects of the coated articles.
PVC Product Parameters:
Temperature range: – 55 ℃～ 105 ℃
Rated voltage: 300V
Shrinkage ratio: transverse shrinkage ≥ 48%, longitudinal shrinkage ≤ 8%
Product colour: Blue
Tips: Small diameter, short head, you can use a lighter to complete the contraction. Instead of touching the fire, it uses the radiant heat of the fire to achieve the contraction effect. The heat-shrinkable tubes with large diameters or long quantities can be shrunk by a hot air duct / hot air gun in batch.
Noted: The option indicates the flattening dimension (half of the circumference), not the diameter. There may be an error of 5% between the actual flattening width and the selling nominal value.
(1) 30mm width / M (single 18650 battery)
(2) 85mm width / M

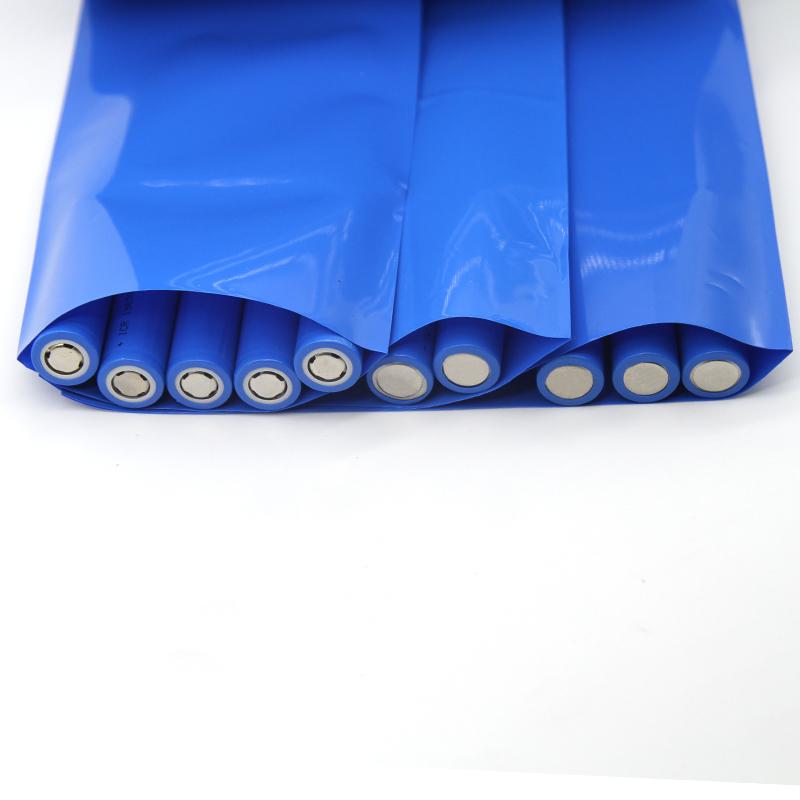

(3) 110mm width / M (5pcs 18650 batteries)
(4) 150 mm width / M
Product size: 150 * 50 * 50mm
Net weight: 55g
Package box size: 190 * 130 * 50mm
Weight after packaging: 130 g
