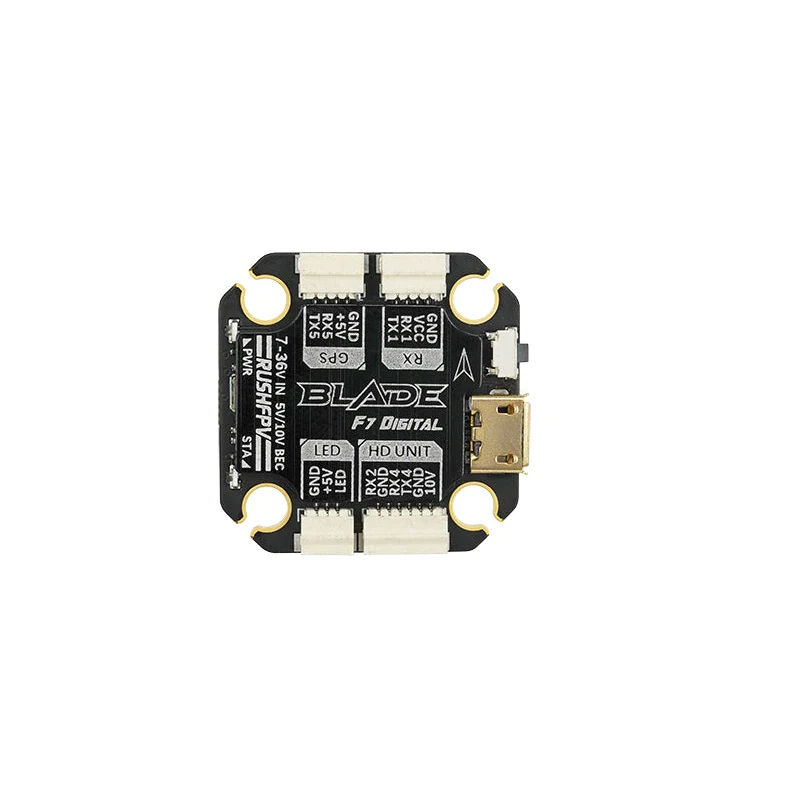

RushFPV Rush Blade F722 20×20 Mini Digital Flight Controller
The Rush Blade Mini F722 Flight Controller is a 20×20 integrated flight controller that combines the MPU6000 high-performance 6-axis motion sensor, and a high-speed 32-bit STM32 F722 MCU to bring you unparalleled flight control capability. These features allow you to fly with full confidence even in tough environments. Easy DJI plug and play port.
Note: This is a new batch from April 2022. Batches prior to this date have had quality control issues.
- High-performance STM32 F722 MCU with speeds up to 216MHz.
- Using MPU6000 with integrated accelerometer and gyroscope, stable and reliable.
- Built-in analog video OSD,
- 16M black box, SUART ports, 6PWM output ports, 2 ADC ports, 1 I2C port, and 1 camera control port.
- Integrated 36V input power supply, up to 6S lipo battery power supply, 5V 5A output.

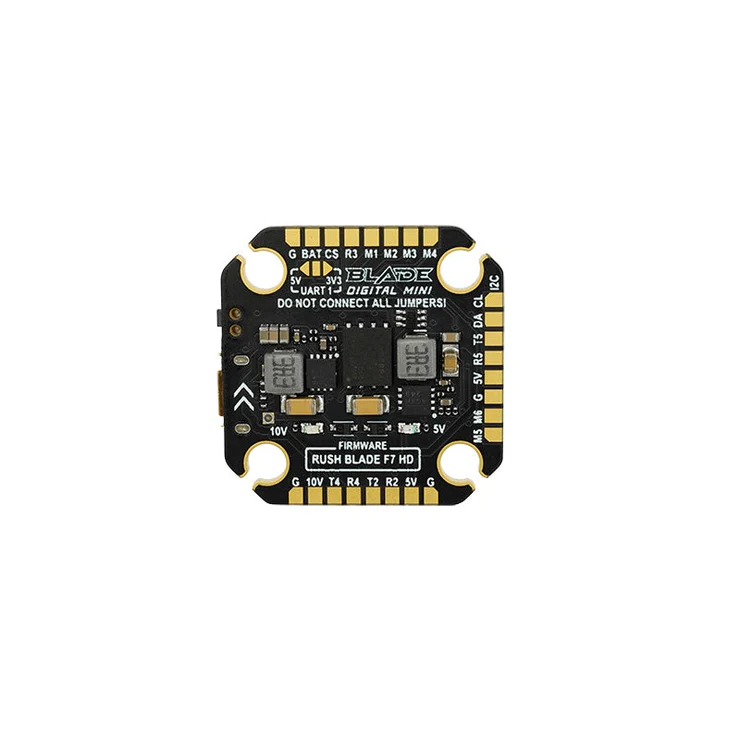

- Modular cable design, with a reliable locking structure, can be installed quickly, while retaining full-featured pads on the back, providing more expansion support.
- Optimized for stack installation, the single-sided component placement method makes the thickness thin, and the bottom is covered with complete copper to resist ESC interference.
- The full-covered lightweight metal shell protects internal electronic components and provides perfect heat dissipation.
- Brand: RUSH BLADE
- Item Name: F722 Analog Mini Flight Controller
- MCU: STM32 F722 RET6
- Port: 6x PWM 6x UART 1xI2C
- Gyro: MPU6000
- ADC: BATTERY VOLTAGE / CURRENT
- BEC Input: 7-36V 3-6S LIPO
- BEC Output: 5V 2A
- LED: SUPPORTS WS2812 LED STRIP
- Navi: SUPPORTS COMPASS/GPS
- OSD: CVBS PAL/NTSC
- Mounting holes: 20* 20mm
- BLACKBOX: 16MB SPI FLASH
- Size: 29mm*29mm*6.8mm
- Target: RUSH_ BLADE F7
- Voltage: 3-6S
- Weight: 5g(without cable)
- 1x RushFPV Rush Blade F722 20×20 Mini Digital Flight Controller
