iFlight SucceX-D F7 V2.2 TwinG Flight Controller (HD Version)

PRODUCT DESCRIPTION

The SucceX-D F7 V2.2 is designed to work seamlessly with DJI’s new HD FPV system. To make things even simpler, the DJI Air unit can just be plugged into the FC with the included wire harness. In addition, we added the popular and reliable USB Type-C instead of Micro USB and therefore the same standard than your DJI module.

Features

• Universal USB Type C connector instead of micro USB
• Plug-and-Play. No need to solder tiny wires.)
• Supports BLHeli pass-through for easy ESC upgrade and configuration.
• Designed to support DJI Digital FPV.

Changelog:

Due to some global supply issues, the Barometer and Flash component was updated as well as some circuit improvements implemented.

Before target BTFL4.2.4 changed to IFLIGHT_F722_TWING

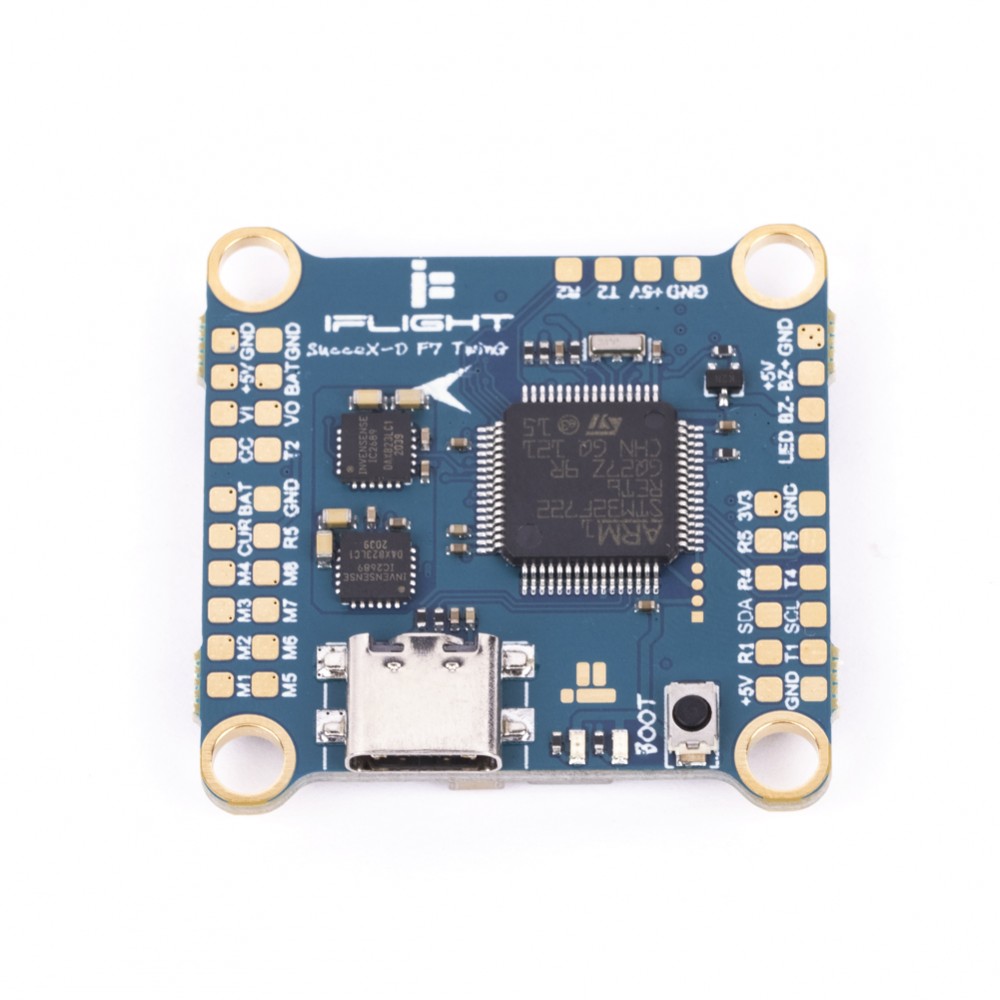

FC // SucceX-D F7 TwinG

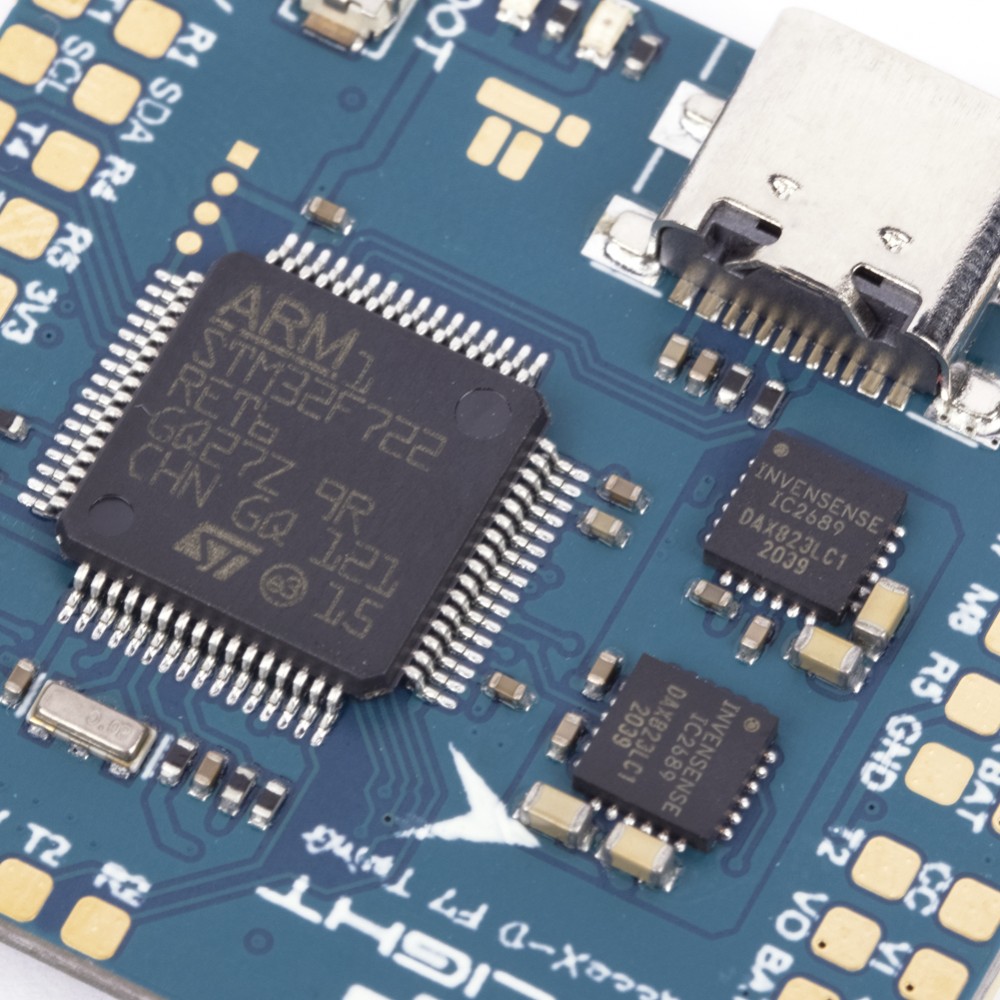

• MCU: STM32 F722
• Gyro：ICM20689
• Baro: NO
• Blackbox：32MB
• Betaflight OSD: YES
• BEC: 5V 2.5A / 9V 2.5A
• Current sensor scale:  100
• Inverter for SBUS input (UART2-RX)
• Smartaudio & Tramp VTX protocol supported
• Beeper pad : Yes
• RSSI input pad: No
• UARTs：4
• Motor outputs: 8
• Uart:4*UART(UART1、UART2、UART4、UART5)
• UART1 for Receiver
• UART2for VTX HD/Analog Telemetry
• UART4 for GPS or other sensors that require a serial port
• UART5 for ESC Telemetry
• 8×Dshot/PWMoutputs
• 1×I2C

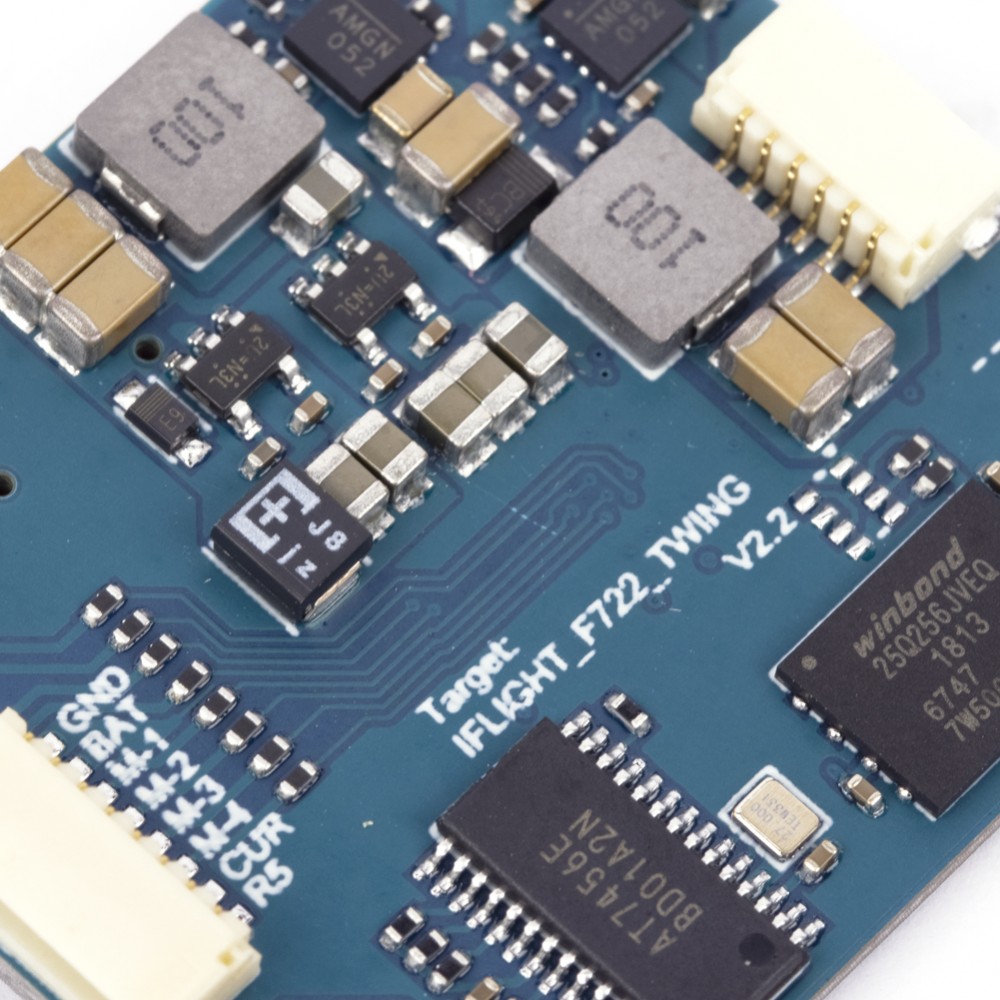

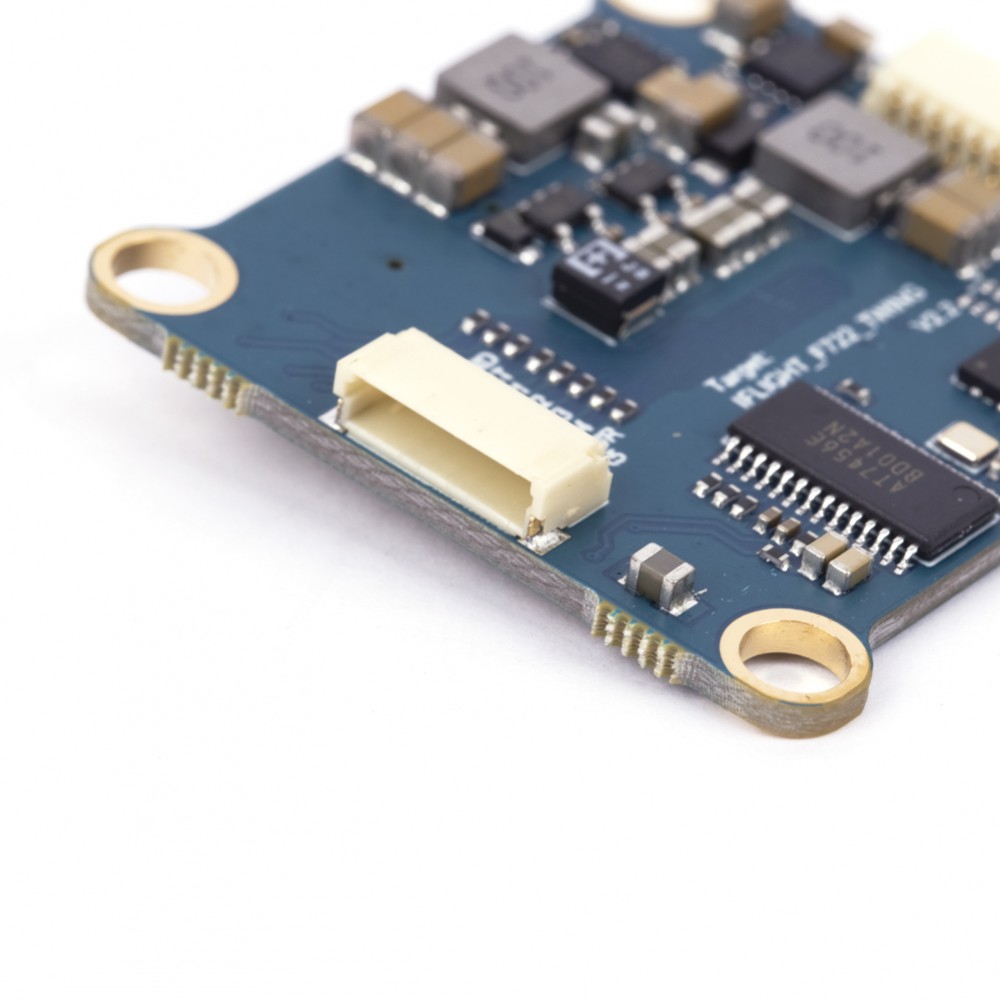

• 1×SH1.0 8pin connector for ESC（GND/BAT/M1/M2/M3/M4/CUR/R5)
• 1xSH1.0 6pin connector for Any Receiver or DJI（R1/GND/R2/T2/GND/+9V）
• Input voltage：recommended 2-6S, MAX 8S

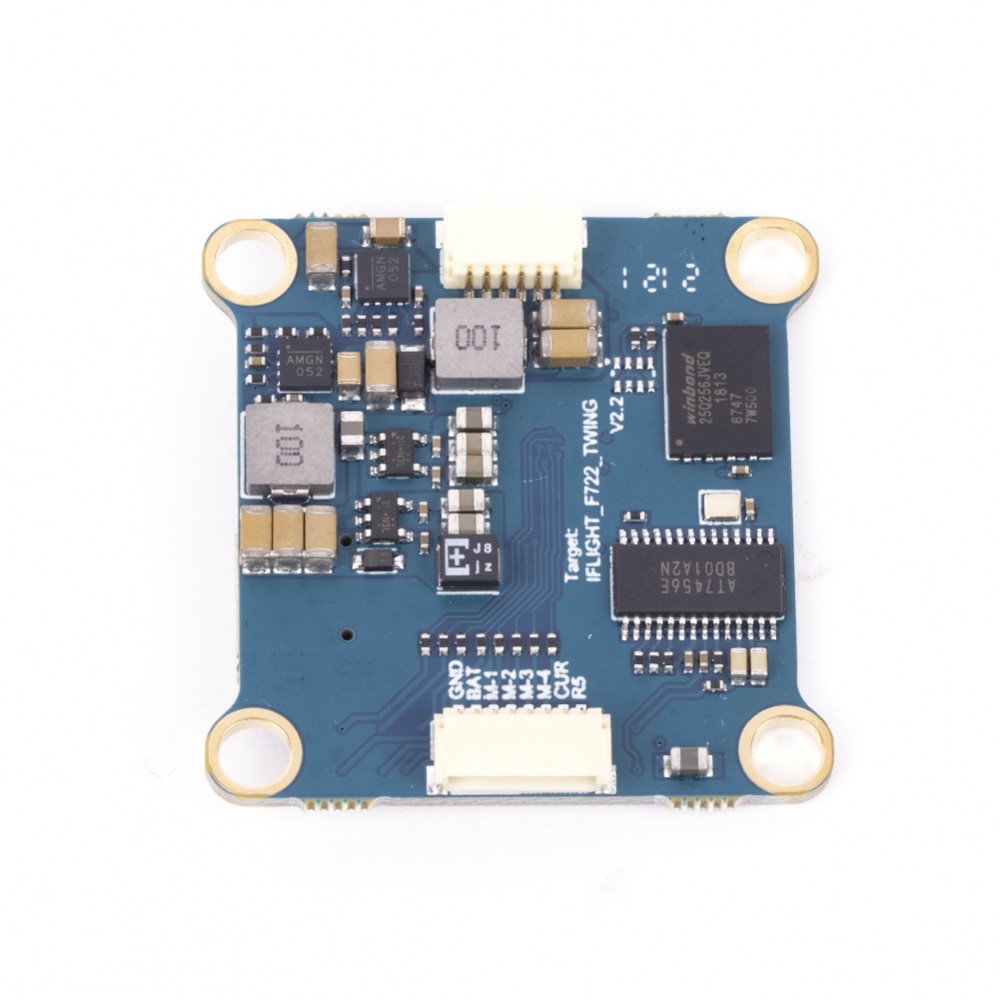

• Firmware target: IFLIGHT_F722_TWING
• Mounting pattern: 30.5*30.5mm φ4mm with Grommets φ4mm
• Dimensions:   36*36mm

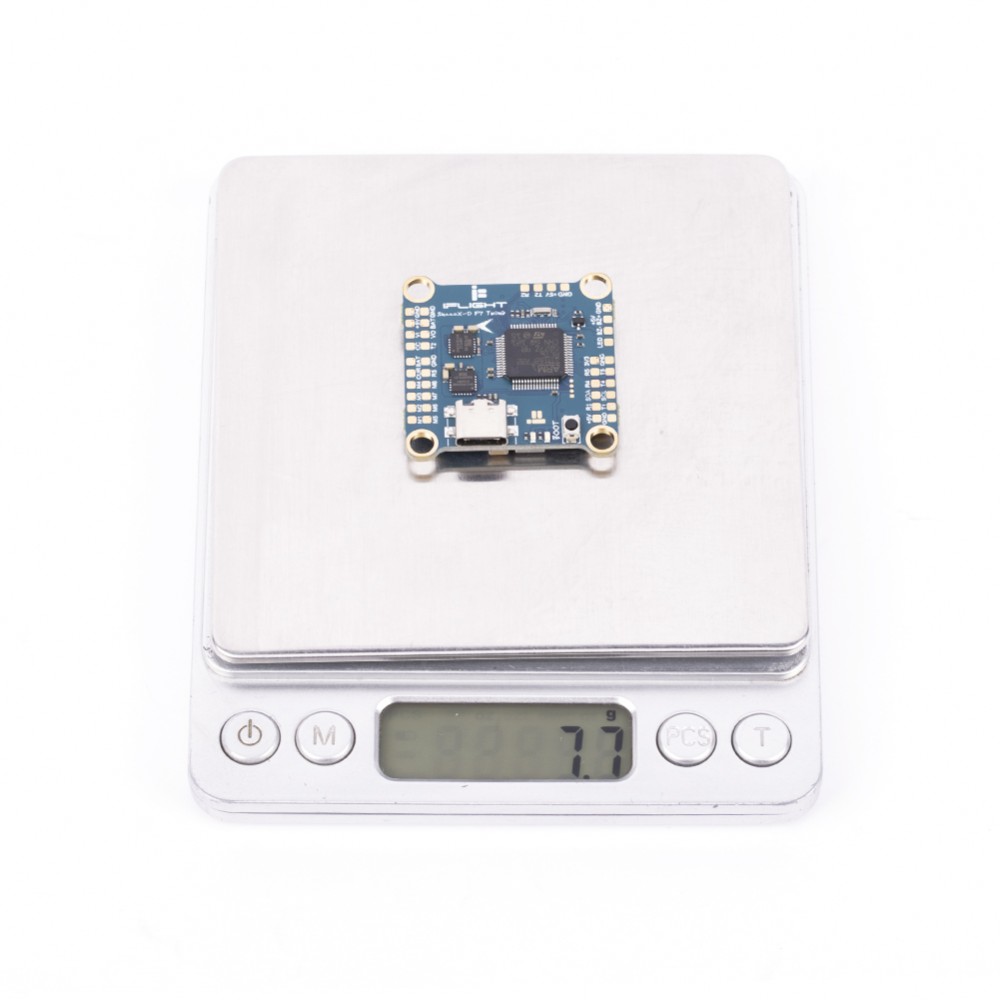

• Weight: 8.1g

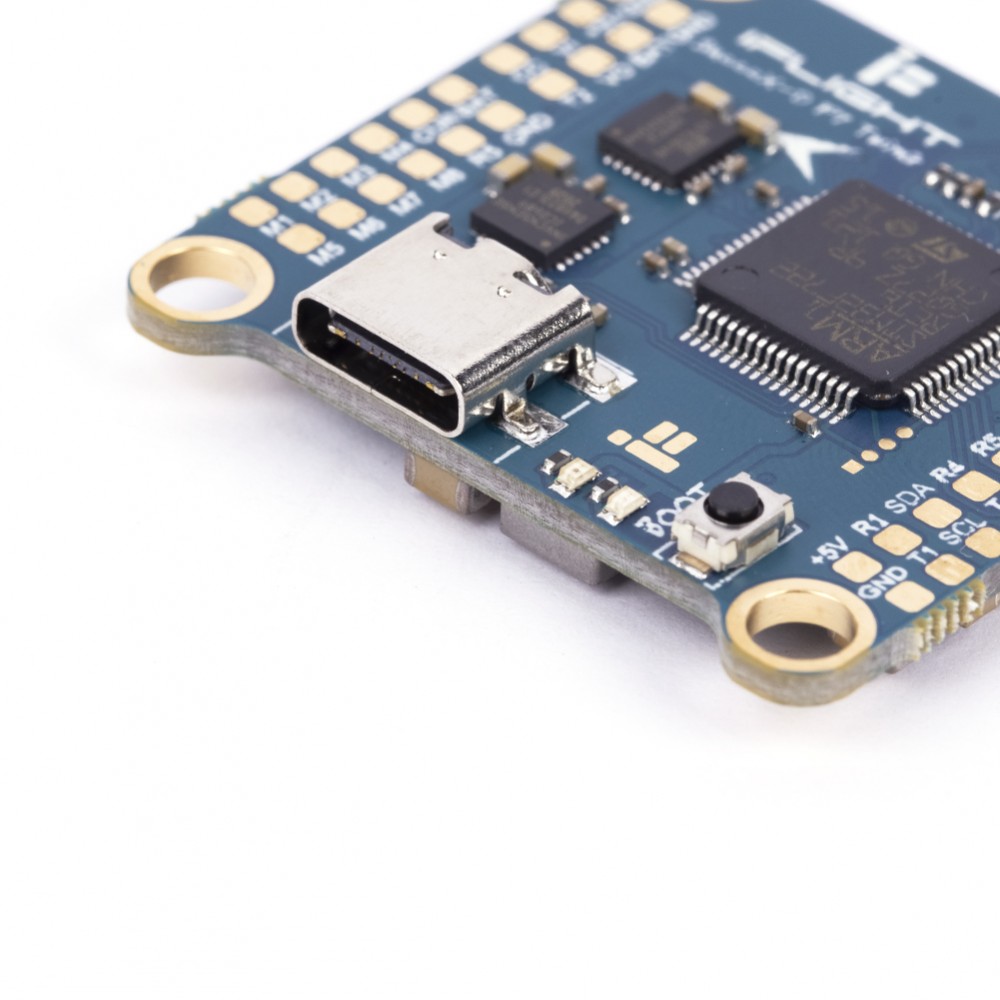

• USB type-C

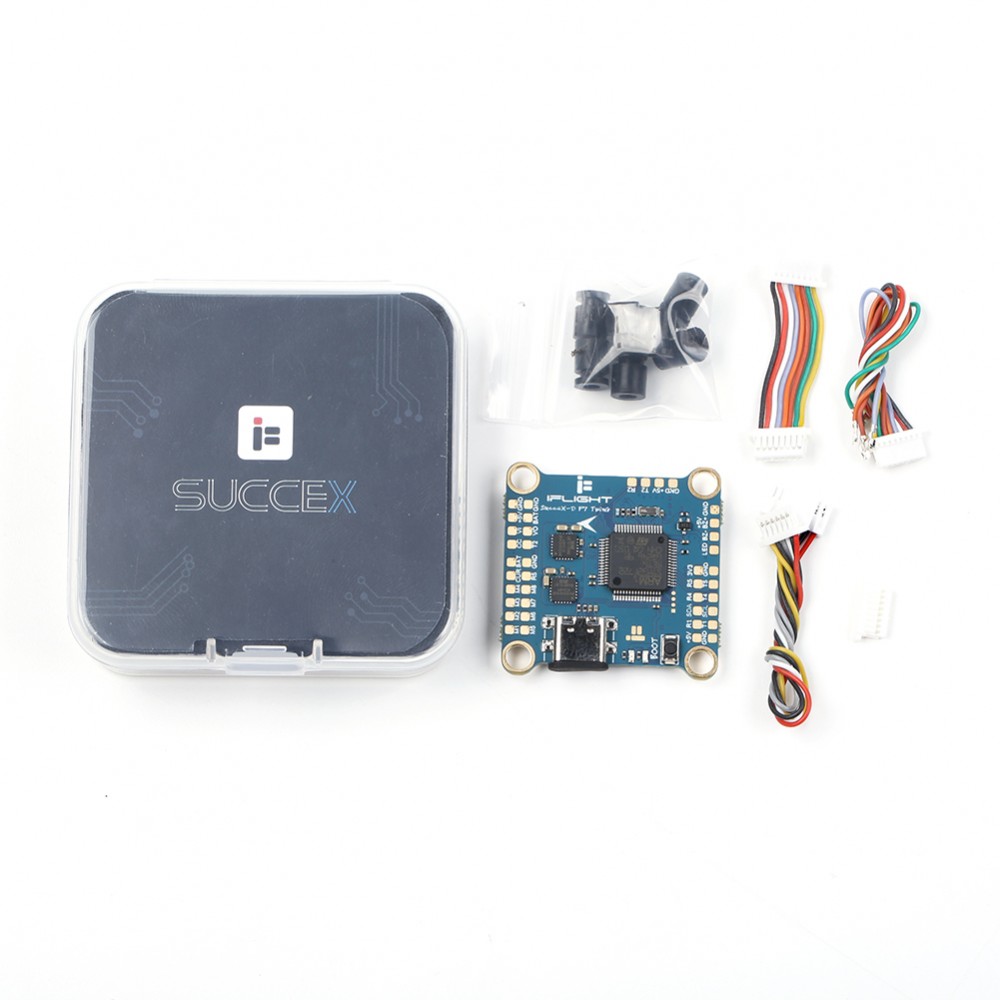

Package included:

– SucceX-D F7 V2.2 TwinG Flight Controller (HD Version)

NOTE:

The DJI Air Unit is not included in the package.
