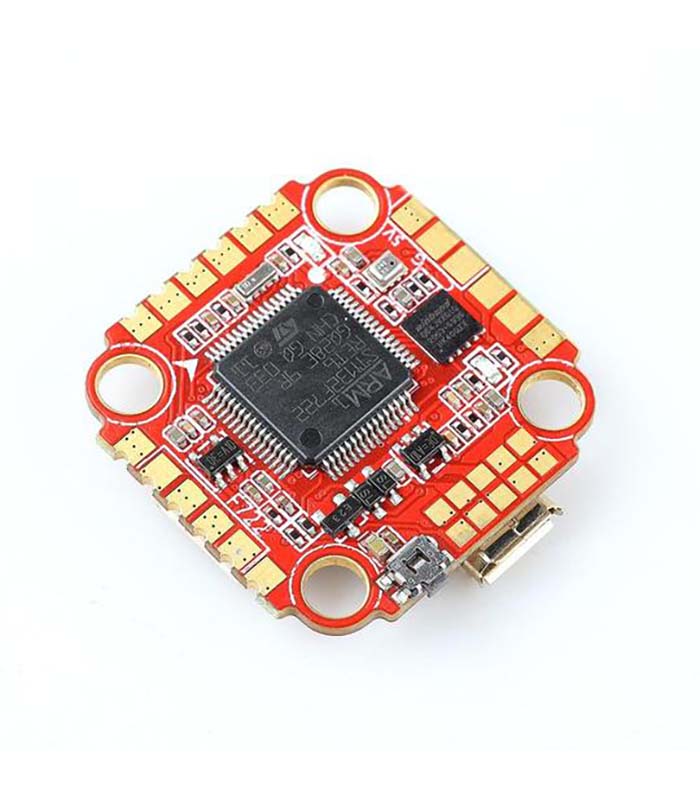

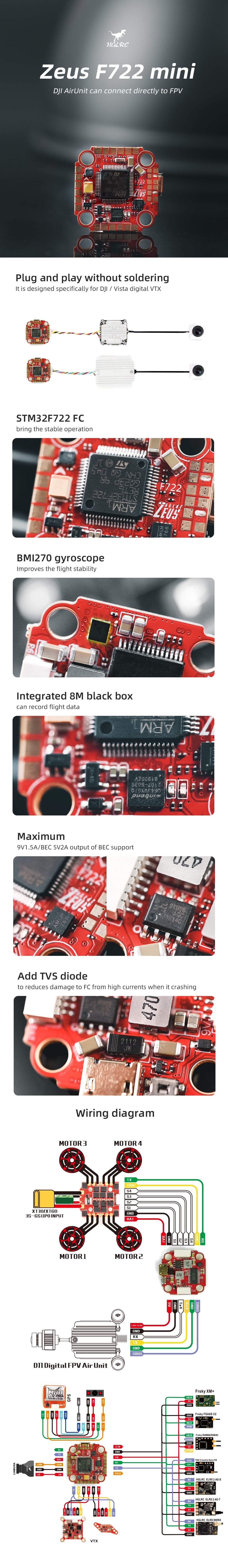

HGLRC Zeus F722 Mini FC for Digital & Analog

HGLRC DJI Zeus F722 mini 3-6S Flight Controller/support terminal direct connections without soldering

1. You can connect quickly to the DJI Air Unit via the socket
2. The processor STM32F722 is used to operate more stably.
3. The GYRO BMI270 is used to improve the flight stability.
4. 8M black box is integrated to record flight data accurately.
5. Maximum output is up to BEC 9V1.5A / BEC 5V2A
6. TVS diode is added to reduce the damage of strong current to FC while crashing.

Brand Name: HGLRC
Product name: Zeus F722 mini
FC Firmware: HGLRCF722
CPU: STM32F722 RET6
MPU: BMI270
Barometers: DPS310
BEC Output: 9V/1.5A,5V/2A
Input voltage: 3-6S Lipo
UARTS: 5
OSD: Support
BlackBox: 8M
Installing Hole: 20X20mm.M3
Size: 29x28mm
Weight: 5g

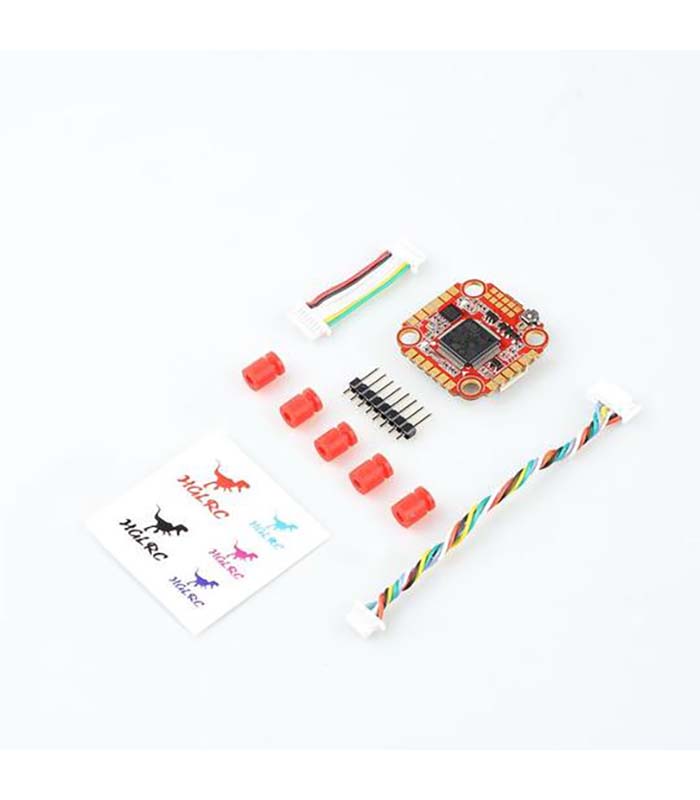

Package Includes:
1x Zeus F722 mini flight controller
1x Accessory pack

Download hex file for iNAV 2.5.1 here. Or use target “HGLRCF722” on iNAV 2.5.2 and future versions.

Download hex file for emuflight here.

Target is ” HGLRC F722″ for flightone firmware, you will also need to purchase the flightone license separately.

See manual here：F722 MINI Flight controller
