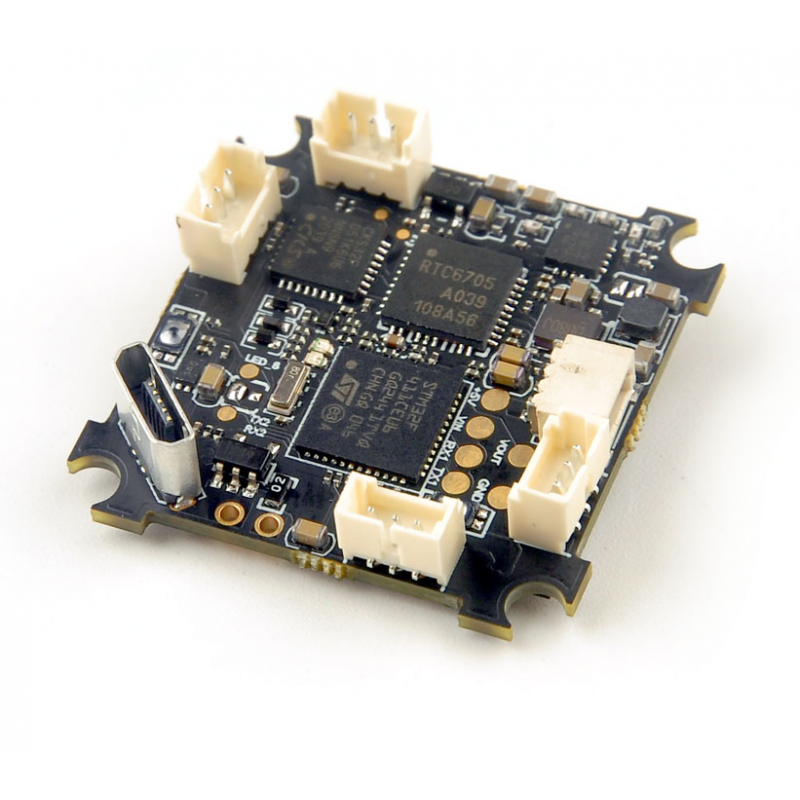

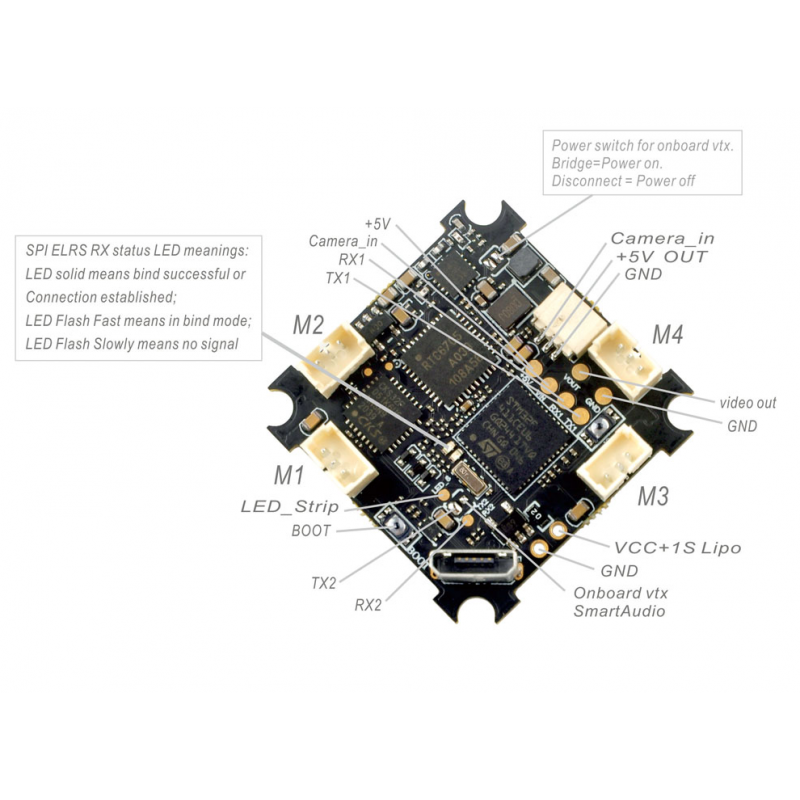

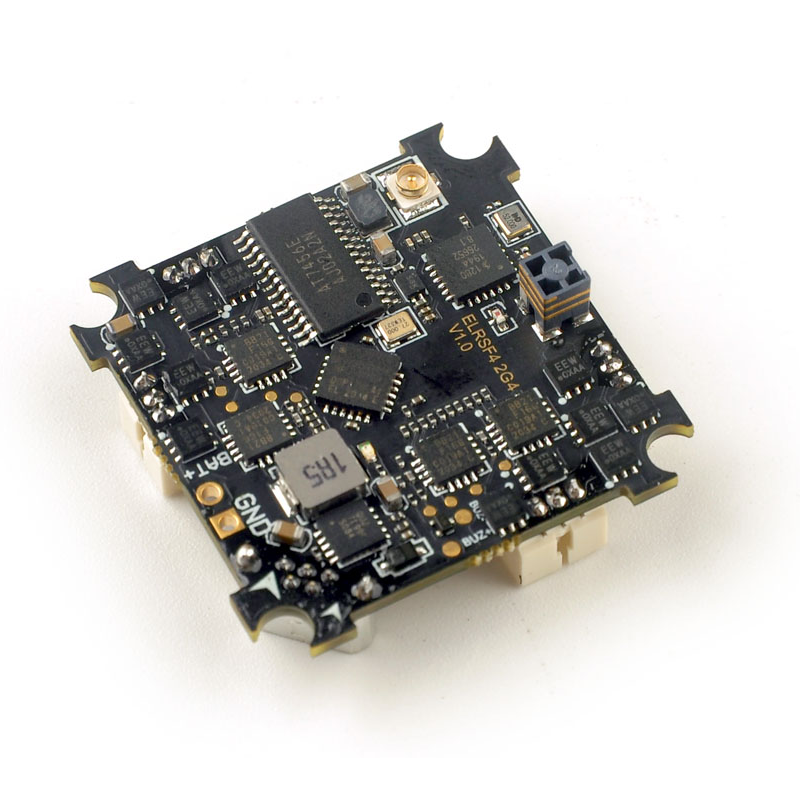

HappyModel ELRS F4 2G4 AIO Flight Controller

FC SPECIFICATIONS

• MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
• Sensor: MPU-6000(SPI connection)
• Original whoop size compatible
• Power supply: 1S battery input (DC 2.9V-4.35V)
• Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
• Built-in Betaflight OSD(SPI Control)
• Built-in 5.8G VTX
• Built-in SPI ExpressLRS 2.4GHz receiverBuilt-in 5V 1A BECFlight controller firmware target: CRAZYBEEF4SX1280

ESC SPECIFICATIONS

• MCU upgraded to EFM8BB21
• Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds)
• Support BLHeliSuite programmable
• Factory firmware: O_H_5_REV16_8.HEX
• Default protocol: DSHOT600

EXPRESSLRS

• Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz

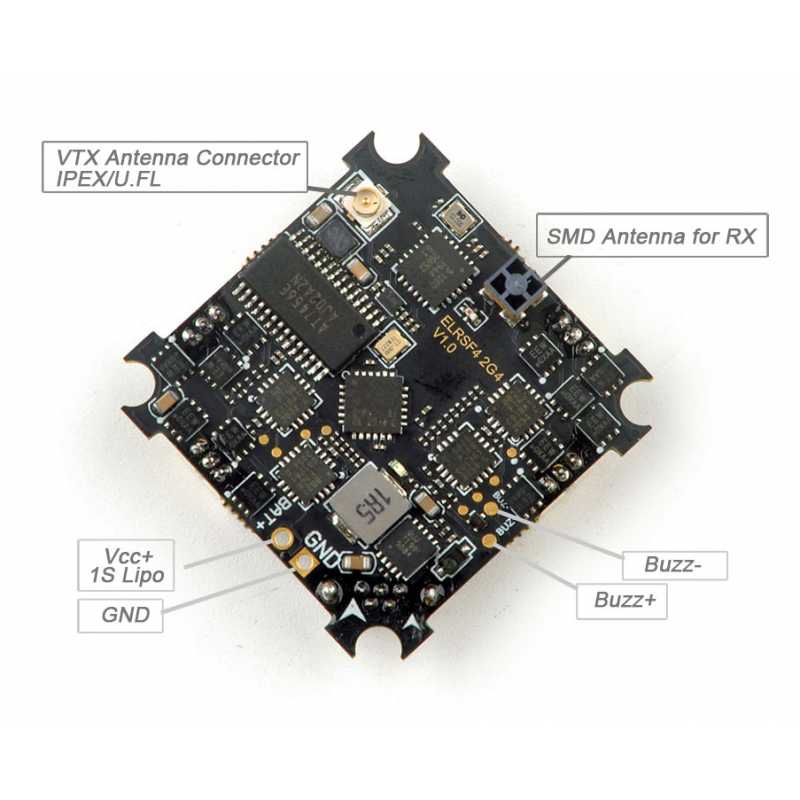

• RF Frequency: 2.4GHzAntenna : SMD antenna
• Telemetry output Power: <12dbmreceiver protocol:=”” spi=”” expresslrscould=”” bind=”” with=”” happymodel=”” es24tx=”” lite=”” slim=”” and=”” diy=”” 2=”” 4ghz=”” elrs=”” tx=”” module=”” need=”” to=”” flash=”” the=”” same=”” version=”” firmware=”” li=””>

VTX

• Output power: 25mw~200mw switchable
• Frequency: 40CH
• Input voltage: 3.3V 5.5V
• Current consumption: 300mA(type)
• Frequency: 5.8GHz 5bands 40 channels(include Race band)Smartaudio ready

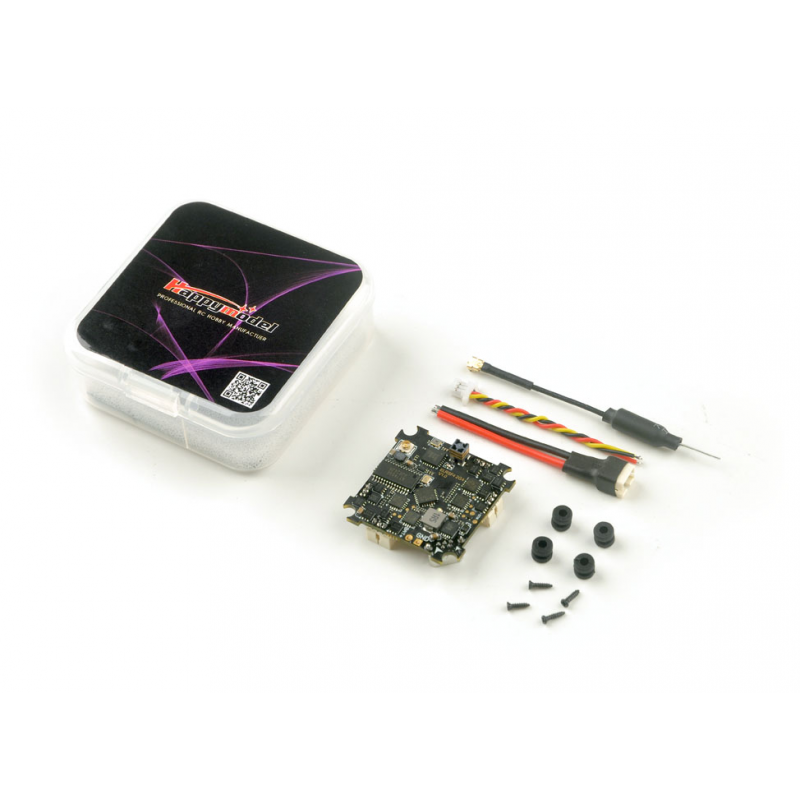

INCLUDED

• 1x ELRS F4 2G4 AIO Flight Controller
