Description:
Brand: Eachine

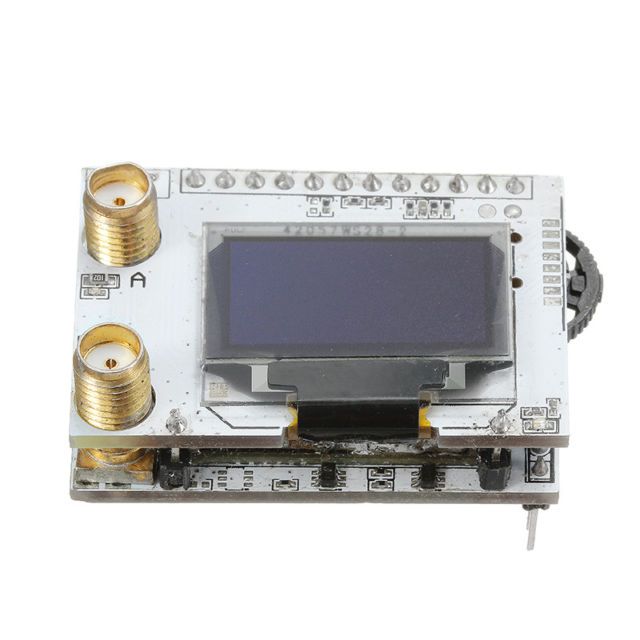

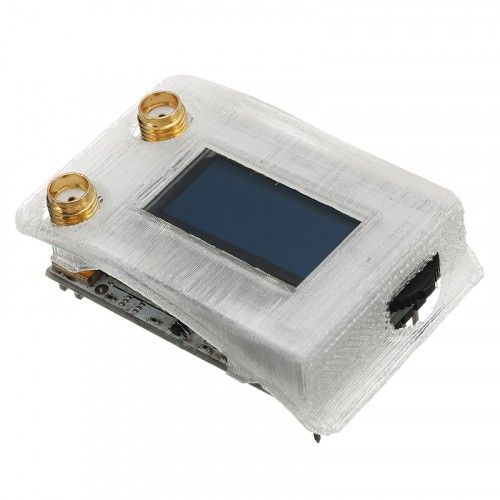

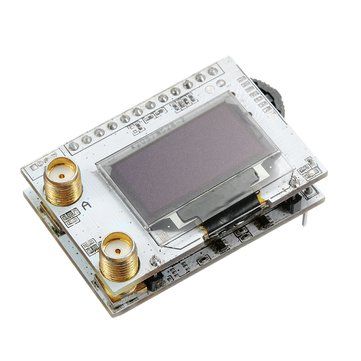

Item Name: PRO58 RX
Frequency: 5.8G
Channel: 40CH
Size: 42x30x25mm (check the detail size on the picture)
Weight: 23g
Specifications:
Duo way/Diversity work signal;
Scan all frequencies and selectable result;
Quick and easy way to display wireless information;
Large RX part for FatShark or similar glasses;
40ch including RaceCH;
Nice sensitivity-92dBi;
5V working, power supply from glasses;
Partially control with the buttons on the glasses, the ch+ and ch-;

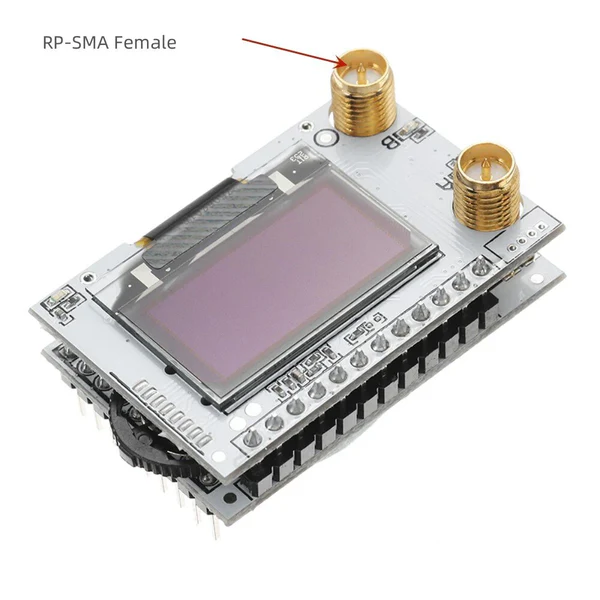

SMA and RP-SMA versions both available;
Beeper 1built-in to indicate your operations
Frequency:
Build in 5.8G 40CH RaceCH receive
Build in 5.8G 40CH RaceCH receive
| Frequency table | ||||||||
| CH A Frequency | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| CH B Frequency | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| CH E frequency | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| Frequency CH F | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| CH R Frequency | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
Characteristics:
1. Control directly from buttons (ch+ and ch-) on FatShark goggles, but limited with channel selection 1-8, due to FatShark inside S/W.
2. EACHINE customized booting LOGO.
3. Search mode shows all working frequencies and their strength, and you can select them from the result table. We provide all frequencies in order of ABEFR sequins, each channel has a small bar to show its strength, longer bar support for stronger signal.
A typical search result shows: there are 6 signals and E1(5705M) is the strongest. You can press to select it, or you can up or down to select another channel and press confirm to view it,
4, The main working interface provides abundant information, including: working frequency name (such as E1, in bigger size letters), exact working frequency (such as 5705M), working mode (such as AUTO, working on RX A, Auto way) and signal strength (Right Conner), and if you work in diversity mode, there will be RX current (A or B) just before the strength sign.
5. Simple and easy interface to show you the most useful information.
6. Easy to use 3-way up-down-select button
7, fully compatible with all FatShark glasses series
