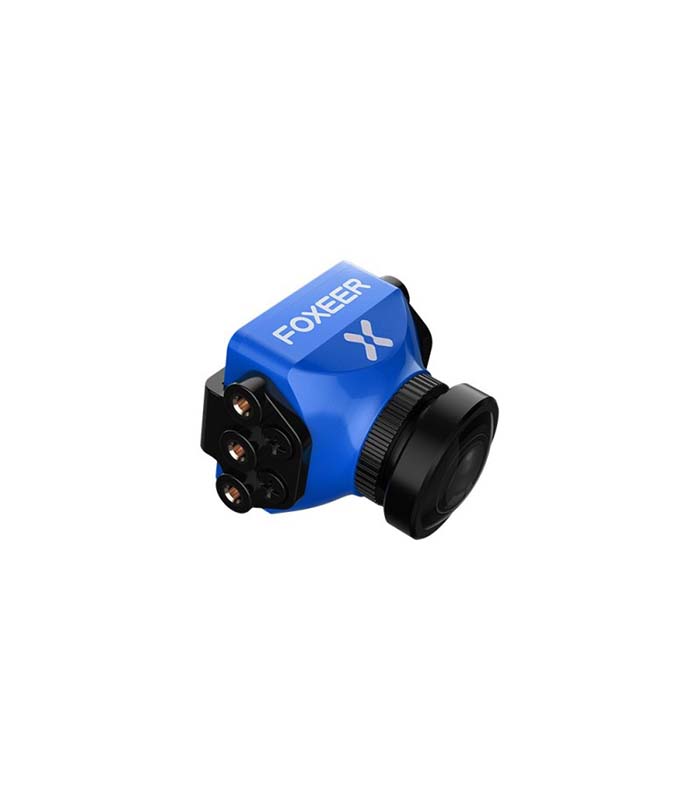

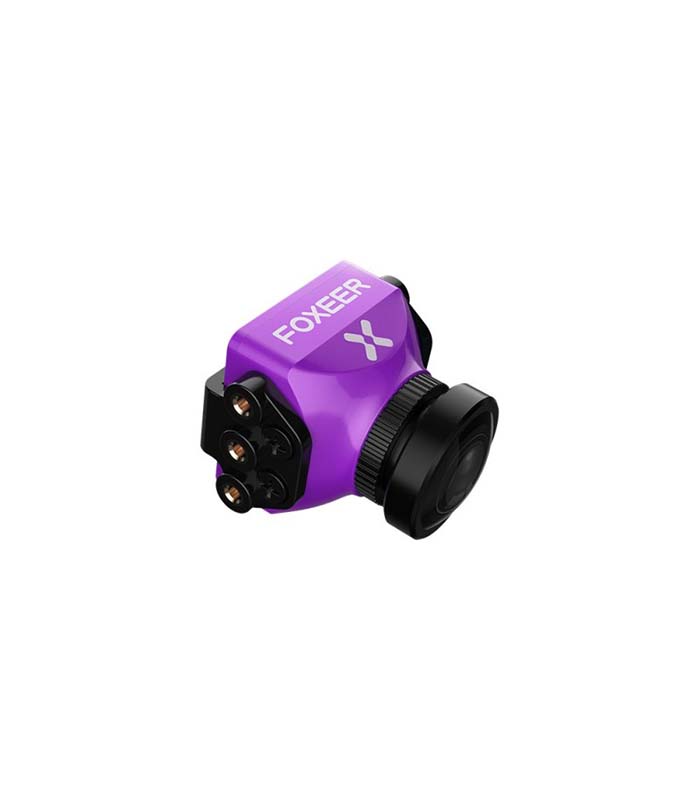

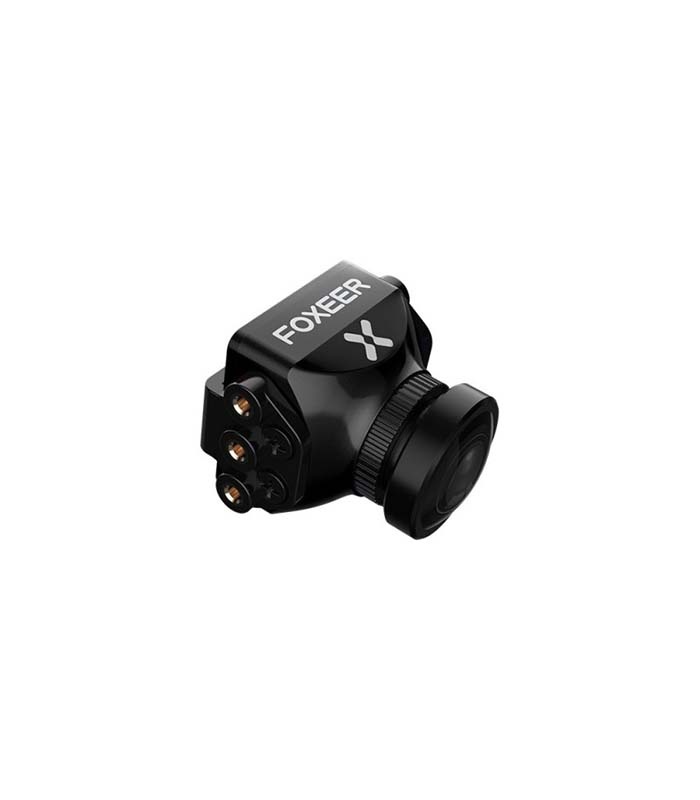

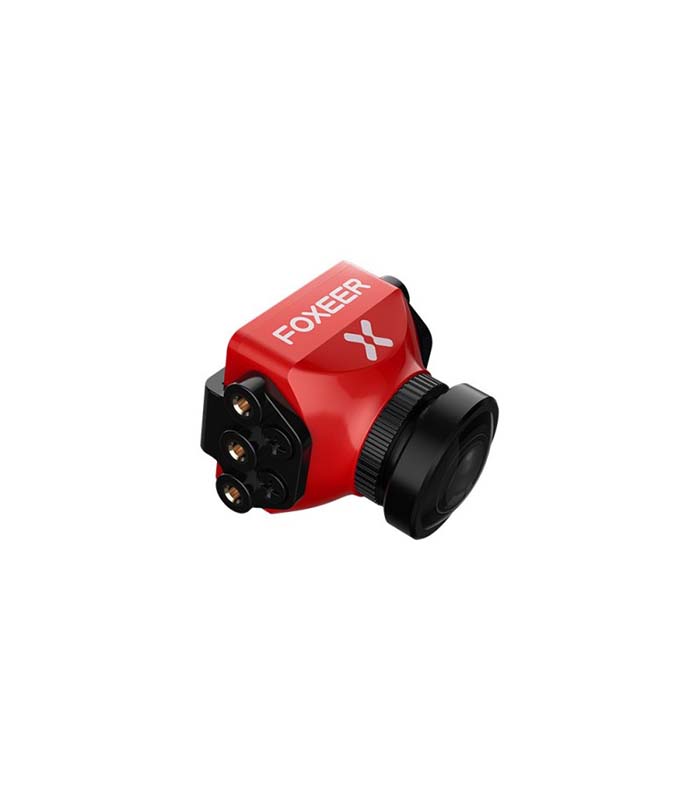

Foxeer Predator 5 Mini Racing FPV Camera

The Foxeer Predator 5 Mini 1000TVL is a 22x22mm FPV camera by Foxeer. This camera features a 1/3″ CMOS sensor, 1000TVL resolution, 4ms latency, NTSC/PAL switchable, image flip, super WDR function, and many other cool features! Compare to Predator 4, the Predator 5 has a more natural image, and it is also exclusive for LEDs.

Two camera lenses to choose from: 1.8mm, 2.5mm.

Specifications of Foxeer Predator 5 Mini

• Sensor Type: Sony 1/3″ CMOS Sensor
• Scale: 4:3(default)/16:9 Switchable
• Tv System: PAL(default)/NTSC Switchable
• Resolution: 1000TVL
• Shutter Speed: PAL 1/25~1/10000 sec; NTSC 1/30~1/10000 sec
• Video Output CVBS Analog Signal
• FOV
  • 1.8mm: FOV-H:115° FOV-D: 150°
  • 2.5mm: FOV-H:105° FOV-D: 130°
• Shutter Speed: Auto
• Minimum Illumination: 0.01Lux
• White Balance: Auto
• DNR: 3DNR 2DNR
• WDR: Super WDR
• DAY/NIGHT: Auto/Color/B&W
• Flight OSD: Voltage/Cam Title/Time/Cross Hair
• Mode: DAY/CLOUDY/Night/LED
• Fast Mode Switch: Long Press Right Button to switch among DAY/CLOUDY/Night/LED
• Input Voltage: 4.5V~20V
• Language: ENGLISH/ DEUTSCH/ FRANCAIS/ PYCCKNN/ PORTUGUES/ ESPANOL/ 中文
• Working Temperature: -10°~50°C RH90% MAX
• Working Humidity: 20~80%
• Storage Temperature: -20°~70°C
• Consumption: 50mA±15% @ DC12V 115mA±15% @ DC5V
• Dimension: 22*22mm; 28*22mm(Add Bracket)
• Weight: 12g(Exclude cable)

Includes

• 1 x Foxeer Predator 5 Mini
• 1 x OSD Board
• 1 x Bracket
• 12 x Bracket Screws
• 6 x Bracket Ring
• 1 x 2pin OSD Cable
• 1 x Servo Cable

Looking for a more cutting edge camera? Check out the Foxeer T-Rex from drkstore.in!

Get more information regarding this product from Foxeer.
