Please note: This version of the Goggle is drkstore.in branded but works identical to the original EV800D but with slightly different antennas from what is shown in the picture with RP-SMA connector.

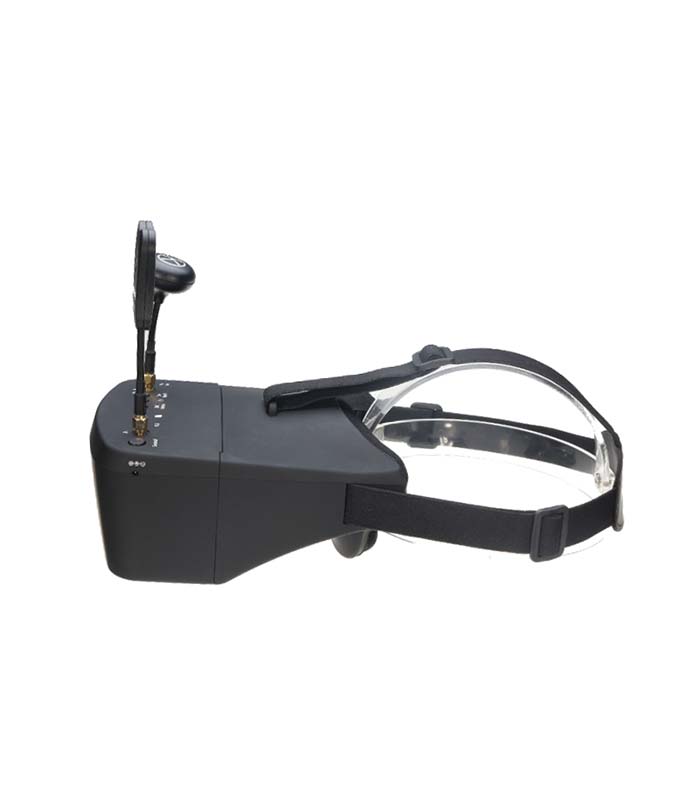

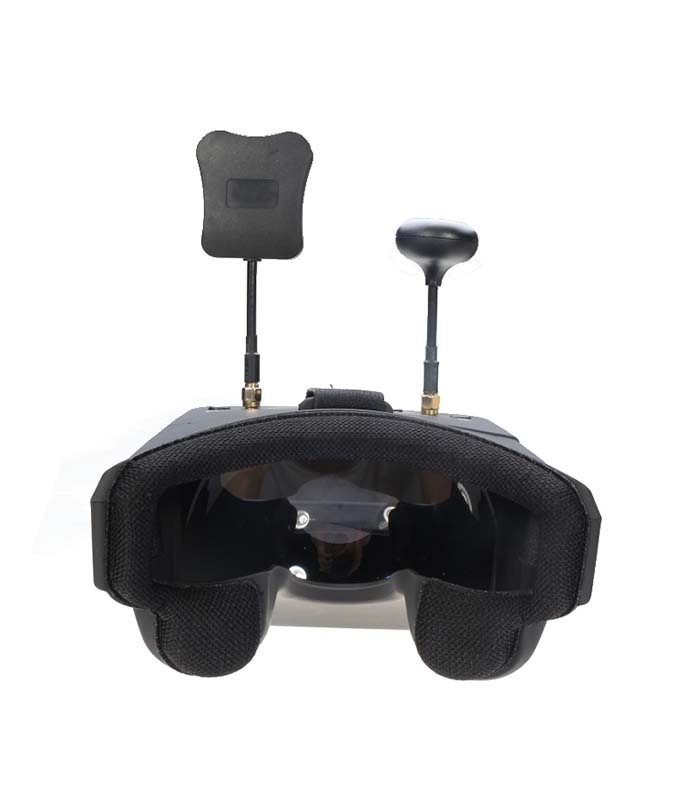

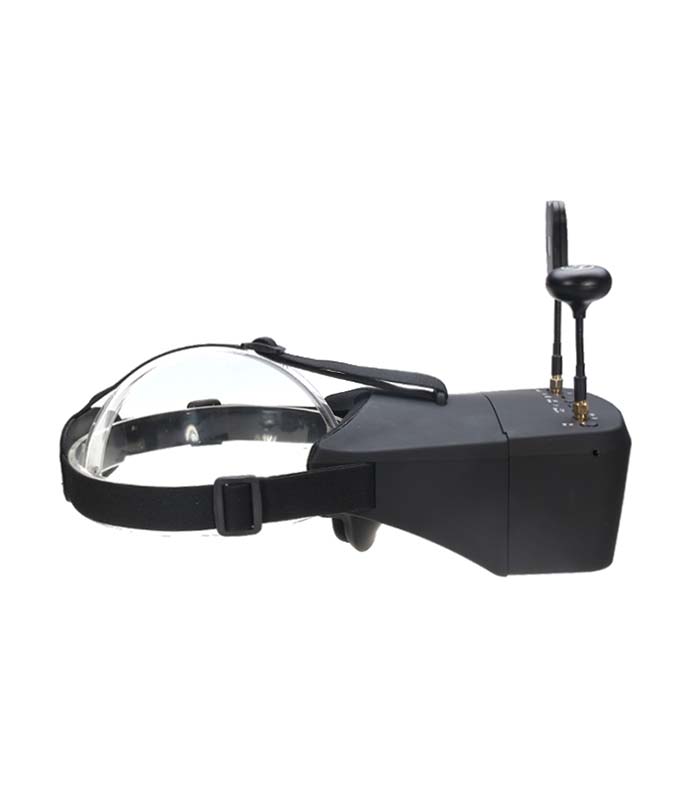

EV800D 5.8G 40CH Diversity FPV Goggles 5 Inch 800*480 Video Headset Build in HD DVR 7.4V 1200mAh Battery
| Appearance |
|
| Specification |
|
| Diversity |
|
| Display |
|
| Lens |
|
| Battery |
|
Features of drkstore EV800D
- Built-in with super HD DVR record up to 720*576px resolution
- Diversity RaceBand 40ch Auto-Searching
- Two systems (Display/Record duo core separated chipsets ) ensure no delay in displaying and no frame lost in recording(please use C10 super speed card to ensure the full-frame recording)
- Work-friendly with pilot-OSD, no block on the important flying OSD information;

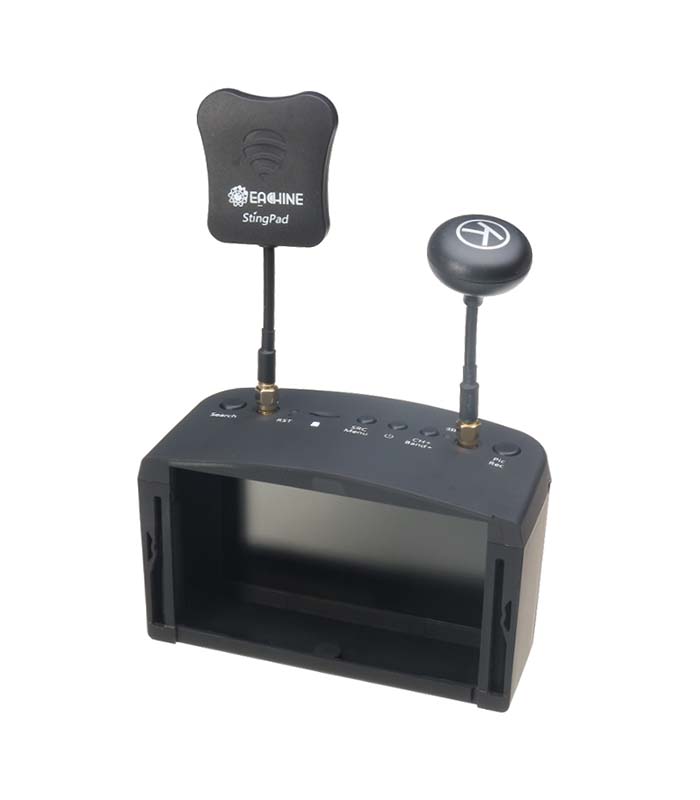

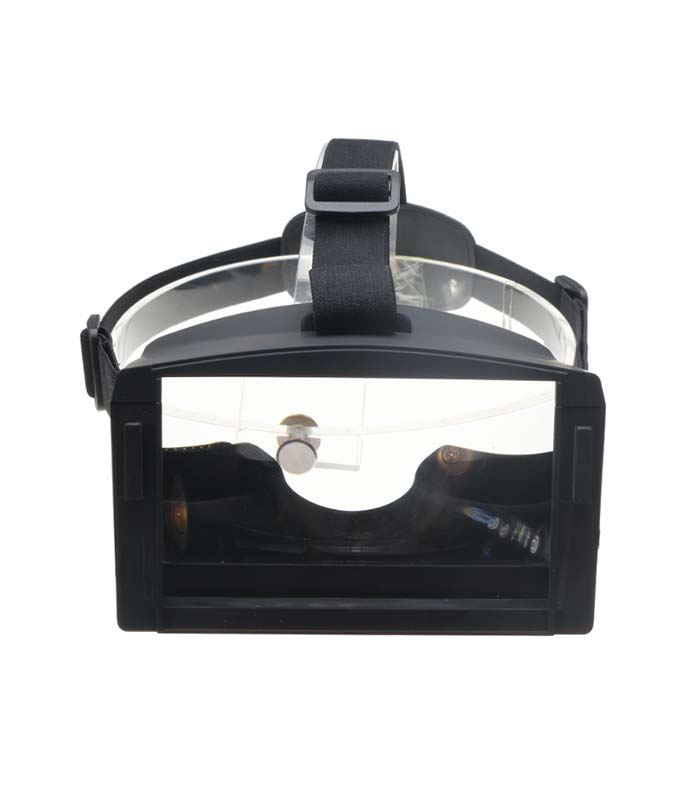

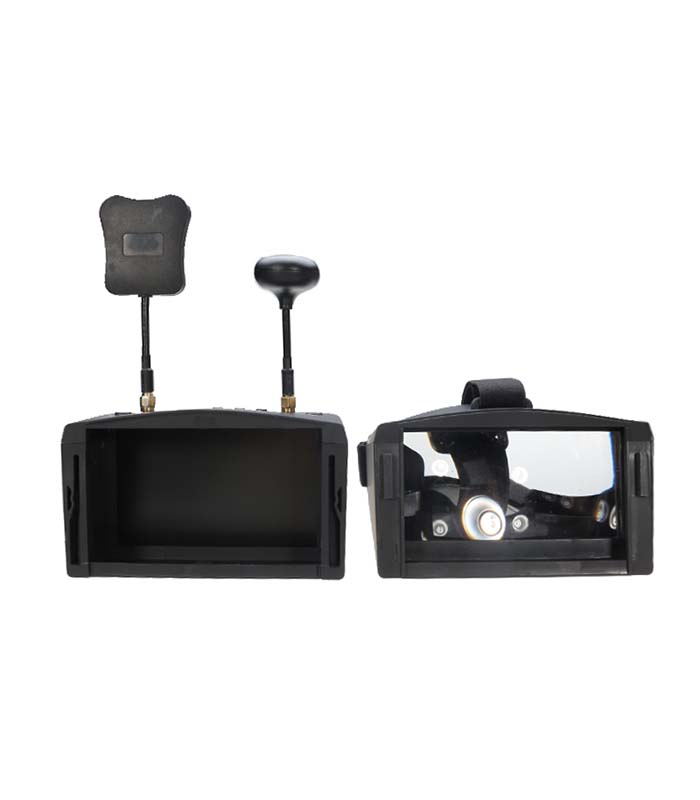

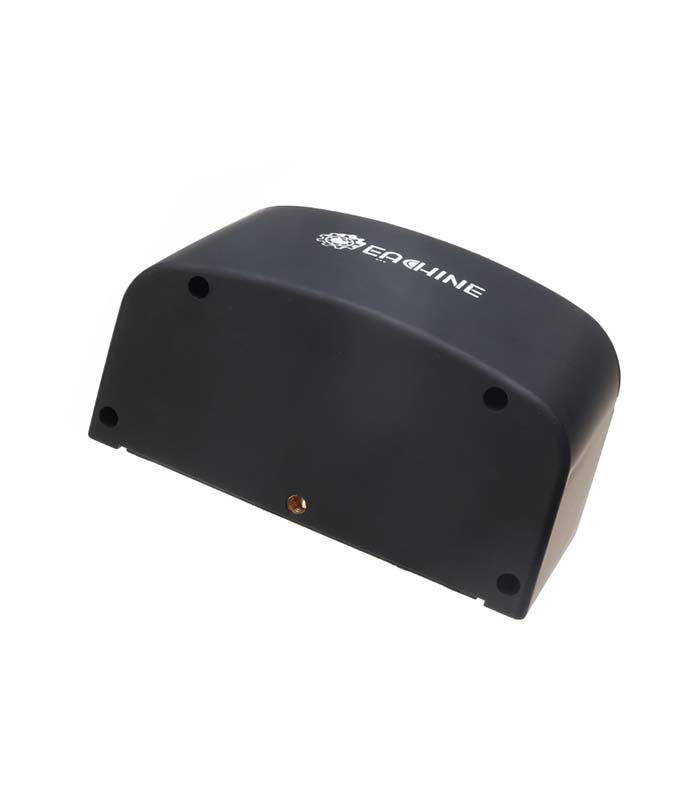

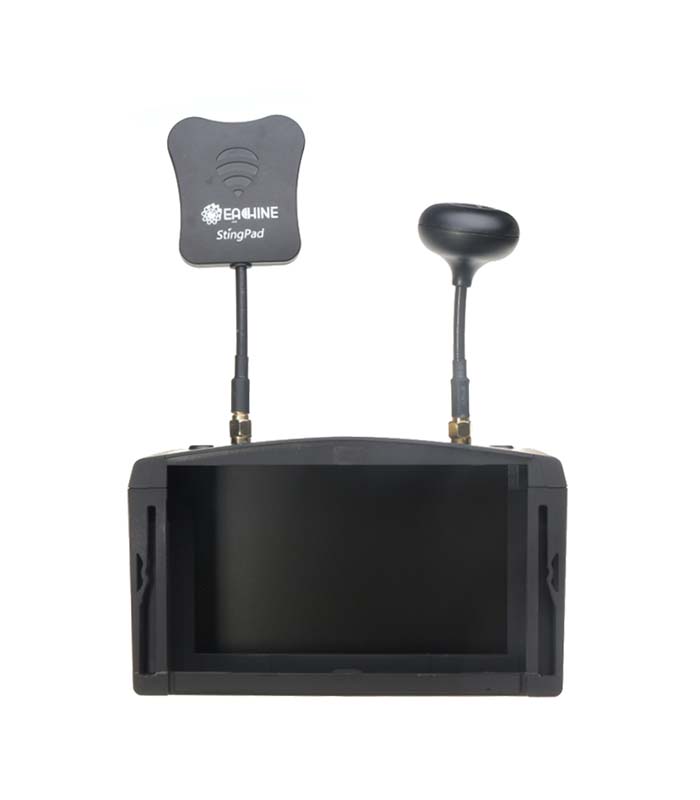

- Separable design, the 5-inch screen can be used as small monitor on radio controller or with tripod;
- HD high brightness 5 inch LCD specially tuned for FPV racing;
- Diversity function, Built-in super sensitive 5.8GHz 40ch receiver module, with Race Band;
- Advanced auto-searching function and the working frequency show on screen;
- Built-in 7.4V 1200mAh battery, each full charge offers 2 hours working time;
- Wide range re-charge voltage 11-20V;
- Accept 2S or 3S batteries as a backup power source, to prolong the working time;
- Nice ergonomic design and fit different faces;
- Super-wide visible angle up to 82 degrees;
- 92% transparent lens adopted, no distort, no blur on the edge of the screen;
- Lightweight 375g with 3.5 hr 2000mAh battery, RTF for any scale racing game;
- 5 Inch 800*480px HD high brightness LCD
Frequencies (5.8GHz, with RaceBand) of Eachin EV800D
| CH | CH 1 | CH 2 | CH 3 | CH 4 | CH 5 | CH 6 | CH 7 | CH 8 |
| GROUP | ||||||||
| A or FR1 | 5865 MHZ | 5845 MHZ | 5825 MHZ | 5805 MHZ | 5785 MHZ | 5765 MHZ | 5745 MHZ | 5725 MHZ |
| B or FR2 | 5733 MHZ | 5752 MHZ | 5771 MHZ | 5790 MHZ | 5809 MHZ | 5828 MHZ | 5847 MHZ | 5866 MHZ |
| C or FR3 | 5705 MHZ | 5685 MHZ | 5665 MHZ | 5645 MHZ | 5885 MHZ | 5905 MHZ | 5925 MHZ | 5945 MHZ |
| D or FR4 | 5740 MHZ | 5760 MHZ | 5780 MHZ | 5800 MHZ | 5820 MHZ | 5840 MHZ | 5860 MHZ | 5880 MHZ |
| R or FR5 | 5658 MHZ | 5695 MHZ | 5732 MHZ | 5769 MHZ | 5806 MHZ | 5843 MHZ | 5880 MHZ | 5917 MHZ |

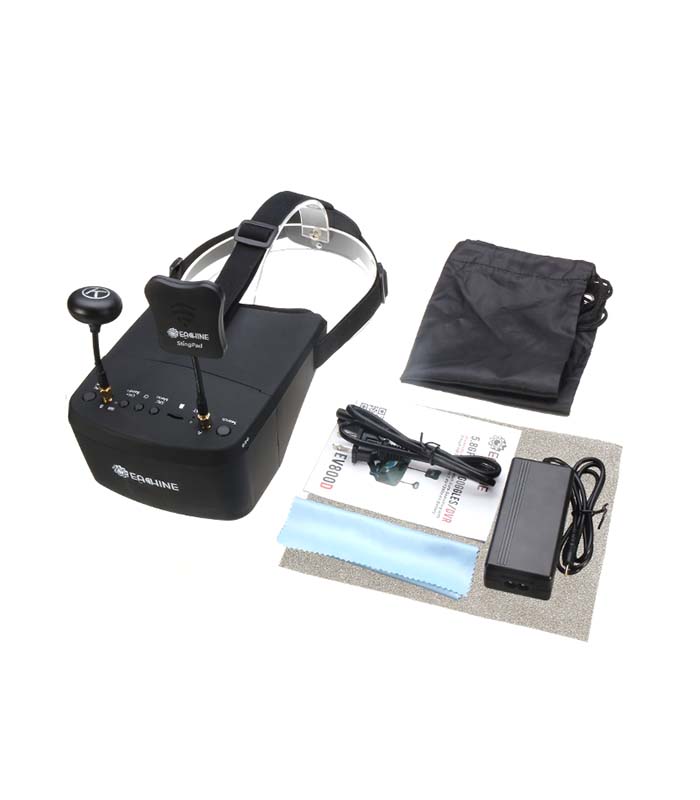

Package Included :
1 x drkstore EV800D 40CH 5.8G Diversity Goggles with DVR
1 x Clover Antenna
1 x Panel Antenna
1 x Battery Charger
1 x 3S to DC Power Cable
1 x User Manual
1 x Clean cloth
1 x Bag
1 x drkstore EV800D 40CH 5.8G Diversity Goggles with DVR
1 x Clover Antenna
1 x Panel Antenna
1 x Battery Charger
1 x 3S to DC Power Cable
1 x User Manual
1 x Clean cloth
1 x Bag
