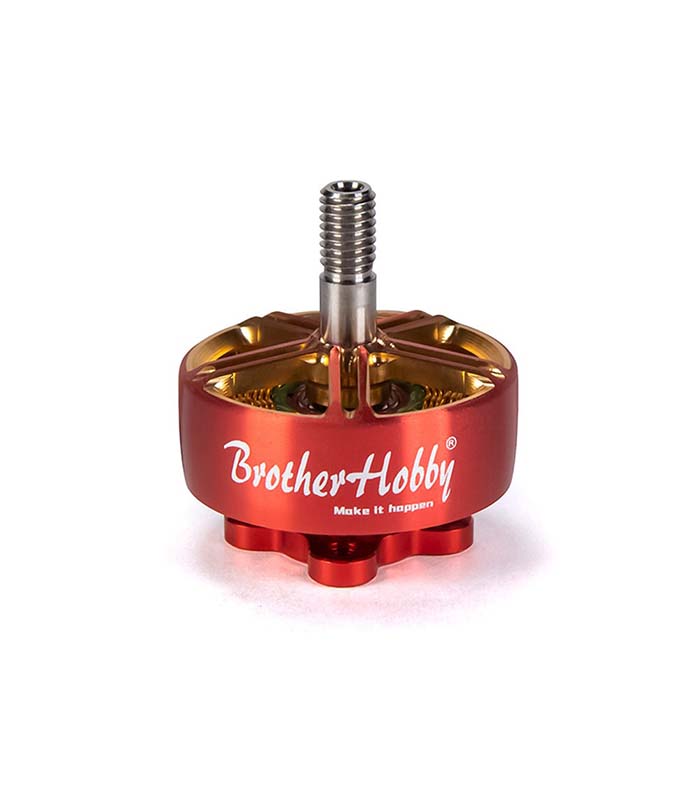

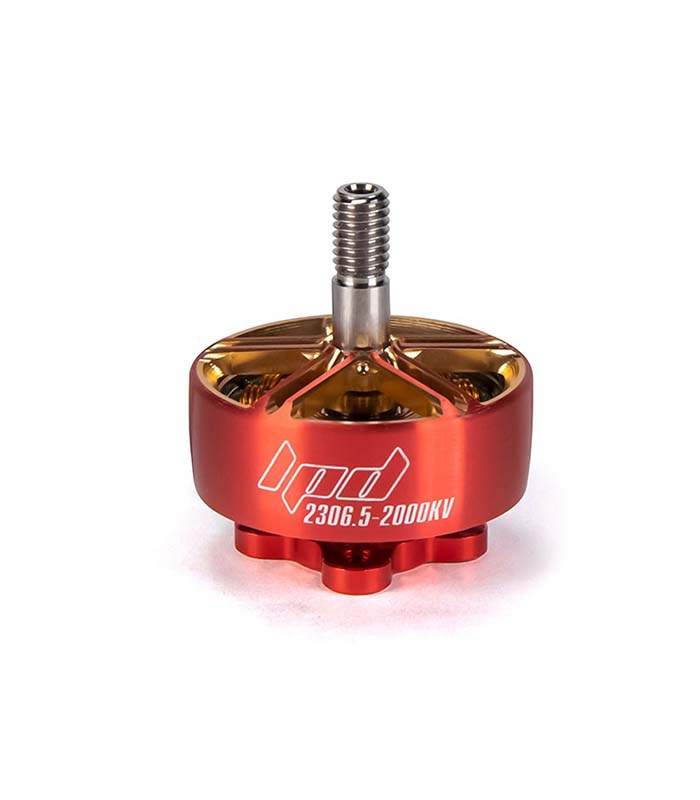

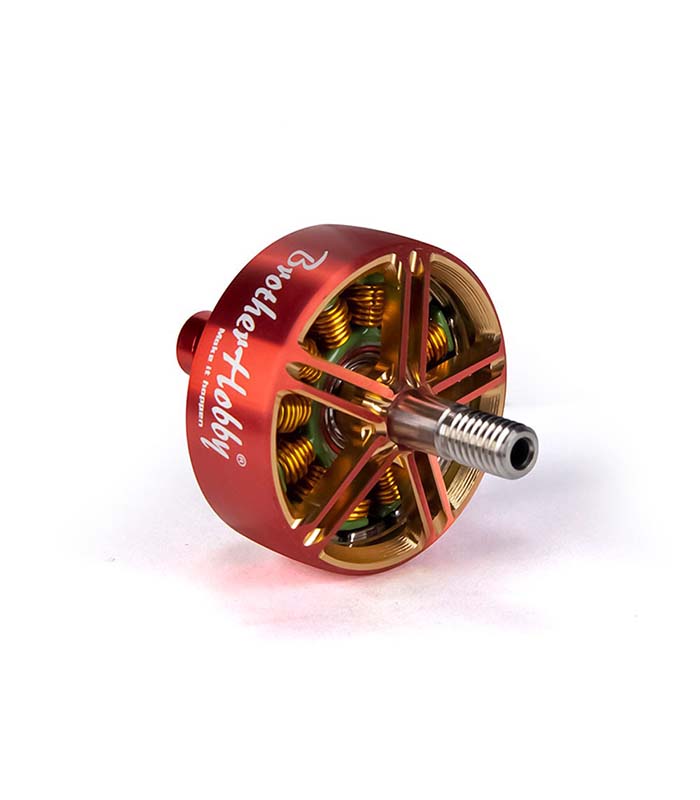

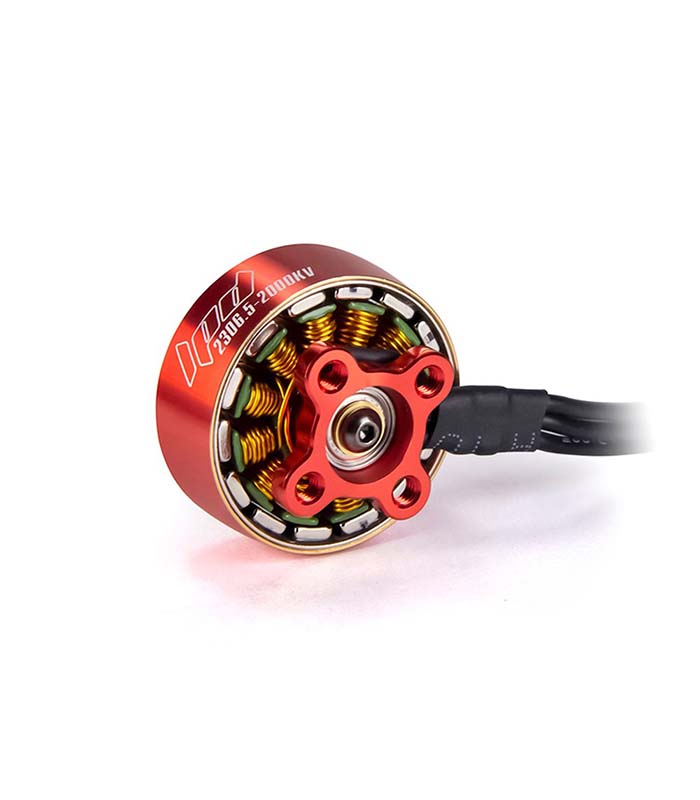

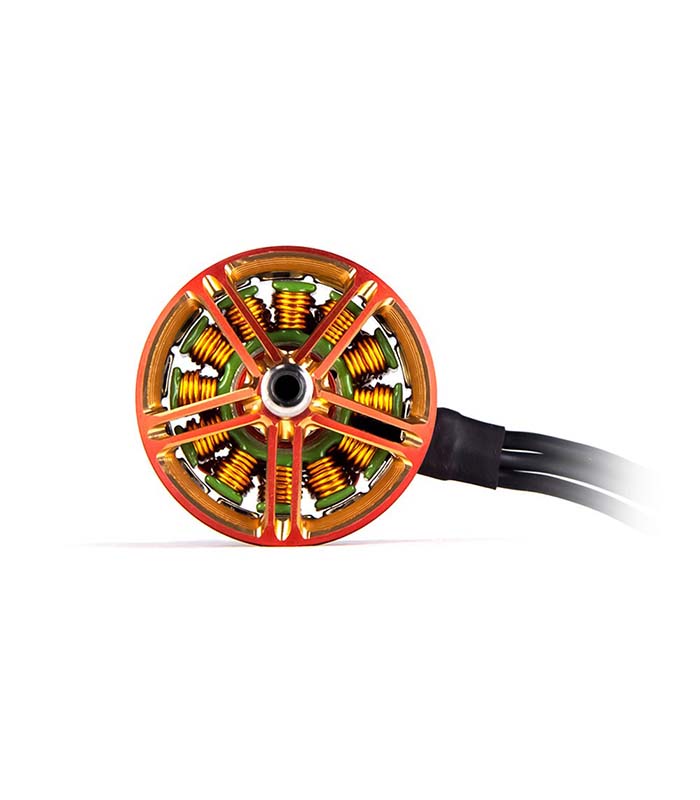

Brotherhobby LPD 2306.5 FPV Motor

The Brotherhobby LPD 2306.5 Motor is your next big step in FPV Racing! The LPD is a high-quality motor made with Japanese NMB bearings for smooth, free, and quiet flying. The high-quality single piece bell increases the overall durability of the motor and prevents the motor from getting damaged during a crash.

Choose a KV option: 2000KV, 2450KV, 2650KV

Specifications of Brotherhobby LPD 2306.5

• KV: 2000KV, 2450KV, 2650KV
• Configuration: 12N14P
• No.of Cells(Lipo): 4-6S
• Rotor: N52H arc magnets
• Copper wire: 260 ℃ Military grade
• Stator: 0.15mm Nippon Steel silicon steel
• Shaft: 0.15mm Nippon Steel silicon steel
• Bearings: Japanese NMB 9x4x4mm
• Wire AWG: 20AWG 16cm length
• Bell cap: Al 7075
• Base casing: Al 7075
• Prop Adapter Shaft Thread: M5
• Bolt Pattern: M3(16X16mm)
•

Includes

• 1 x LPD 2306.5 Motor
• 4 x M3 Screws
• 1 x M5 Nut
