Our XING series NextGen motors have become popular after the initial release in 2018 and have become the new standard on the market. Was it the curved shape or the internal damping ring to protect the bearing, or was it the higher quality NSK bearings coupled with a higher grade titanium alloy shaft? We’ve been copied and compared all these years, but now it’s time to set a new standard again! We’re finally ready to announce our predecessor the XING2!
The smooth, reliable and powerful XING motors were upgraded and we achieved an even higher standard in our manufactory as well as better performance than ever before. New centre-slotted N52H curved arc magnets were introduced to drastically reduce the response time of the motor! Maybe the biggest bottleneck of our FPV flight controller is the motor due to it’s translation delay of braking and accelerating. XING2 motors offer faster response to translate your PID loop quicker and get that locked-in feeling you were always looking for!
Due to the high-quality materials used and the durable joint of the bell and shaft, we were able to reduce the magnet air gap and stator lamination to a minimum. The smaller the air gap is, the lower that reluctance and the higher the magnetic flux (which is the magnetic analogue of current) causing more efficiency and higher power!
5mm titanium alloy shaft, our strongest prop shaft ever!
Crash resistant 7075 aluminium bell
Smooth and long-lasting NSK 11x5x5 bearings
Centre-slotted N52H curved arc magnets
XING O-ring bearing gap protection
Motor wires protector
Model: XING2 2809 Motor

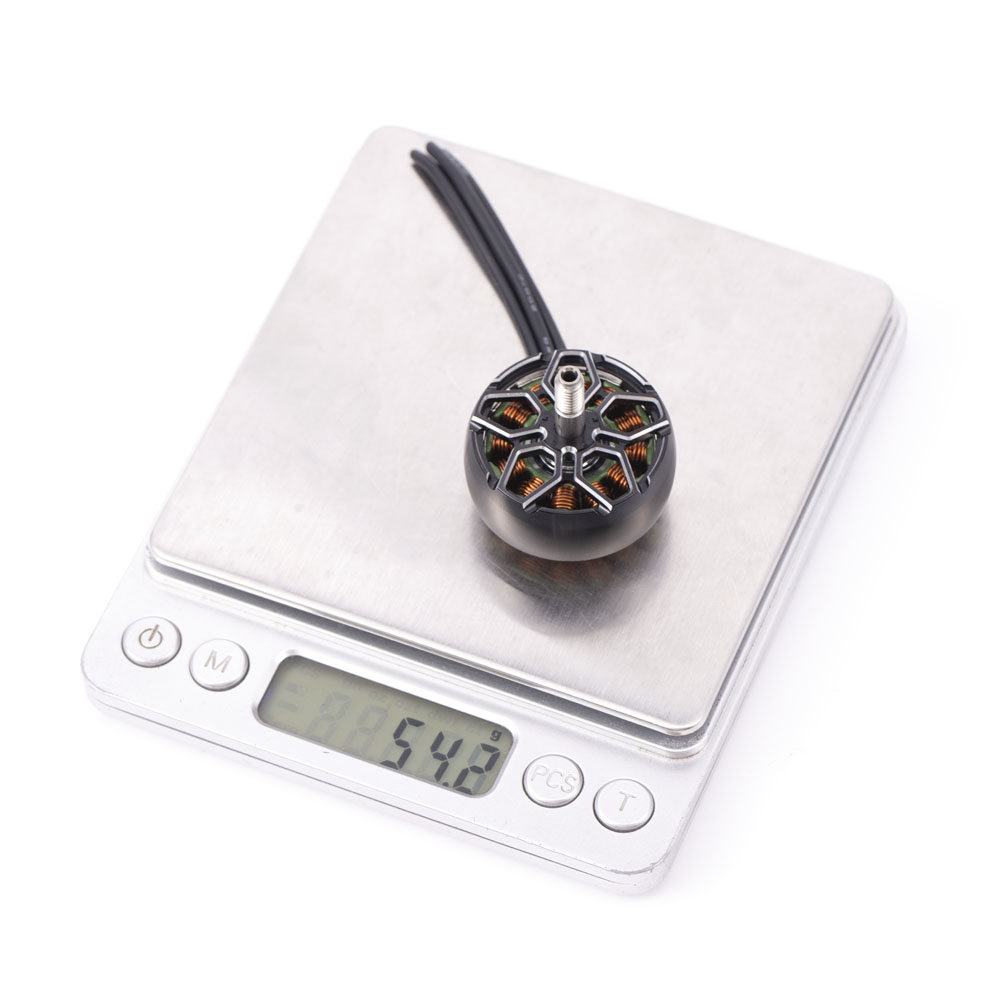

Weight(included wire): 60.7g
Interphase Resistance: 65.46mΩ
Input Volts: 24V
Peak Current: 50A
Max Watt: 1145W
Mounting Holes: 19*19 φ3mm
Rotor Specifications: Unibell
Shaft Diameter: 5mm
Shaft Protruding Length: 15mm
Magnet: N52H Curved
Bearing Type: NSK
Bearing Specification: φ11*φ5*5
Winding: Single Strand copper winding

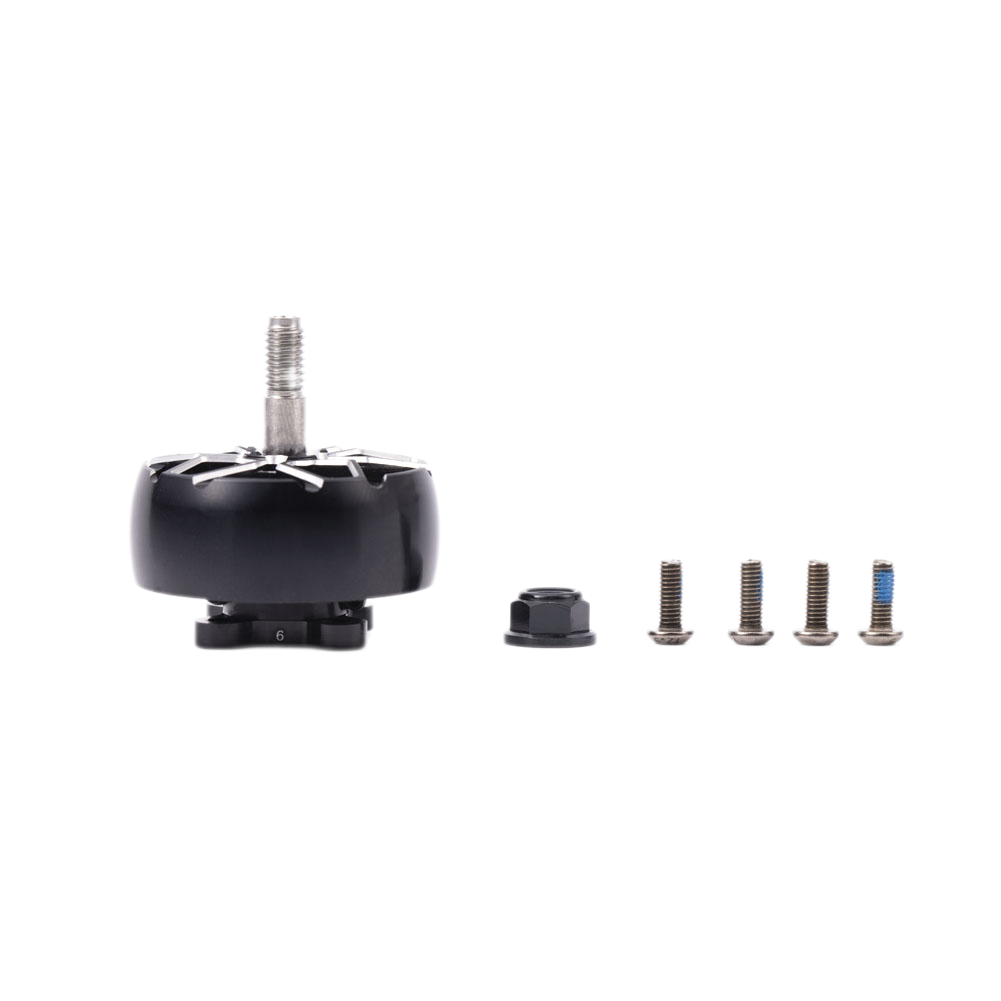

1 x XING2 2809 Brushless Motor
4 x M3x8 screws
1 x M5 Flange Nut
