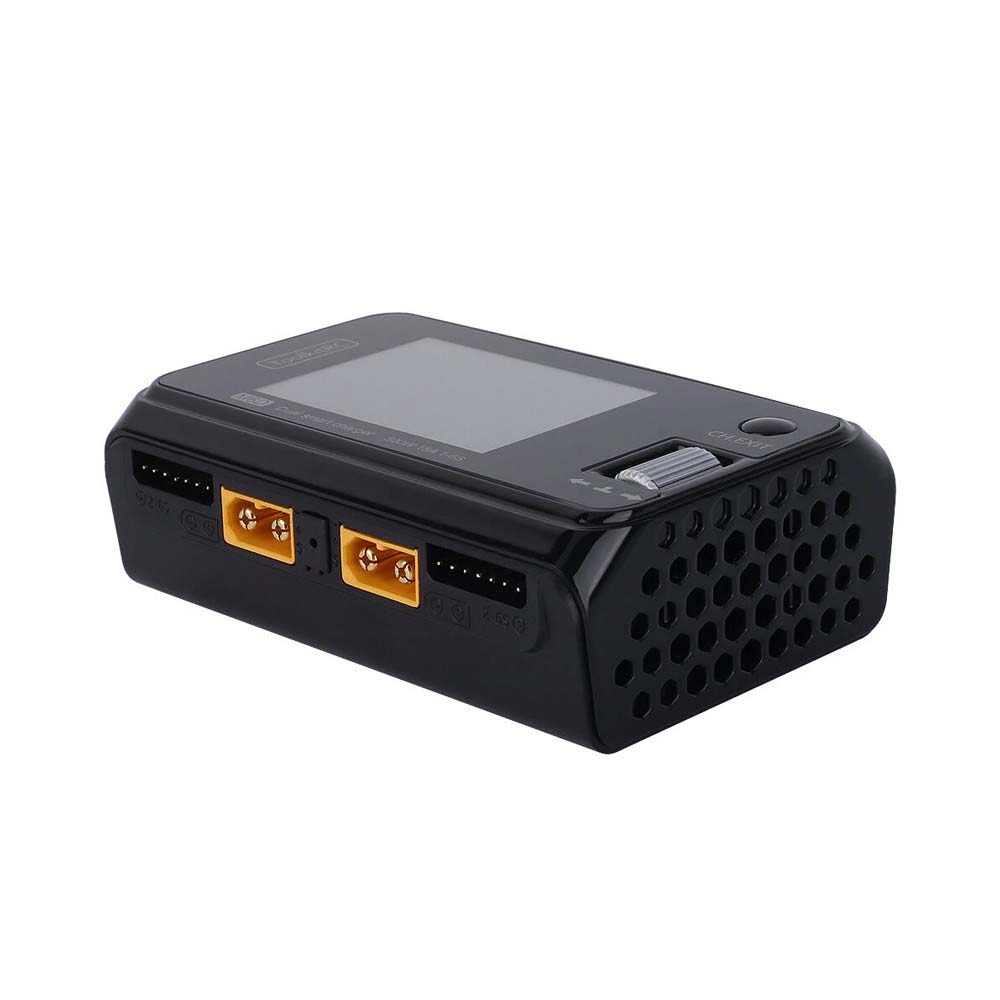

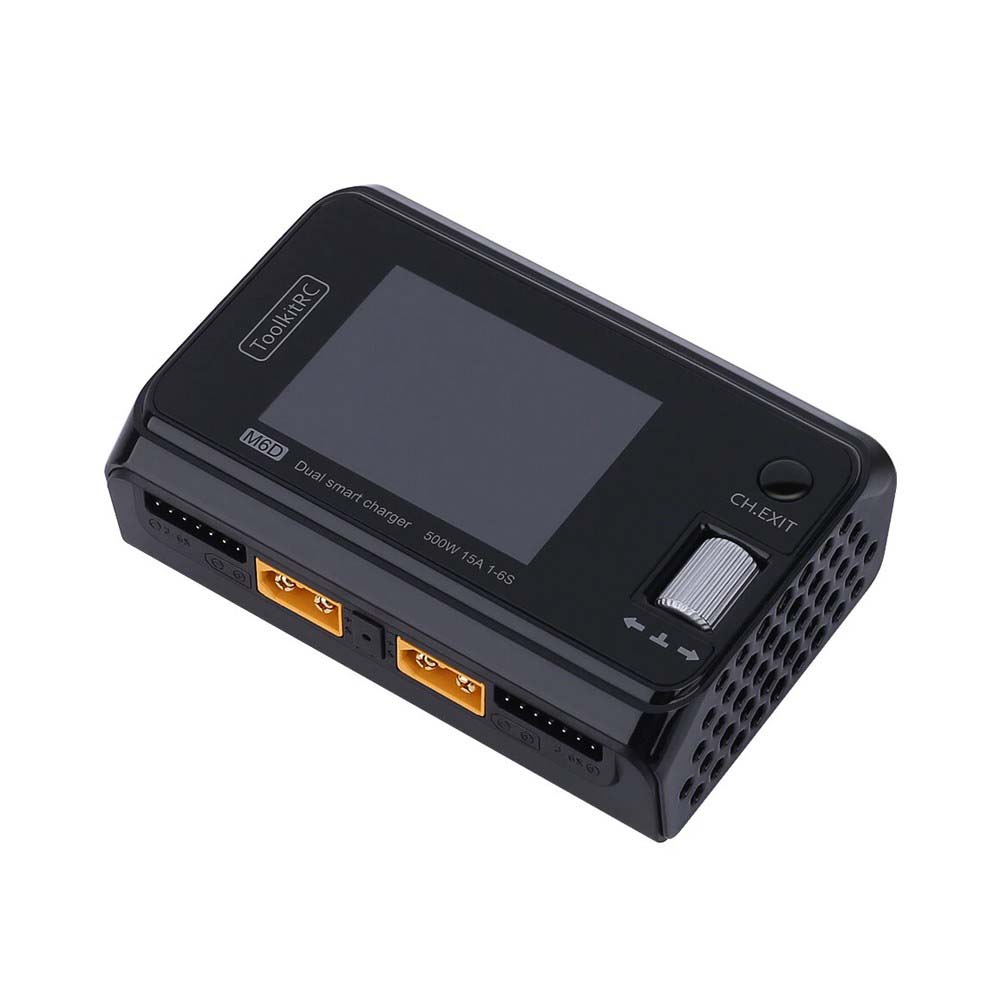

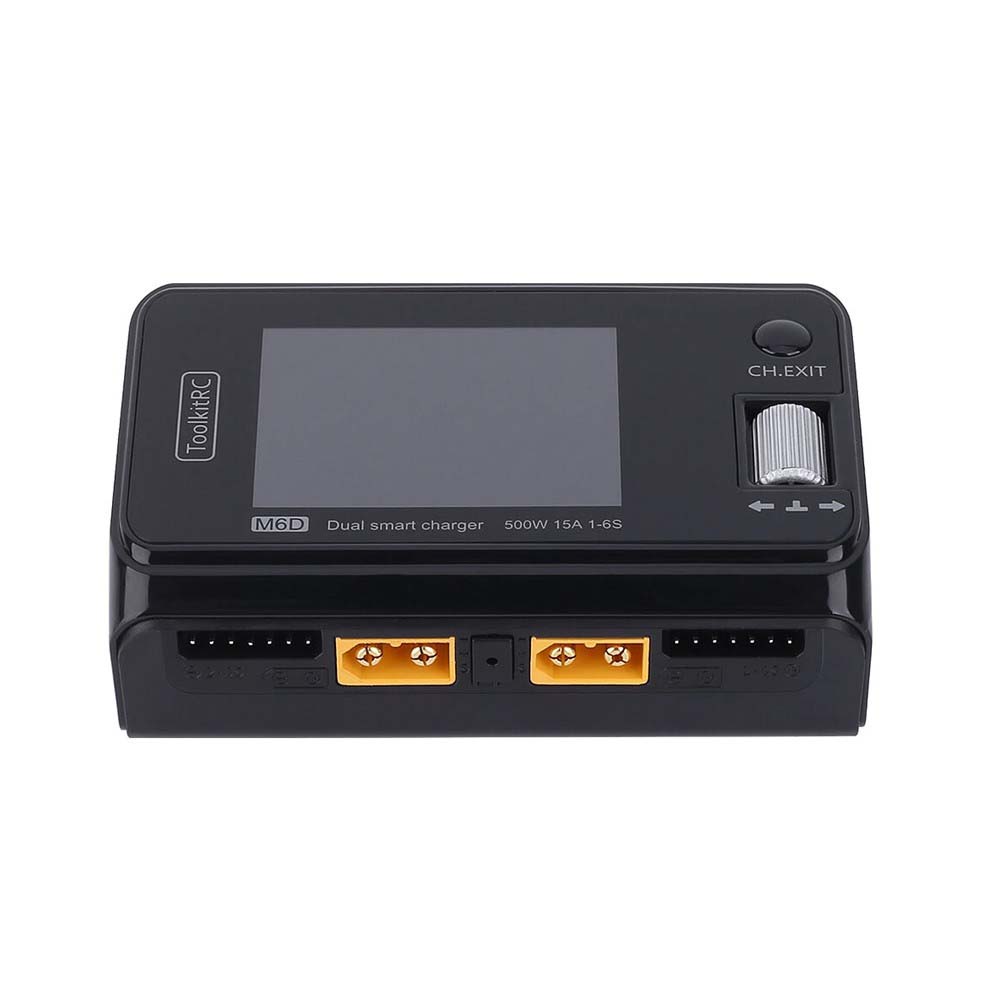

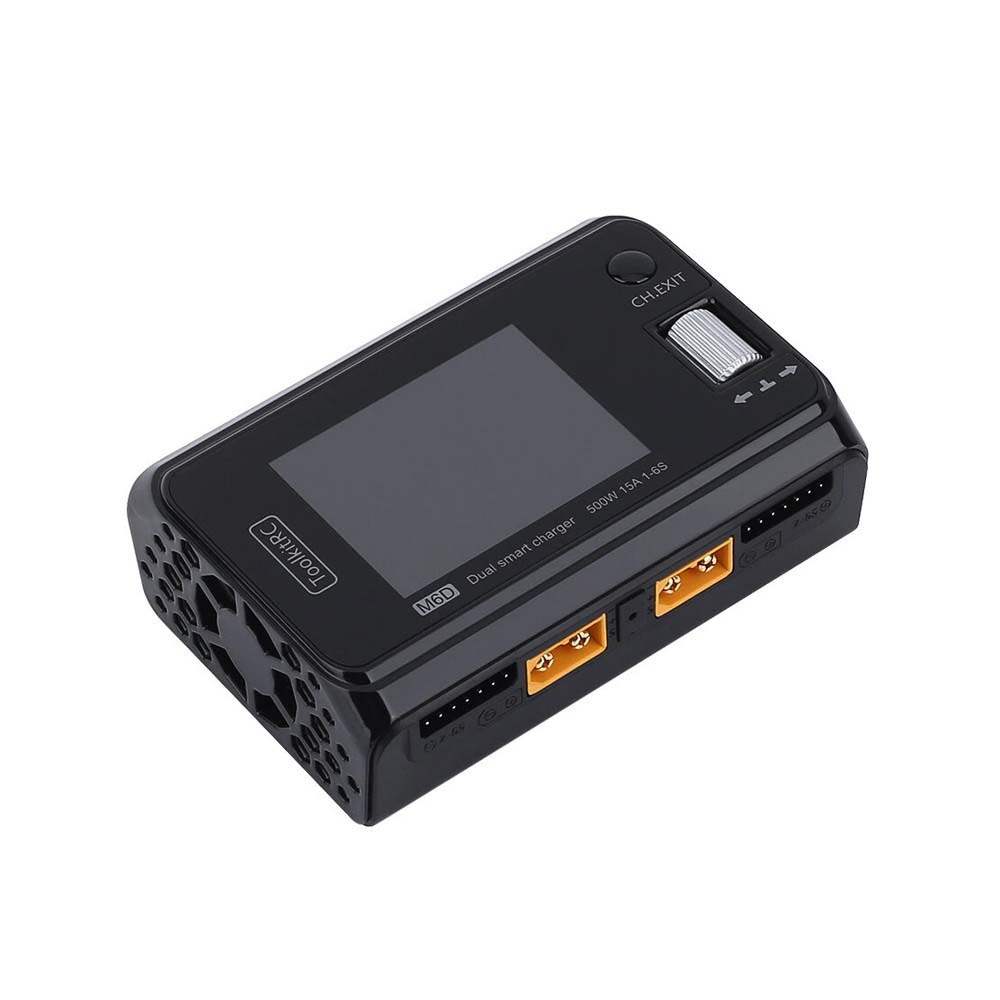

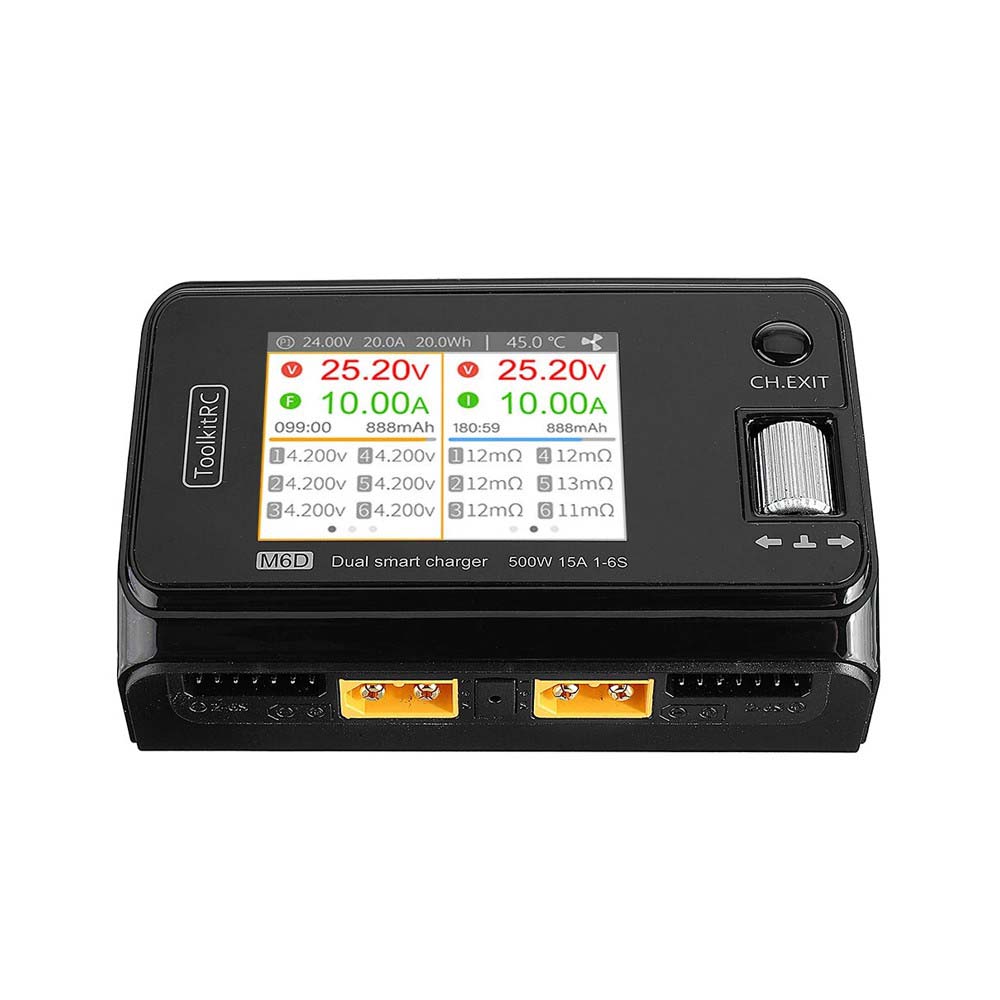

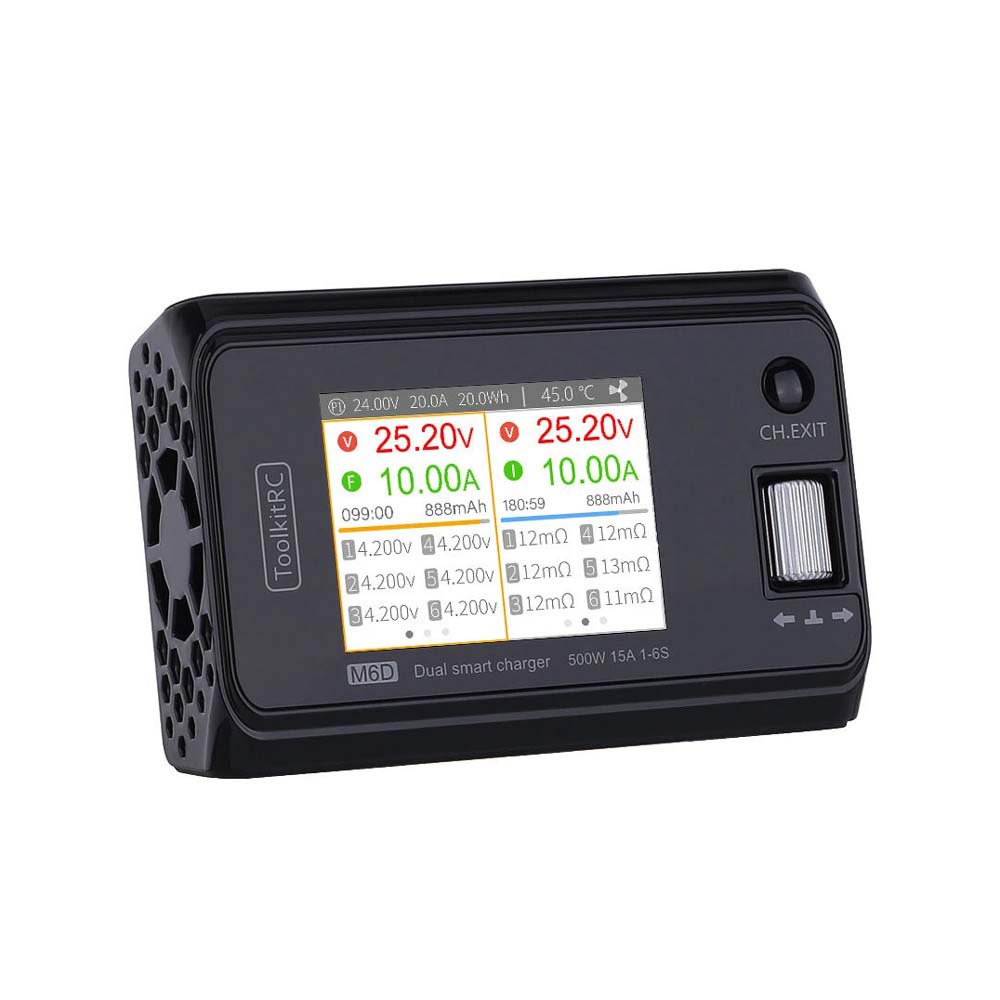

The ToolkitRC M6D Dual Smart Charger features asynchronous automatic power distribution and synchronous output for greater power. It includes an optimized heat dispersing system to dissipate high-power heat in no time! You will find an easy-to-navigate system, integrated USB interface, and lots of cool features that make the M6D an excellent charger.
- Small size
- High power density
- Optimize heat dissipation
ToolkitRC M6D Specifications
- Input: 7-28V@MAX30A
- Battery Type:
- LiPo LiHV LiFe Lion@1-6S
- NiMh @1-16S Pb @1-10S
- Bal Cur. : 800mA @2-6S
- Accuracy: <0.005V
- Charging Power:
- 0.1-15A@250W *2（Asynchronous mode）
- 0.1-25A@500W（Synchronous mode）
- Discharging Power:
- 0.1-15A@250W*2 Recycle Mode
- 0.1-3A@12W*2 Normal Mode
- USB: 2.1A@5V upgrade@USB3.0
- Battery Voltage: 1.0V-5.0V @1-6S
- Battery Internal Resistance: 1-100mR @1-6S
- Display: LCD IPS 2.4 inch 320*240 resolution
- Size: 98mm*68mm*35mm
- Weight: 220g
- Size: 108.5mm*80.5mm*46mm
- Weight: 300g

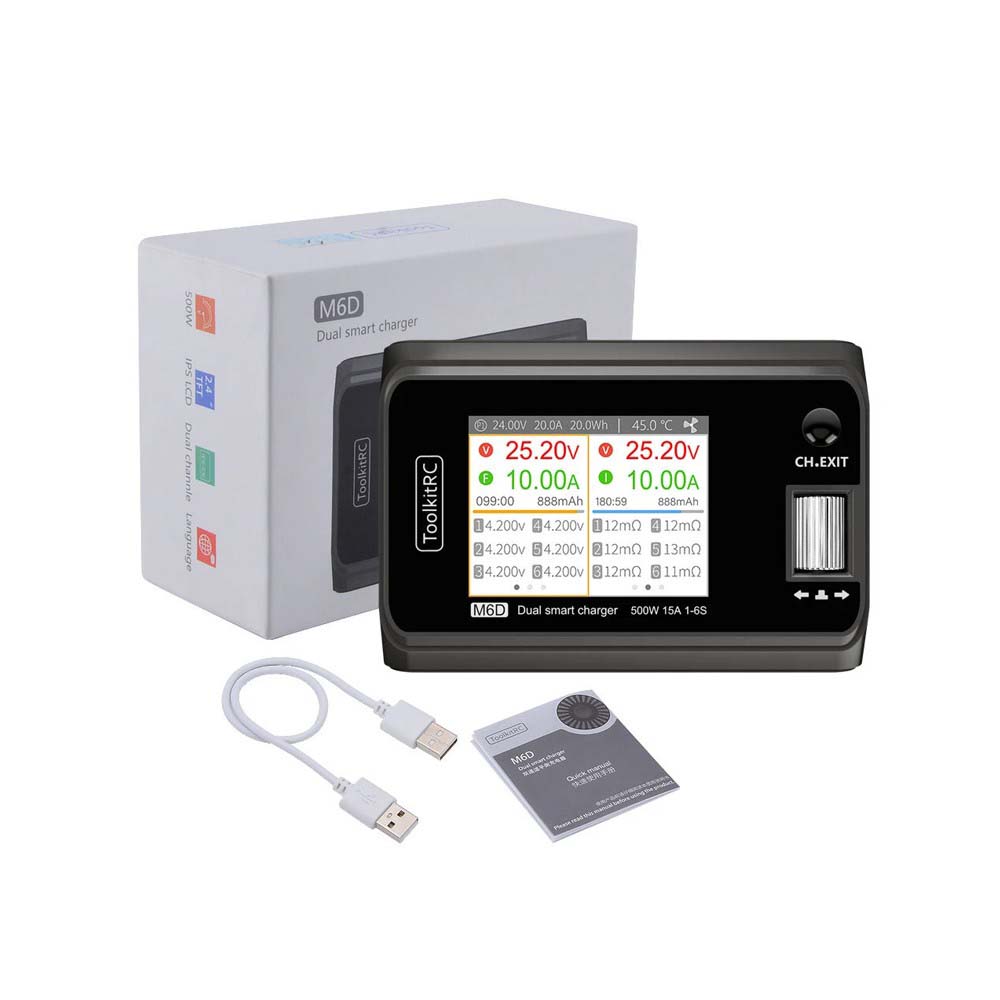

- 1 x ToolKitRC M6D 500W 15A 1-6S DC Charger
- 1 x USB A-A Cable
- 1 x Instruction Manual
Add a Power Supply (not included)
The ToolKit charger is very powerful but it needs an external power supply to operate. We suggest one of the following power supplies below if you don’t have one already.
- ToolkitRC ADP-180MB Power Supply for Battery Charger – 180W/19.5V/9.23A/XT60
- ToolkitRC ARP-100 Power Supply for Battery Charger – 100w/20V/5A/XT60
Get more info at ToolkitRC
ToolKitRC M6D 500W 15A 1-6S DC Dual Smart Charger
The M6D Dual Smart Charger features asynchronous automatic power distribution and synchronous output for greater power.
SKU: TKR-BNC-DCM-6D1 Categories: Chargers, Battery & Chargers
