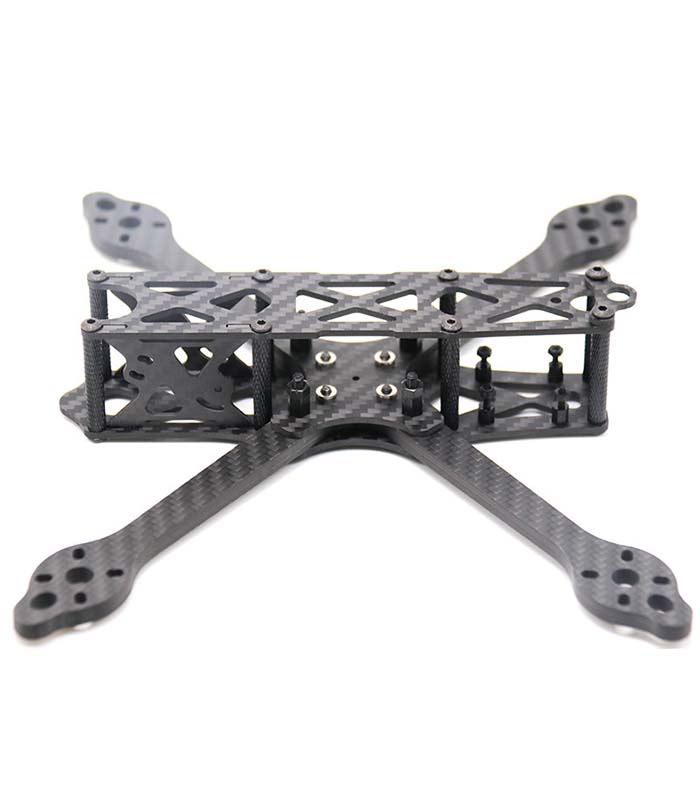

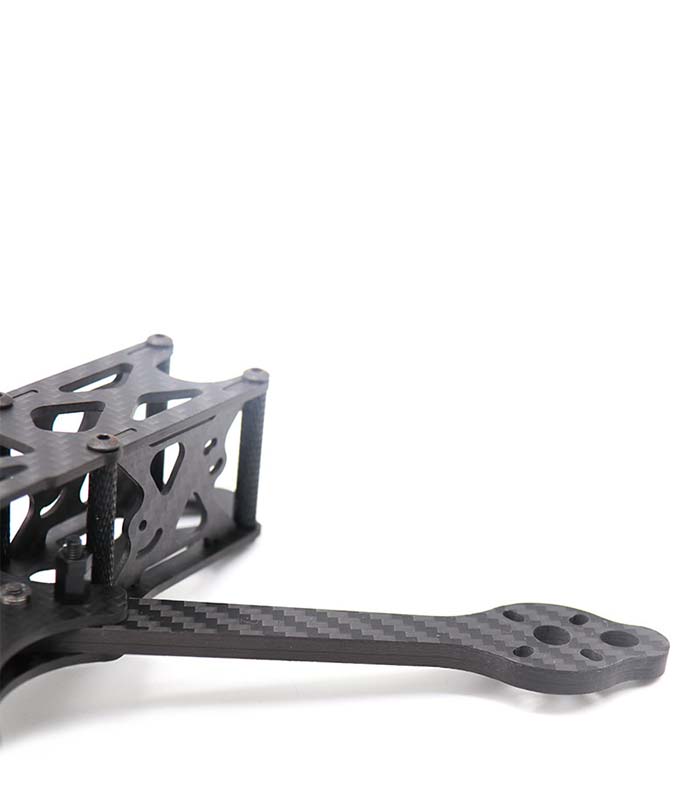

The TCMMRC Martian V 215, the latest in the Martian series, is a very similar frame to the AstroX X5 Jhonny FPV Frame. It is a very compact frame and mini-sized cameras are suited for it.
TCMMRC Martian V Specifications:
Front Bottom Plate: 2mm
Flight Controller Mounting Holes: 30×30
Supported Camera size: Mini (Full-size camera are not suited)
X Plate: 2mm
Arm thickness: 5mm
Top, Bottom Plate: 2mm
Surface Technology: Matte
Material:3K Carbon Fiber
Weight: 100g
Wheelbase: 215mm
Suitable for beginners and advanced players – compact design, easy to assemble.
★ Accessory Details-Martian V Lower Faceplate: 2mm; X Plate: 2mm; Upper lower plate: 2mm.
★ Redesigned and Improved Version – Compared to Martian IV, Redesigned and improved version of the Martian V framework.
★ 5 Inch Drone Frame KIT: The drone frame is 3K carbon fibre, which makes the drones lighter but very strong.
★ 100% brand new-produced by TCMMRC, well made and durable.
![](https://i0.wp.com/ae01.alicdn.com/kf/H0472797ab32c46a7b4bde26ffc33d9dat.jpg?ssl=1)
![](https://i0.wp.com/ae01.alicdn.com/kf/H5561afb063c0403cb0e3a36e765122139.jpg?ssl=1)
![](https://i0.wp.com/ae01.alicdn.com/kf/H187e45cf231a48ae9270cef34db41467v.jpg?ssl=1)
![](https://i0.wp.com/ae01.alicdn.com/kf/H49f496a11b9d4123bcabcccf585fd044B.jpg?ssl=1)
![](https://i0.wp.com/ae01.alicdn.com/kf/Hba8df95d7917401fa5f9e727e15b0161X.jpg?ssl=1)
![](https://i0.wp.com/ae01.alicdn.com/kf/Hf10be37a97c04b959e378766956cf3e7F.jpg?ssl=1)
![](https://i0.wp.com/ae01.alicdn.com/kf/H4659ec3106654d56a077ef5aa4991728d.jpg?ssl=1)
![](https://i0.wp.com/ae01.alicdn.com/kf/Hd4c6e4b506974960b517618d2517411d8.png?ssl=1)
![](https://i0.wp.com/ae01.alicdn.com/kf/Hb098a8c71ac94a7d8a75bb19f5ae09a7Z.jpg?ssl=1)
![](https://i0.wp.com/ae01.alicdn.com/kf/H273cf9f7faf74024ab8548df5cc36bc8R.jpg?ssl=1)
![](https://i0.wp.com/ae01.alicdn.com/kf/Hcba040fa8a7c45bd9495cc2bc962bf22l.jpg?ssl=1)

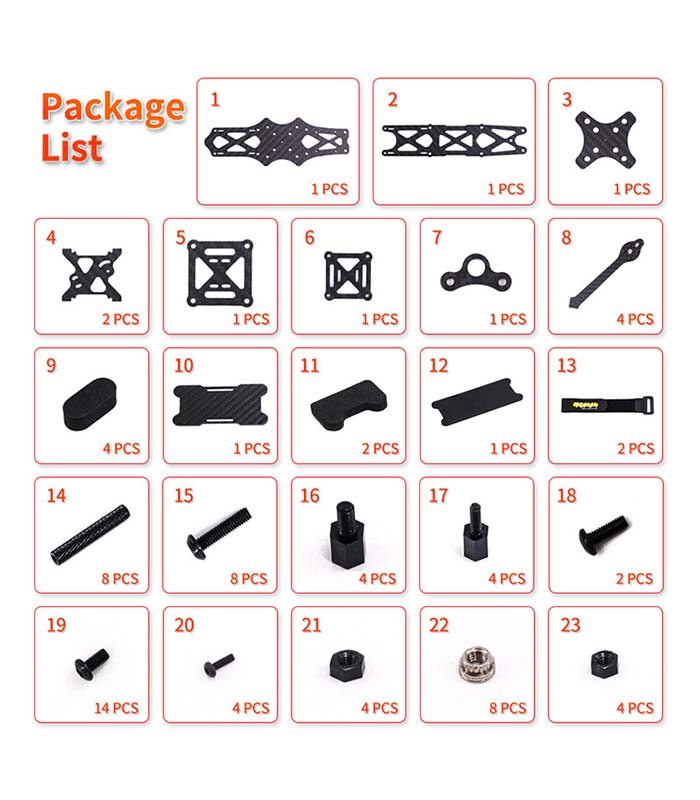

Includes:
1x Iron screw package: M2*6mm-4pcs, M3*6mm-14pcs, M3*8mm-2pcs, M3*12mm-8pcs, M3 Rivet nut 8pcs
1x Aluminum column package: Mesh Black M3*30mm-8pcs
1x battery pack
1x M2 Isolation column package
1x M3 Isolation column package
1x Sponge mat
