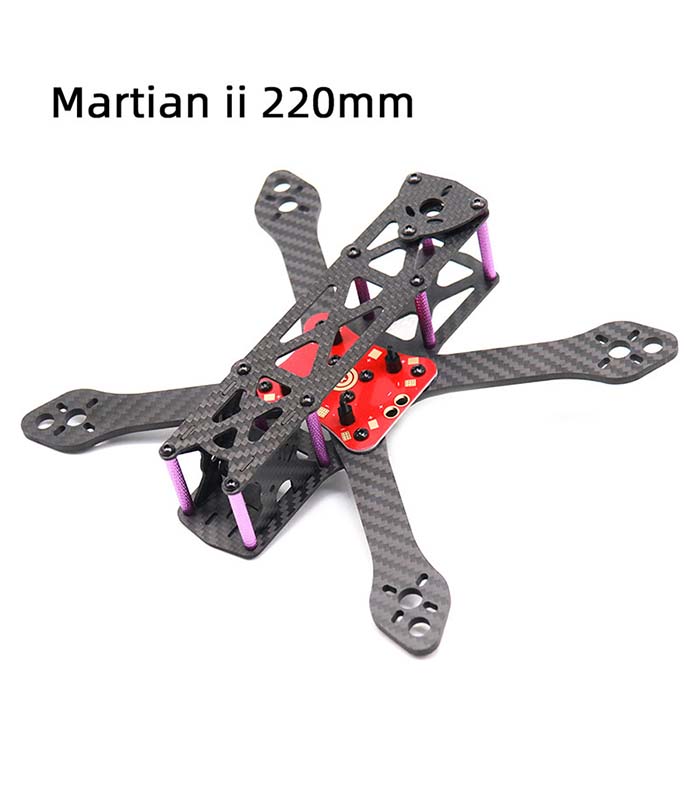

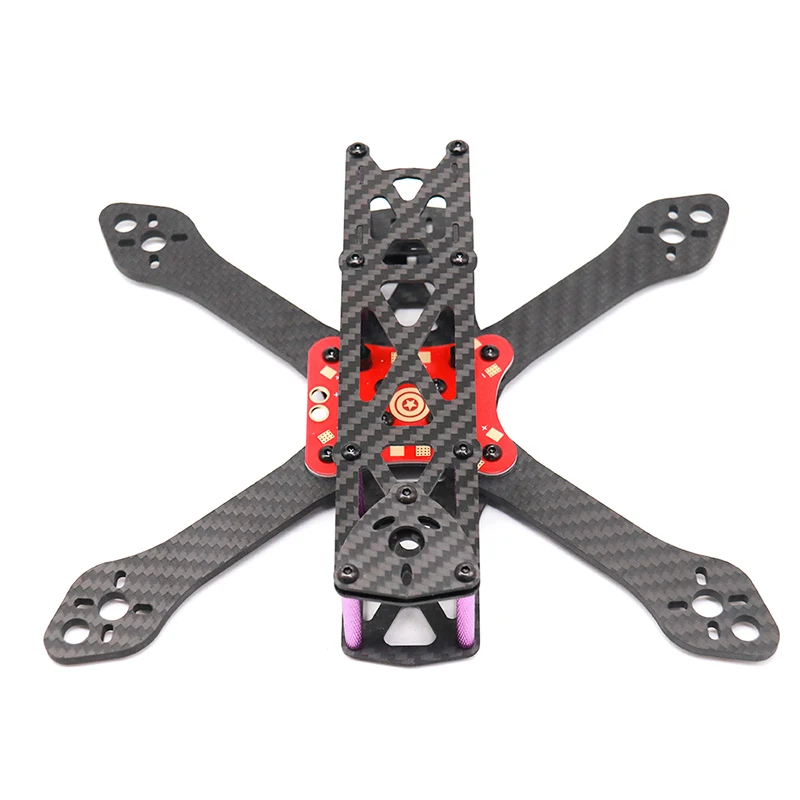

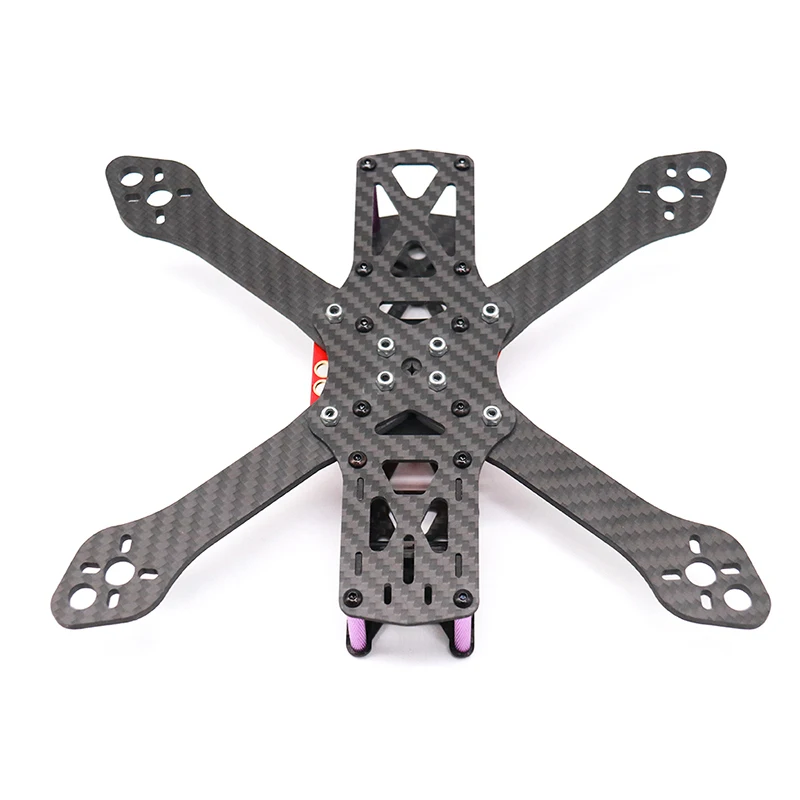

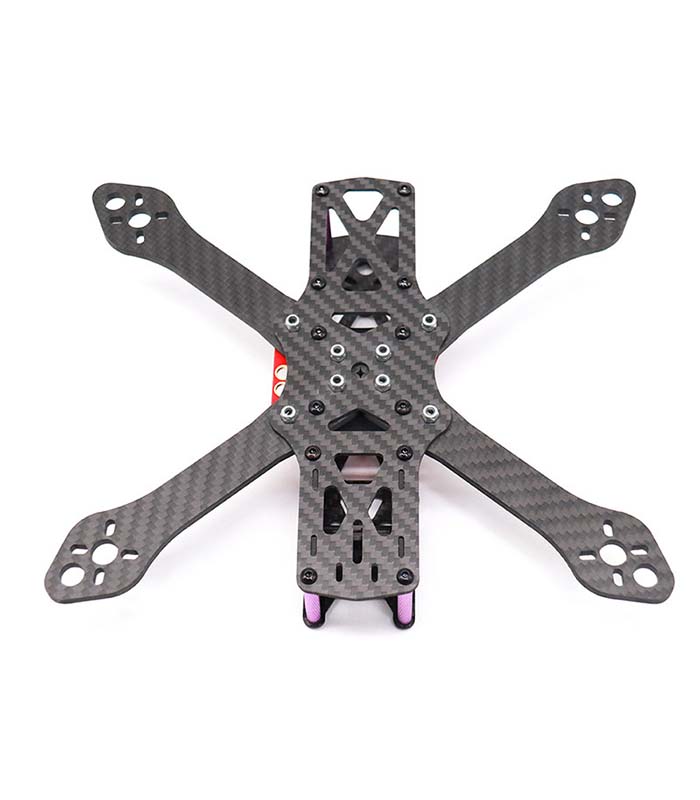

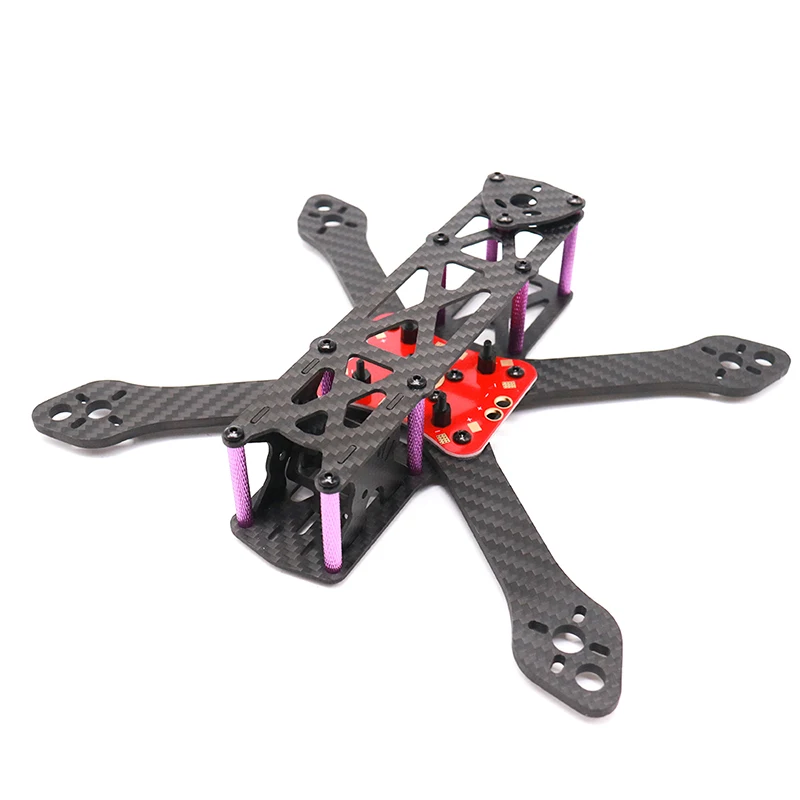

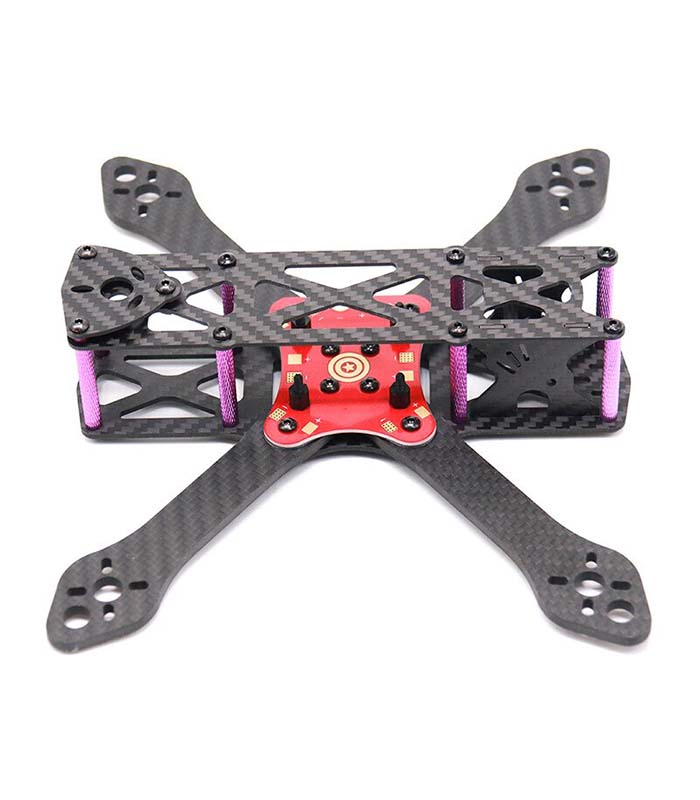

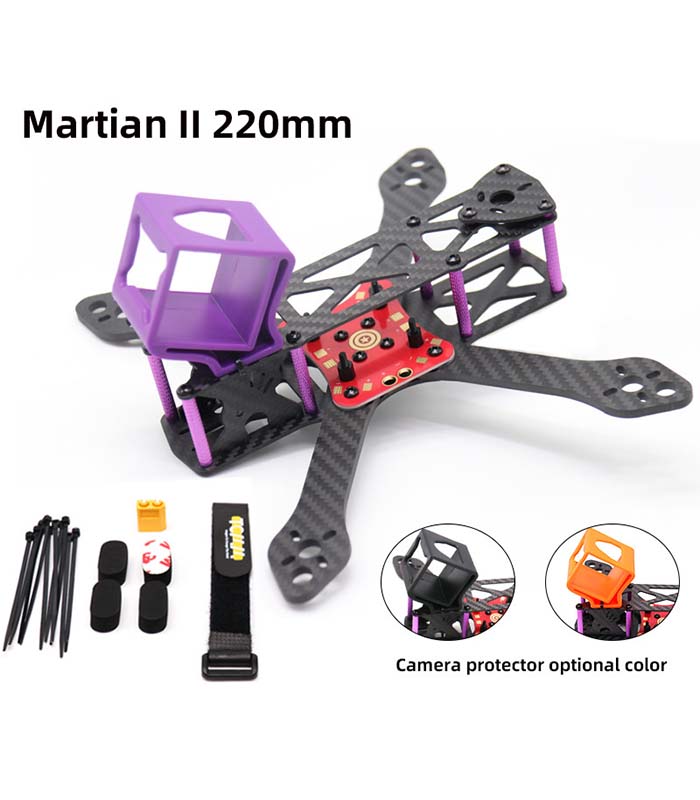

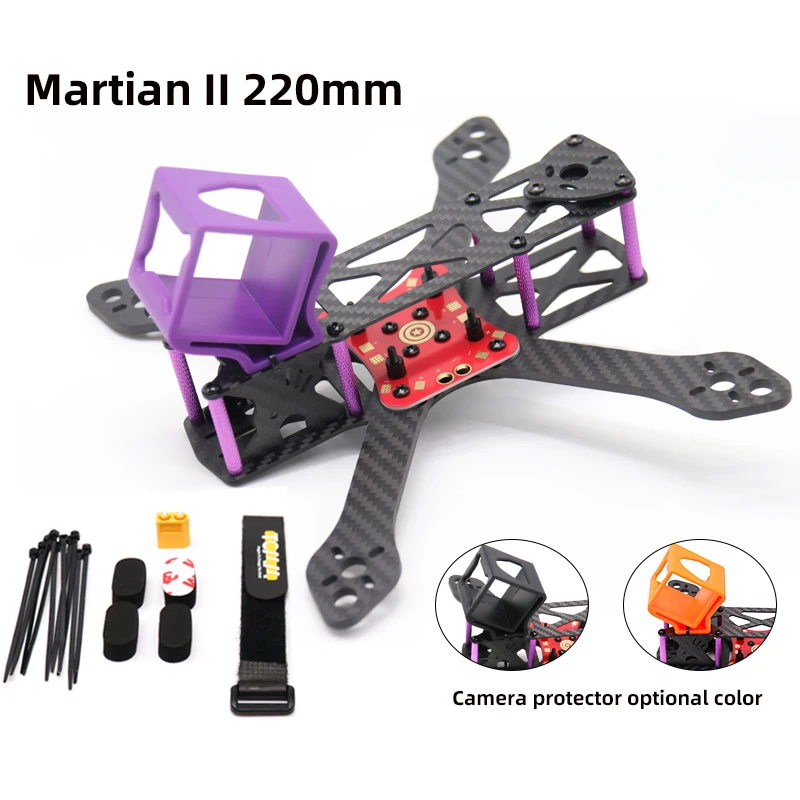

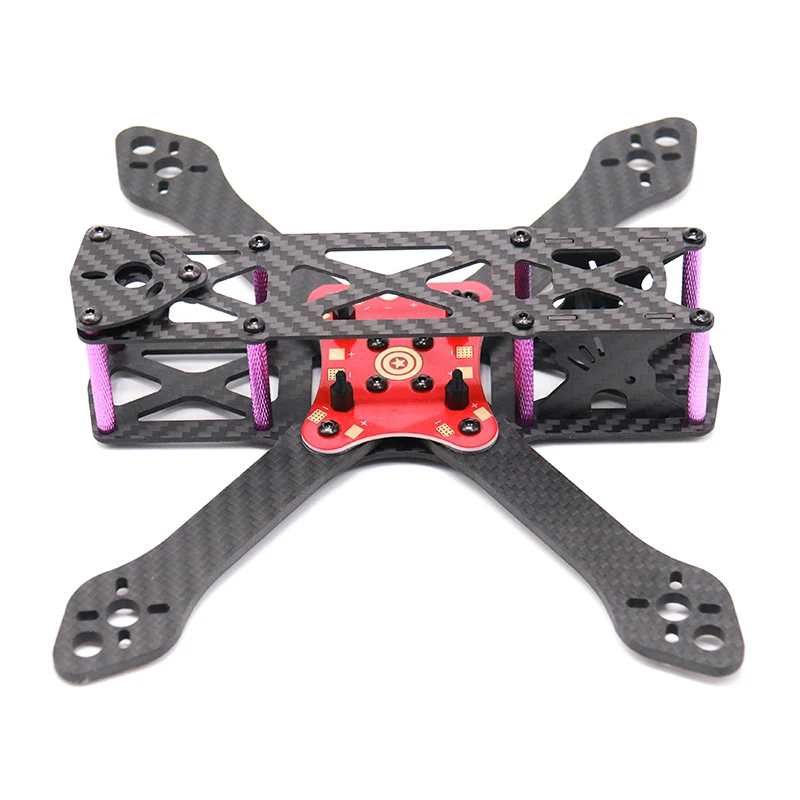

This Quadcopter Frame is the advanced version of the Martian II 220 reptile Quadcopter Frame. It keeps everything that has made the Martian-I Quadcopter frame successful. The MARTIAN-II REPTILE Quadcopter Frame is a mini-size quadcopter frame.
NOTE: This product does NOT include the Power Distribution Board
The MARTIAN-2 REPTILE 220mm Quadcopter Frame is manufactured with excellent quality 3K Carbon Fiber. Also, the arms of this frame are shorter than the previous one. In comparison between the Martian-I, Martian-II, and Martian-III it is found that the carbon fibre of the Martian-II frame is of the highest quality hence they are costlier in the class of Martian Quadcopter Frames.

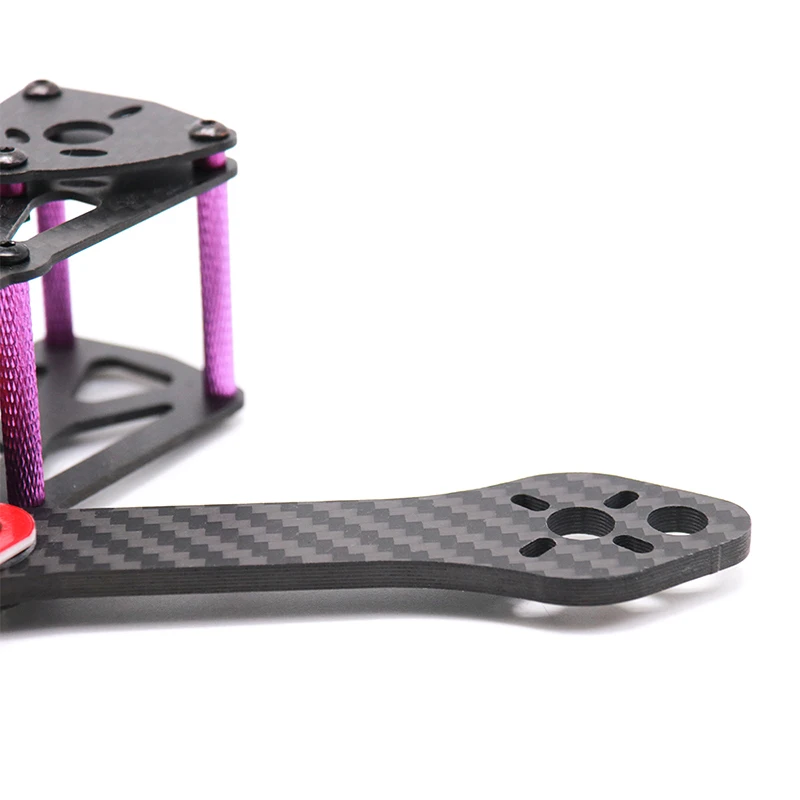

This MARTIAN-II REPTILE 220mm Quadcopter Frame is made from Carbon Fiber which makes it tough and durable. They have carbon fibre arms of thickness 4mm which ensure no more arm breakage at the motor mounts on a hard landing. The arms equip dampers at the end, which protects motors during the crash. The frame enables quick swapping of arms in race pit settings.
Carbon fibre is the most accepted material for frame designing because of its high stiffness to weight ratio. The Carbon Fiber Frames are very rigid and improve stability and flight performance.
It comes with a PDB(Power Distribution Board) and XT60 male connector to power up the Quadcopter. And is also designed to fit standard flight controllers/PDB, FPV cameras and also FPV transmitters and antenna. The assembly is done with Black Oxide steel screws which are included in the pack.
The frame is lightweight and possesses thick arms, so as to give them good mechanical strength. The mini-size design of this quadcopter frame makes it aerodynamically efficient which will require lower throttle to hover.
The frame has a wheelbase of 220mm and weighs around 140gm. This frame supports 37mm board cams as well as 26mm cams in cases with mounting brackets.
The MARTIAN II 220 Quadcopter Frame equips anodized alloy spacers. The arms of this carbon fibre frame feature multiple motor mounting holes so as to fit a variety of motors.
Specifications of Martian II 220 Frame
★ Simply Thick Right 5 Inch Frame KIT – The bottom plate of the Martian II is 2mm thick and the top is 1.5mm thick.
★ New Unopened 5 Inch Drone Frame KIT: The new unopened frame kit refuses to ship used items, so you can buy them with confidence.
★ 100% Carbon Fiber Plate -Carbon plate with pure 3K twill carbon fibre sheet.
★ 100% new production TCMM door, well made and durable.
★ Suggested Lipo is a 3 of 4s of 1550mah and 2300mah.
★ Support for 32mm dash cameras as well as HS1177.
★ Support to carry HD camera
Package Includes:
4x Arms for Martian II 220 Frame
1x Top Plate for Martian II 220
1x Bottom plate for Martian II 220
1x Iron screw package: M3*6mm-18pcs, M3*8mm-6pcs, M3*12mm-20pcs, M3 silver nut 12pcs.
1x Aluminum column package: Mesh purple M3*35mm-8pcs，Bright purple M3*3mm-3pcs.
1x XT60 Connector
1x Isolation column package.
1x Sponge mats.
1x Nylon cable tie.
2x Battery Straps

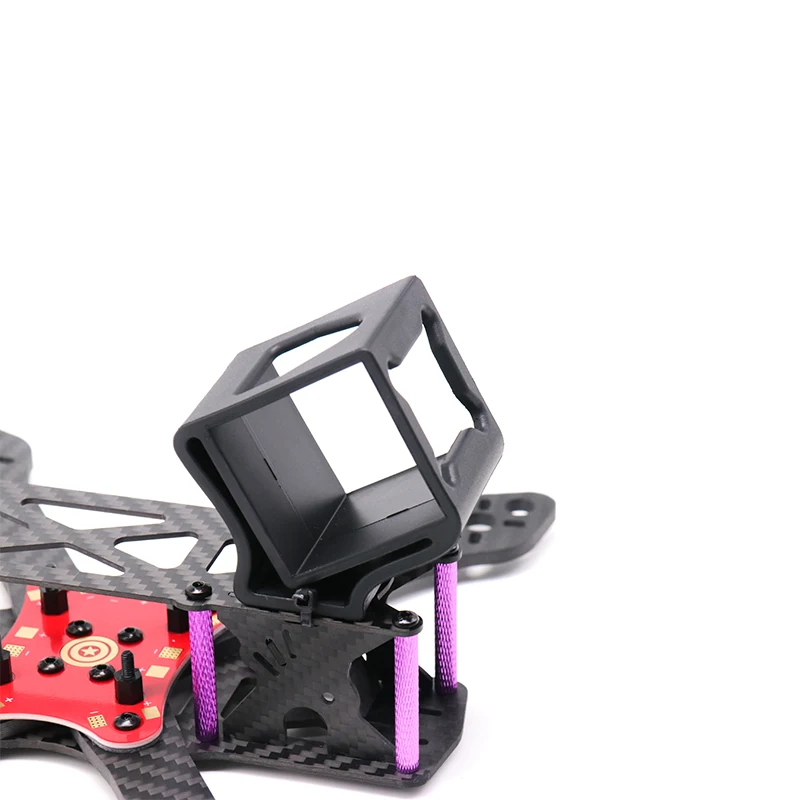

Please note that this frame comes without the GoPro mount now.
