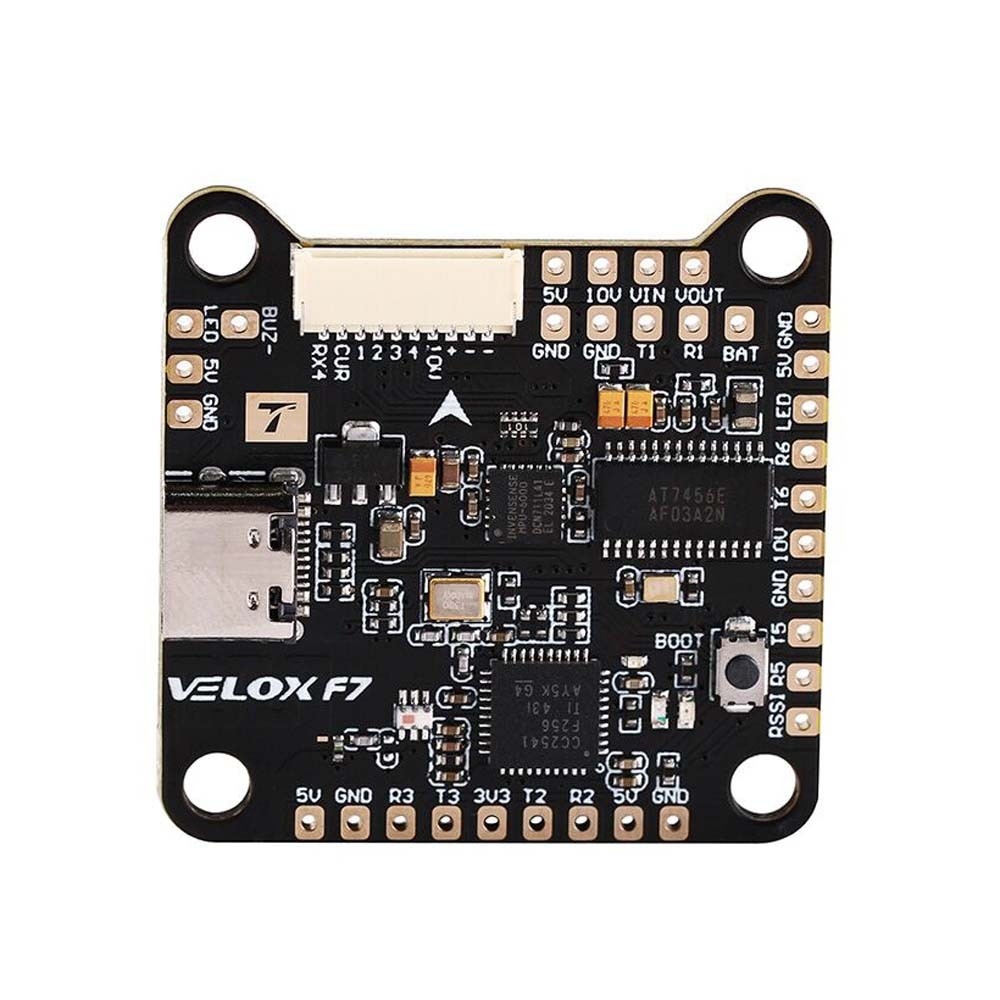

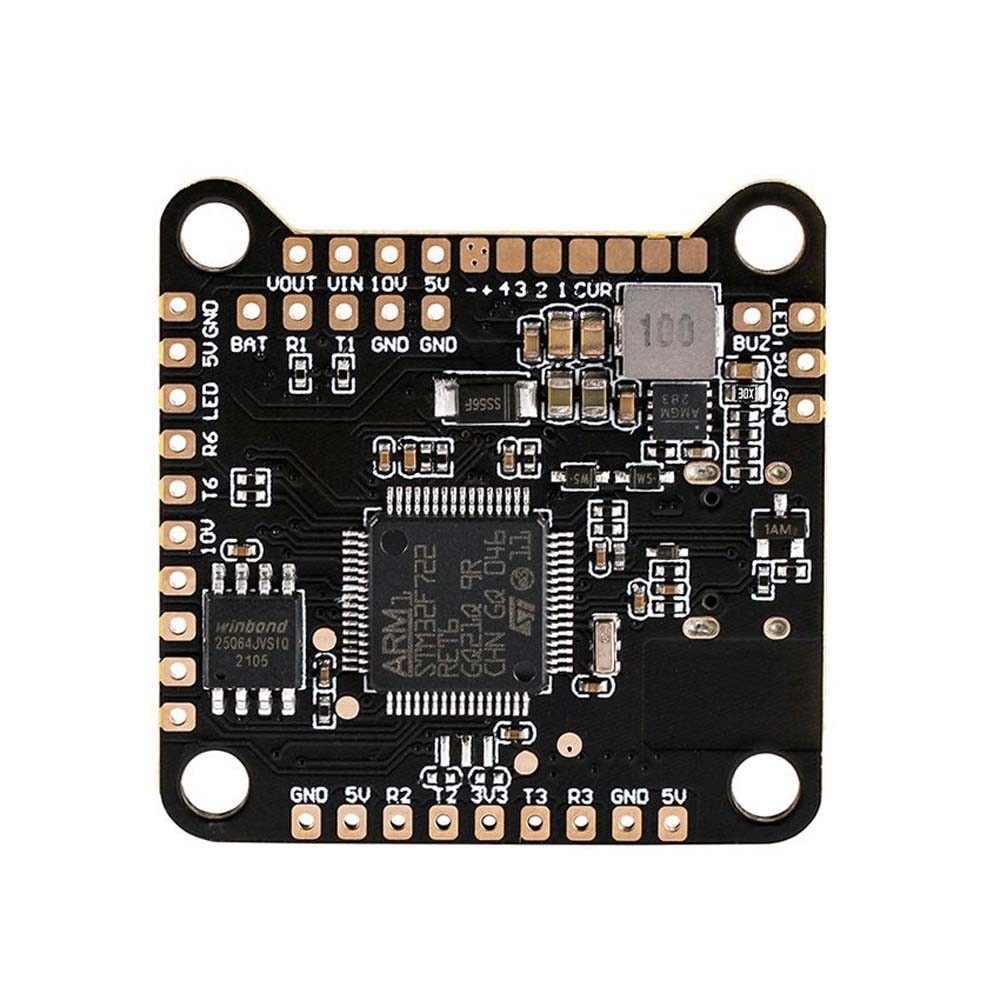

T-Motor VELOX F7 HD Flight Controller

The T-Motor VELOX F7 HD Flight Controller comes with an integrated Bluetooth chip, so you can adjust FC parameters by directly connecting to the Speedy Bee App in your mobile device without configuration required. In addition to analog VTX, the VELOX F7 FC support the Caddx Vista Digital HD Camera and DJI Air Unit.

Features

• STM3F722RET6
• MPU-6000 GYRO
• Built-in OSD (AT7456)
• Built-in 8Mb Flash for data logging
• Built-in Bluetooth chip
• Wide range of voltage input (Max 36V)
• 6 UARTS

Specifications

• MCU: STM3F722RET6
• Gyro: MPU-6000
• Flash: 8Mb on board
• OSD: AT7456
• Input: 3-6 Cell Lipo
• BEC: 5V/3A, 10V (ESC Input)
• Firmware: TMotor F7 V2
• Size (mm): 37x37x6.5
• Weight (g):7g

Includes

• 1 x T-Motor VELOX F7 HD Flight Controller
