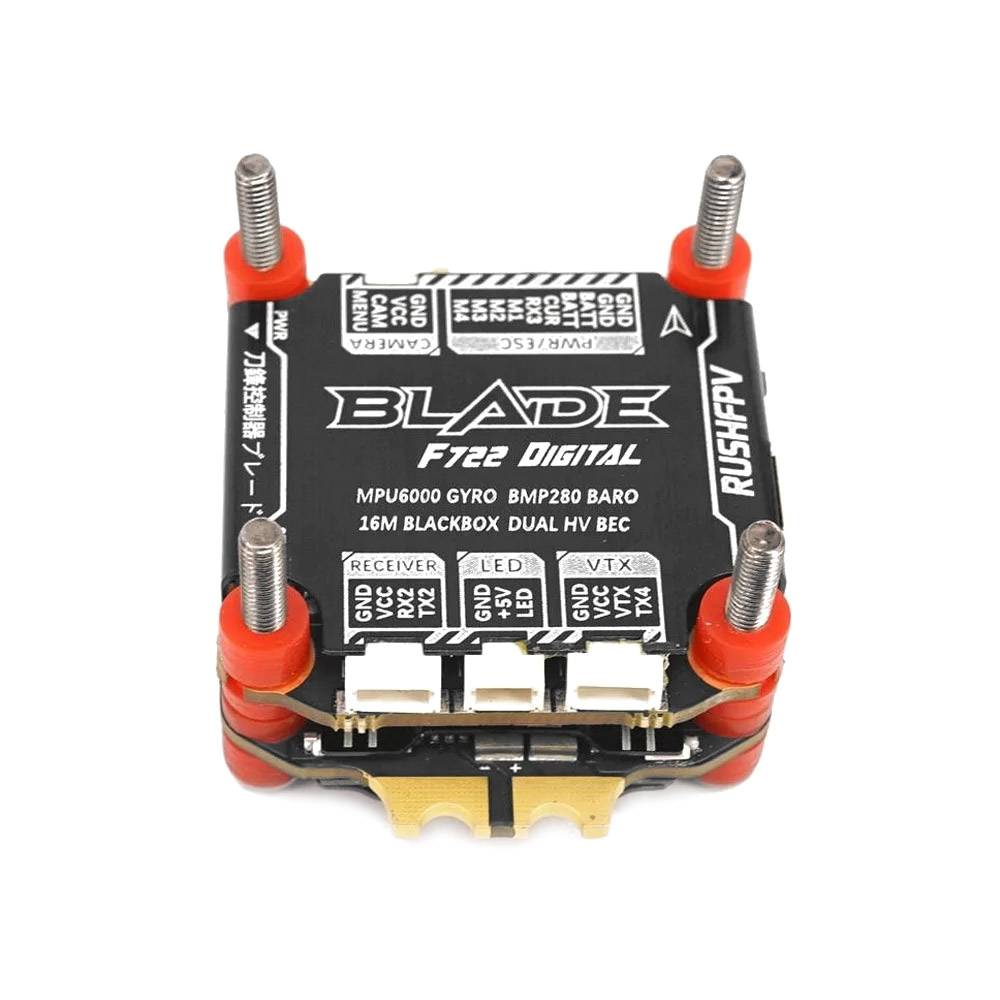

RushFPV RUSH BLADE Stack – F722 Digital FC + 60A 3-6S BLHeli_32 4-in-1 Super Edition ESC

The RUSHFPV RUSH BLADE F722 Stack features the F722 DJI Digital Flight Controller and Super Edition 60A 3-6S BLHeli_32 4-in-1 ESC, which can handle up to 6S input voltage. This stack is great for the DJI Digital FPV System.

• 30.5 x 30.5mm Mounting Pattern
• 128M Flash Memory Blackbox
• 3~6S Lipo (12.6~25.2V) Input
• MPU 6 Series DUAL GYRO
• MAMBA MK4 H743 FC
• F55 55A 128K ESC
• Barometer
• 8 Uarts
• Buzzer
• OSD

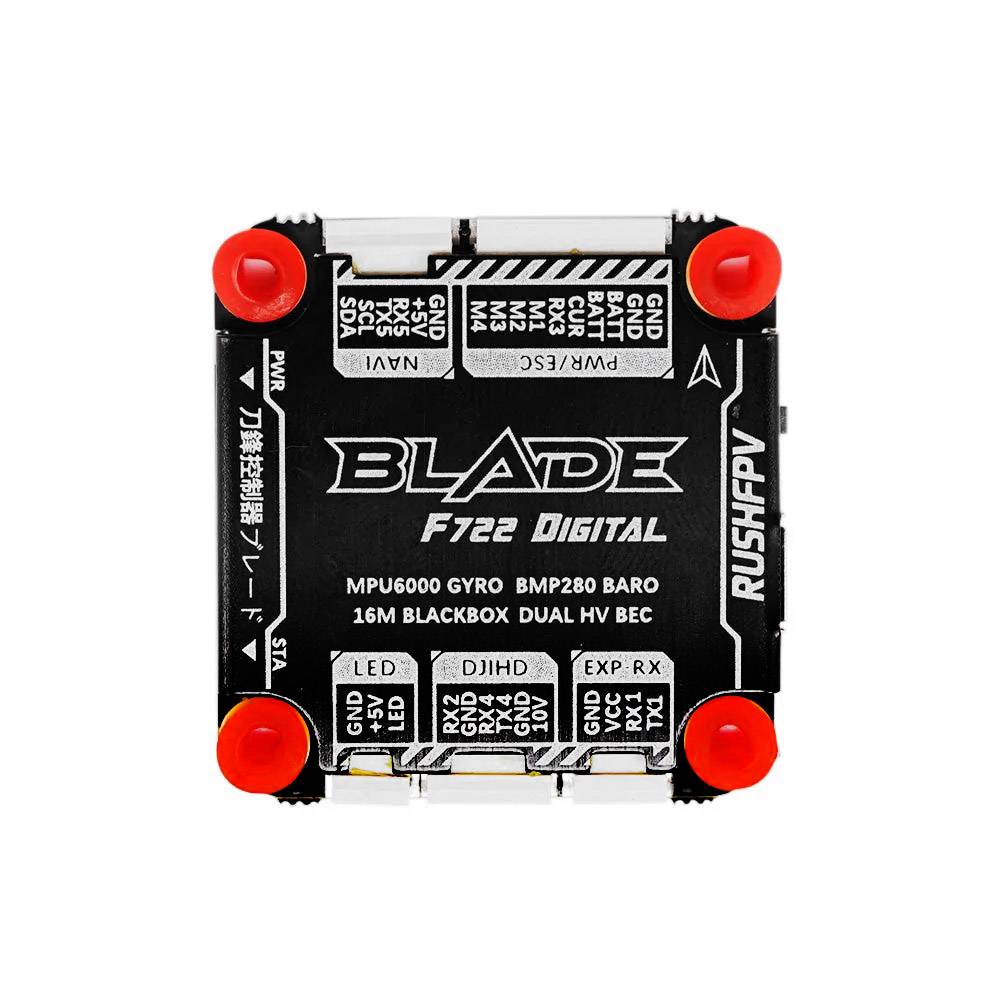

F722 DJI FLIGHT CONTROLLER

• Dimensions: 36.5mm x 38mm x 5.2mm
• Firmware Target: Rush_Blade_F7_HD
• Mounting Holes: 30.5mm x 30.5mm
• Ports: 6 x PWM, 5 x UART, 1 x I2C
• LED: Supports WS2812 LED Strip
• MCU: STM32 F722 RET6 216MHz
• Input Voltage: 7-40V 3-8S LiPo
• Weight: 9.5g (Without Cables)
• BEC Output: 5V/5A 10V/3A
• Blackbox: 16Mb SPI Flash
• GYRO: MPU6000

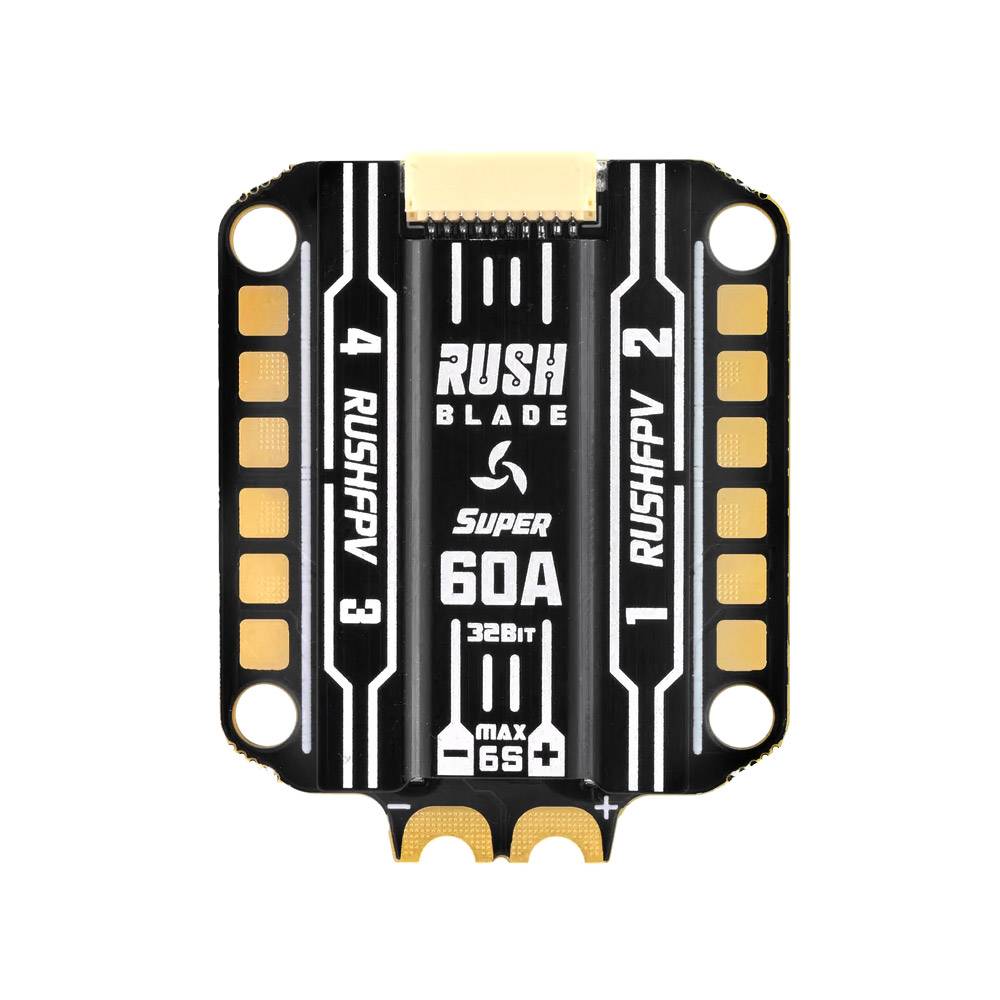

RUSH BLADE 60A SUPER EDITION 96K ESC

• BL32 FW: RUSH_BLADE_SUPER
• Dimension: 45*36.5*7.5mm
• Input Voltage: 3-6S Lipo
• MCU: F350 @ 168MHz
• PWM FREQ: 24-96KHz
• Rated Current: 60A
• Peak Current: 80A
• LED Color: Pink
• Weight：16.5g
