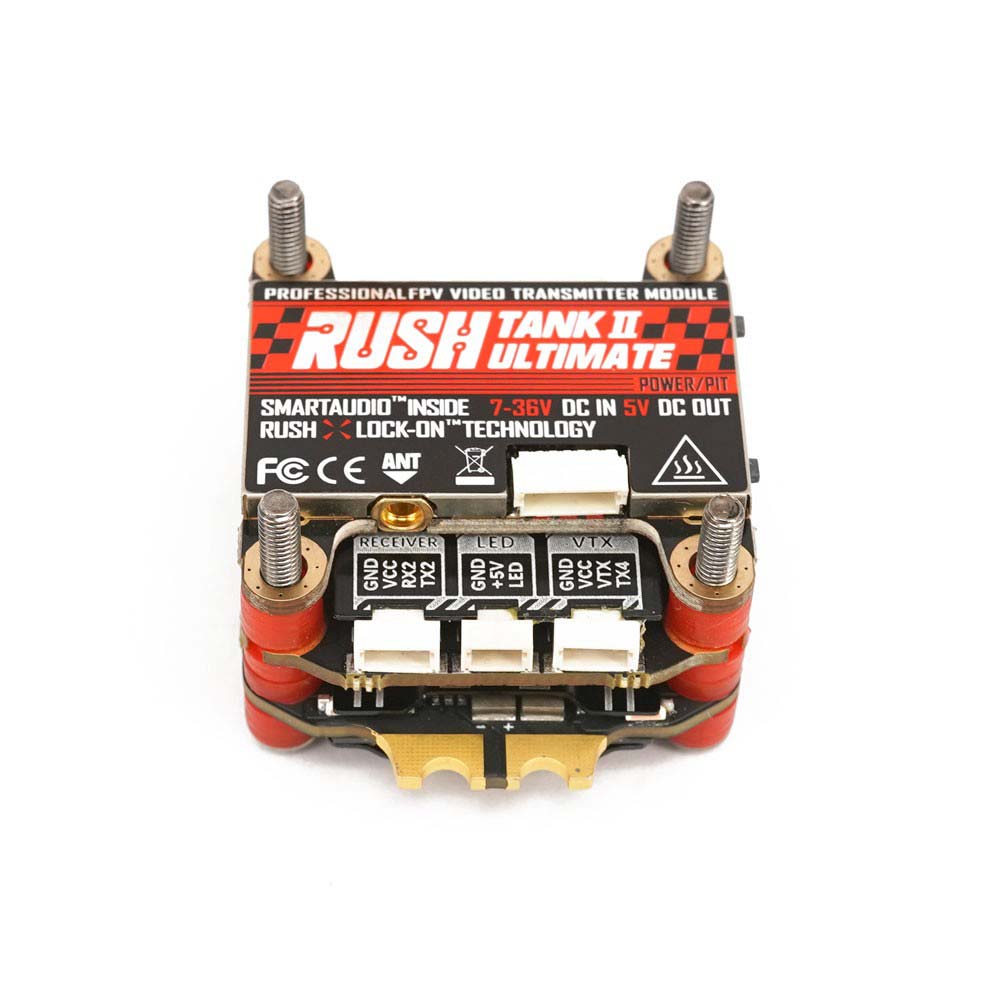

The RUSH BLADE Stack w/ VTX for analog by RUSHFPV features the RUSH TANK II 5.8GHz VTX, RUSH BLADE F722 Flight Controller, RUSH BLADE 50A 3-6S BLHeli_32 4-in-1 ESC (Sports Edition), and the Rush Tank II video transmitter, which can handle up to 6S input voltage and push your FPV racer to the max.
Specifications of Rush Blade Stack w/ VTX

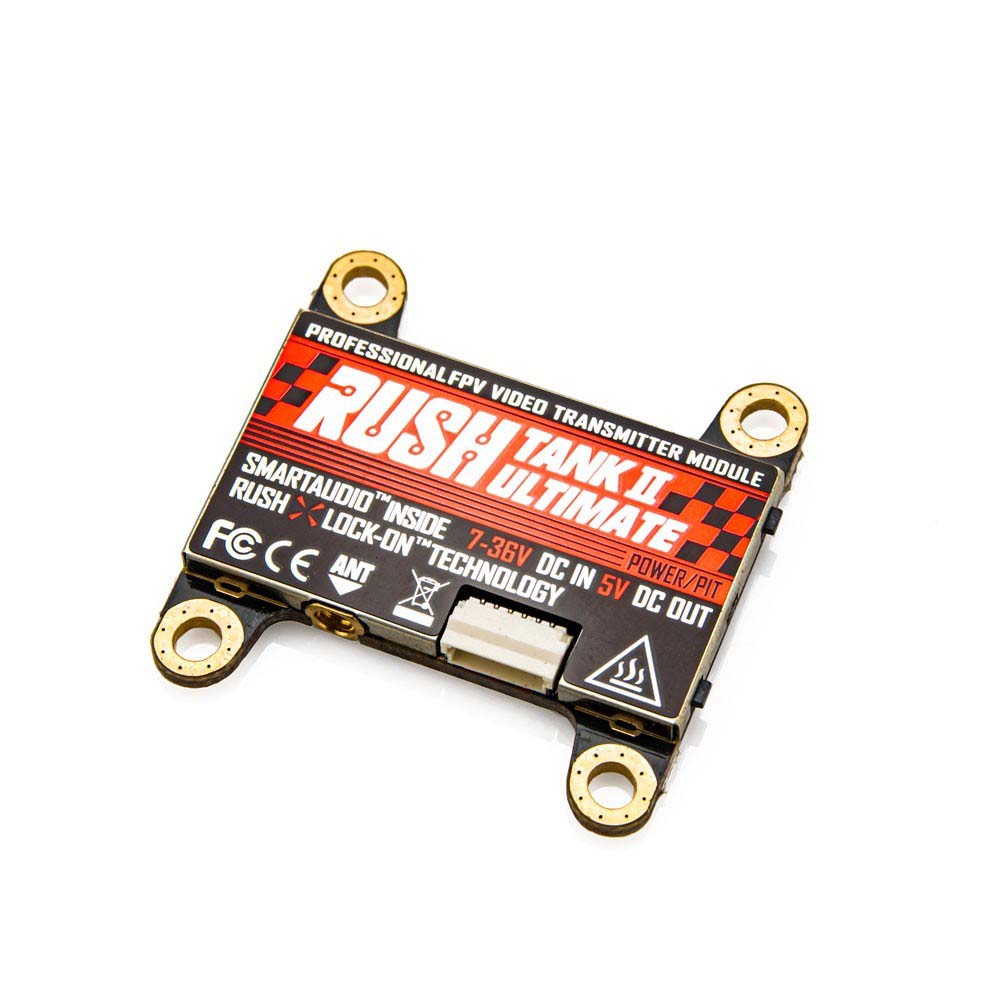

RUSHFPV RUSH TANK II 5.8GHz VTX w/ Smart Audio
- Item Name: Rush Tank II
- Input Voltage: 7-36V DC
- Output Voltage: 5V 1A
- 12V Input Current: 40mA@Pitmode, 95mA@25mW, 185mA@200mW, 250mA@500mW, 380mA@800mW
- Channels: 48CH RaceBand / LowRace
- Power: PIT/25/200/500/800 mW
- Audio: Support audio input
- Dimensions: 36*36*4.5 mm
- Weight: 6.8g(including cable)

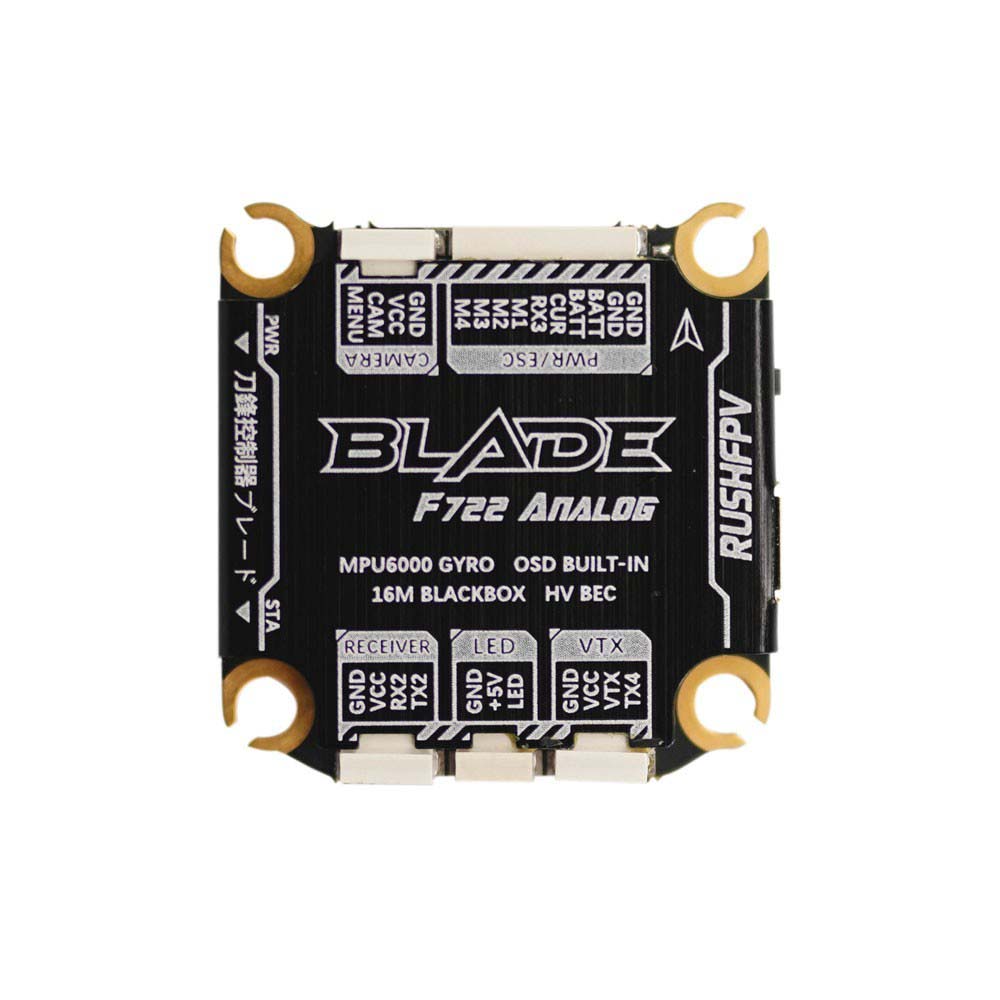

RUSHFPV RUSH BLADE F722 Flight Controller For Analog
- MCU: 216MHz
- GYRO: MPU6000
- OSD: Onboard OSD
- Input Voltage:3-8S
- BEC: 5V/5A
- Mounting Holes: 30.5mm x 30.5mm
- Firmware: betaflight_4.2.0_RUSHFC_8f2d21460

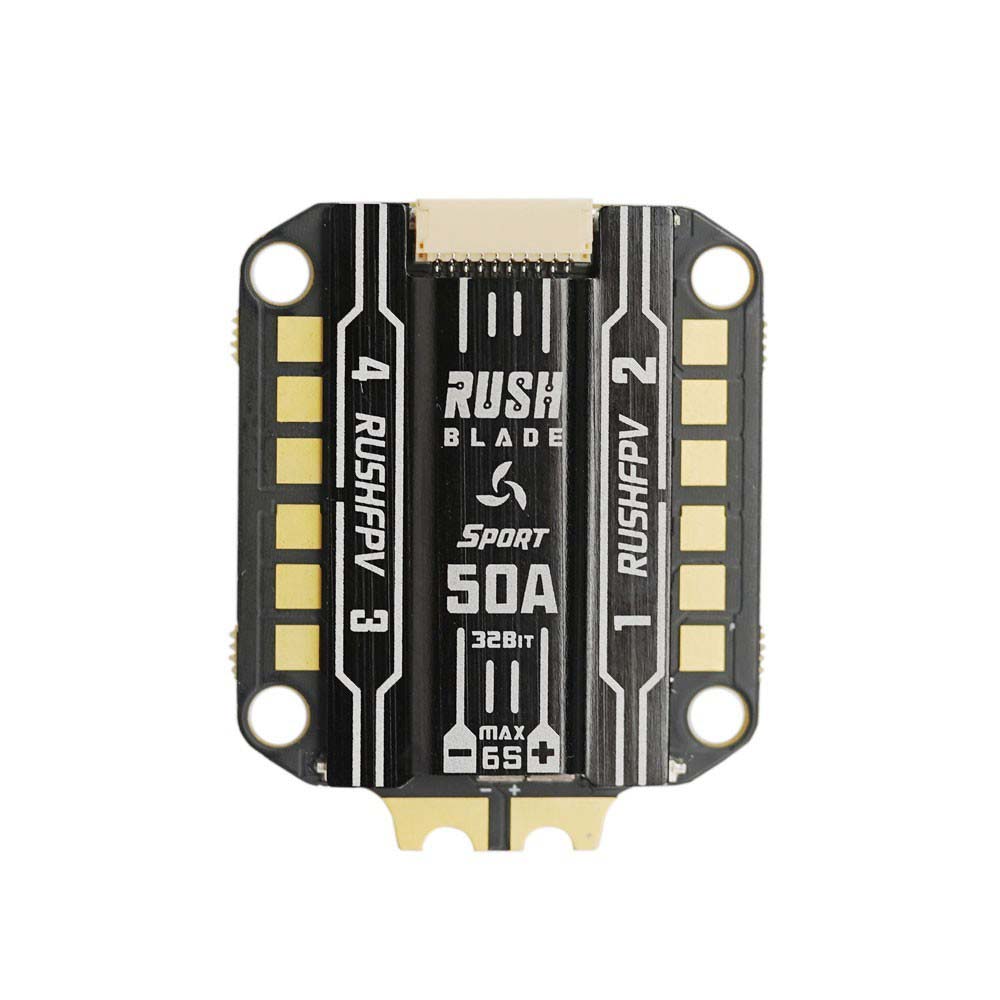

RUSHFPV RUSH BLADE 50A 3-6S BLHeli_32 4-in-1 ESC – Sport Edition
- Rated Current: 50A
- Peak Current:60A
- Input Voltage:3-6SLipo
- MCU:F051 48MHz
- PWM FREQ:48K
- LED Color: Blue
- Weight：16.2g
- Dimension:45*36.5*7.5mm
- BL32 FW: RUSH_BLADE_SPORT
Includes
- 1 x RUSHFPV RUSH TANK II 5.8GHz VTX w/ Smart Audio
- 1 x RUSHFPV RUSH BLADE F722 Flight Controller For Analog
- 1 x RUSHFPV RUSH BLADE 50A 3-6S BLHeli_32 4-in-1 ESC – Sport Edition
Get more information regarding Rush Blade Stack w/ VTX product from Rush FPV.
