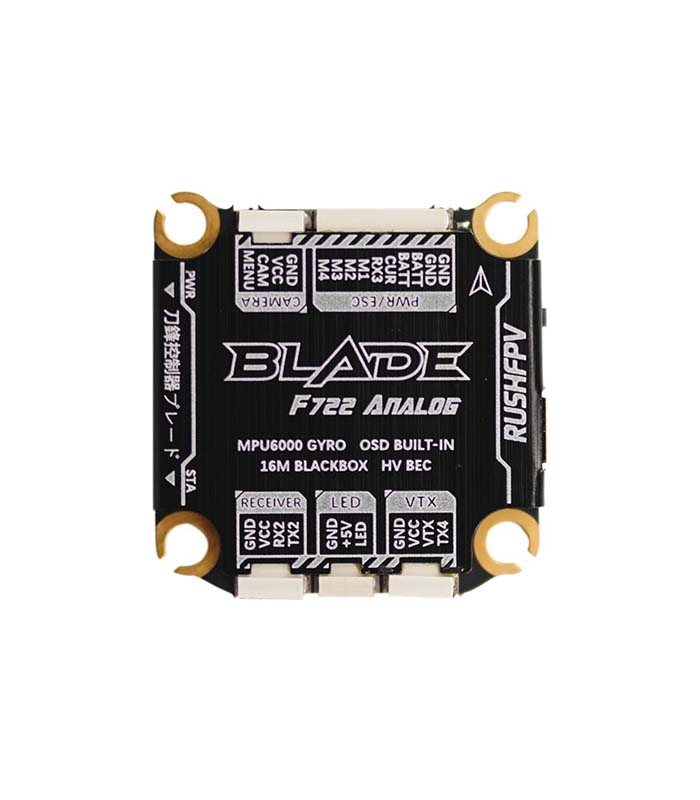

Rush Blade F722 Analog Flight Controller

Rush Blade F722 Analog 30×30 Flight Controller For Analog by RUSHFPV. This FC features MPU6000, Onboard OSD, and beta flight firmware. Perfect for the Rush Tank II Video Transmitter.

Features of Rush Blade F722 Analog

• High-performance STM32 F722 MCU with speeds up to 216MHz. • Using MPU6000 with integrated accelerometer and gyroscope, stable and reliable.
• Built-in 16M black box,Barometer,5 UART ports, 6 pwm output ports, 2 ADC ports, 1 l2C port.
• Integrated dual 40V input synchronous rectifier power supply, and built-in power filter, up to 8S lipo battery power supply, 5V 5A output provides sufficient power, you can connect more external devices.

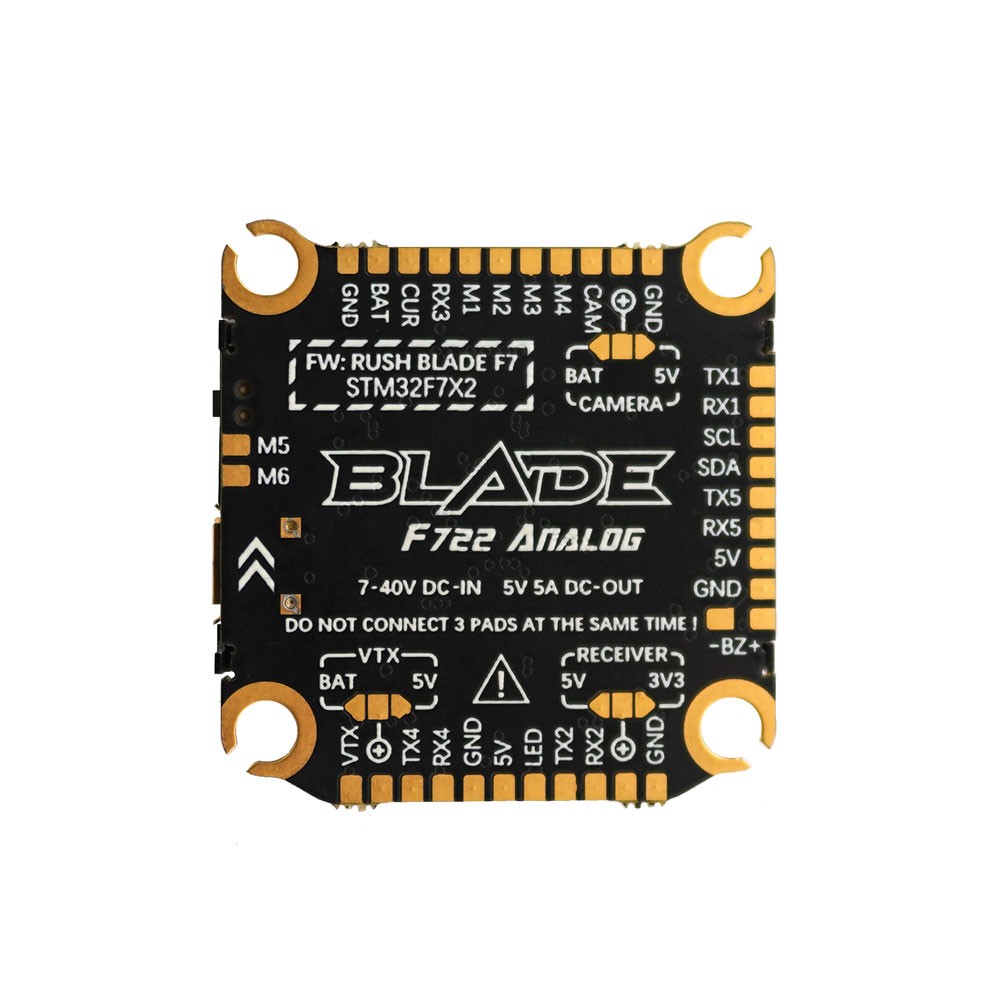

• Modular cable design, with reliable locking structure, can be installed quickly, while retaining full-featured pads on the back, providing more expansion support.
• Optimized for stack installation, the single-sided component placement method makes the thickness thinner, and the bottom is covered with complete copper to resist ESC Interference.
• The full-covered lightweight metal shell protects internal electronic components and provides perfect heat dissipation.

Specifications

• MCU: 216MHz
• GYRO: MPU6000
• OSD: Onboard OSD
• Input Voltage:3-8S
• BEC: 5V/5A
• Mounting Holes: 30.5mm x 30.5mm
• Firmware: betaflight_4.2.0_RUSHFC_8f2d21460

Wiring Diagram

Includes

• 1 x Rush Blade F722 Analog 30×30 Flight Controller
• 2 x 60MM LED/RX Cable
• 1 x 60MM ESC Cable
• 2 x Camera Cable
• 2 x VTX Cable
• 5 x 8MM Grommet

Get the Digital version of the Rush Blade FC from drkstore.in!

Get more information about this product from RushFPV.
