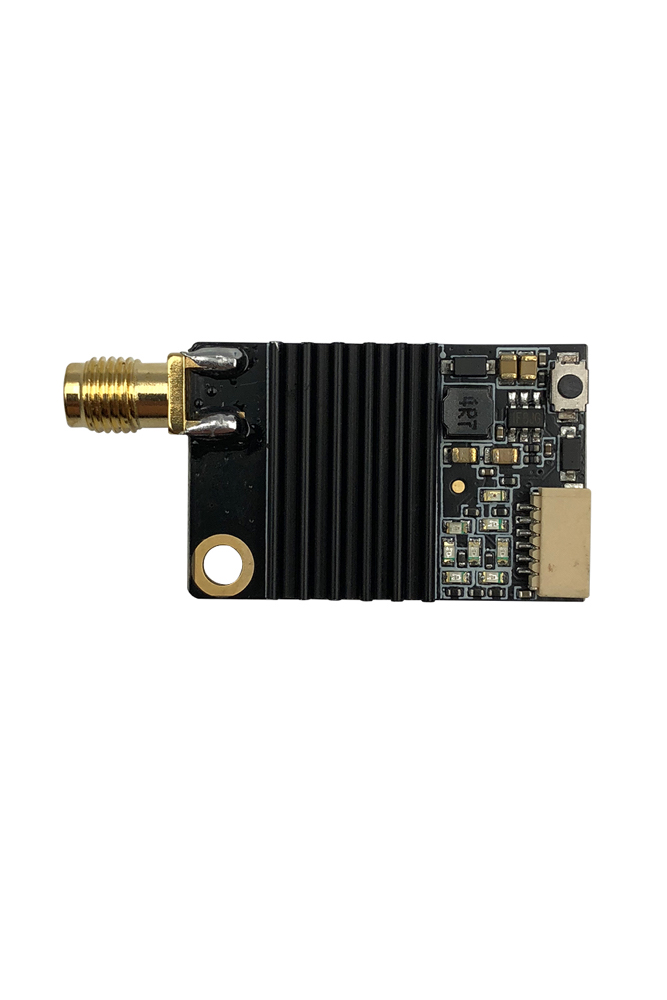

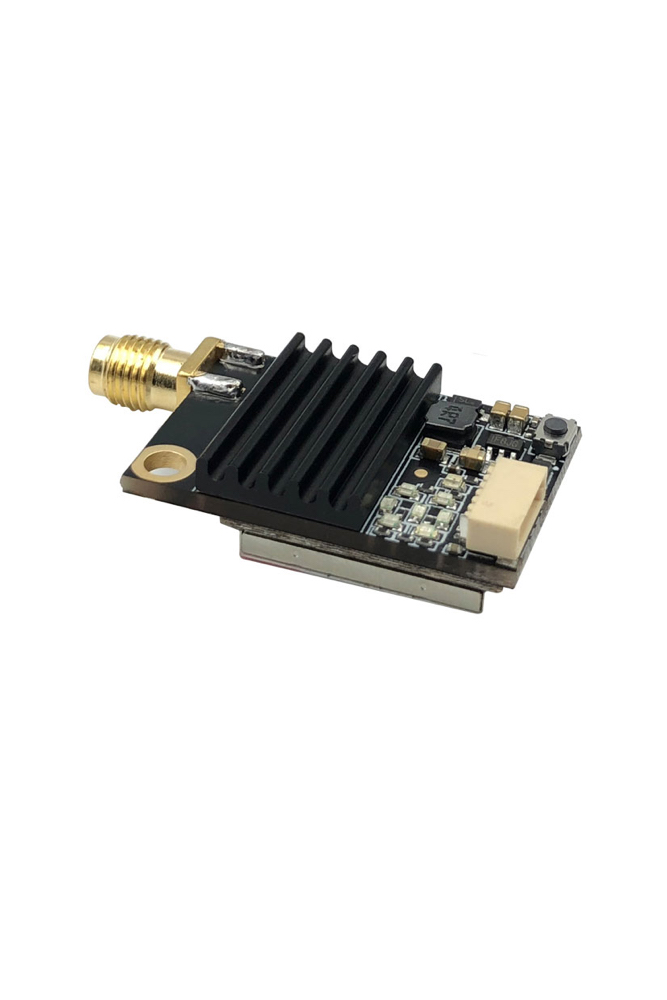

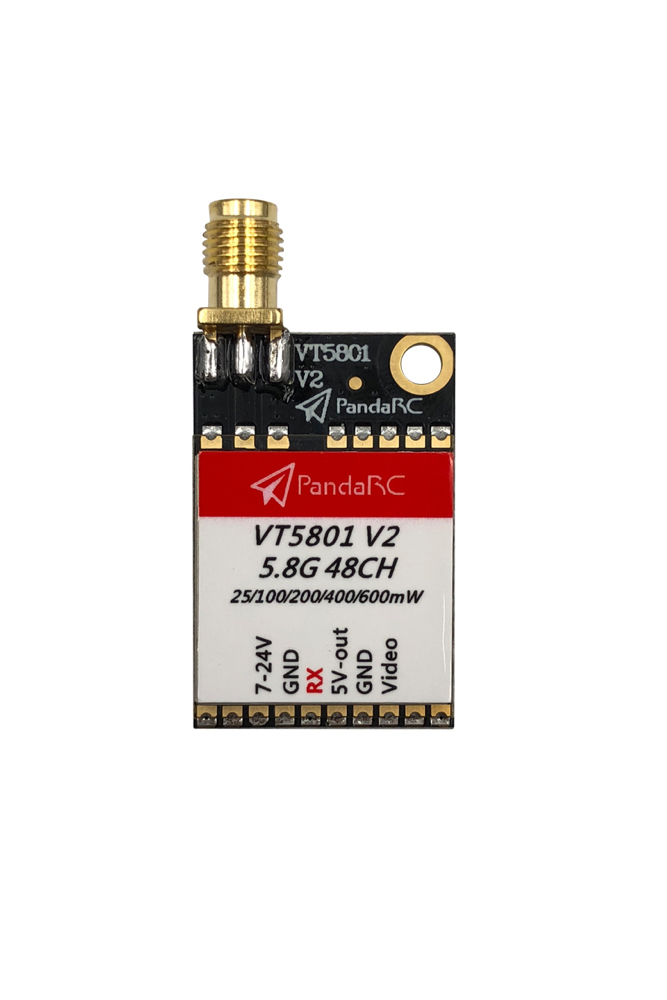

This FPV Video Transmitter (VTX) from PandaRC is a good all-rounder and offers great value. There are two versions of it, one fitted with an RP-SMA antenna connection (VT5801 V2) and the other with an MMCX connection (VT5805). The VTX itself is fairly small in size, lightweight (<9gram), has 48 channels including RaceBand, supports a wide voltage input (2-5S) and best of all it has adjustable power output. The adjustable power output is its killer feature; it’s like having multiple FPV transmitters in one. With it, you can switch to 25mw to stay legal in the UK and reduce multi-pathing when you fly indoors, or alternatively, you can boast the power to 600mW to increase range and improve reception if you are flying around lots of obstacles. The power output and channel frequencies are easily set via a push button and LED display. The transmitter has a 5v output, so it’s plug and plays with most FPV cameras. Finally, another positive for this VTX is the good build quality of PandaRC products. This VTX features a large heat sink on the back of its power amplifier, which helps to keep the VTX cooler and the power output more stable.
Features:
- Channel/Frequency/Power can be changed with one single button
- Power Outputs: 25mW/ 100mW/ 200mW/ 400mW/ 600mW.
- RP-SMA / MMCX antenna connector options
- 48 channels / 6 Bands – includes Race Band channels compatible with Fatshark & ImmersionRC gear
- 5V Onboard quiet switching regulator for FPV camera
- Flexible 7-24v (2s-5s input)
- Not affected by 2.4GHz R/C radios
- Easy push-button channel selection
- Support for Smart Audio

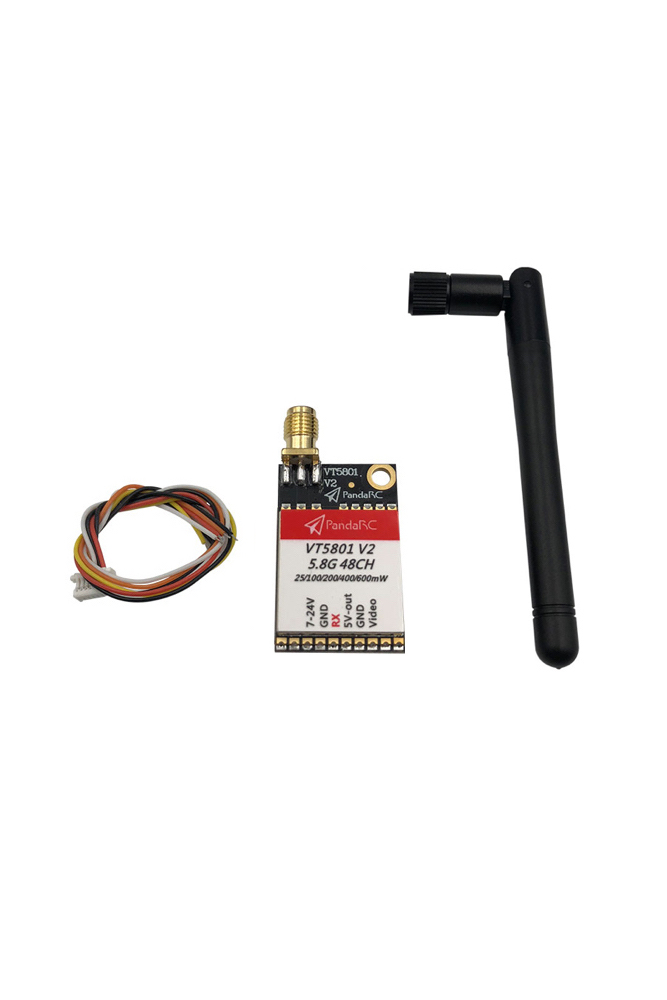

Includes
1x VT5801-V2 Video Transmitter
1x Wire Harnesses
1x Antenna
