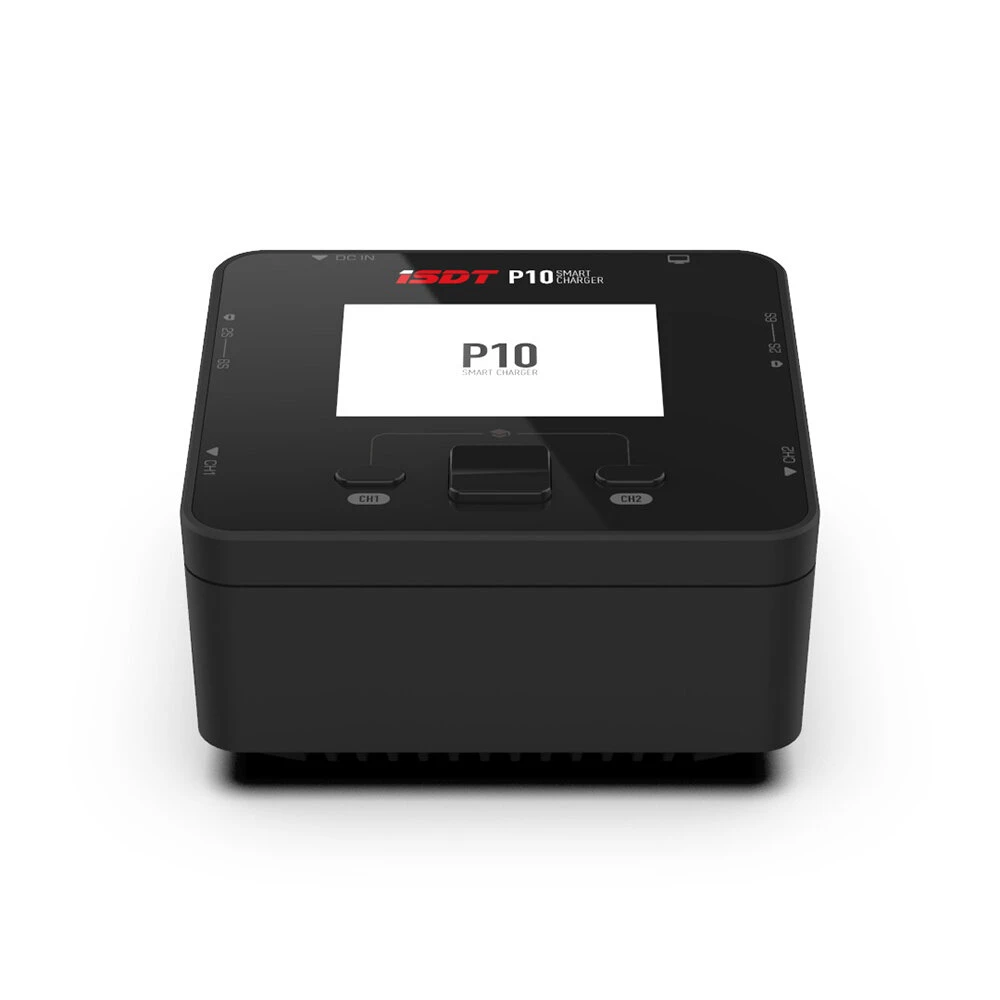

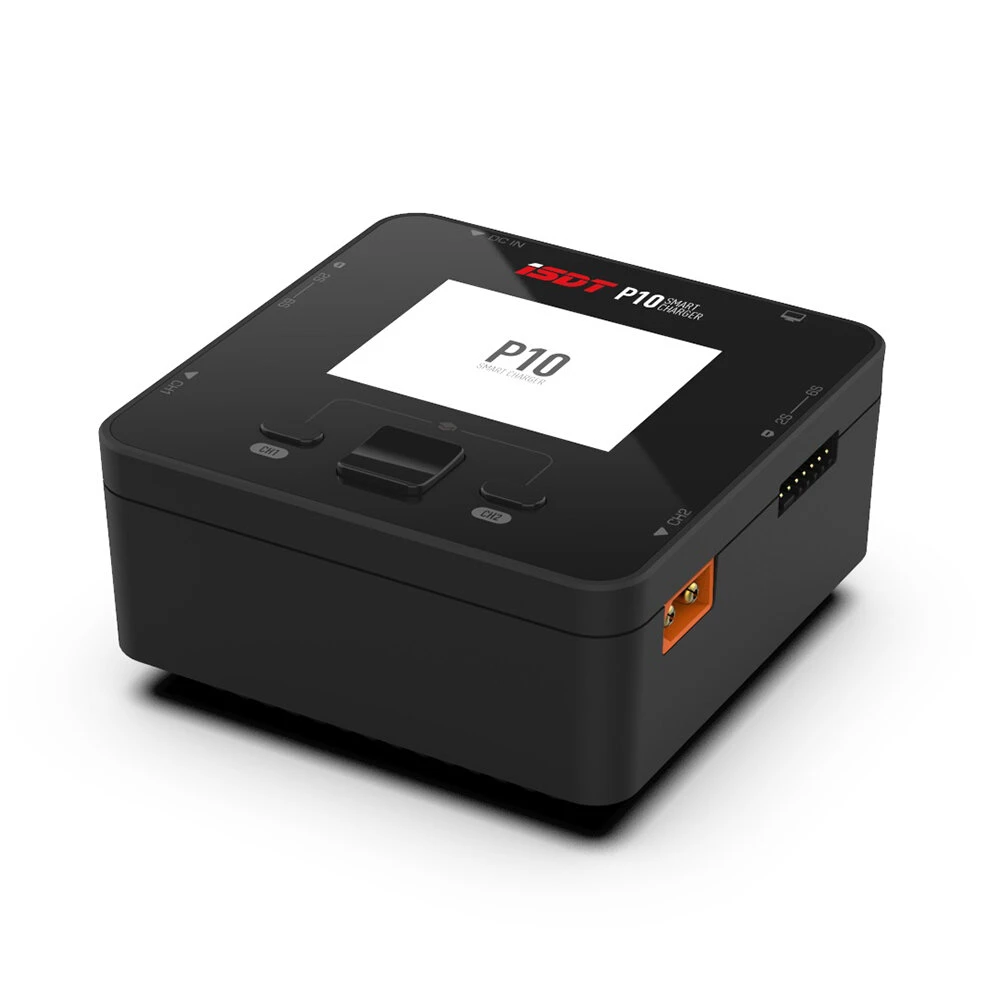

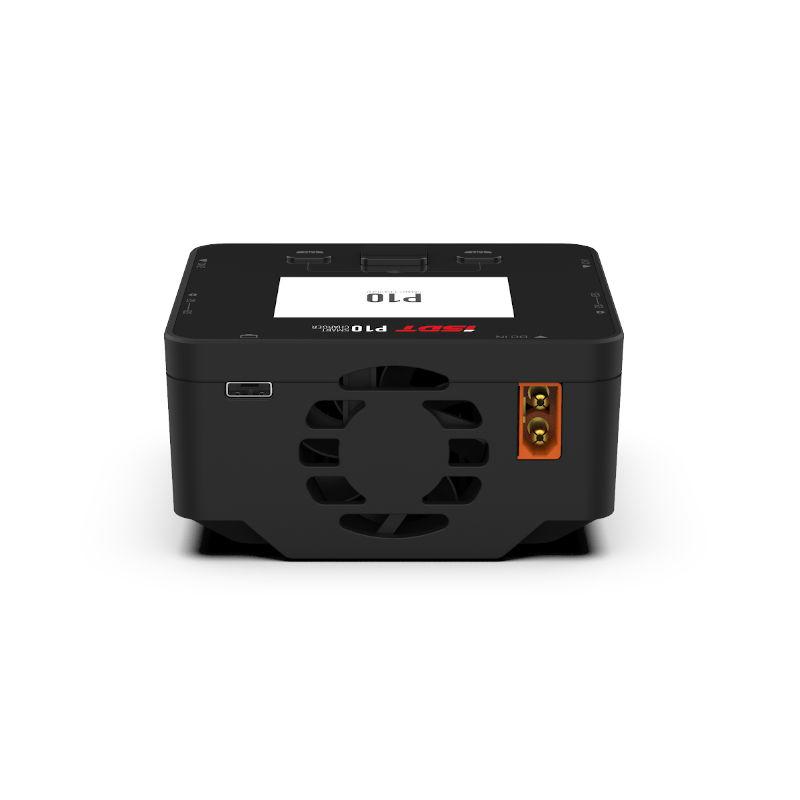

The smallest entry in the P series from ISDT, the P10 is a dual-channel 6S charger capable of 500W of output. Each channel can operate independently, putting out a maximum of 10A, or you can combine the two channels in parallel for synchronous balance charging at up to 16A. True to ISDT’s tradition, this charger has been engineered to be as small and light as possible, with advanced air convection design and a solid magnesium alloy shell providing effective cooling even in such a small package. The 3.5″ high-resolution IPS display provides a wealth of information about your batteries, with even more options available with the BattGO system and the ISDT app which connects wirelessly via Bluetooth.
1. High Power Synchronous Dual Channel, with Smart Charging.
Smart High Speed Processor delivers parameter interfere to each port.
Hassle-Free with Maximum charging power up to 250W for single port.
2. Synchronous Parallel charging.
Built-in High Speed Processor Synchronous Balance two-channel charging.
Maximum Parallel Charging power up to 400W.
P10 deliver charging current range from 10A ~ 16A.
3. Support USB interface to upgrade firmware
Connecting the computer through the USB-C interface, upgrade to the latest firmware
Always maintain the advanced performance and features.
4. Adjustable Digital Power Supply
The CH1 of the charger can become a DC power supply.
An adjustable digital power supply mode, the Max. power is 120W.
CC: 0.2~5A
CV: 5~24V

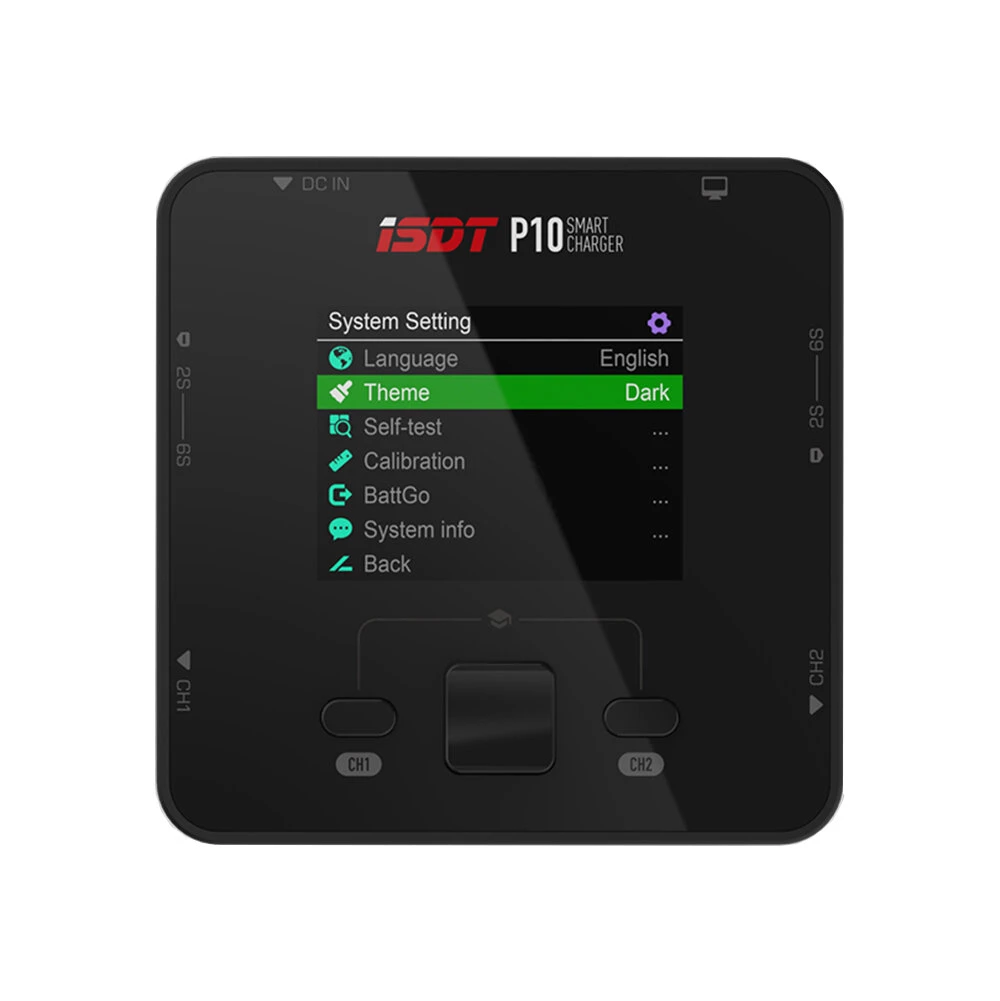

5. Lights off in the dark
introducing the dark mode.
scOS 2.0 new dark mode feature,
Suitable for low light scenarios,
The system will adjust the interface in a dark tone,
Reduce light damage to the user’s eyes.
While remaining the iconic and comfortable charging display style.
Specification:
Model No: P10
Input voltage: DC 10~30V
Output voltage: DC 1~26.4V
Max. input current: 20A
Charging current: 0.2~10.0A*2
Balance current: 0.5A/Cell Max
Max. charging power: 250W*2
Abnormal voltage alarm: Support
Incorrect cell count setting alarm: Support
Supported Quick-charge: LiFe, LiIon, LiPo, LiHv 1-6S,
Pb 1-10S; NiMH, Cd 1-16S
Working temperature: 0~40℃
Storage temperature: -20℃~60℃
Dimension: 90.5×90.5x47mm
Weight: About 250g
