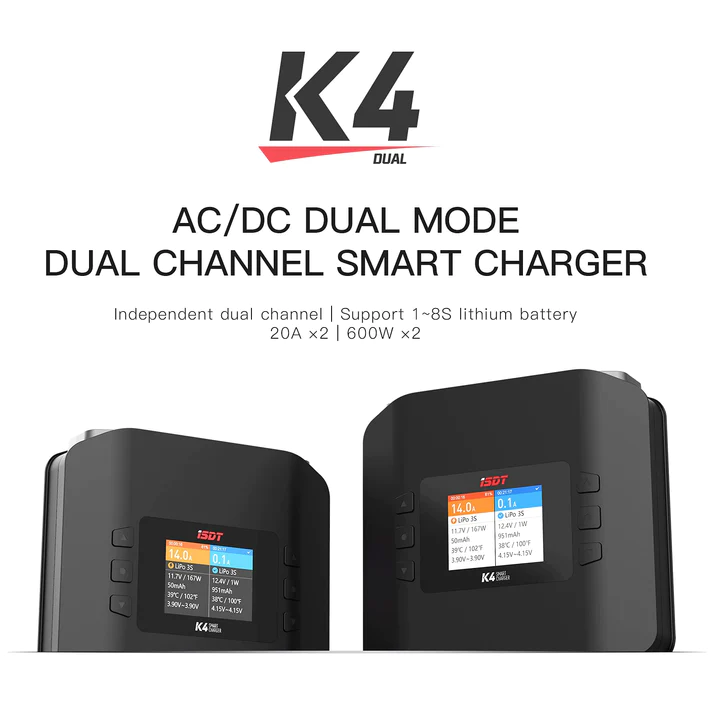

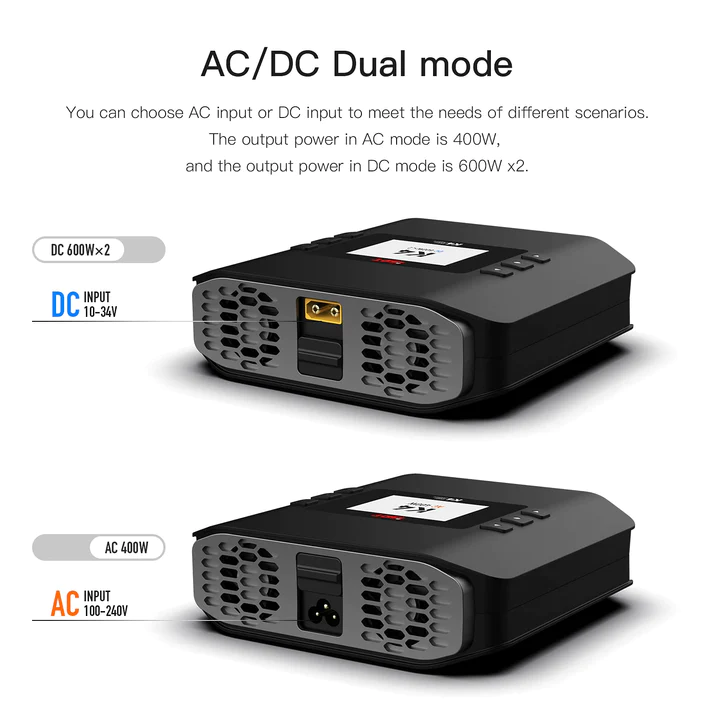

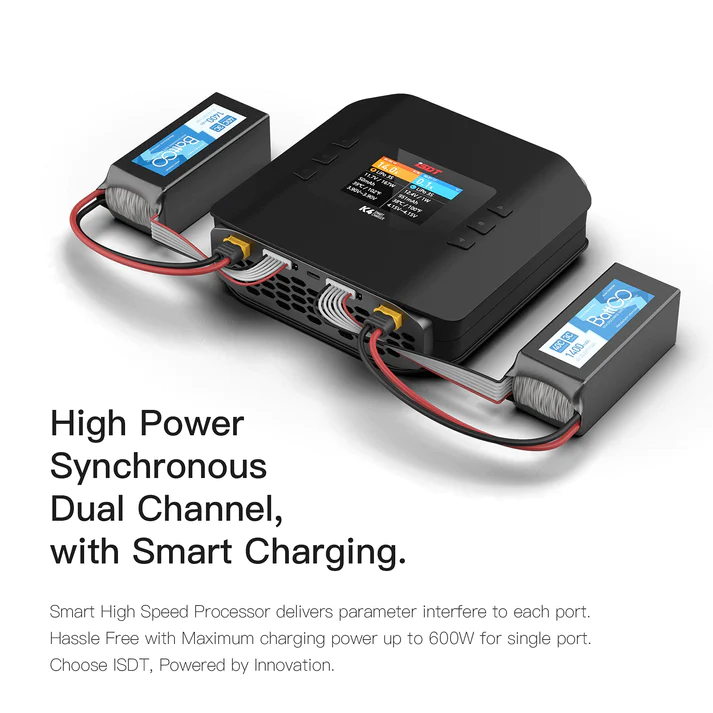

- ▶【AC/DC Dual Modes Lipo Charger】:Our lipo charger has AC 400W/DC DC600Wx2 dual input model with Independent dual channel,charging current:30AX2,Max.Input current:60A.Advanced crafty cooling air duct for high efficiency heating dissipation.K4 can acquire latest firmware upgrading,ensure the charger have optimalized performance and latest firmware all the time.
- ▶【ISDT K4 Smart Display】:Full color LCD,touch panel,it will show the whole charging process for batteries,with large screen displaycan show voltage,current,charging time,mode,battery type,internal resistance and battery capacity that charged,easy setup and manual operation modes.

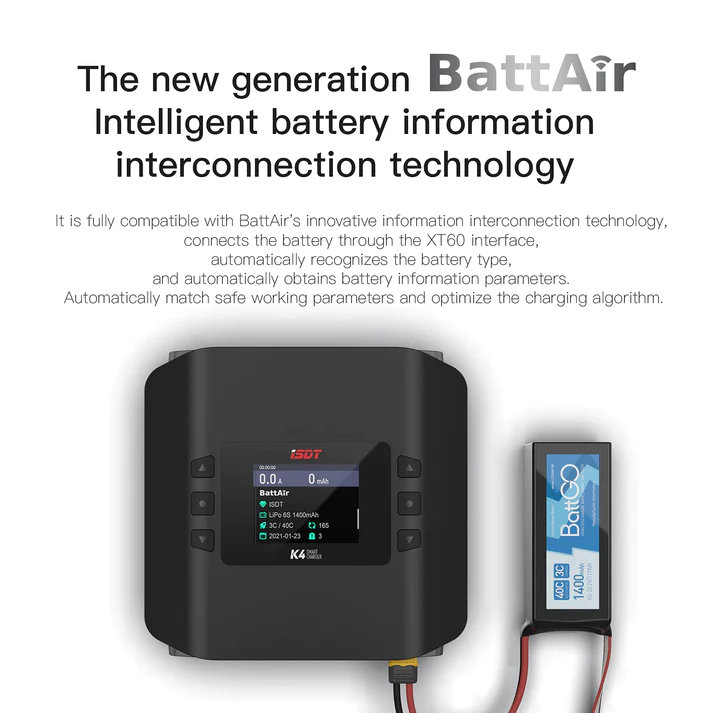

- ▶【K4 Charger Multi-Function】:It supports BattAir BT connecting and mobile operation,comes with Li-ion and LiPO balancing,fast charging,data storage,cycle charging,discharging function.It will automatically stop charging after full charged.

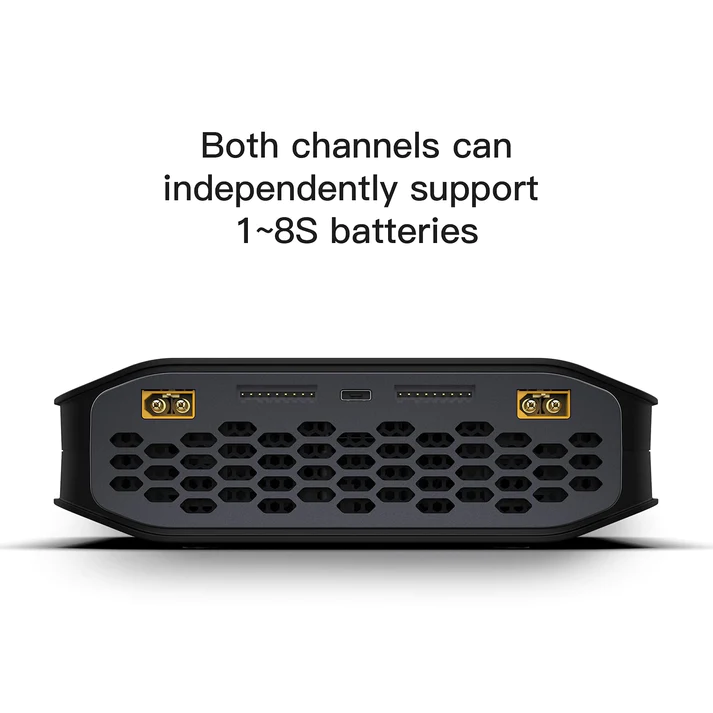

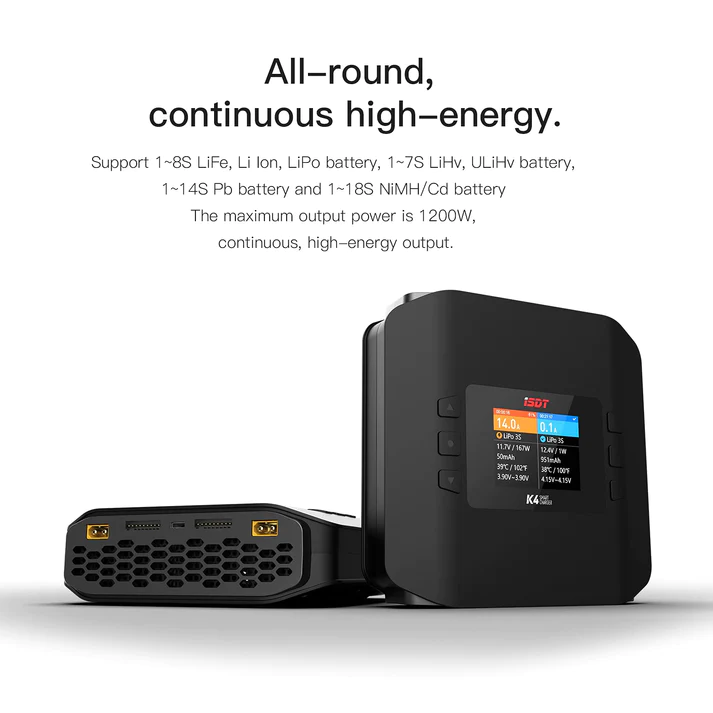

- ▶【ISDT Charger Various Battery Type Compatibility】:All-in-one control for LiFe,LiIon,LiPo 1~8S;LiHv,ULiHv 1~7S;Pb 1~14S;NiMH/Cd 1~18s batteries,automatic battery type identification with intelligent charge algorithm matching.
- ▶Multi-Application: Aluminium alloy shell with good handfeel and nice apperance,our product can widely used in RC plane/RC drone,portable power,portable devices,remote control car etc.Auto adjustmentfeature on charging parameters and auto safety shut-off for best charging performance.To help extend battery life with more reasonable.
Product description
Specifications:
Input voltage: AC 100~240V / DC 10~30V
Output voltage: DC 1~30V
Max. input current: DC 35A
Charging current: 0.2~20A x2
Discharging current: 0.2~3A x2
Balance current: 1.5A/Cell Max
Max. discharging power: 30W x2
Max. charging power: AC 400W / DC 600W x2
Abnormal voltage alarm: Support
Incorrect cell count setting alarm: Support
Supported battery types and cell count: LiFe, Lilon, LiPo 1~8S, LiHv 1-8S, Pb 1-12S, NiMH/Cd 1-16S
Parallel charging power and current: 800W/35A
Parallel discharge power and current: 30W/3A
Working temperature: 0~40℃
Storage temperature: -20℃~60℃
Dimension: 142x135x64mm
Weight: About 700g
Packaging included:
1X ISDT K4 Charger
