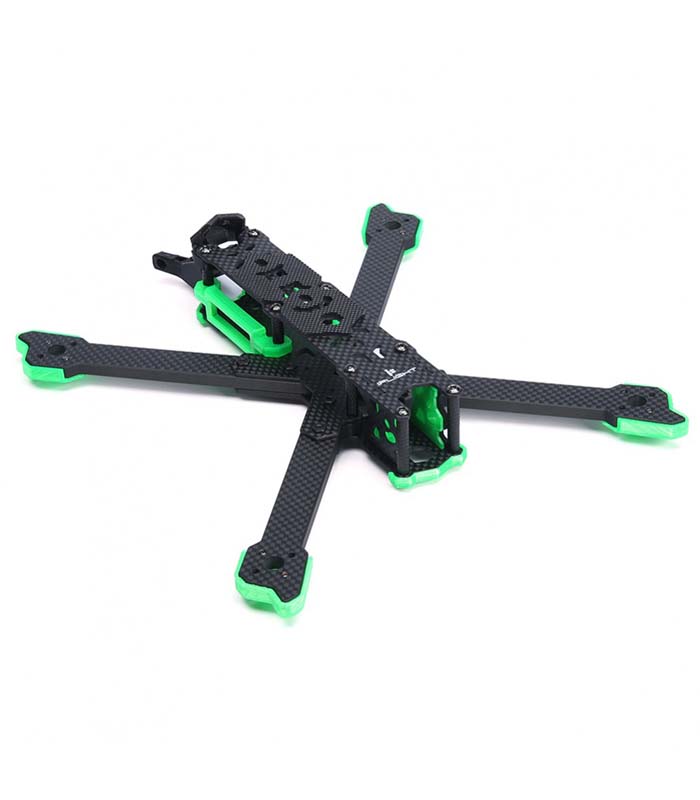

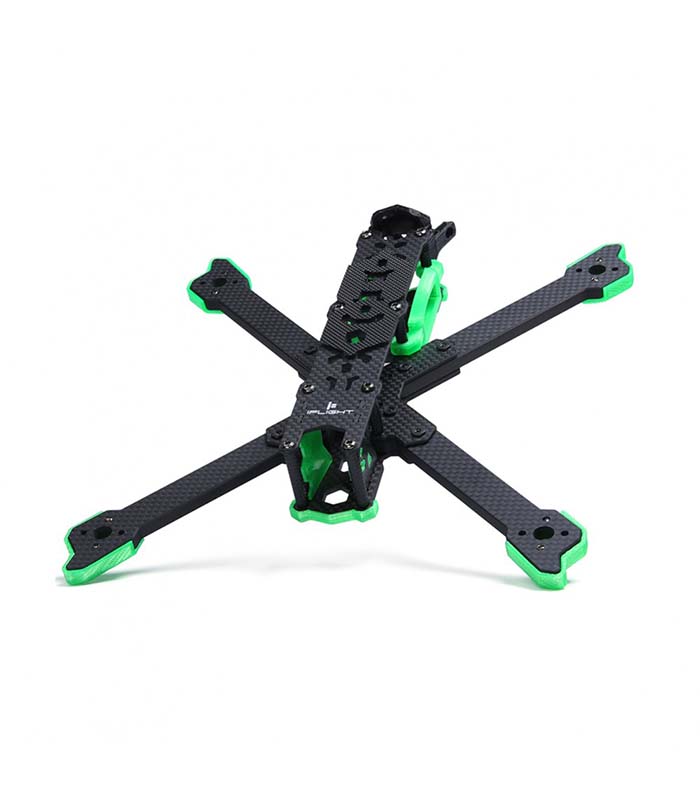

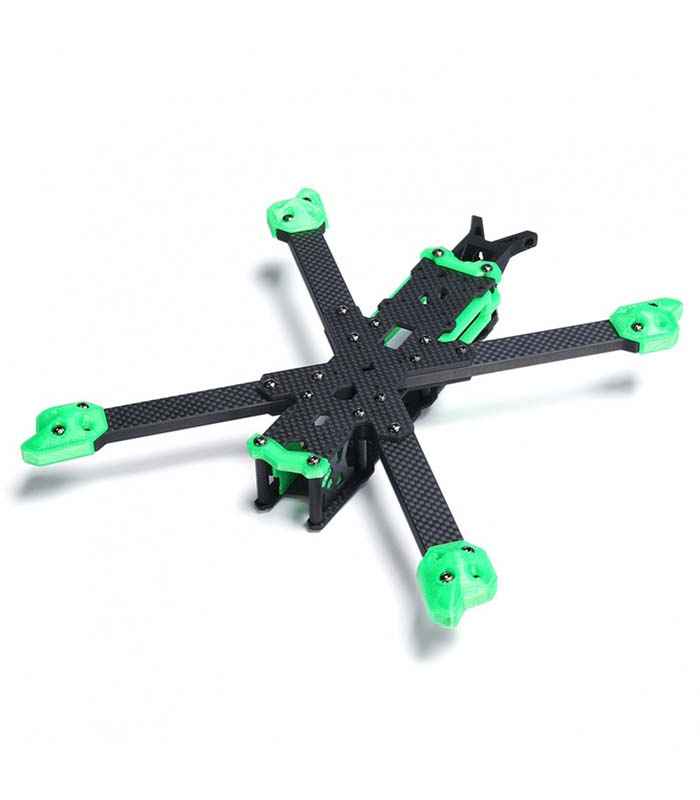

iFLIGHT TITAN XL5 FPV Frame

After our popular TITAN DC5 (DeadCat style frame) approach we decided to take a step back to the roots and create a new X-Geometry frame to get the best performance on both axis and better weight distribution for freestyle.

Features:

– 6mm arm design for more durability

– XING 2208 motors for more power

– GPS pre-installed for more safety at distance

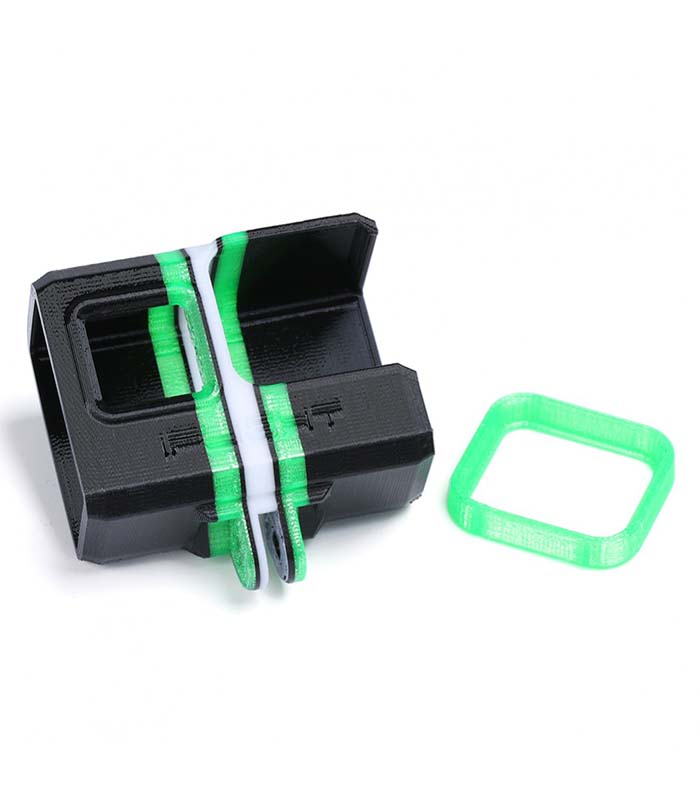

– Variable GoPro TPU mount (supports ND-Filter inserts)

– 360° TPU protection and Antenna mounts

FRAME // TITAN XL5：

– Weight:199.1g (HD version)

– Wheelbase: 250mm

– Main body dimension: 185*133mm

– Bottom to top distance: 30mm

– Arm thickness: 6mm

– Bottom plate thickness: 2mm

– Top plate thickness: 2mm

– Camera plate thickness: 2mm (2.5mm included TPU inserts)

– DJI AIR UNIT MOUNT (Optional)

Recommended Parts: (NOT INCLUDED)

ELECTRONICS // SucceX-D F7 Stack (50A 4-in-1 ESC)：

– Universal USB Type C connector instead of micro USB

– Plug-and-Play DJI support. No need to solder tiny wires!

SucceX-D F7

with 216MHz STM32F722 with 2x ICM20689 Gyros ready for SensorFusion.

Up to 8S, Barometer, 32MB Blackbox Flash and 5V/9V to power all you might need.

SucceX 50A 4in1

with BLHeli_32 up to 48kHz, 8 layers double-sided PCB and Top grade Mosfets.

XING 2208 Motor Unibell（4S 2450KV，6S 1800KV）

Package included:

-1 x TITAN XL5 Frame

-1 x Screw Bag

-1 x TPU Camera mount adapters

-4 x Arm guard/Motor mount

-1 x TPU DJI Air Unit Antenna Mount

-1 x TPU bottom plate front protective mount

-1 x TPU bottom plate rear protective mount

-1 x Battery Anti-slip Mat

-2 x Battery Straps

-1 x TPU DJI Air Unit Bracket Mount (optional)

NOTE: IF YOU NEED TO ASSEMBLE IT FOR HD VERSION, PLEASE CHOOSE “HD VERSION +$6”.
