    Home Electronics Electronic Speed Controller iFlight SucceX Mini 45A 2-6S BLHeli_32 Dshot600 4-in-1 ESC
    i-Flight

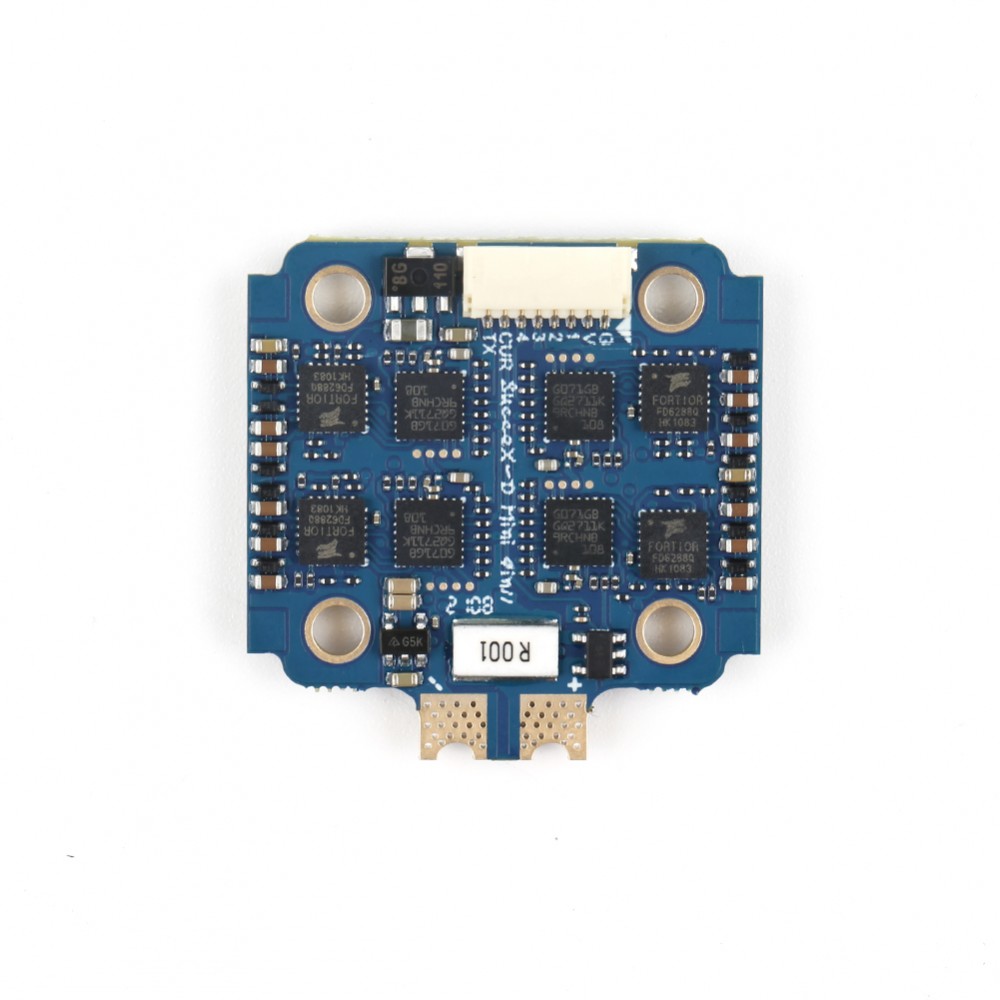

    iFlight SucceX Mini 45A 2-6S BLHeli_32 Dshot600 4-in-1 ESC

    ₹6,499 ₹6,000

    iFlight 45A Mini 20×20 ESC for FPV drones

    Out of stock

    Notify me when the item is back in stock.

    Compare
    Add to wishlist
    SKU: IFT-ESC-22E-451 Categories: Electronic Speed Controller, Electronics
    Share:
    • Description
    • Additional information
    • Reviews (0)
    • Shipping & Delivery
    Description

    SucceX Mini 45A 2-6S BLHeli_32 Dshot1200 4-in-1 ESC

    Features

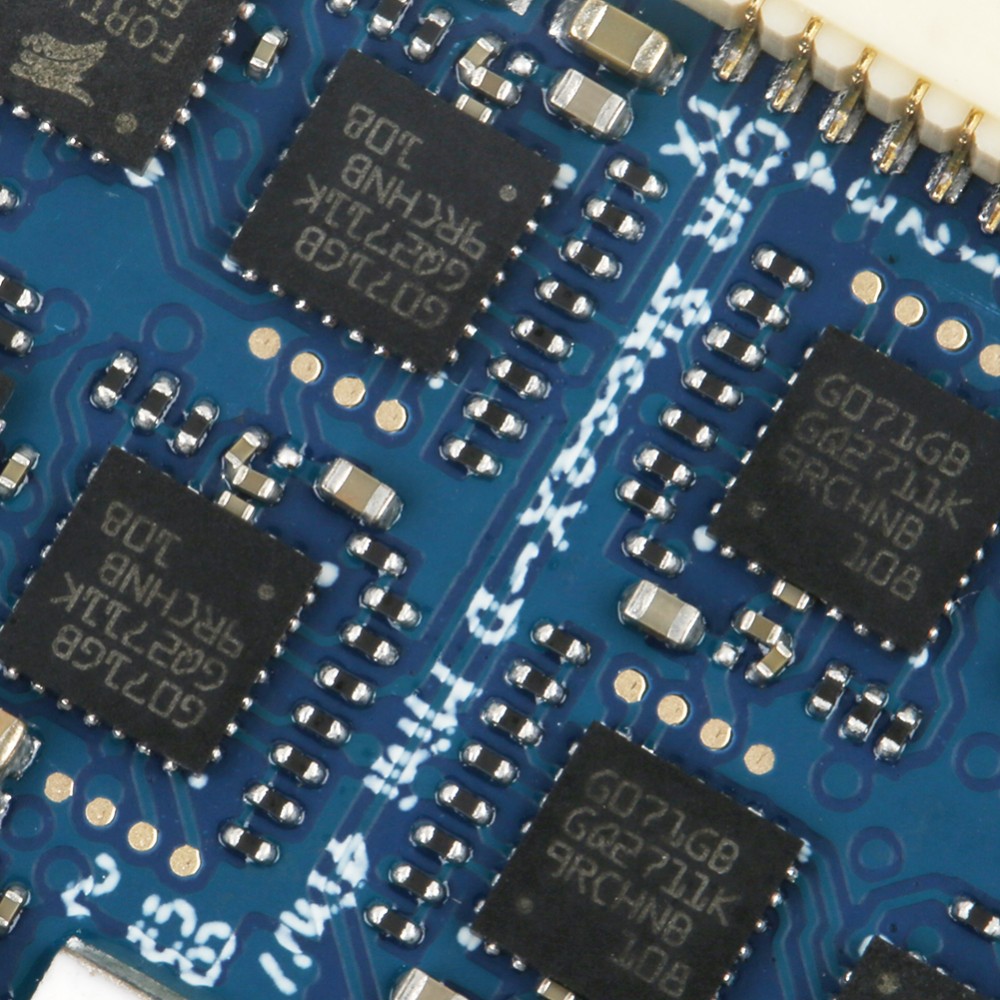

    • 4x STM32G071 MCU processers

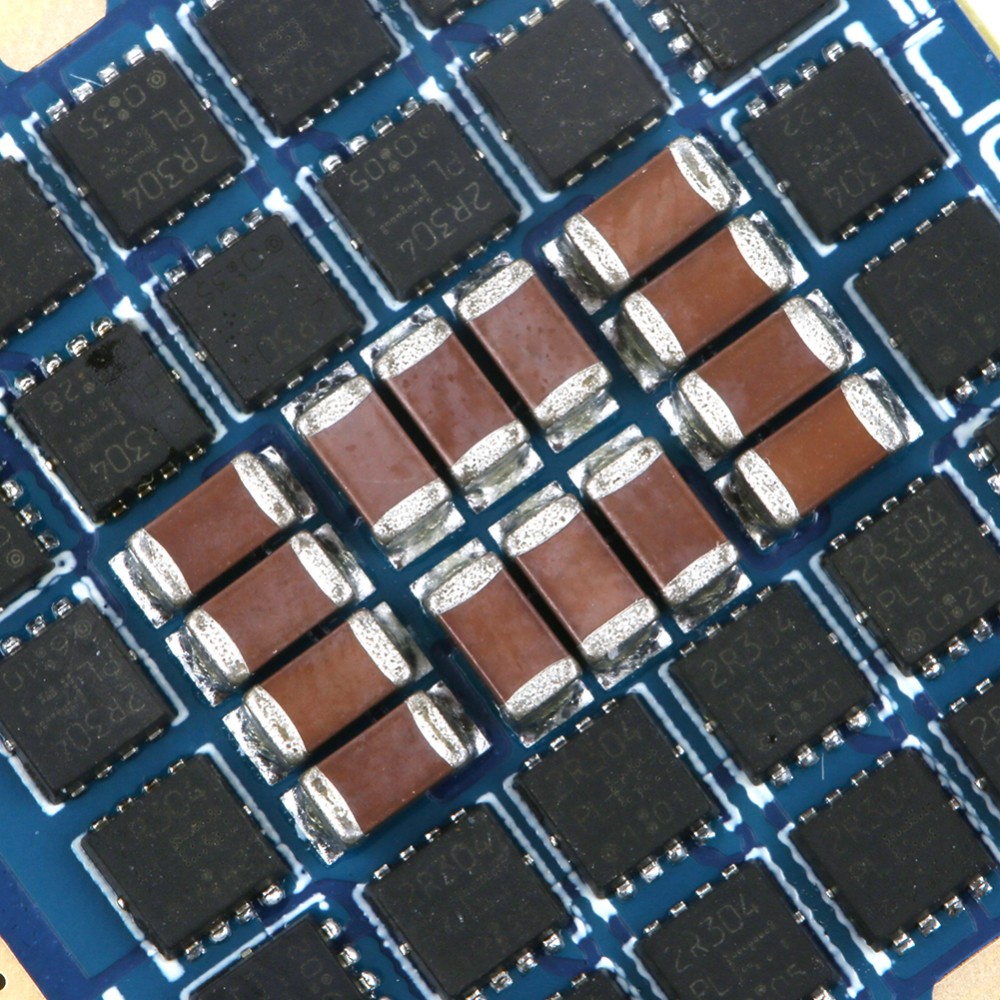

    • TDK MLCC Low ESR ceramic capacitors

    • 6 layers single-board stacking PCB board

    • 48Mhz Runs BLHELI 32.X Firmware

    • 2-6s LiPo battery compatible

    • 45A per channel, 55A burst

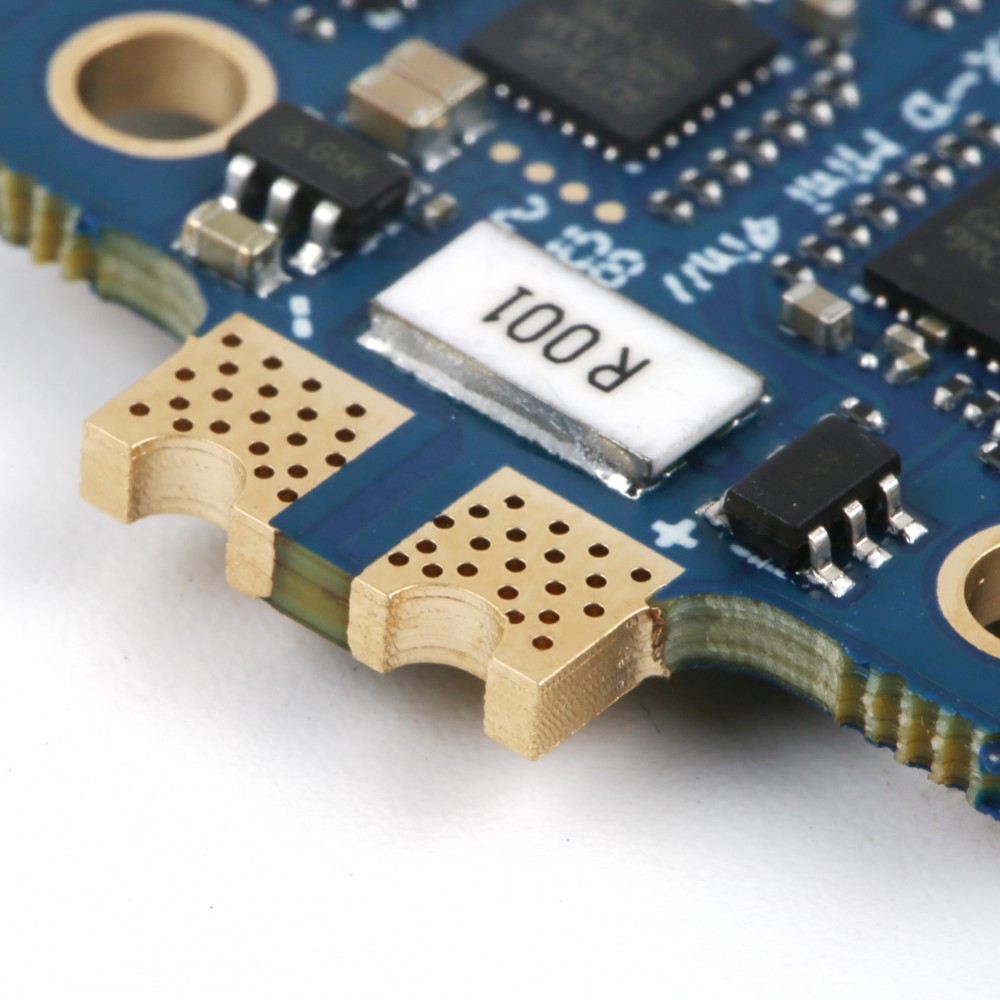

    • Onboard current sensor

    • Supports DShot150/300/600/MultiShot/OneShot etc.

    Specifications

    • Input: 2-6s LiPoly

    • Constant: 45 Amps (per channel)

    • Burst: 55 Amps (per channel)

    • BEC: No

    • BlHeli32 telemetry: Yes

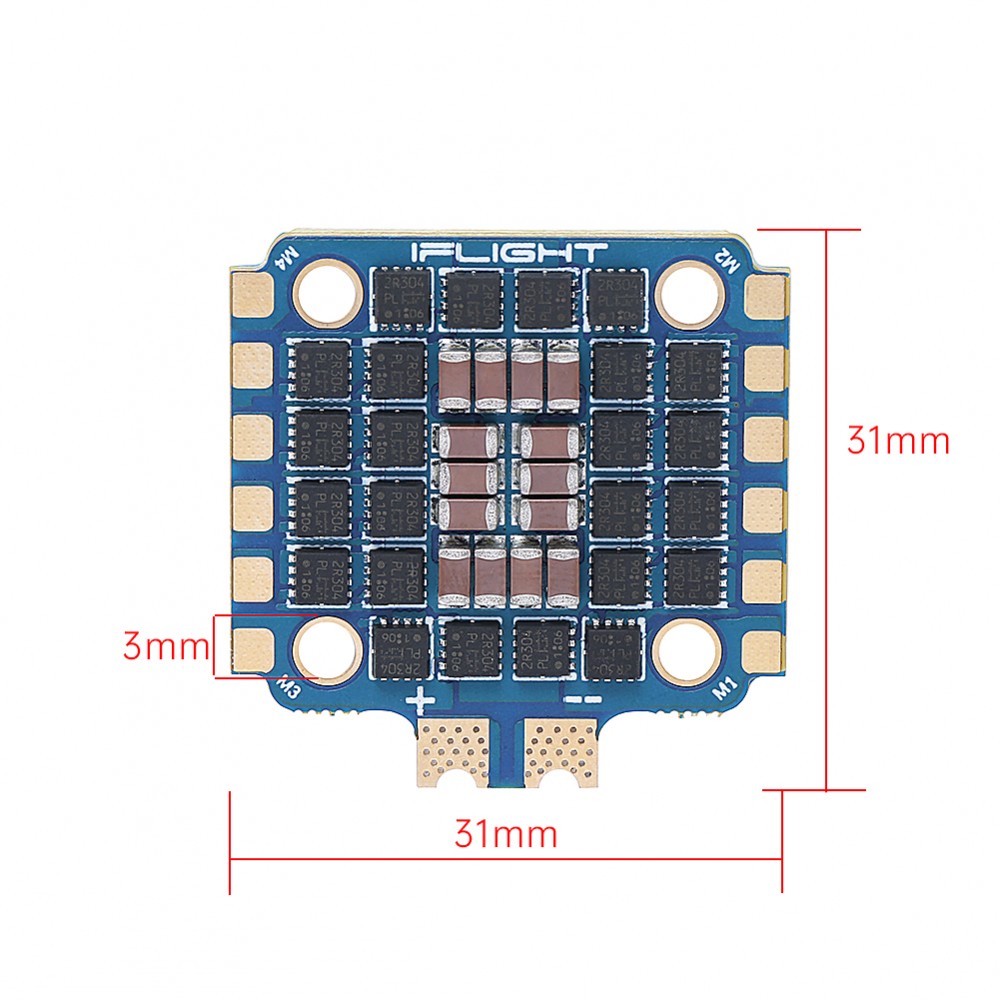

    • Dimensions: 31×29.5mm

    • Mounting Holes: 20*20mm φ3mm with Grommets φ2mm

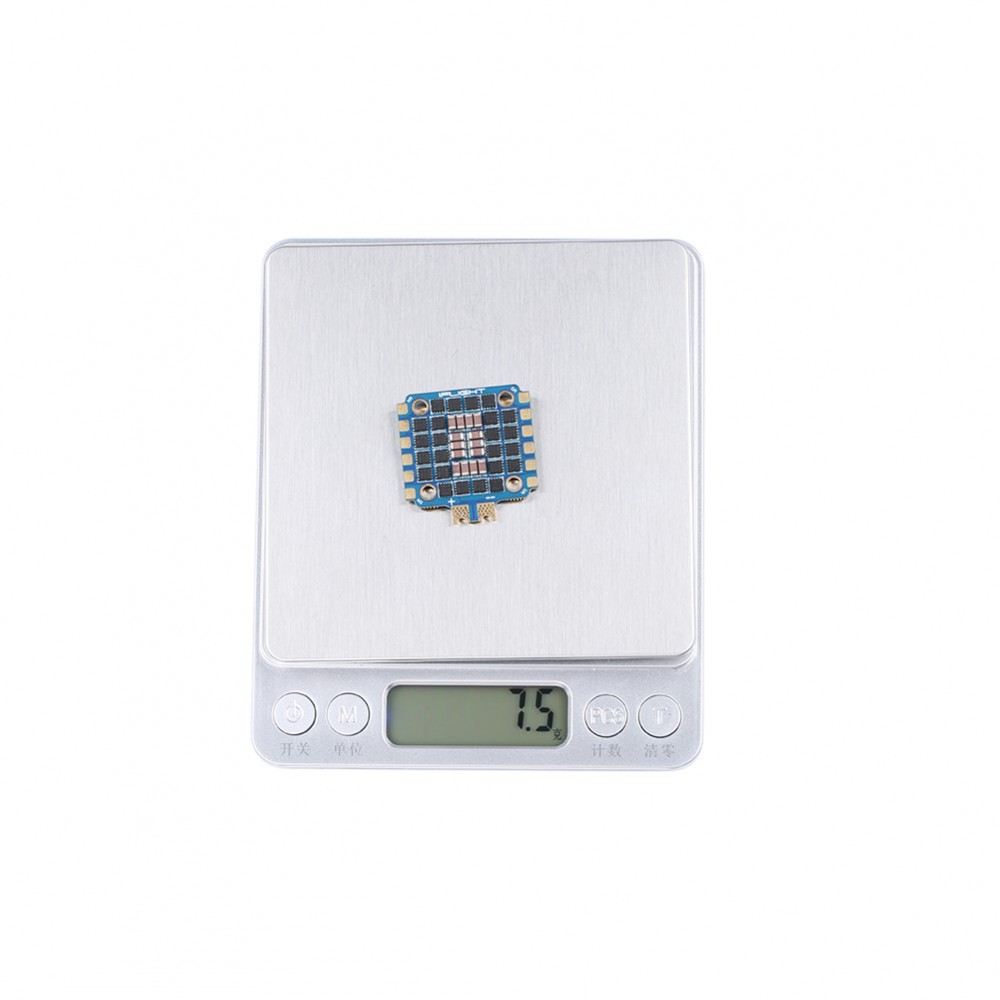

    • Weight: 6.7g (without motor wires)

    • Target: iFlight-G071-4IN1

    Package Includes

    • 1x SucceX Mini 45A 2-6S BLHeli_32 Dshot 600 4-in-1 ESC

    • 1x 8pin Harness

    • 1x 50v 470uF Capacitor

    • 8x Silicone Grommets

    • 1x XT60 Connector

    • 2x 14 AWG Wire
