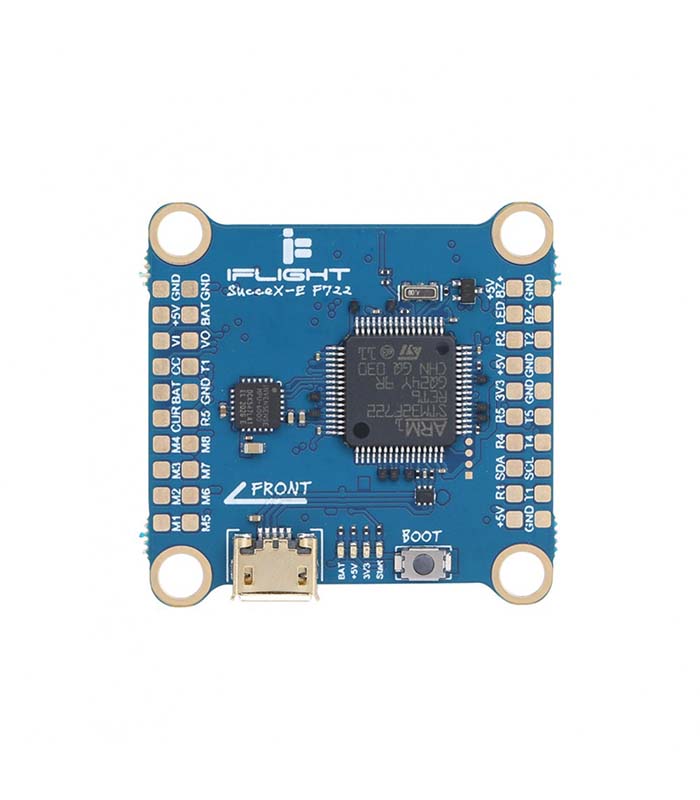

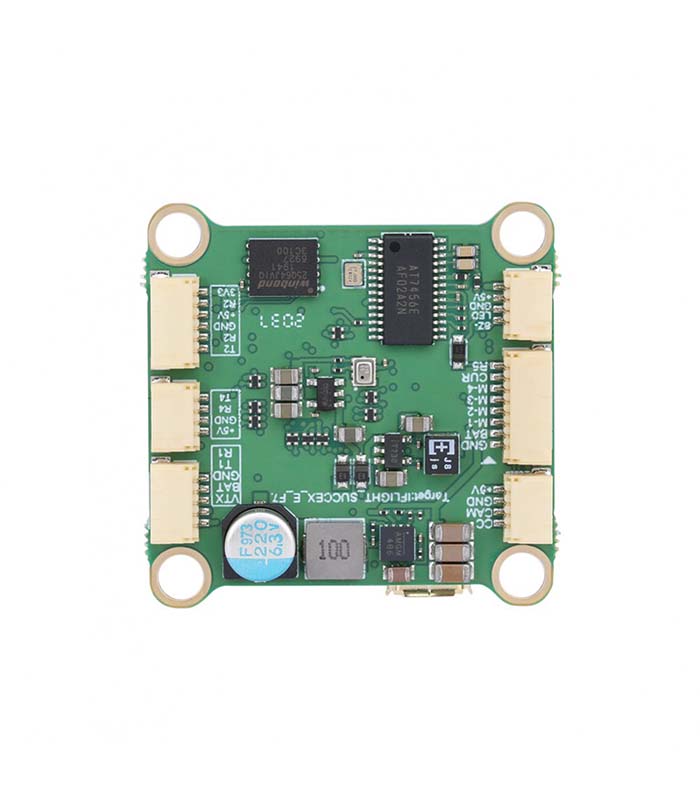

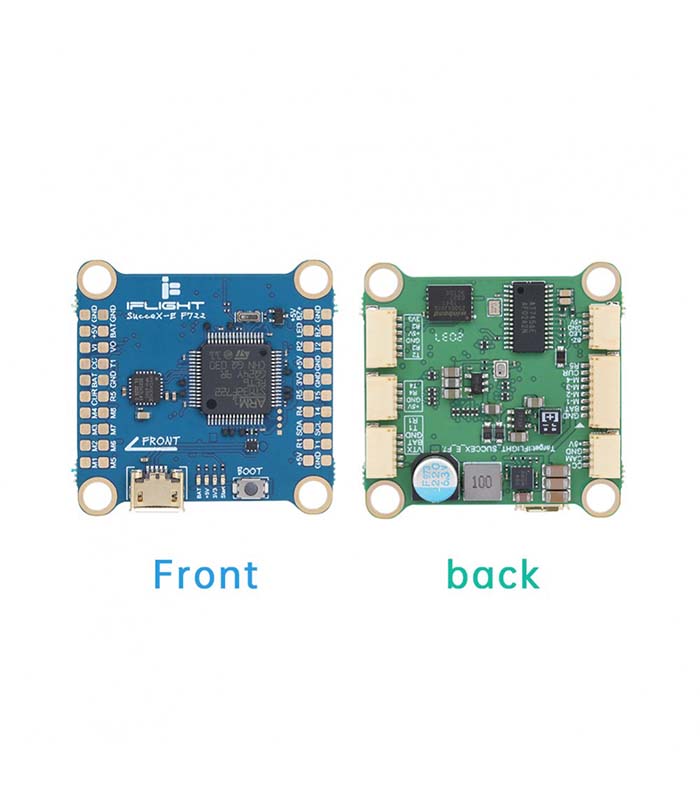

iFlight SucceX-E F7 2-6S Flight Controller

iFlight SucceX-E F7

Top Features:

– Gold-plated plug

– BlackBox: 16MB

– Vista HD Plug-and-Play. No need to solder tiny wires.

– BAT, +5V, 3.3, Start indicator

– Smartaudio & IRC Tramp VTX protocol supported

Specifications:

– MCU: STM32F22RET6 216MHz

– Gyro: MPU6000

– Baro: DSP310

– OSD: IFLIGHT OSD （AT7456E）

– BEC: 5V 2.5A

– BlackBox: 16MB

– Uart: 4*UART(UART1、UART2、UART4、UART5)

– UART1 for VTX HD（for 4-6S Vista，for 4S DJI Air Unit）/AnalogTelemetry

– UART2 for Receiver

– UART4 for Free

– UART5 for ESC Telemetry

– 4×Dshot/PWM outputs

– Smartaudio & IRC Tramp VTX protocol supported

– WS2812 led Strip: Yes

– Beeper: Yes

– Firmware: IFLIGHT_SUCCEX_E_F7

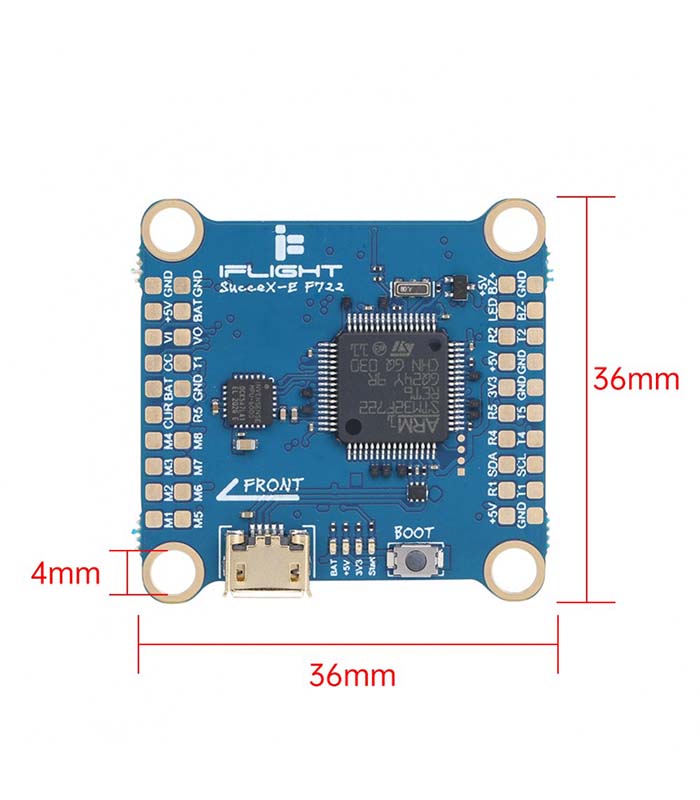

– Outer Size: 36*36mm / 30.5*30.5/φ4 mounting

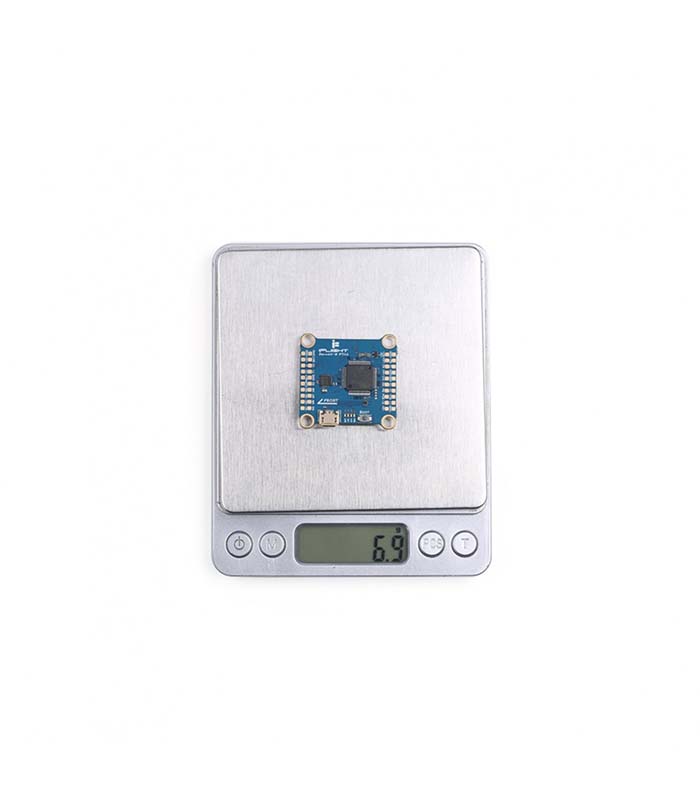

– Weight: 6.9g

Physical

– Mounting hole: 30.5*30.5mm，φ4mm

– Size: 36*36mm

Note: V1 and V1.4 will be shipped randomly. The performance is identical.

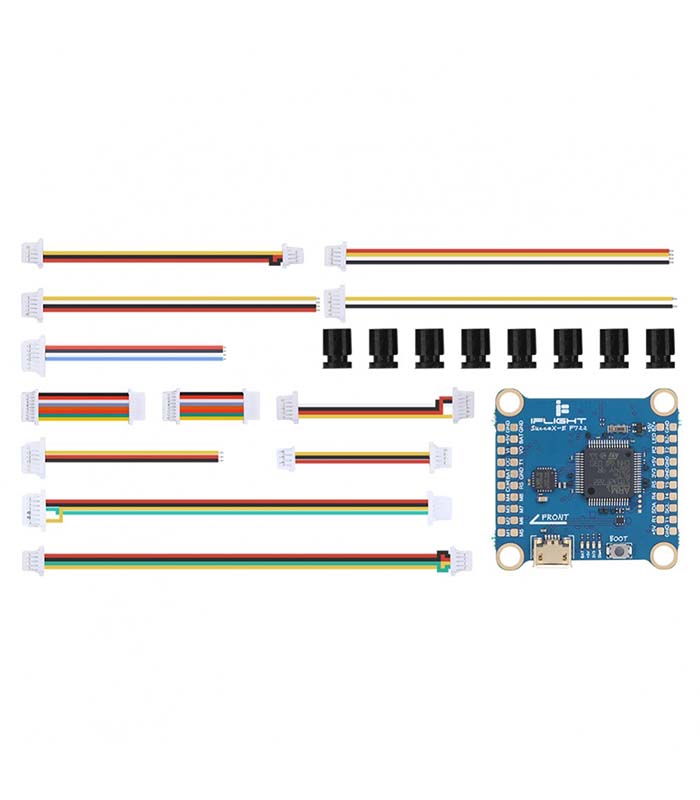

Package included:

1x iFlight SucceX-E F7 Flight controller

1x  Wire harness

Check out the iFlight SucceX-E 45A stack from drkstore.in at the best price in India.
