iFlight ExpressLRS ELRS 100mW Dualband Receiver

The iFlight ELRS Receiver redefines reliability with its dualband technology, supporting 2.4GHz, 868MHz, and 900MHz frequencies. Featuring a temperature-compensated crystal oscillator (TCXO), it ensures stable performance in any environment. Choose between single or dual-antenna configurations for enhanced compatibility and signal strength. Perfect for long-range flights, aerial photography, and FPV freestyle, this receiver delivers unmatched precision and reliability for all your flying needs. Elevate your experience with iFlight.

TCXO Technology: Minimizes frequency deviation for precise and stable performance.

Multi-Frequency Support: Compatible with 2.4GHz, 868MHz, and 900MHz for versatile use.

Compact Design: Space-saving and lightweight for easy integration.

100mW Dualband Receiver Only:

Ultra-Lightweight: Weighs only 0.5g, saving space and reducing aircraft weight.

SUR 0.8 Connector: Simplifies installation and setup.

500mW Dualband Receiver Only:

Single-Sided Components: Optimizes space efficiency.

Aluminum Heat Sink: Protects electronics and enhances interference resistance.

SH1.0 Connector: Easy installation with robust connectivity.

High-Power Telemetry: Supports 500mW telemetry return for stronger signals and reduced telemetry loss.

100mW Dualband Diversity Receiver Only:

Advanced Diversity Modes: Supports GemX, Gemini, and True Diversity RF modes for superior interference resistance and reception (Note: To use GemX, a high-frequency transmitter module that supports GemX mode is required).

Shielded Design: Protects electronics and improves interference resistance.

SH1.0 Connector: Ensures easy and reliable installation.

Make sure to install the antenna away from conductive or magnetic components (carbon, metal, motors).

Flash the latest firmware and follow the ELRS Community for updates, tutorials or contributions.

The 900MHz as well as 2400MHz band have outstanding performance and long range capabilities. If you’re not sure what to get, please checkout the official ELRS Long Range Competition to see what has been achieved. https://www.expresslrs.org/2.0/info/long-range/

What can you expect? Due to local regulations, the 900MHz FCC region seems to have a better performance than the 868MHz EU region. The 2400MHz band works great in any region, has a higher packet rate up to 500hz. This is not a common 2400MHz protocol and cannot be compared to anything prior on the market.

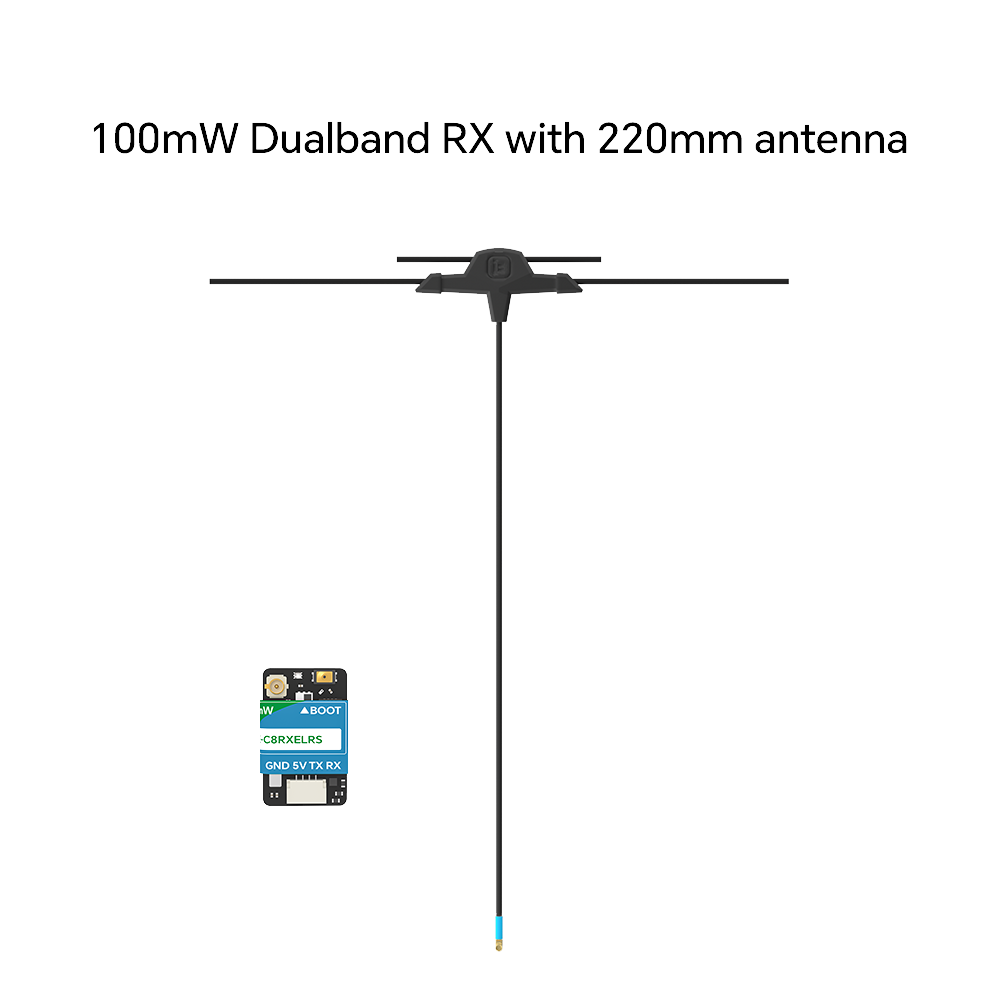

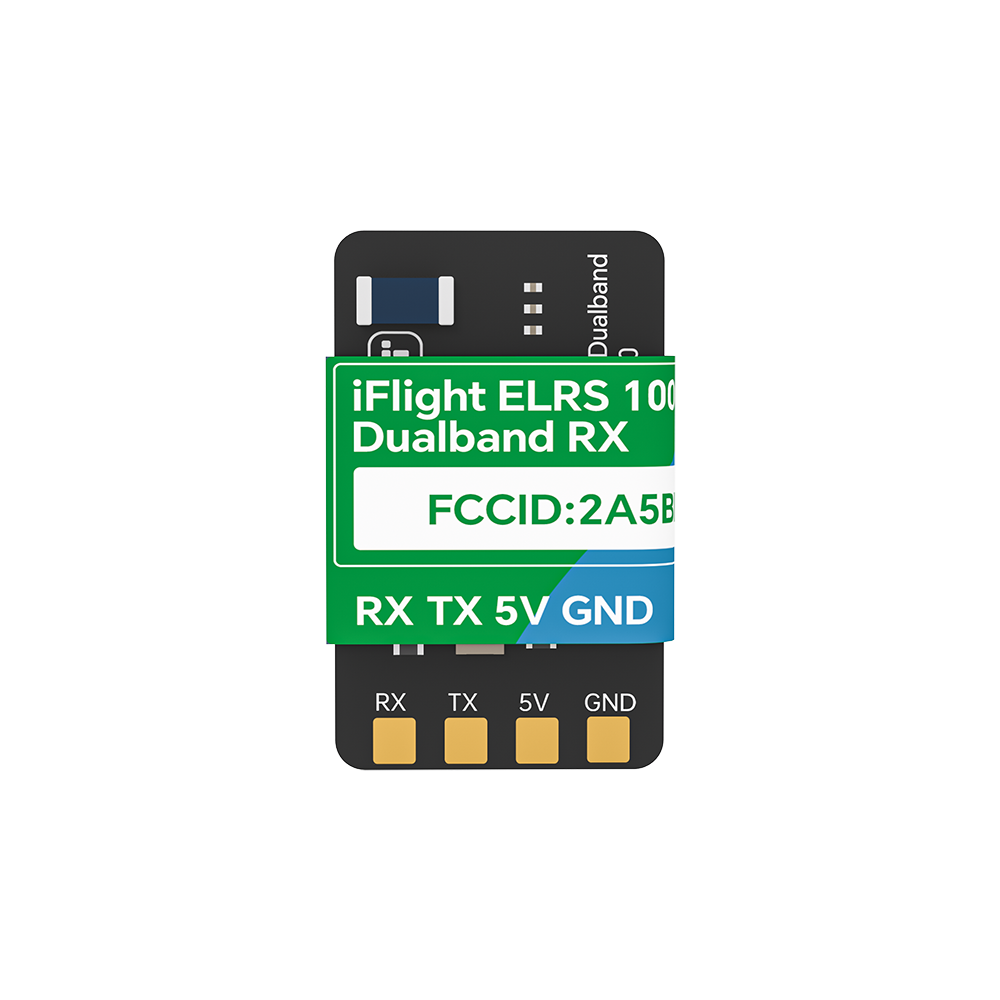

ELRS 100mW Dualband RX

MCU: ESP32 C3

RF: LR1121

Frequency Bands: 2.4GHz、868MHz、900MHz

Receiver Type: Single antenna

Telemetry power: 100mW (20dBm)

LNA: N/A(868/900MHz) / YES (2.4G)

Dimension:18*11mm(±0.2）

Weight: 0.8g(±0.5g)

Lua Script: iF DB 100mW RX

TCXO: Yes

Firmware Version: ELRS 3.5.3

ELRS 500mW Dualband RX

MCU: ESP32 C3

RF: LR1121

Frequency Bands: 2.4GHz、868MHz、900MHz

Receiver Type: Single antenna

Telemetry power: 100-500mW (20-27dBm)

LNA: YES

Dimension:14*25*4.3mm(±0.5）

Weight: 1.9g(±0.5g)

Lua Script: iF DB 500mW RX

TCXO: Yes

Firmware Version: ELRS 3.5.3

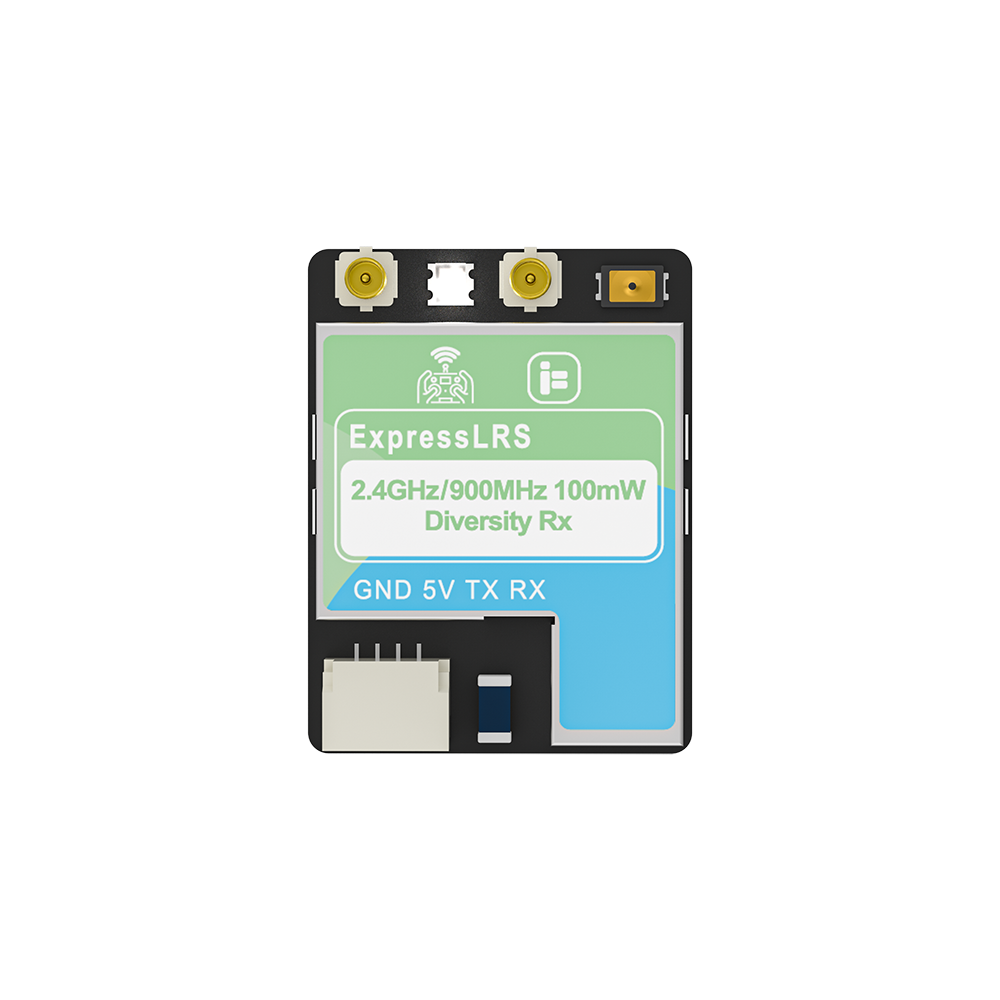

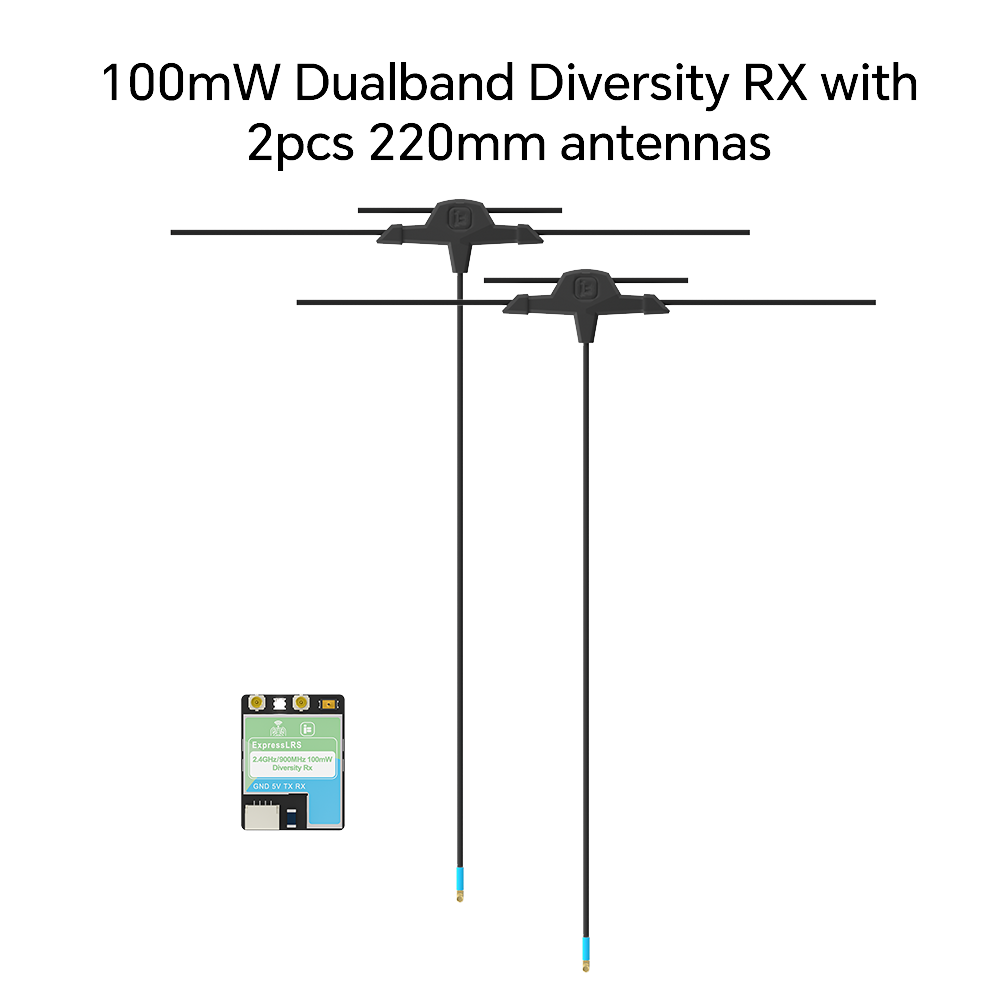

ELRS 100mW Dualband Diversity RX

MCU: ESP32-Pico D4

RF: LR1121

Receiver Type: GemX

Telemetry power: 100mW (20dBm)

LNA: N/A(868/900MHz) / YES (2.4G)

Dimension:24.3*18.5*6.5mm(±0.5）

Weight: 4.9g(±0.5g）

Lua Script: iF GemX 100mW RX

TCXO: Yes

Firmware Version: ELRS 3.5.3

1 x ExpressLRS Dualband Receiver

1 x Antenna(Optional)

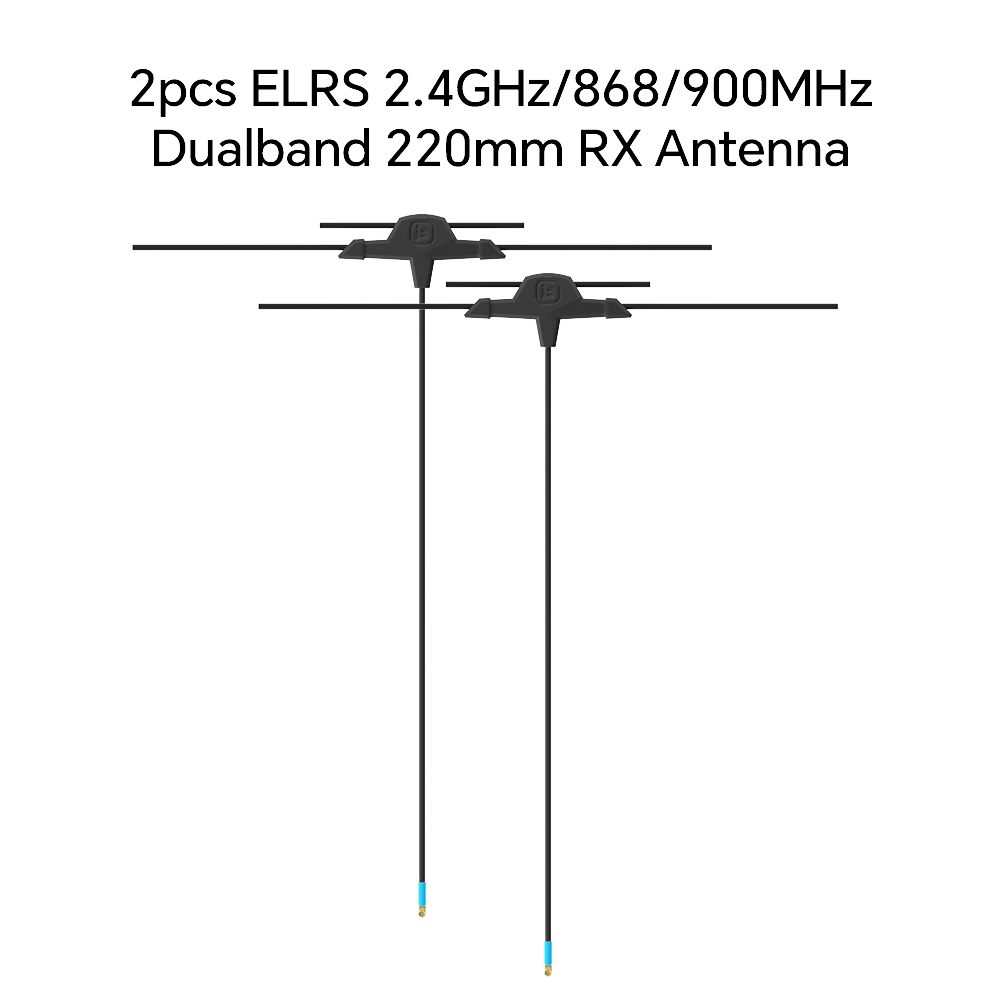

2 x Antenna(Optional)
