PRODUCT DESCRIPTION
Top Features of iFlight Blitz F7 Pro:
– Improved circuit design, better components, and lower electrical noise!
– DJI HD VTX Connector (Plug-and-Play / No soldering required)
– FC indicator LEDs for visual debugging
– 512MB BlackBox
– With LC filter
Specifications of iFlight Blitz F7 Pro:
- Mount pattern: 35*35mm/ 4mm PCB hole diameter
- Smartaudio / IRC Tramp VTX protocol supported
- Firmware target: IFLIGHT_BLITZ_F7_PRO
- Input Voltage: 14.8V-34V (4S-8S LIPO)
- Motor outputs: 4x (SH1.25 connector)
- Flash: 512MB (Blackbox flash)
- I2C serial: SDA / SLA pads
- Dimensions: 41*41.5mm
- Barometer: DPS310
- OSD Chip: AT7456E
- LED controller: Yes
- MCU: STM32 F722
- Weight: 17g (±2)
- Beeper pad: Yes
- Gyro: MPU6000
- UARTS: 6
Wiring suggestion:
– UART1 for VTX HD/Analog
– UART2 for Receiver
– UART4 for GPS
– UART5 for ESC Telemetry
– 8×Dshot/PWM outputs
– 1×I2C for GPS Mag
Tips
- F722 MCU has an inner inverter.
- SBUS、CRSF、ELRS、IBUS、DSM ETC… can be connected to any unused UART_RX, we suggest you connect to Uart_RX2
- Frsky SmartPort, Tramp & Smartaudio can be connected to any unused UART_TX, we suggest you connect to Uart_TX1
- F.port can be connected to any unused UART_TX, we suggest you connect to Uart_TX2
Included Connectors (Plug-and-Play wire harness):

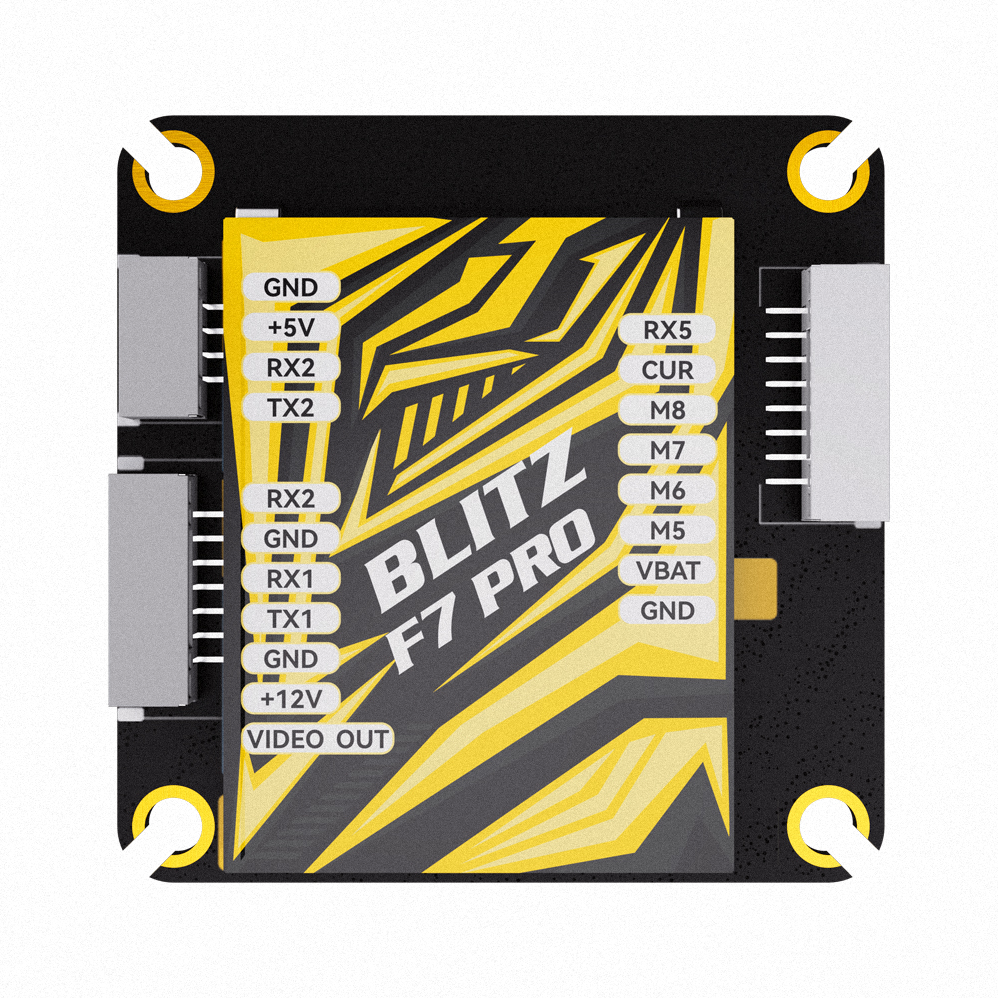

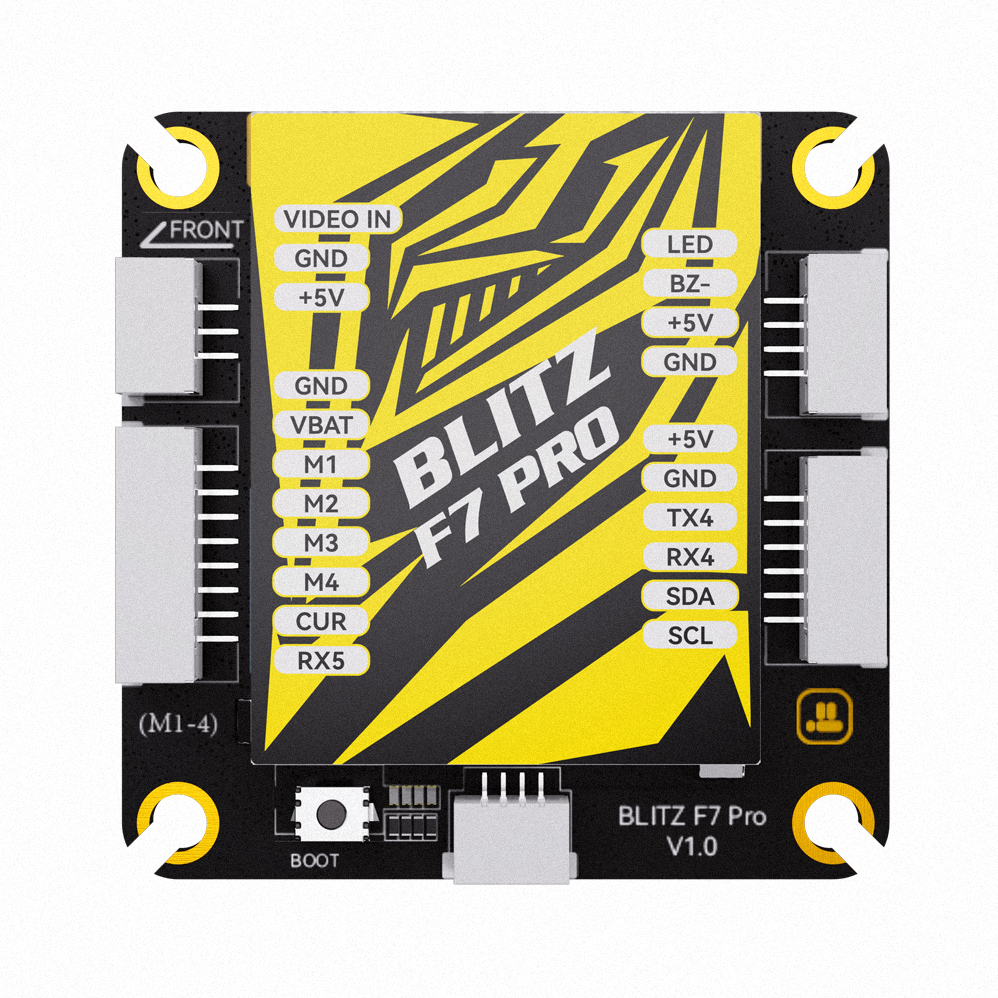

– 1xGH1.25 7pin connector for HD VTX/Analog VTX(RX2/GND/RX1/TX1/GND/+12V/Video out)
– 1xGH1.25 8pin connector for ESC1 (GND/VBAT/M1/M2/M3/M4/CUR/RX5)
– 1xGH1.25 8pin connector for ESC2 (GND/VBAT/M5/M6/M7/M8/CUR/RX5)
– 1xGH1.25 4pin connector for GPS&Mag(+5V/GND/TX4/RX4/SDA/SCL)
– 1xGH1.25 3pin connector for Analog camera (Video in/GND/+5V)
– 1xGH1.25 4pin connector for Any Receiver(GND/+5V/RX2/TX2)
– 1xGH1.25 4pin connector for LED&Beeper(LED/BZ-/+5V/GND)
What’s in the package?
1 pc iFlight BLITZ F7 Pro Flight Controller
1 set of FC connectors (as above)
1 set of silicone grommets
Learn more about this product directly from iFlight.
Check out other iFlight products from drkstore.in!
