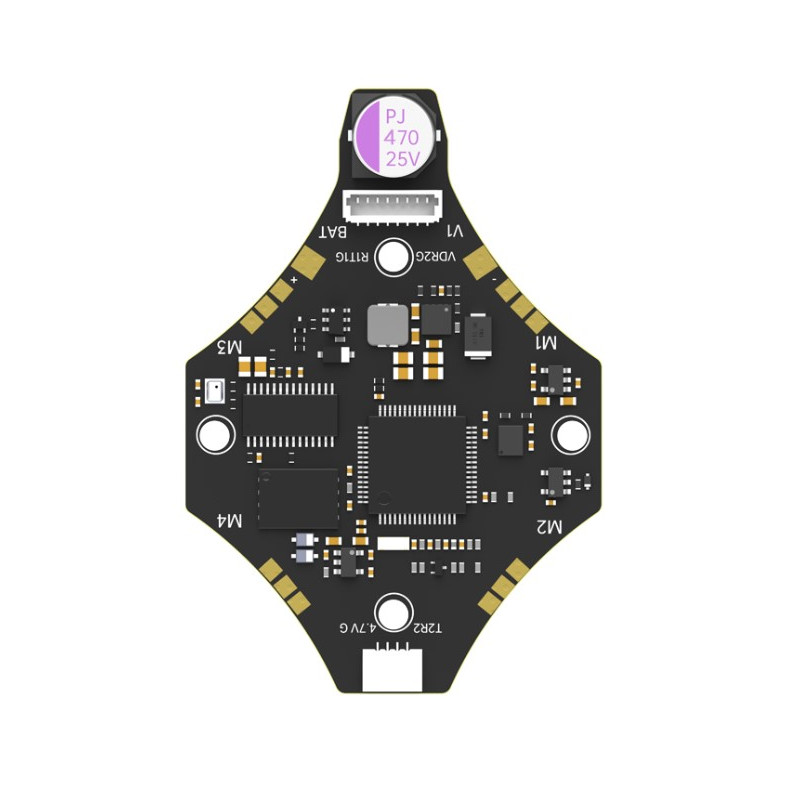

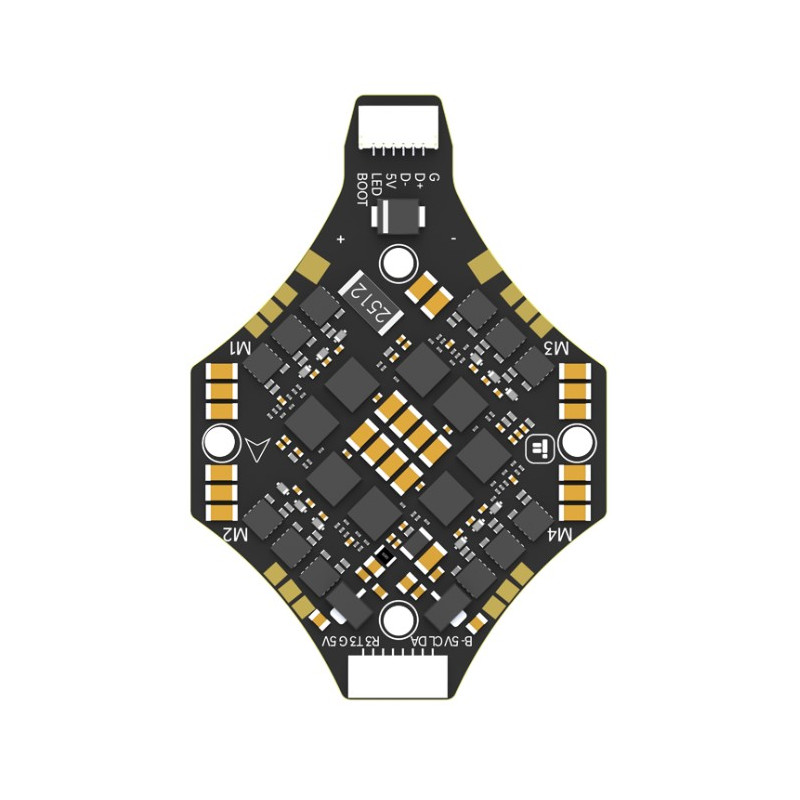

This Blitz F745 HD 20A AIO with OSD board is only for Iflight Defender 25.
This is the new generation F7 AIO equipped with an ICM42688P gyro, a 32MB blackbox and a DPS310 barometer.
FC
- MCU: STM32F745
- Gyro: ICM42688P
- Blackbox: 32MB Onboard Flash
- BEC output: 5V 2.5A
- WS2812 LED Strip: Yes
- Buzzer: Yes
- Barometer: DPS310
- Connector: SH1.0 to Type-C adapter
- OSD: Yes
- FC Firmware：IFLIGHT_BLITZ_F7_AIO
- Mounting pattern: 25.5*25.5mm φ3mm
- Dimensions: 32.5*32.5mm
- Input voltage: 2-6S, support LIHV battery
- Smartaudio / IRC Tramp VTX protocol supported
ESC
- ESC MCU: STM32G071
- Driver: FD6288
- Input voltage: 2-6S Support LIHV battery
- Output current: 20A, peak value 30A (10 seconds)
- ESC firmware: IFLIGHT_BLITZ_G071_01
- Current sensor: ratio 200 (1/10mV/A)
- BEC: NO
- ESC Telemetry: Yes（PCB routed, set UART6 for telemetry）
- Bidirectional DShot: Yes
- Supports DShot DShot150/300/600/MultiShot/ OneShot etc.
INCLUDED
- 1x Defender 25 BLITZ F7 AIO
- 1x Capacitor 470uF/35V (Onboard)
- 1x XT30U Male 18AWG cable 70mm
- 1x 1.0-7P cable 50mm-28mm
- 1x 1.0-7P cable 50mm
- 4x M2 silicon grommets
