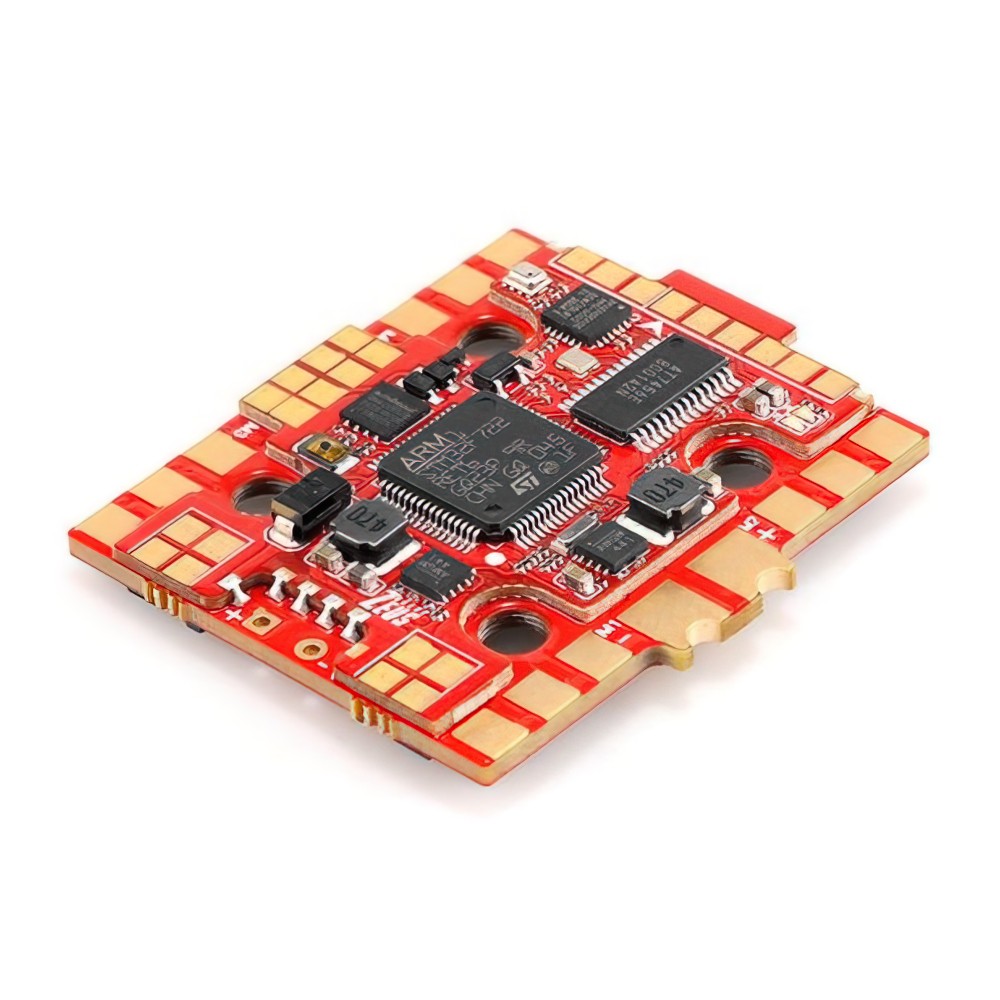

HGLRC Zeus35 Pro AIO – F722 FC + 35A 3-6S BLHeli_S ESC

The HGLRC Zeus35 Pro AIO combines the F722 FC and 35A 4-in-1 ESC.

VIDEO: HGLRC Zeus35 – Can It Handle a 5″ 6s Build?

Features

• Reserved port for CADDX Air Unit Micro / CADDX Nebula Nano
• F722 main chip matches with the BL_S ESC
• Plug-and-Play Design
• Dual BEC PCB boards

Specifications

• Usage:for 100mm-250mm Frame Kit
• Installing Hole:20X20mm.M3
• Input Voltage:3-6S Lipo
• Size:40.0×34.0mm
• Weight:13.8g

F722 FC

• FC Firmware: ZEUSF722 AIO
• CPU:STM32F722 RET6
• Built-in Current Sensor
• Built-in Current Sensor
• BEC Output:9V/1A
• MPU: MPU6000
• Voltage: 5V/2A

35A BLHeli_S 4-in-1 ESC

• Support Protocols: DShot600/300/150/Oneshot125/42, MultiShot
• Peak Current:40A (5 Sec)
• Constant Current:35A
• ESC Firmware: BL_S

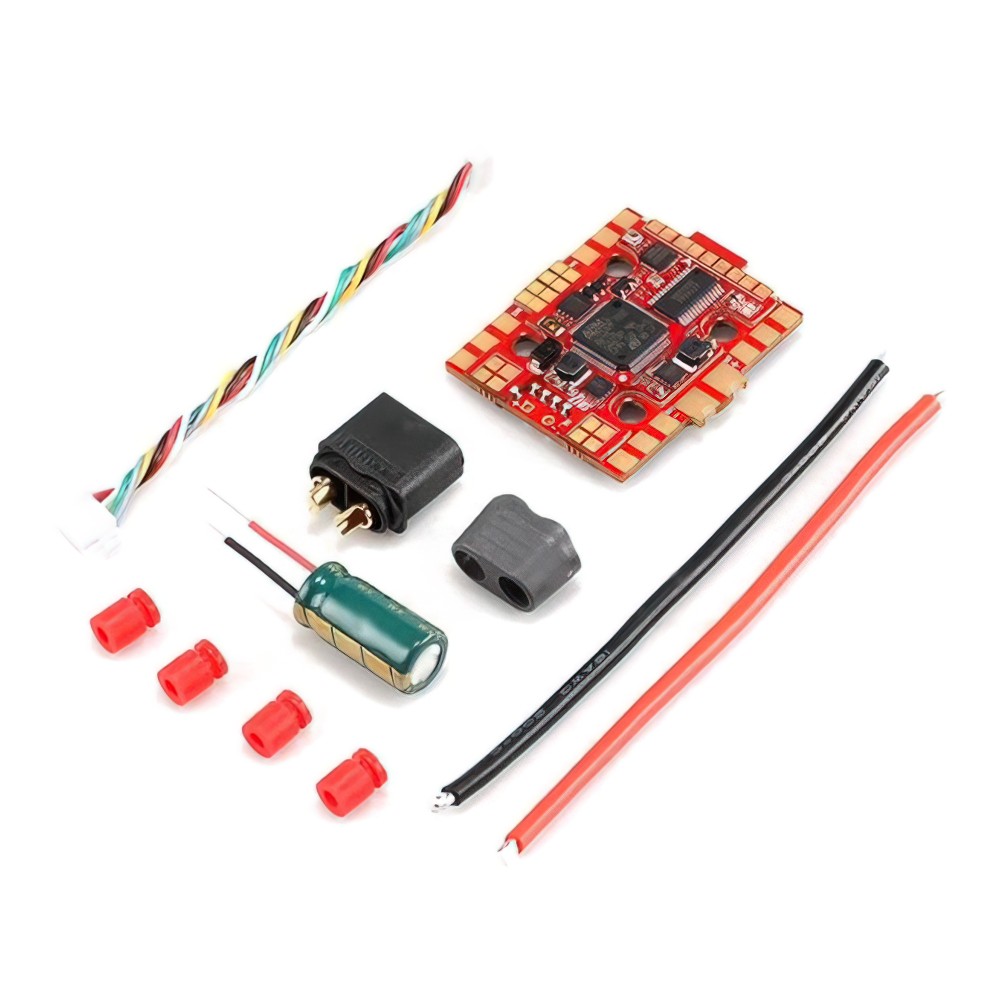

Includes

• 1x HGLRC Zeus35 Pro AIO – F722 FC + 35A 3-6S BLHeli_S ESC
• 1x Hardware Accessory Pack
