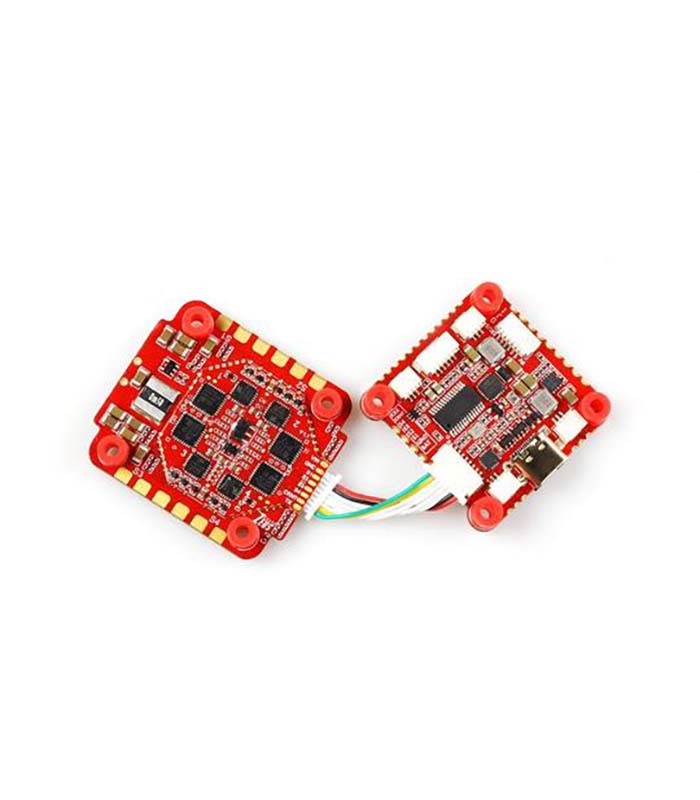

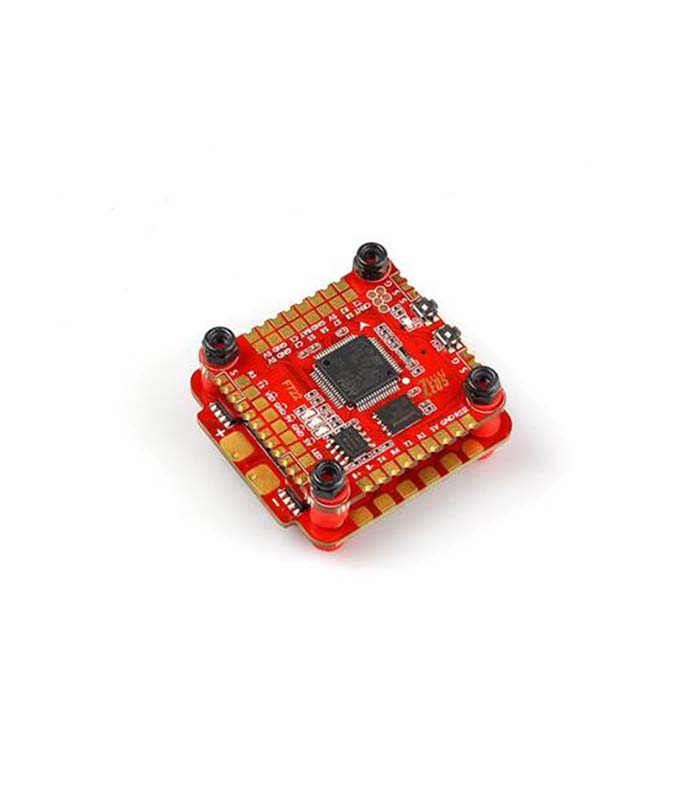

The HGLRC Zeus F760 30×30 stack comes with the Zeus F722 Flight Controller and the Forward 60A BL32 3-6S 4-in-1 ESC and is compatible with the DJI Digital HD FPV System. This stack features STM32F722 RET6 CPU, MPU6000 MPU, supports up to 6S, and comes with other cool specs!
Specifications of HGLRC Zeus F760
- Usage:for 100mm-450mm Frame Kit
- Installing Hole:30.5X30.5mm.M3
- Recommended motor: 2207/2306/2408 (Not included)
- Weight:32.7g
Zeus F722 Flight Controller
- MPU: MPU6000
- CPU:STM32F722 RET6
- Input Voltage:3-6S Lipo
- BEC Output:5V/3A,9V/2A
- Weight:7.6g
Forward 60A BL32 3-6S 4in1 ESC
- CPU:STM32F051
- Input Voltage:3-6S Lipo
- Steady Current:60A
- Peak Current:65A(10 Sec)
- Weight:18g
Download hex file for iNAV 2.5.1 here. Or use target “HGLRCF722” on iNAV 2.5.2 and future versions.
Download hex file for emuflight here.
See Manual Here

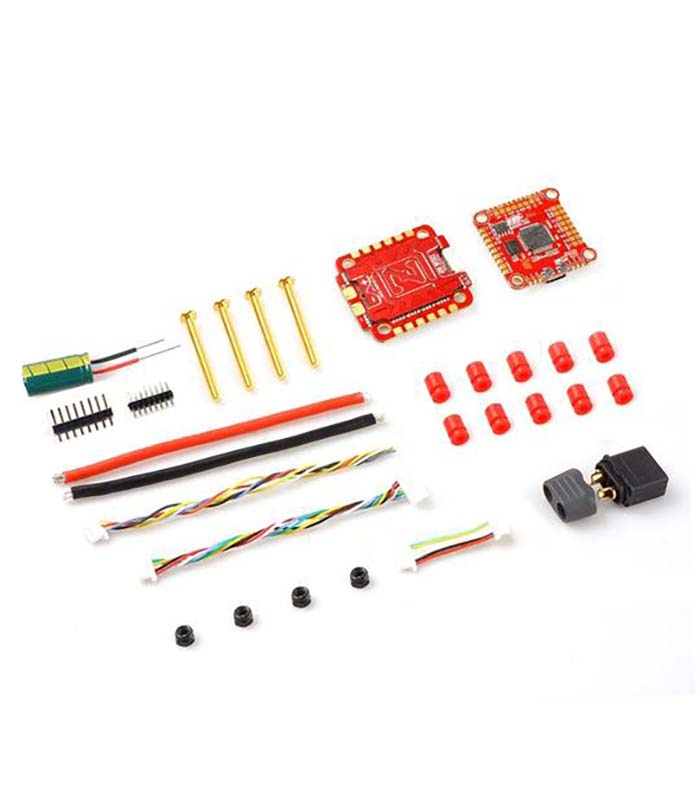

Includes
- 1 x Zeus F722 Flight Controller
- 1 x Forward 60A BL32 3-6S 4in1 ESC
- Accessories (as shown in the picture)
Looking for the 20×20 version of the stack? Check out the HGLRC Zeus F745 from drkstore.in!
