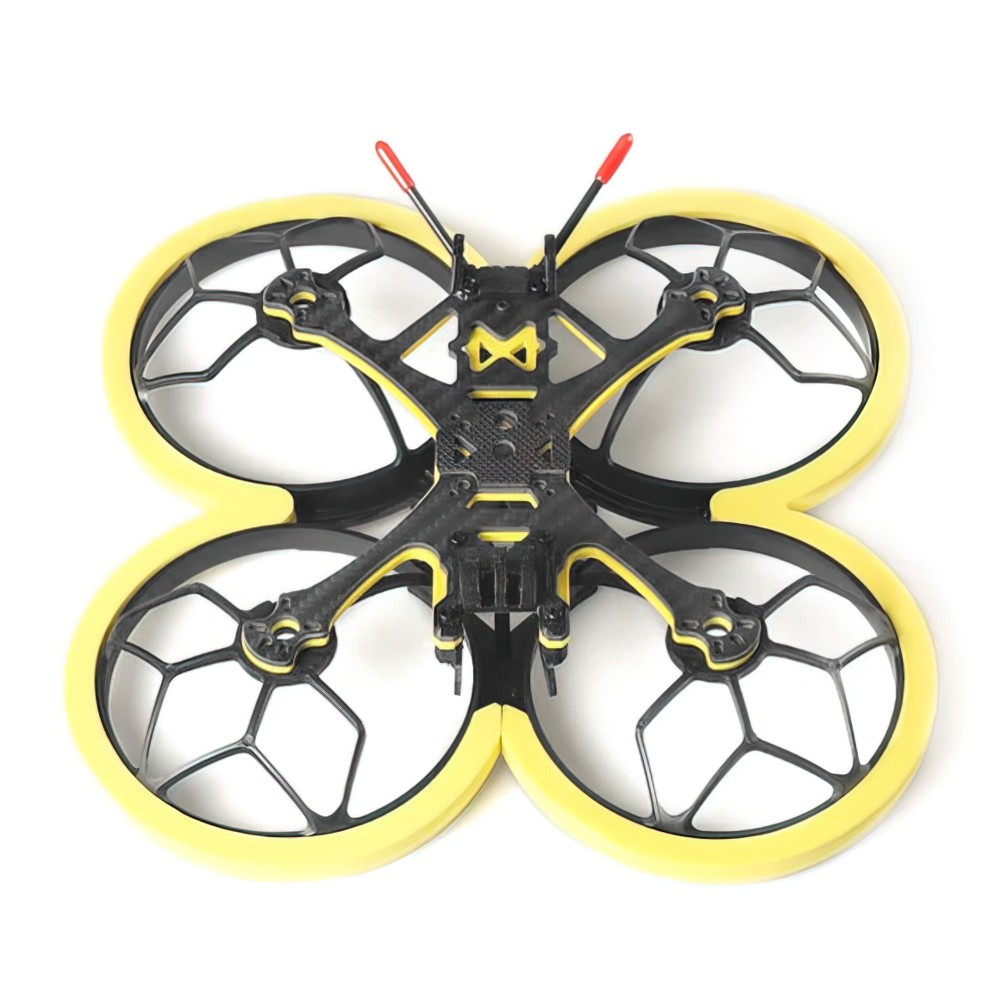

The Veyron35CR 3.5″ CineWhoop Frame Kit by HGLRC is a lightweight pusher-style frame that easily supports a full GoPro camera. This frame features EVA Foam protection guards in Gray, White and Yellow.
Note: Frame Kit Only… electronics, motors, props, and cameras are not included.
VIDEO: HGLRC Veyron 35 CINEWHOOP FPV Drone Build Guide
Features
- Ultra-light and lasts super long in flying
- Colorful EVA Foam Protection Guards
- 20×20-25.5×25.5mm mounting holes
- Pusher-style Frame
Specifications
- FC mounting hole: 20x20mm/25.5×25.5mm
- Motor mounting hole:12×4/16x4mm
- Model: Veyron35CR Pusher frame
- Supported camera:19*19mm
- Material: 3K carbon fiber
- Brand Name: HGLRC
- Type:3.5 inch frame
- Wheelbase: 155mm
- Base plate: 1.5mm
- Size:131*131mm
- Top plate: 2.5mm
- Mid plate: 2.5mm
- Weight: 113.4g
- Space: 28mm

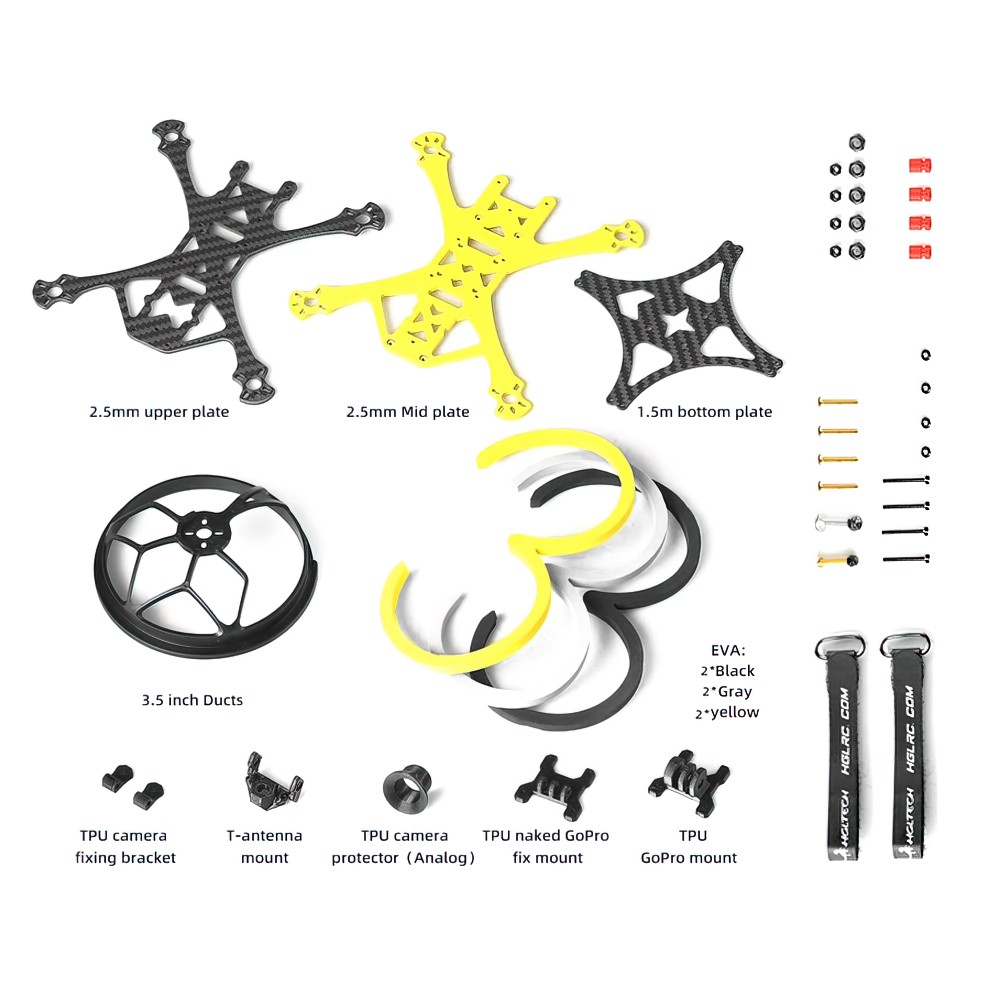

Includes
- 6x EVA Foam protection guard (2 black, 2 gray, 2 yellow)
- 2x M2*28mm black mesh Aluminum pillar
- 2x M2*8mm black Aluminum column
- 4x M2*O type shock-absorbing ring
- 4x M3*8 shock absorbing ball
- 1x TPU bare GOPRO holder
- 1x TPU GOPRO seat holder
- 4x 3.5-inch propeller guard
- 2x Battery tie 15x200mm
- 1x Battery non-slip mat
- 5x M3 self-locking nuts
- 4x M2 self-locking nuts
- 1x TPU camera mount
- 1x TPU lens protector
- 1x M5 self-locking nut
- 1x TPU antenna base
- 1x 1.5mm base plate
- 1x EVA landing gear
- 1x 2.5mm Mid plate
- 1x 2.5mm top plate
- 4x Screw M3*25
- 1x Screw M3*20
- 4x Screw M2*18
- 10x Screw M2*5
- 1xScrew M5*20
- 4x Screw M2*9
- 2x Screw M2*7
- 2x Screw M2*4
