Happymodel ExpressLRS PWM Receiver Kit – 6CH EPW6 900MHz

The Happymodel ExpressLRS PWM Kit incudes a 6CH EPW6 900MHz Receiver with two antennas and three 6-pin adapters. Perfect for your Fixed Wing airplane!

Features

• Fixeded Wing Receiver Kit

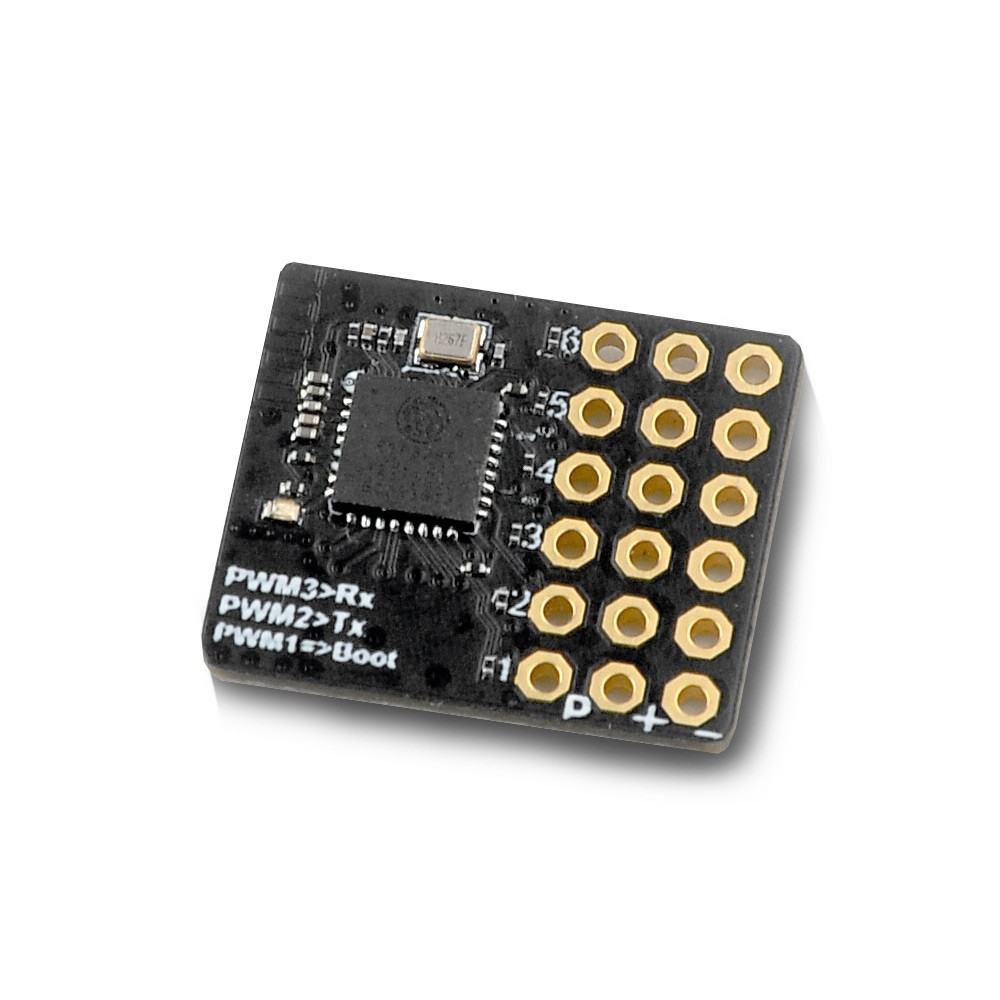

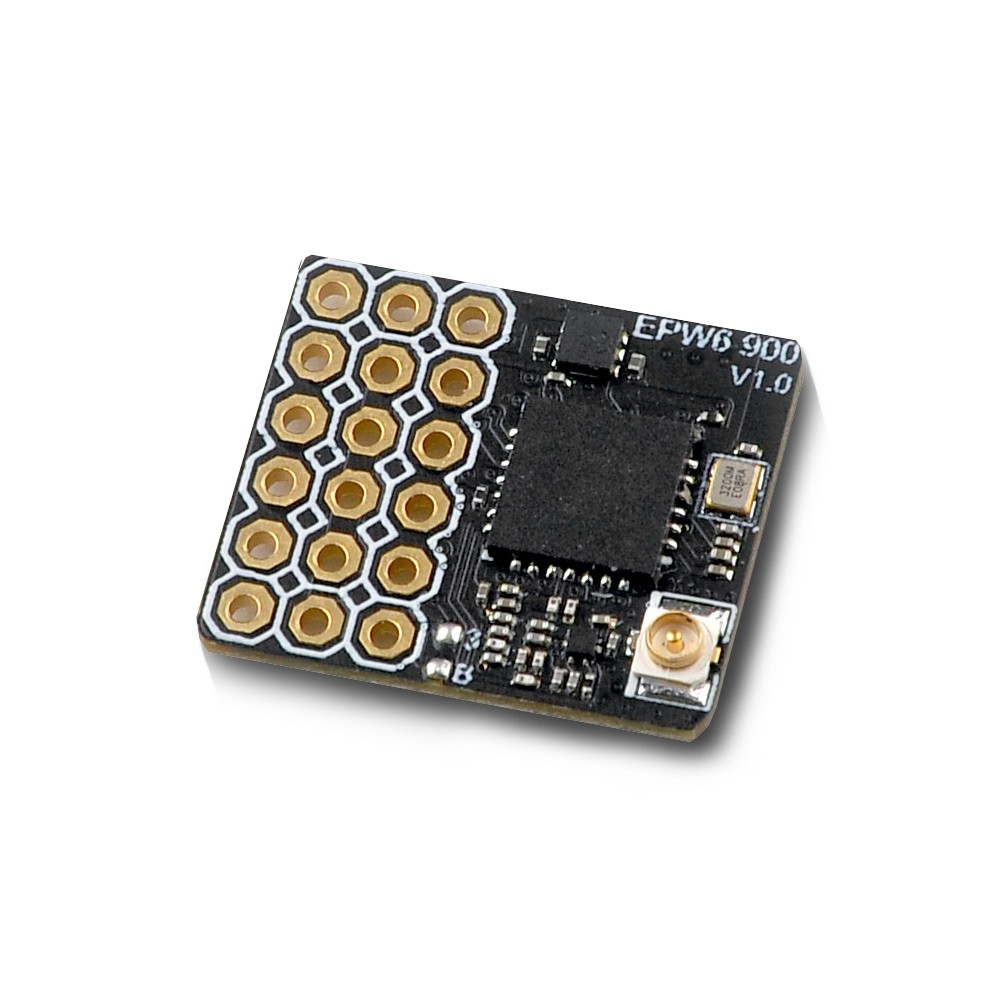

• EPW6 900MHz PWM RX
• 915MHz Antenna
• 868MHz Antenna

BINDING PROCEDURE

1. Supply power to the EPW6 RX, wait until the Green LED on the RX is off, immediately turn off the power, and then repeat again the above steps. When the RX is powered on for the third time, the Green LED light will start to double-flash, which means that the RX enters the binding mode.
2. Go to the menu of ELRS.LUA V2.0 version from your radio transmitter and then press BIND, the Green LED on the RX module will getting to be solid if bind successfully.

RECEIVER LED STATUS INDICATORS

• LED flash fast means in WIFI hotspot mode, you can connect the WIFI of the RX and upgrade firmware of the RX via visit 10.0.0
• LED flash slowly means no signal connection from the TX module
• LED solid means bind successful or Connection established
• LED double-flash means in bind mode

Specifications

• Firmware Target:
  • DIY_900_RX_PWMP(Factory default firmware),  PWM receiver via 1~6 PWM outputs
  • HappyModel_RX_ES900_RX,  CRSF Serial receiver via TX and RX
  • Firmware update via UART or WIFI
• RF Frequency: 868MHz(EU), 915MHz(FCC)
• Default firmware version: ExpressLRS v2.0
• Antenna connector: IPEX MHF 1/U.FL
• Receiver protocol: PWM or CRSF
• Input voltage: +5V DC @ “+” pad
• Weight: 1 g without antenna
• PCB size: 18.5mm x 16mm
• Telemetry power: <17dbm
• Outputs: 6x PWM

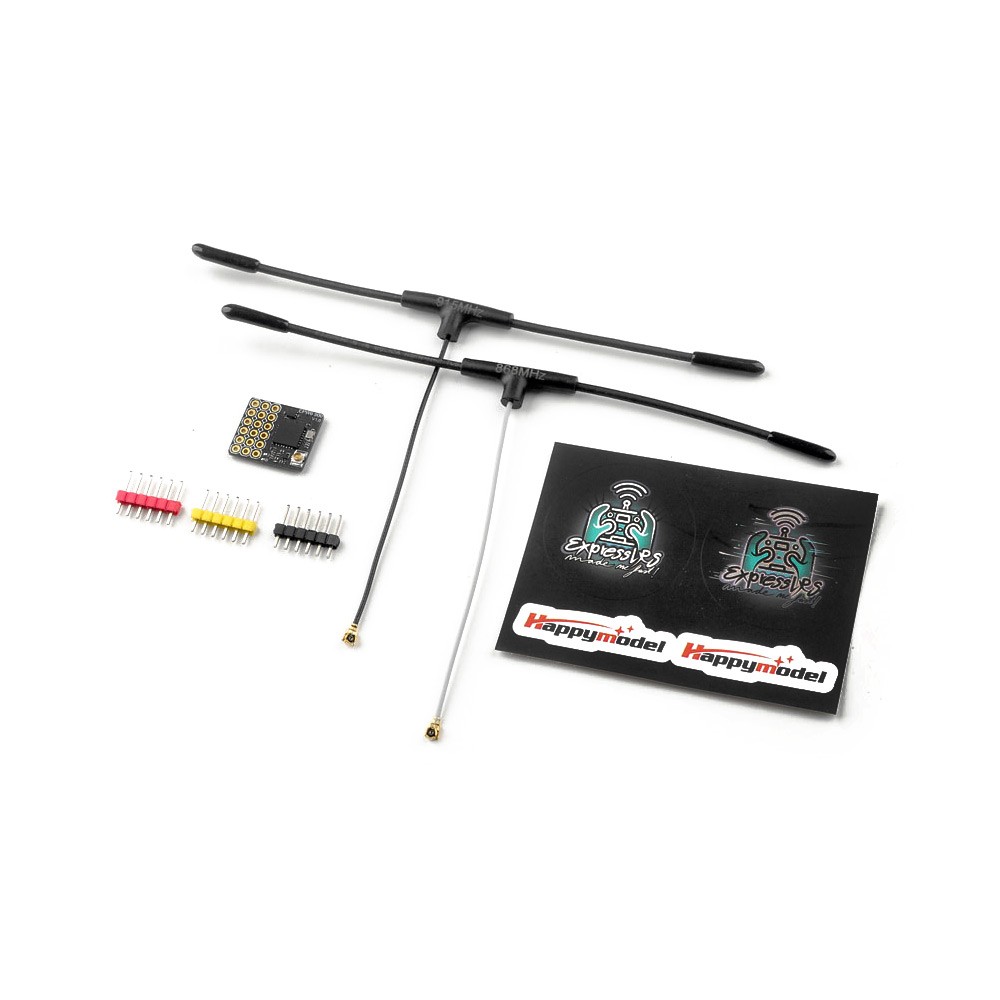

Includes

• 1x Happymodel EPW6 900MHz PWM RX
• 1x Happymodel 915MHz Antenna
• 1x Happymodel 868MHz Antenna
• 2x Happymodel Stickers
• 3x 2.54m 6-Pin
