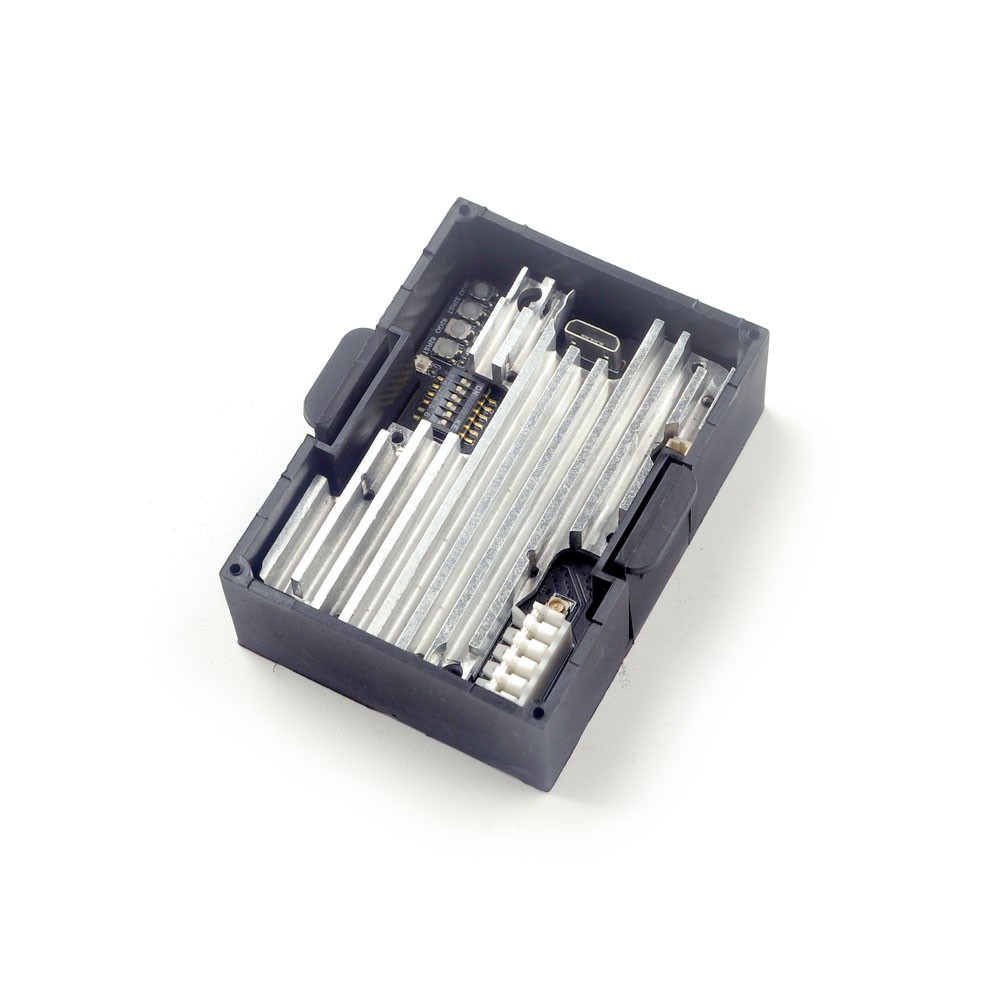

The ES900TX and ES900RX modules sets are long-distance 915mhz wireless transmission equipment developed and designed based on the open-source ExpressLRS software. This set of modules is characterized by ultra-long-range, stable operation, and low latency. They are compatible with most Opentx remote controllers, especially suitable for Radiomaster TX16S and Jumper T12, T16, and T18 series remote controllers, and are basically plug and play. The heat sink has been specially customized for the transmitter module, which can help the transmitter module to operate stably under high power conditions. The 900TX module comes with a 2006 fan which allows it to work automatically when the TX power is at 250mW.
VIDEO: Happymodel ExpressLRS 900mhz TX & RX System
- Compatible with OpenTX remote controllers, including the Radiomaster TX16S and Jumper T12, T16, and T18.

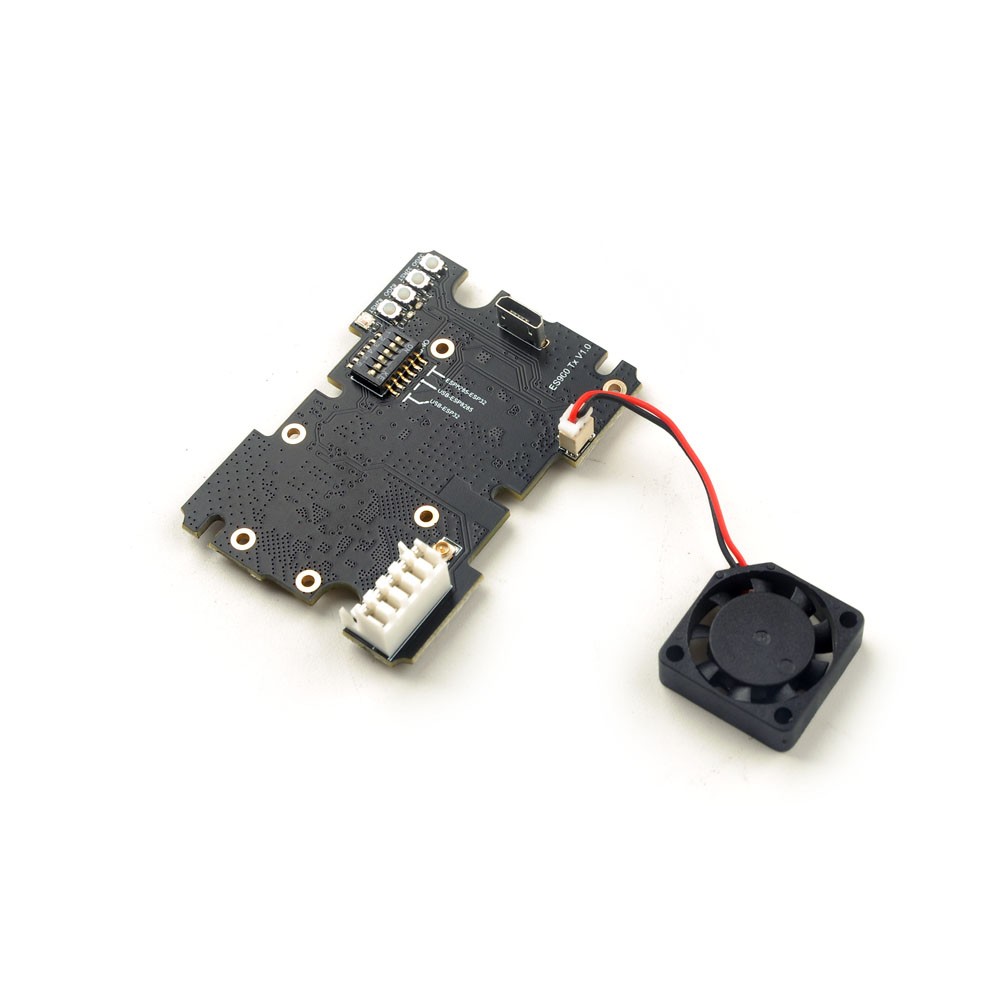

- The 900TX module comes with a 2006 fan which allows it to work automatically when the TX power is at 250mW.
- Helps transmitter to operate with stability under high power conditions.
- ExpressLRS open-source software.
- Ultra Long Range
- Low Latency
- RF Frequency: optional 915mhz or 686mHz (EU)

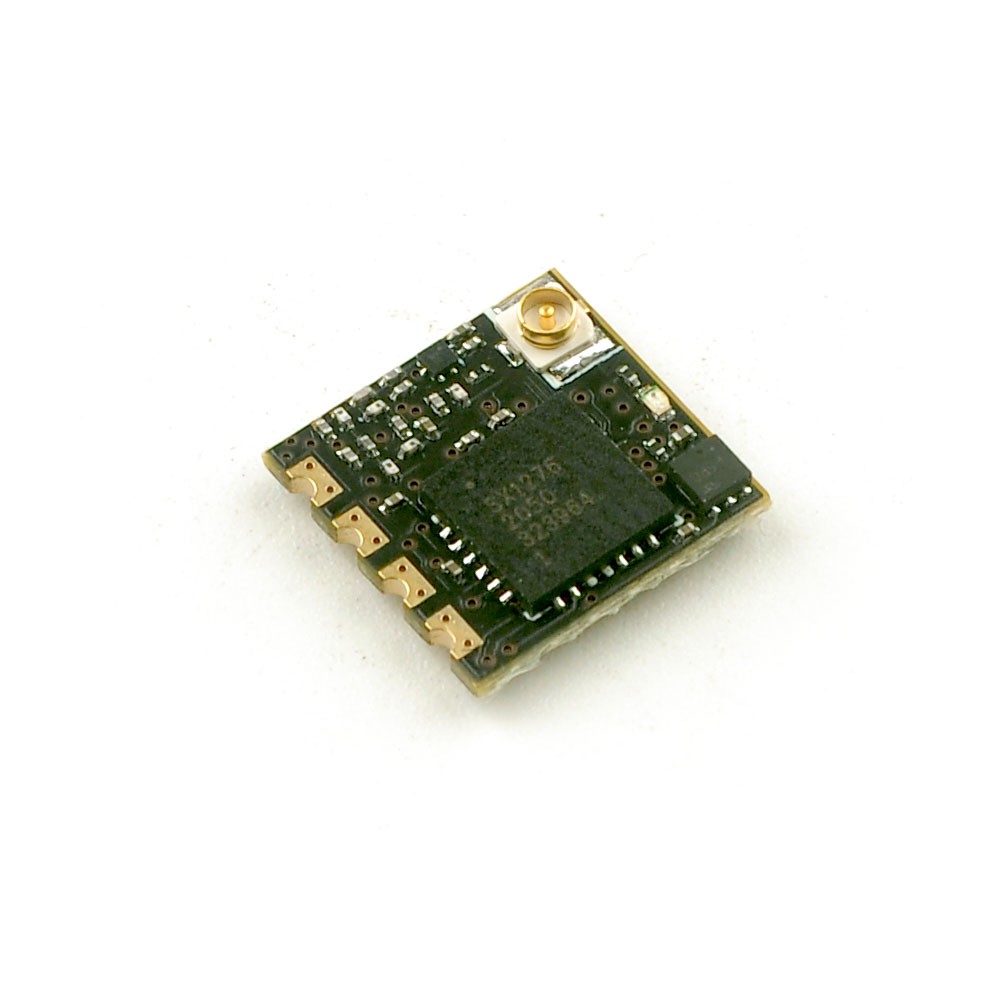

- Weight: 0.60 gram (excluding antenna)
- Telemetry output Power: <17dBm
- Operation current: ~100Ma
- Antenna connector: IPEX1

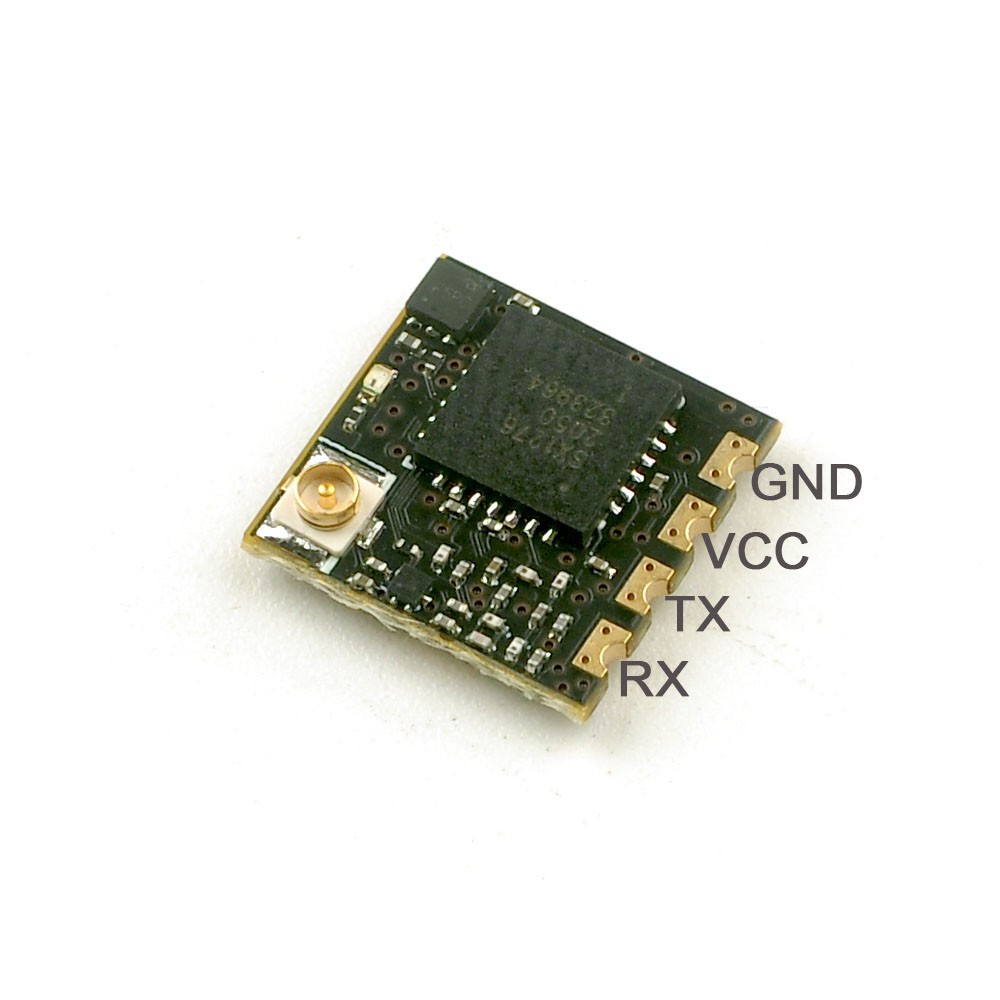

- Rx To FC protocol: CRSF
- Dimension: 12x12x3mm
- VCC input: 5v
- Maximum Output Power: <33dBm (For >27dBm operation, we recommend adding a fan for force cooling)
- RF Frequency optional: 915mhz or 868mHz (EU)

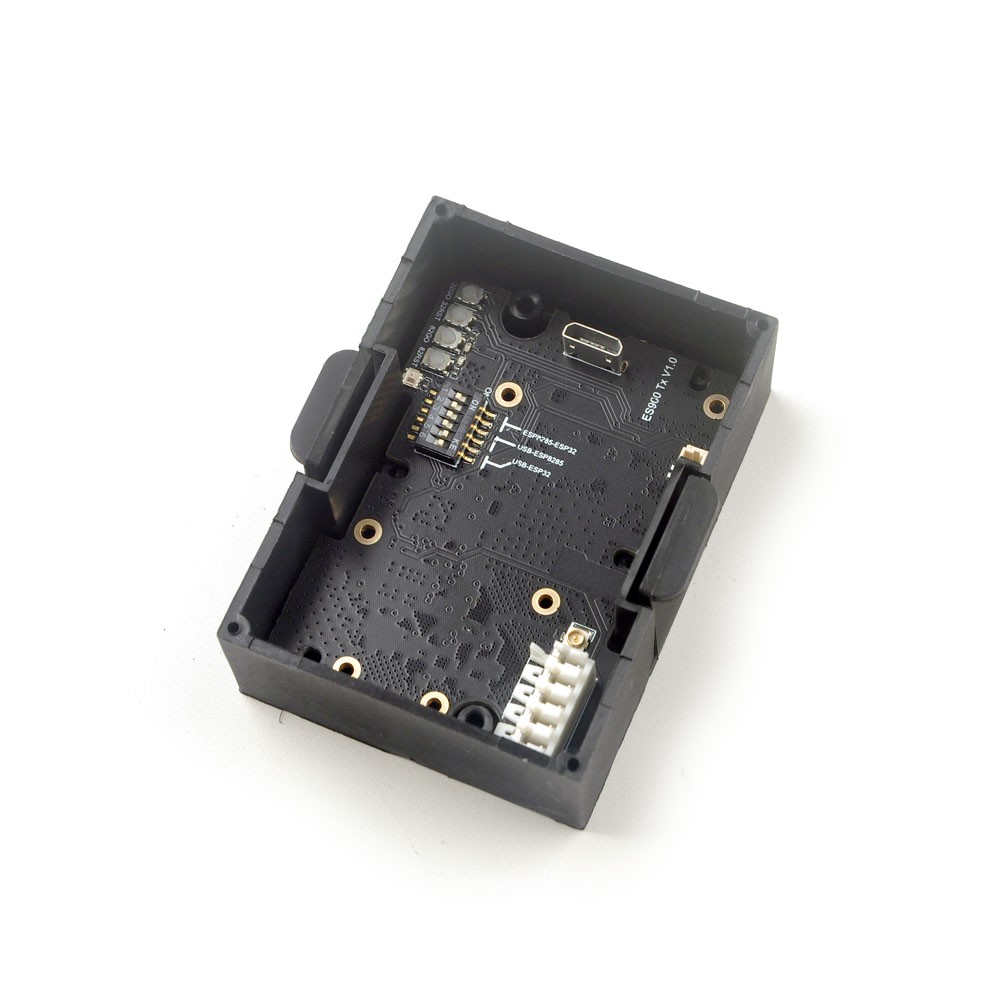

- Dimension: 55x39x13mm (including heat sink)
- VCC input: 5~13v, Recommend 5v~9v
- Weight: 23gram (exclude antenna)
- Antenna connector: SMA
- MCU: ESP32+ESP8285
- Supply power to the ES900RX, wait until the red LED on the ES900RX is off, immediately turn off the power, and then repeat again the above steps. When the ES900RX is powered on for the third time, the red LED light will start to double flash quickly, which means that the ES900RX enters the binding mode.
- Insert the ES900TX module to the Radio transmitter, and choose External RF mode to CRSF protocol, then you can find the ELRS menu from the Radio systems.
- Enter into ELRS, and press [Bind], the Red LED on the ES900RX module will turn off and then begin blinking slowly and finally become solid when the module binds successfully.
ES900RX firmware update by wifi procedure:
- Make the ES900RX enter into Bind mode and then wait around 1 minute and don’t bind with it, then the ES900RX will go into Wifi mode automatically, you can connect to the wifi hot spot “ExpressLRS RX” by entering the password “expresslrs”.
- Visit the firmware update website by entering “10.0.0.1”, and choose the correct firmware then click “update”, wait for around 1~2 minutes, the update progress will be finished and you can find “firmware update successful and reboot”, which means the update is finished.
Click to Download 3D Printed JR module mounting bay file for ES900TX
Click to Download Firmware for ES900RX

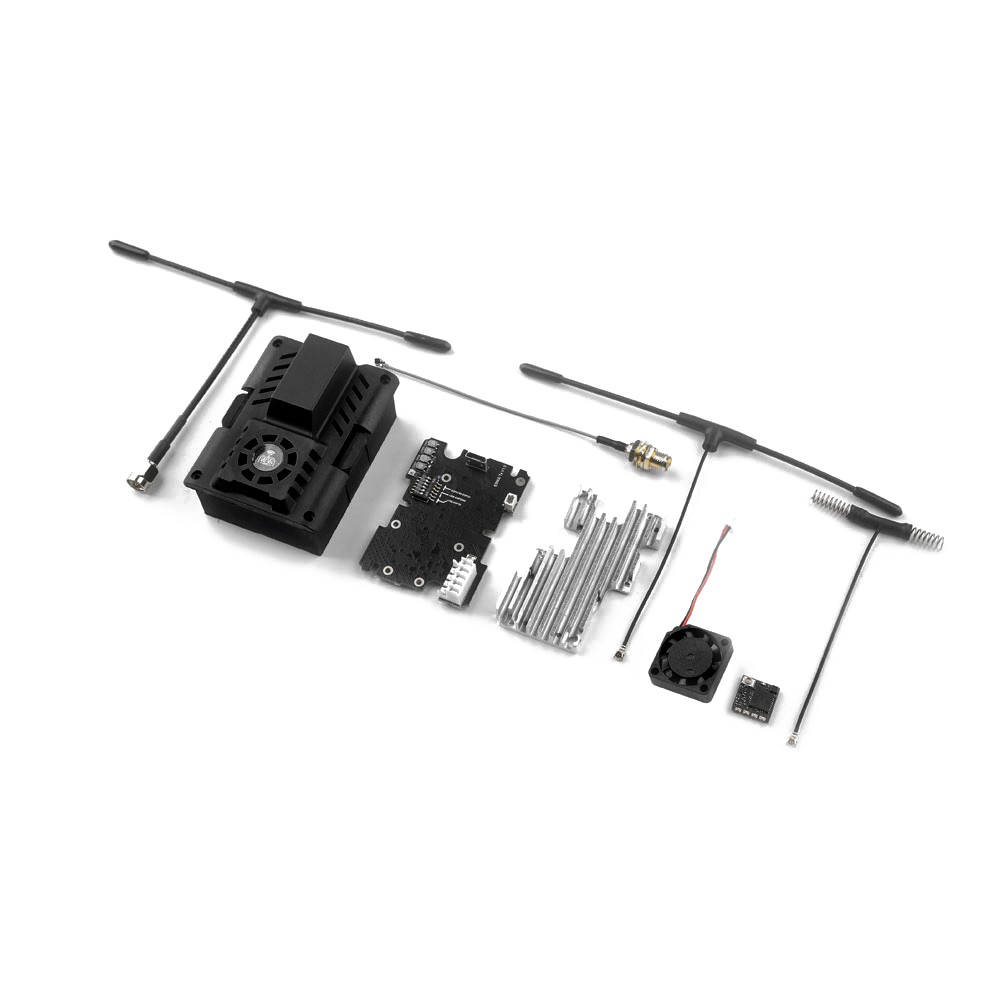

- 1x Happymodel ES900 TX module
- 1x Happymodel ES900 RX module
- JR Bay Mounted Case for TX
- 1x Adapter wire
- 2x RX antenna
- 1x TX antenna
- 1x Heat sink
- 1x 2006 Fan
- Note: Radio Not Included
