This flight controller is inspire from Happymodel Official Pilot “Angry Don FPV“

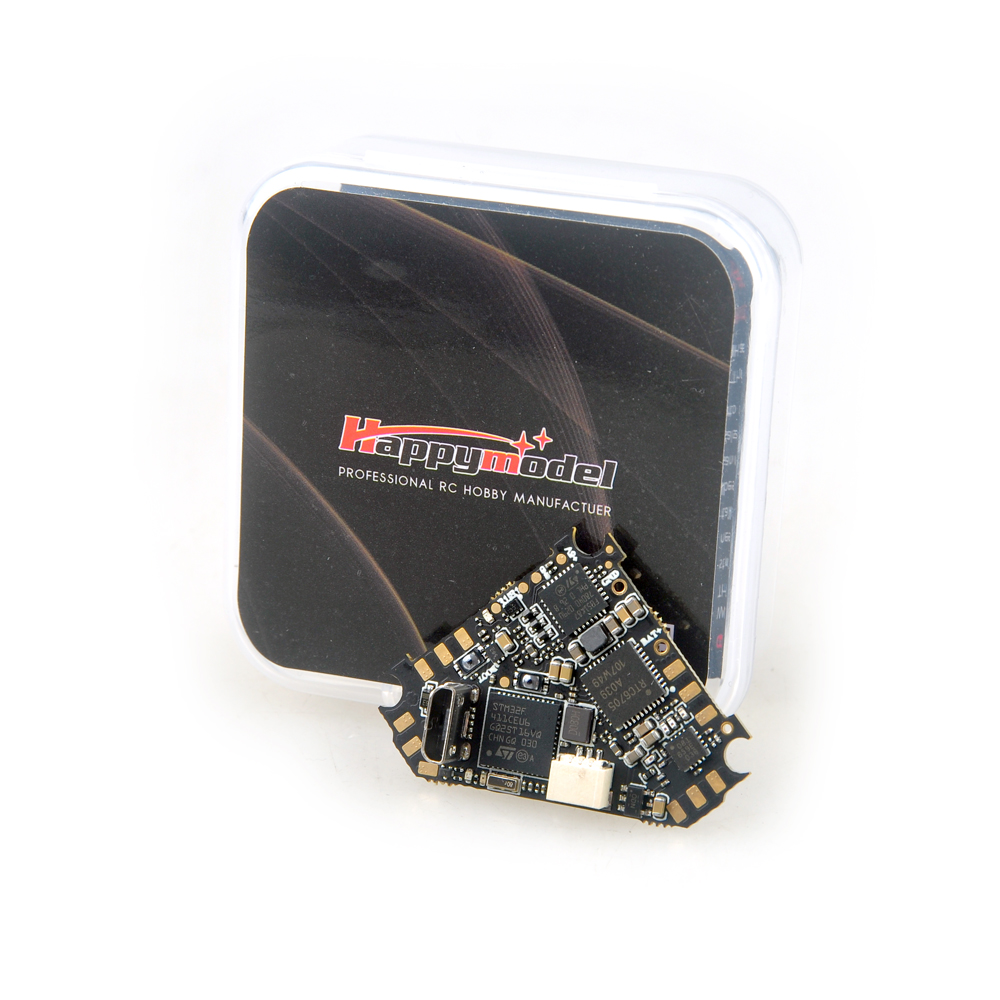

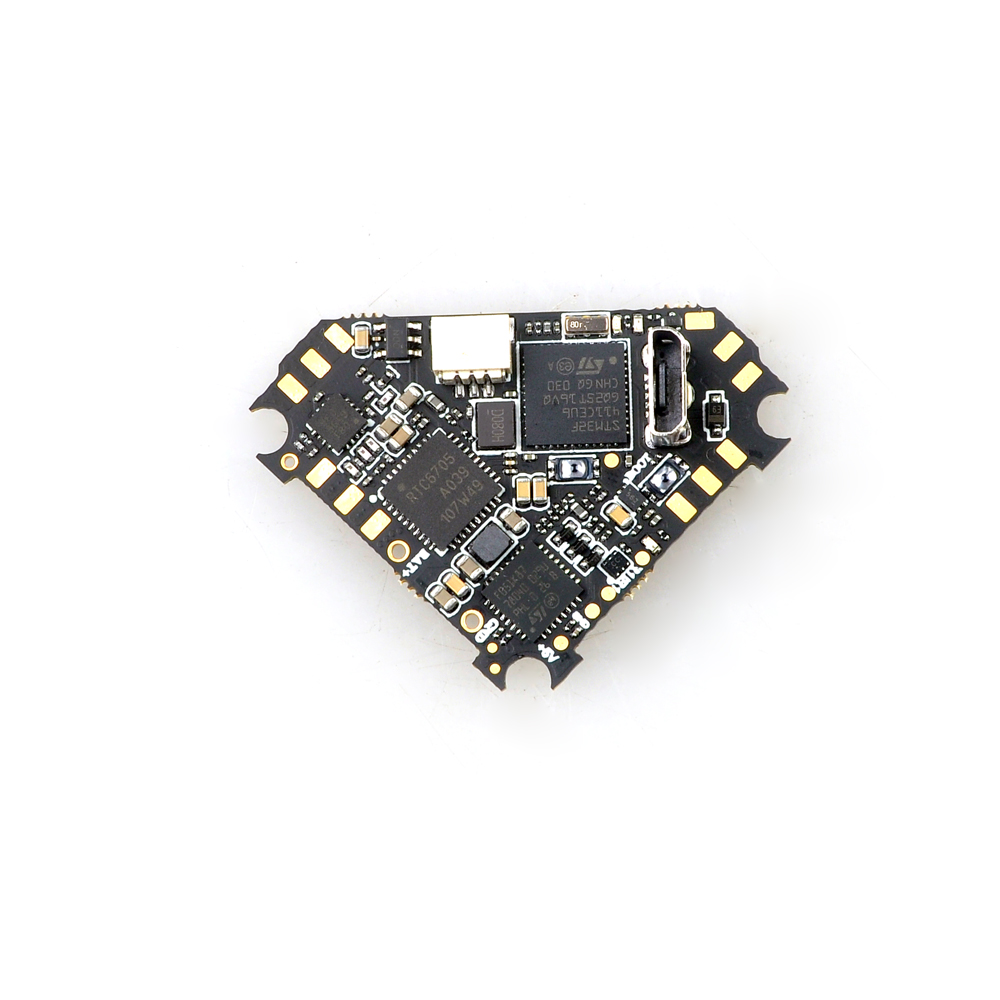

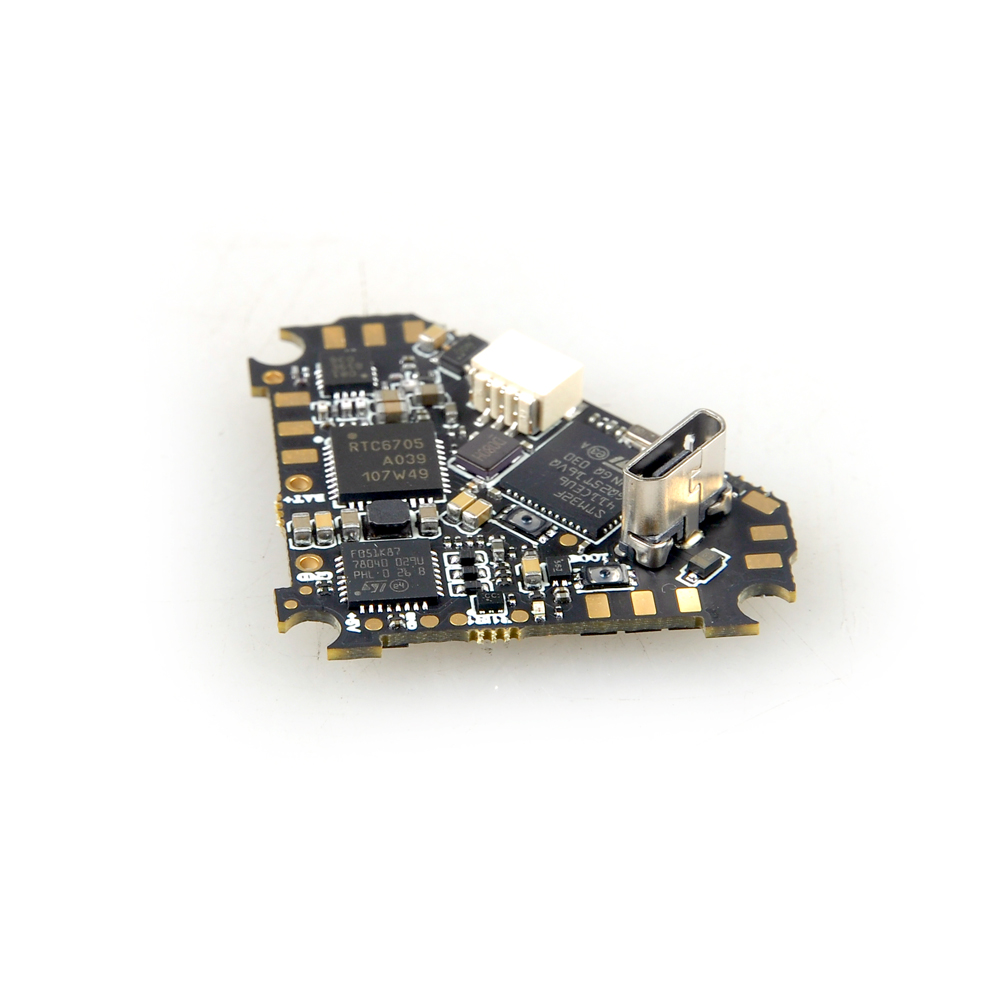

Flight controller
- (Flysky SPI RX version)DiamondF4 FS FC Firmware target: CrazybeeF4FS
- MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
- Sensor: MPU-6000(SPI connection)
- Original whoop size compatible
- Power supply: 1S battery input (DC 2.9V-4.35V)
- Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
- Built-in Betaflight OSD(SPI Control)
- Built-in 5.8G VTX
- Built-in SPI Frsky/Flysky receiver
- Built-in 5V 1A BECOnboard 4in1 ESC
- MCU upgraded to EFM8BB21
- Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds)
- Support BLHeliSuite programmable
- Factory firmware: O_H_5_REV16_8.HEX
- Default protocol: DSHOT600Onboard Flysky SPI receiver Version
- SPI BUS receiver
- Protocol: AFHDS and AFHDS-2A Switchable
- Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)
- No ground interference ( Transmitter and receiver 1 m from the ground): 200~300m
- Failsafe supportOnboard 5.8g VTX
- Output power: 25mw~200mw switchable
- Frequency: 40CH
- Input voltage: 3.3V 5.5V
- Current consumption: 300mA(type)
- Frequency: 5.8GHz 5bands 40 channels(include Race band)Smartaudio ready
