Summary
The GEPRC GPS series product line has been fully upgraded. The GEP-M10 series of GPS products based on u-blox M10050 chip are now launched.
The GEP-M10 series GPS positioning module uses u-blox’s M10 chip solution and supports GPS+BDS+Galileo+QZSS+SBAS joint positioning, up to 32 satellites. There are 12*12mm and 18*18mm ceramic antenna versions, providing better receiving ability. Built-in Flash chip and Farad capacitor can save configuration parameters and quickly hot start.
Optional QMC5883L/IST8310 magnetometer and DPS310 barometer. A variety of matching solutions provide accurate azimuth pointing and sensitive altitude change data. It can meet the needs of most FPV quadcopters , multi-rotor, fixed wing and other model products.
Specifications
- GPS chip:u-blox M10050
- Input voltage:3.3V-5V
- Receiving frequency:GPS L1,GLONASS L1,BDS B1,GALILEO E1,SBAS L1,QZSS L1
- Operating mode:GPS+BDS+LALILEO+QZSS+SBAS joint positioning
- Channel:72ch
- Navigation satellites:Up to 32 pieces
- Output protocol:UART(ublox),I2C(Baro,Mag)
- Baud rate:115200bps
- Output Frequency:10Hz
- Speed Accuracy:0.05 m/s
- Horizontal positioning accuracy:2D ACC1.5m(Weather)
- Timing accuracy:30 ns
- Receiver sensitivity:Trace-162dBm,Capture-160dBm
- Dynamic characteristics:Max Height: 50000m, Max Speed: 500m/s
- Maximum acceleration:4G
- Mag:QMC5883L,IST8310
- Baro:DPS310
- Size:15x15x7.5mm(GEP-M10nano),22x22x8.2mm(GEP-M10)
- Antenna size:12x12mm(GEP-M10nano),18x18mm(GEP-M10)

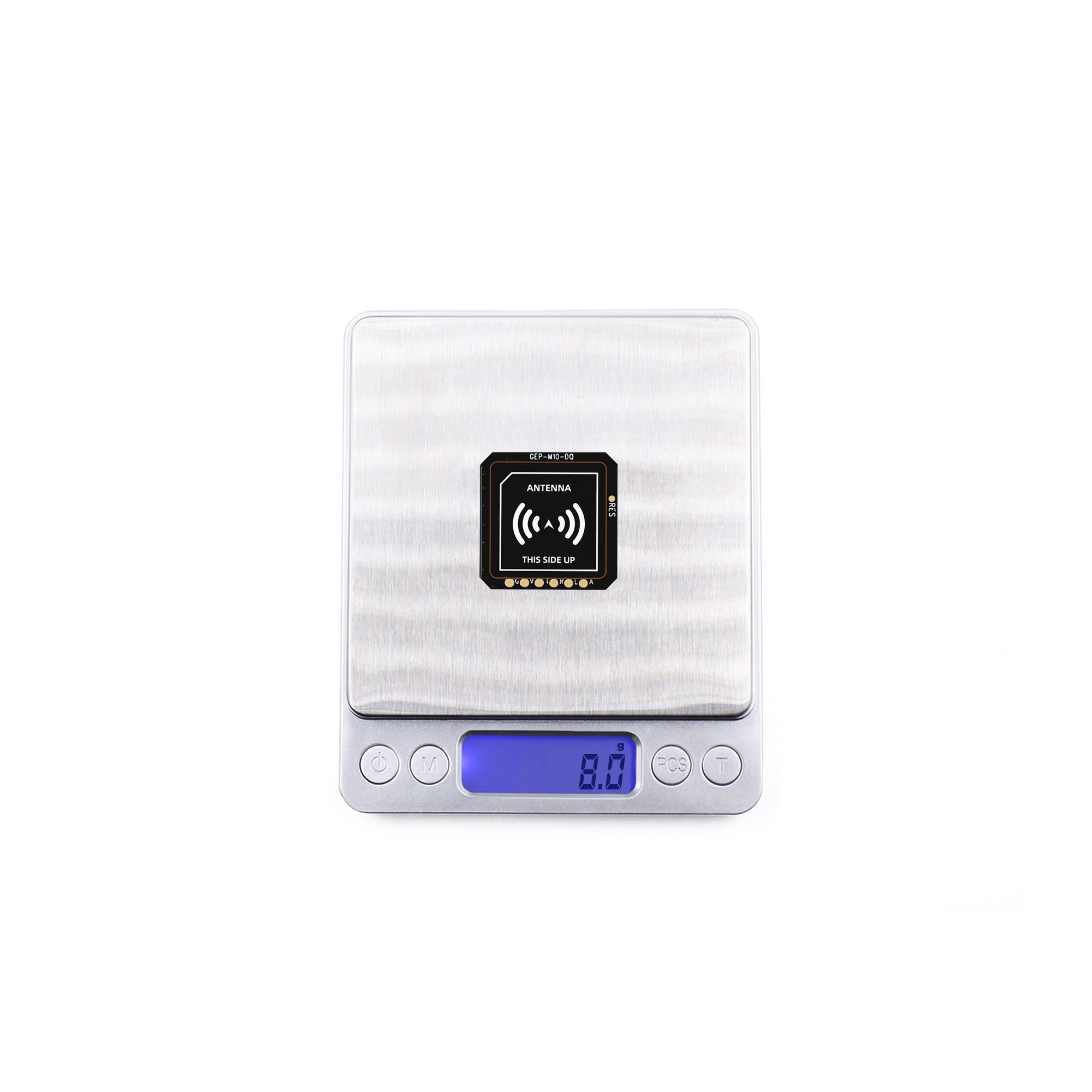

- Weight:4.1g(GEP-M10nano),7.8g(GEP-M10)
Features
- u-blox M10050 chip
- GPS+BDS+Galileo+QZSS+SBAS joint positioning
- Fast positioning speed,Up to 32 satellites
- Stable connection quality
- 12x12mm or 18x18mm antenna size, better signal receiving performance
- Built-in Flash chip and Farad capacitor
- Onboard indicator light, easy to use
- Optional integrated magnetometer + barometer, more collocation scheme
Includes
1 x GPS module
1 x terminal wire
1 x GPS module instruction manual
1 x GEPRC sticker
1 x heat shrink tubing
