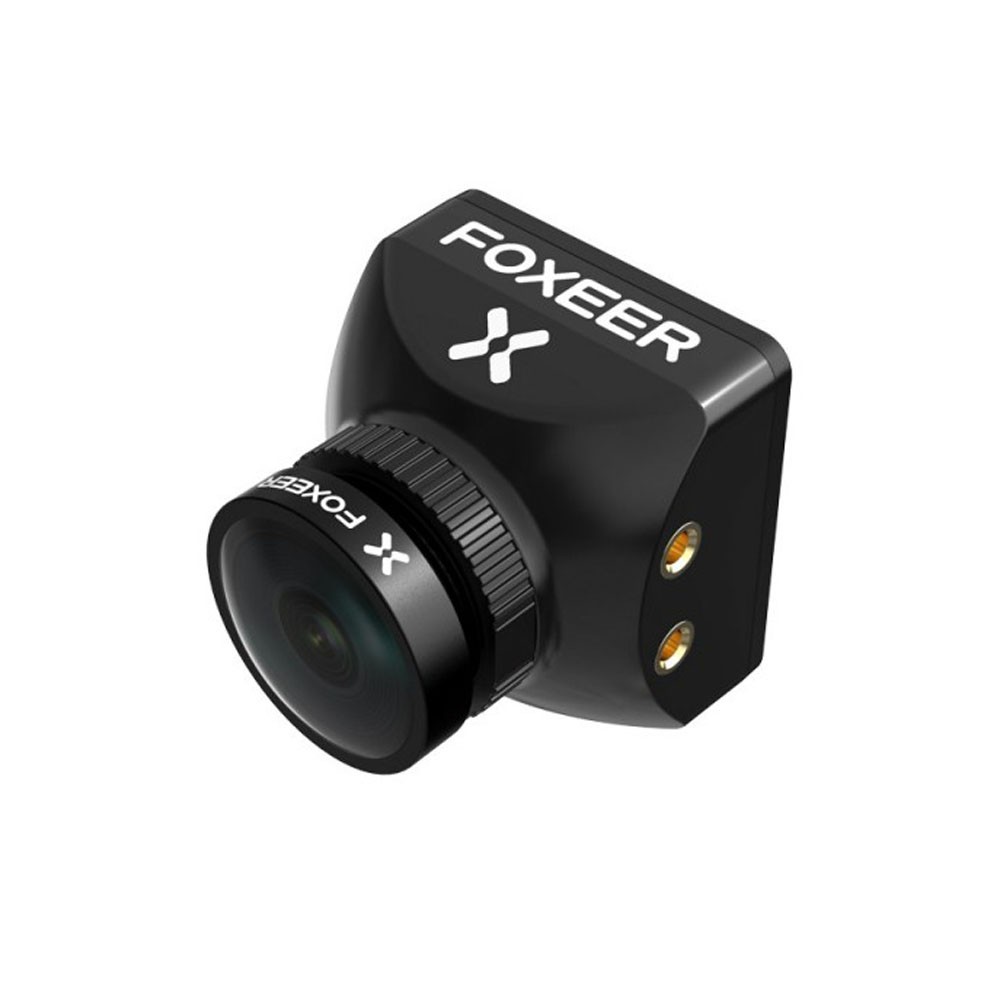

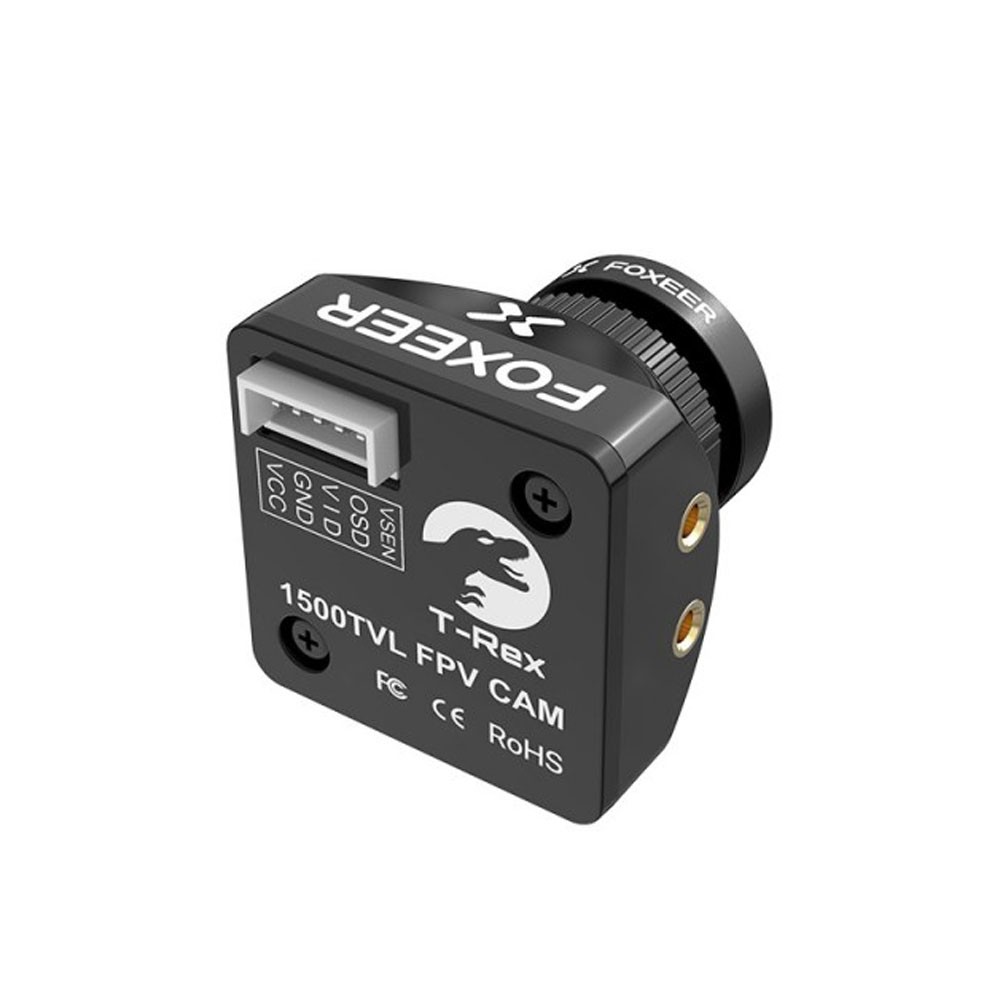

The Foxeer T-Rex Mini is a 22x22mm (28×22 with bracket) FPV camera by Foxeer that features a 2MP CMOS sensor, 1500TVL resolution, 6ms low latency, NTSC/PAL switchable, auto white balance, and many other cool features!
Specifications
- Sensor Type: 2MP CMOS Sensor
- Scale: 4:3/16:9 Switchable
- Tv System: PAL/NTSC Switchable
- Resolution: 1500TVL
- Shutter Speed: Auto
- Flip: Up, Down, Left and Right
- Video Output: CVBS Analog Signal
- Latency: 6ms
- Minimum Illumination: 0.001Lux
- White Balance: Auto
- DNR: 3DNR
- WDR: 110dB
- DAY/NIGHT: EXT/Auto/Color/B&W
- Flight OSD: Voltage/Cam Title/Time
- Input Voltage: 4.5V~16V
- Power Consumption: 115mA±15%@DC12V,270mA±15%@DC5V
- Language: ENGLISH /中文
- Working Temperature: -10°~50°C RH90% MAX
- Working Humidity: 20~80%
- Storage Temperature: -20°~70°C
- Dimension: 19*19mm
- Weight: 10.2g(Exclude cable)
Includes
- 1 x Foxeer T Rex Mini FPV Camera
- 1 x OSD Board
- 12 x Bracket Screws
- 6 x Gasket Ring
- 1 x 2pin OSD Cable
- 1 x Servo Cable
