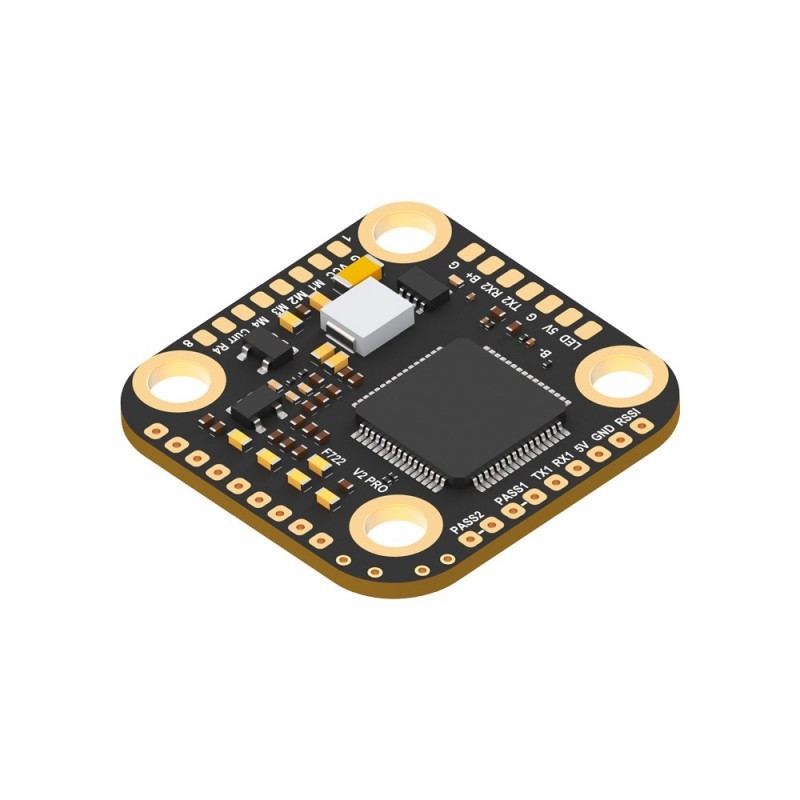

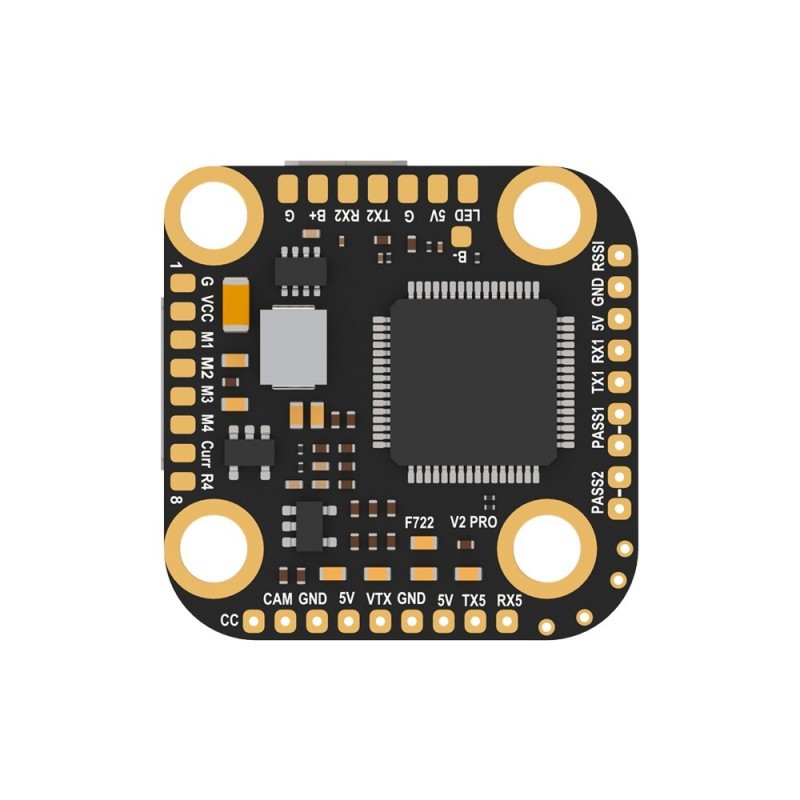

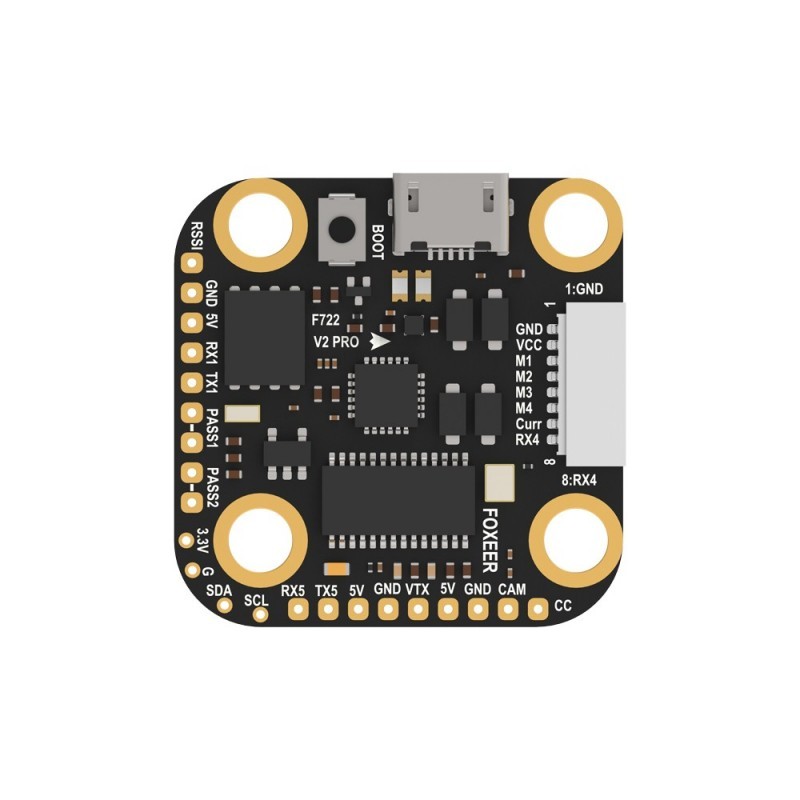

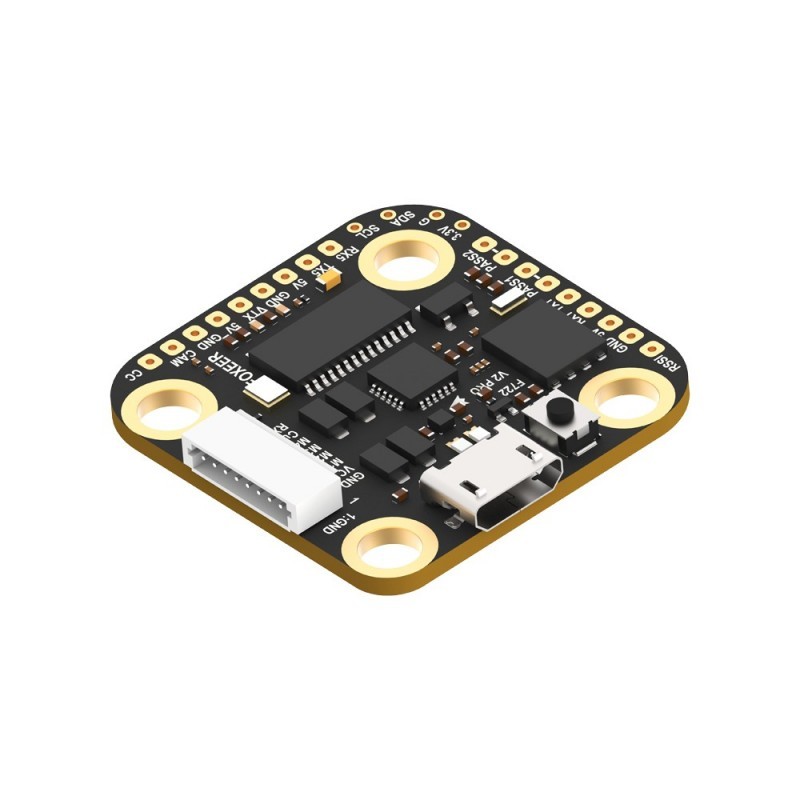

Foxeer Mini F722 V2 Pro (BMS) Flight Controller

The F722 Pro V2 is a 20×20 flight controller flown by professional FPV racer BMS. This FC has a built-in passthrough to make wiring up your quad easier.

Specifications

• CPU STM32F722RET6
• Power Supply 2~6S Lipo (6.5V~30V)
• BEC Output DC5V/3A
• OSD BF OSD
• Black Box 16M Flash Memory
• UART 4 Set
• ESC Telemetry RX4
• Buzzer YES
• Smart Audio YES
• LED 1 Set 2812 LED
• USB Micro USB
• Fireware FOXEERF722V2(FOXE)
• Size 28.5*28.5mm
• Mounting Hole 20X20mm, Φ4mm
• Weight(g) 4.4g
• Working Temperature -20℃ ~ +55℃
• Working Humidity 20～95%
• Storage Temperature -20℃ ~ +70℃
• Package Includes 1*FC, 4*Rubbers Columns

Includes

• 1x Flight Controller
• 4x Rubber Mounting Columns
