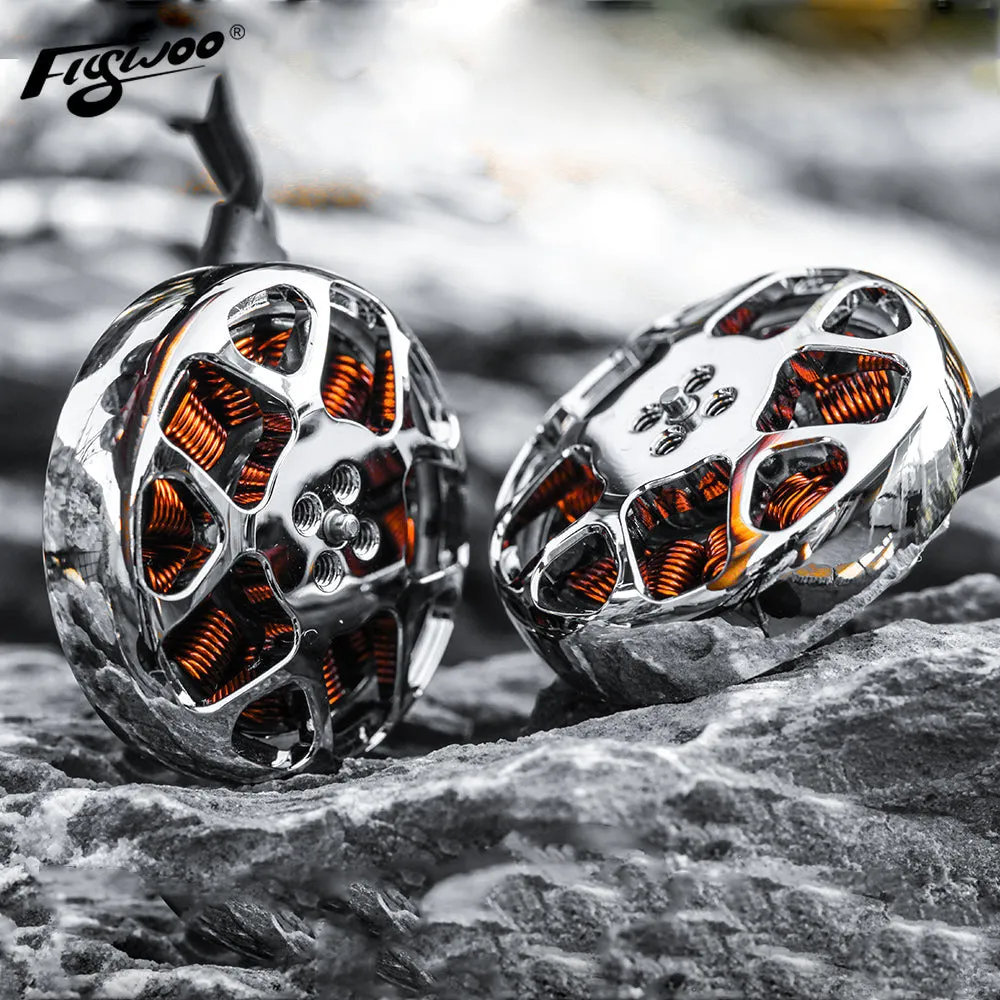

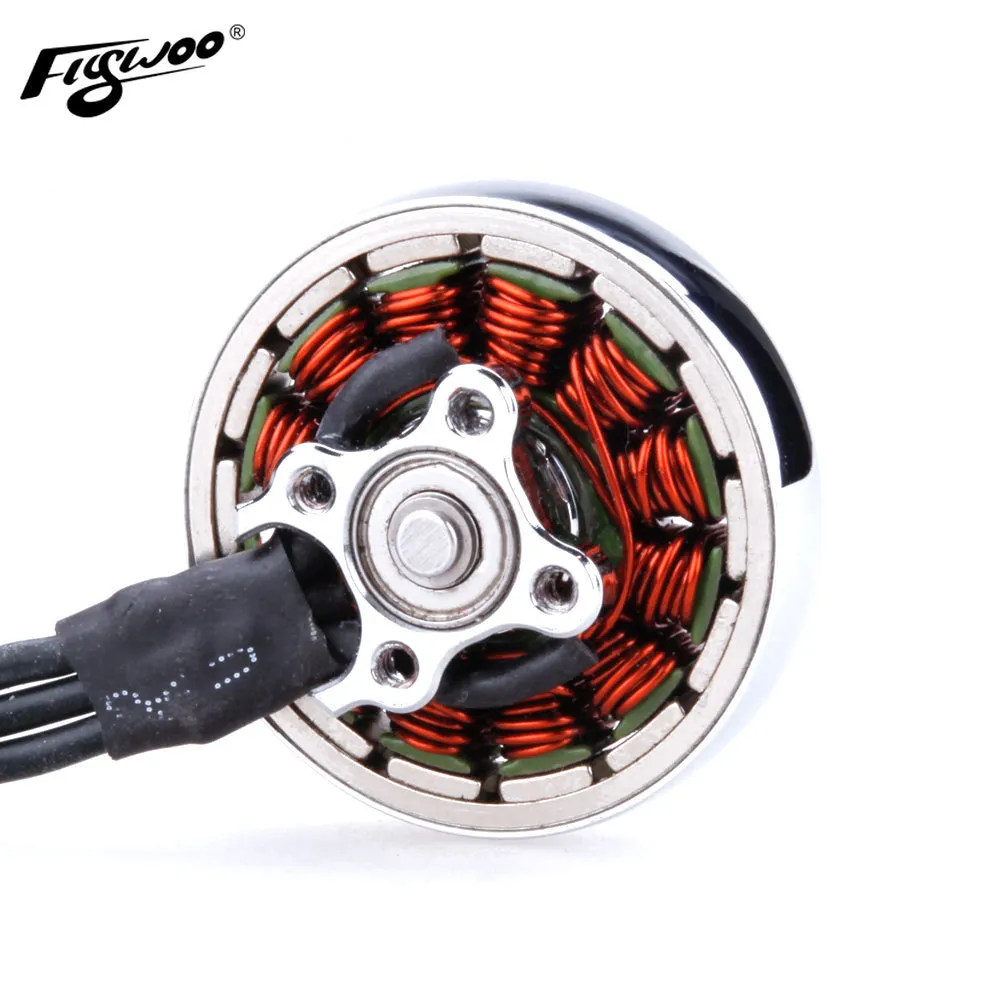

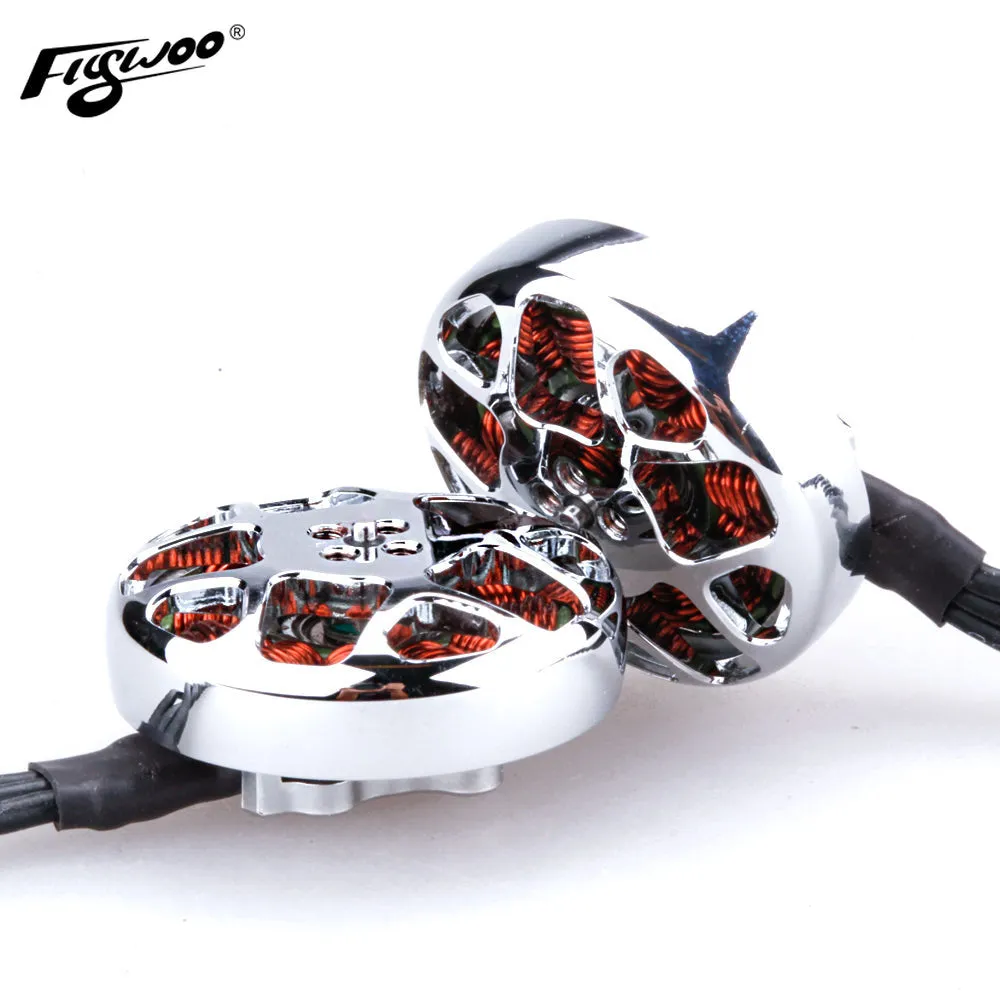

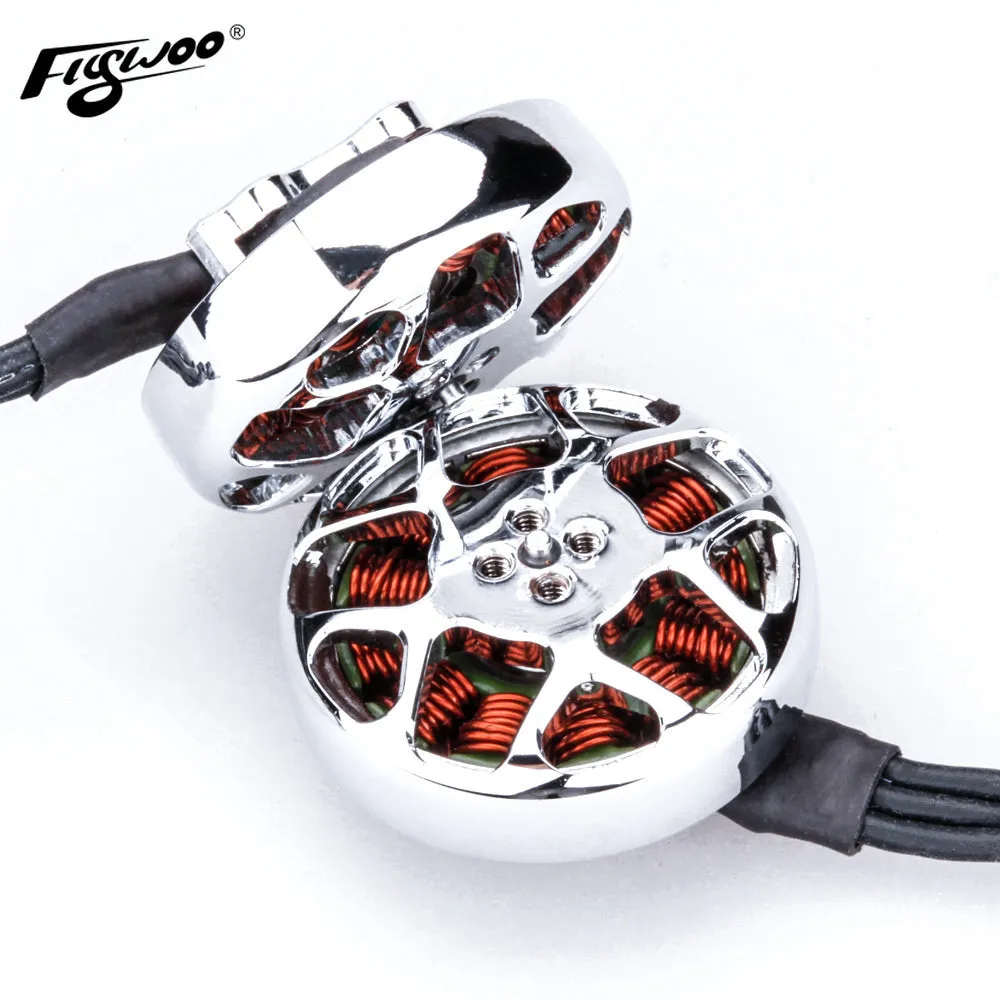

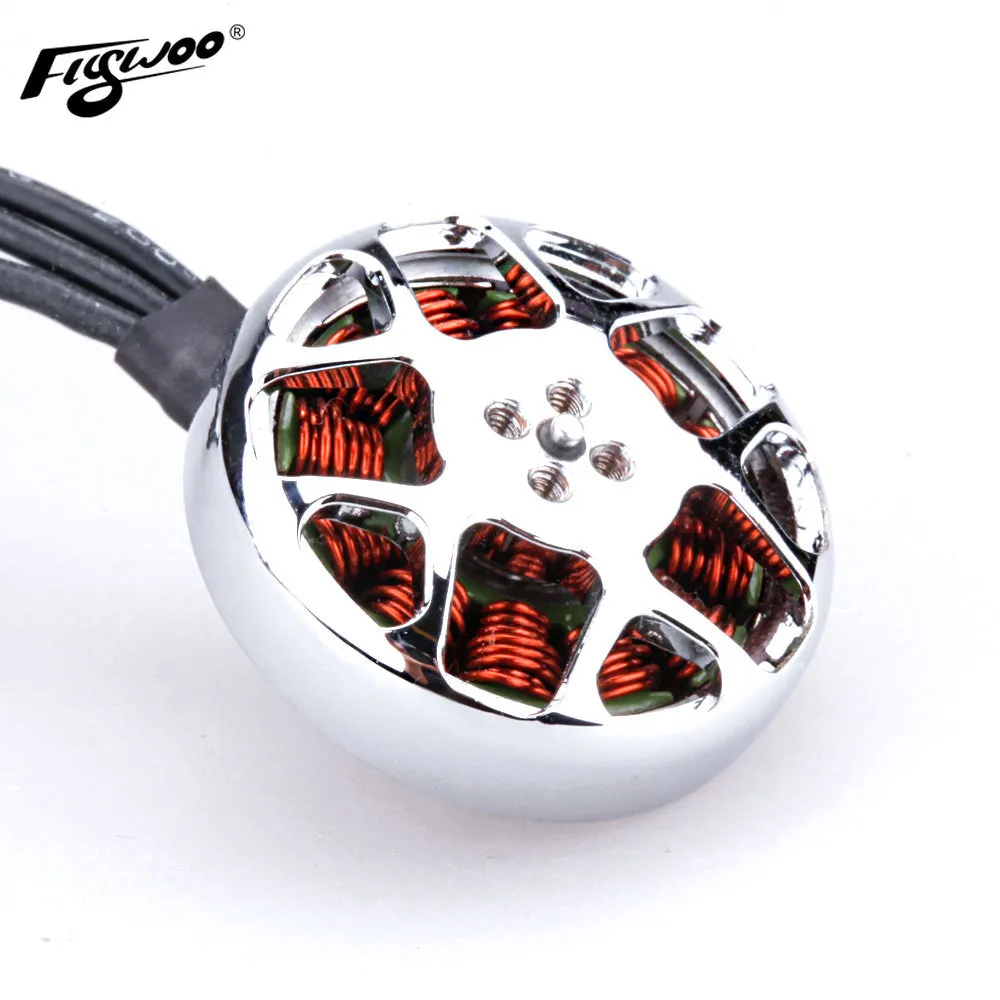

FLYWOO NIN 2303.5 Ultralight was made to the highest standards of FPV freestyle racing. Using high grade unibell design , and the electroplating process that looks clean and aggressive at the same time. High-quality Curved N52H magnet , Japan NSK Bearing.
Great for Long range , freestyle and racing ! like 3″cinewhoop , 4″-5″ toothpick , 6-7” long range!
Specifications
KV: 1750KV
- Configu-ration :12N14P
- Stator Diamter : 23mm
- Stator Length : 3.5mm
- Shaft Diameter : 3mm(in) 1.5mm(out)
- Motor Dimension(Dia.*Len) : Φ29.1*13.5mm
- Weight(g) : 21.5(3cm Wire)
- Idle current(10) : @10V(A) : 0.58
- No.of Cells(Lipo) : 5~6S
- Max Continuous Power(W) 3S : 559
- Internal Resistance : 173mΩ
- Max Current(3S) : 23.3A
- Max.Effciency Current : (1.5-3A)>85%
KV: 3000KV
- Configu-ration :12N14P
- Stator Diamter : 23mm
- Stator Length : 3.5mm
- Shaft Diameter : 3mm(in) 1.5mm(out)
- Motor Dimension(Dia.*Len) : Φ29.1*13.5mm
- Weight(g) : 21.5(3cm Wire)
- Idle current(10) @10V(A) : 1.25
- No.of Cells(Lipo) : 3~4S
- Max Continuous Power(W) 3S : 656
- Internal Resistance : 71mΩ
- Max Current(3S) : 41A
- Max.Effciency Current : (2.5-5A)>85%
