Botlab Dynamics BotWire Race Wire

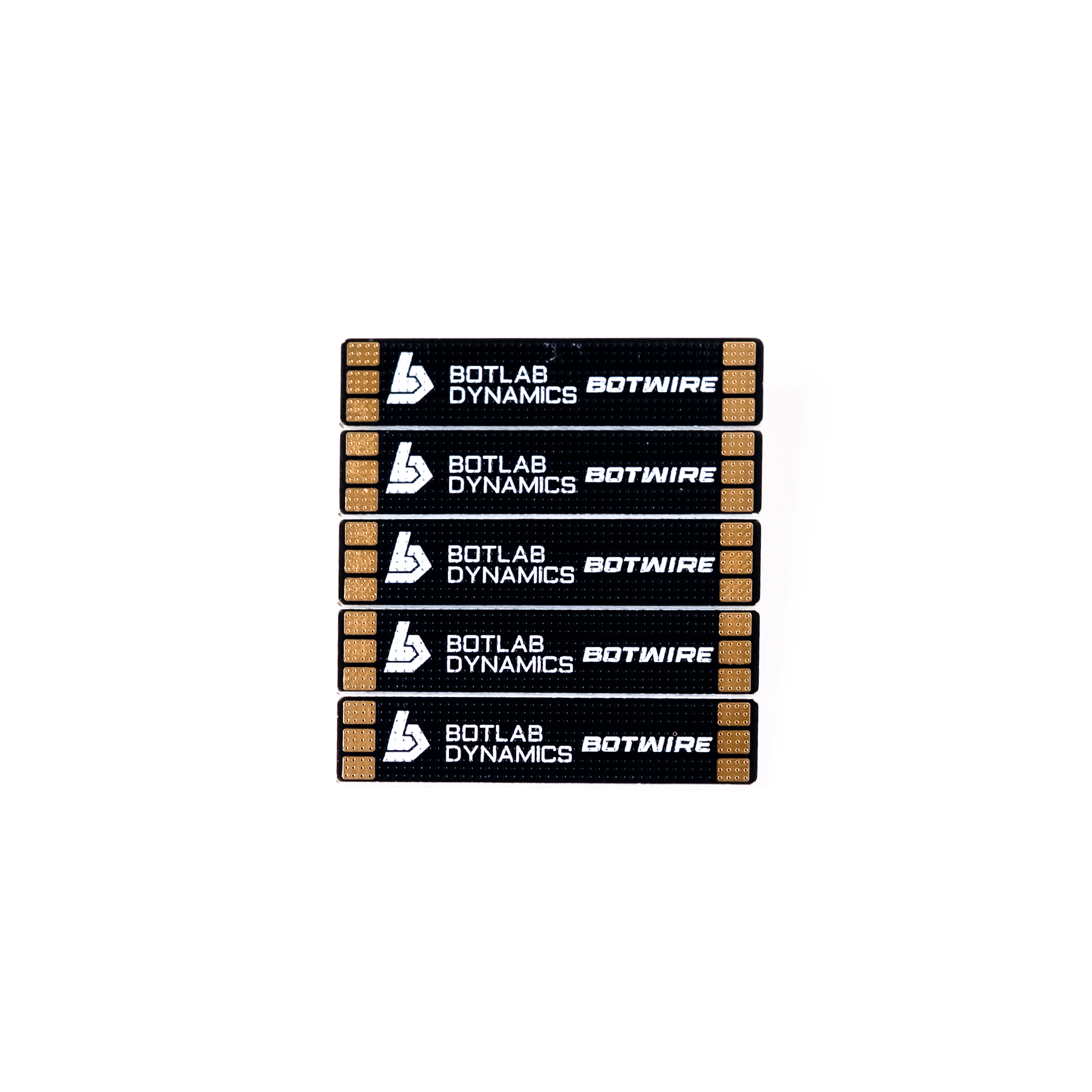

BOTWIRE

Produce Name: BOTWINGF

Dimension: 40mm x 9mm

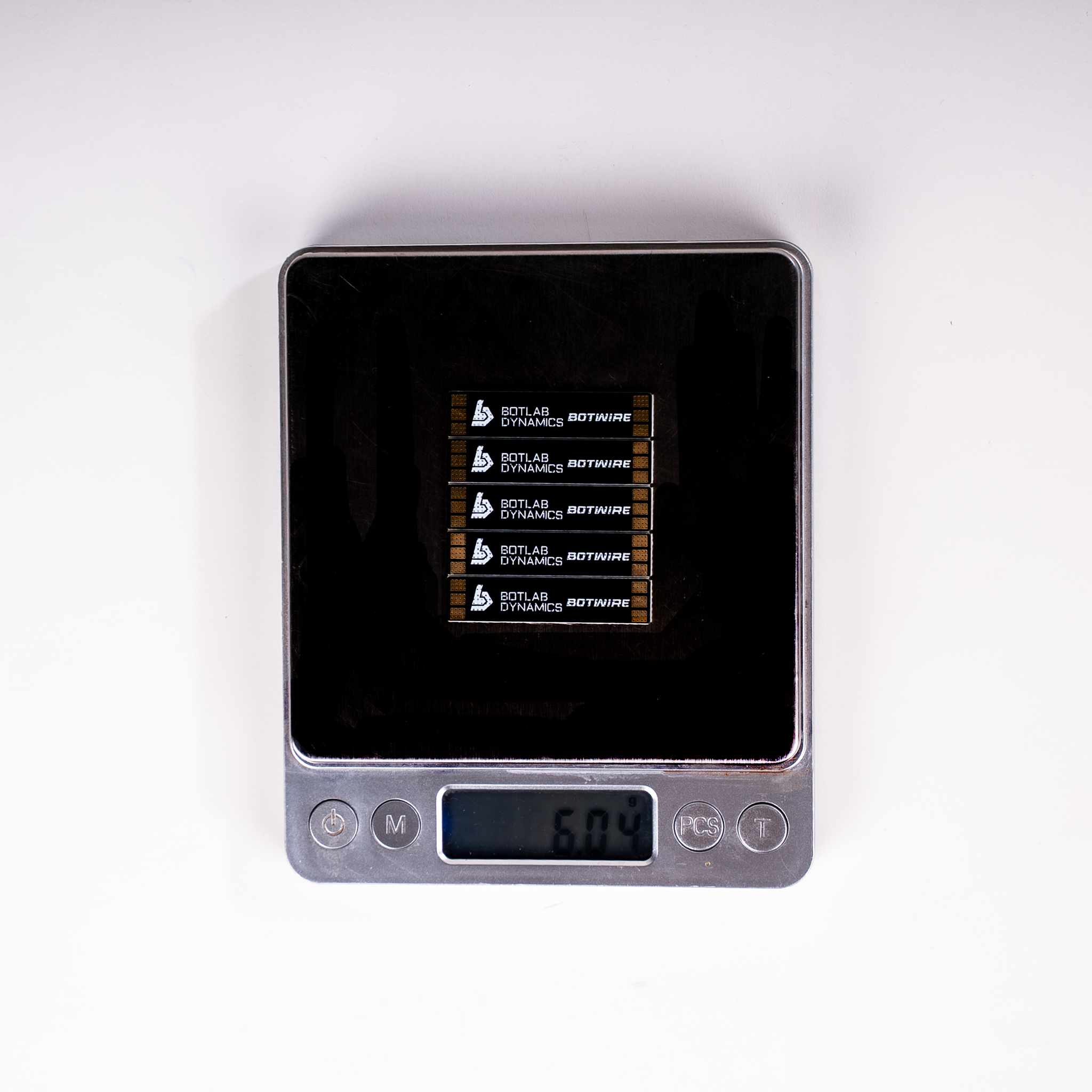

Weight: 1.47g

About Racewire

The BOTWIRE Race-wire is a specialized motor wire. It is a convenient bridge between the motor and the ESC (Electronic Speed Controller), which helps extend the existing length of wire on the motor, keeps the
propellers from cutting motor wires and also makes it easier to swap motors on the field.

Wiring and connection

1. Mount the motor on the drone arm and place the Bot-wire on the arm of the drone.
2. Cut the motor wires to length and connect the three wires to the three pads.
3. On the other side connect the Bot-wire to the ESC (Electronic Speed Controller) via the same gauge of wire.

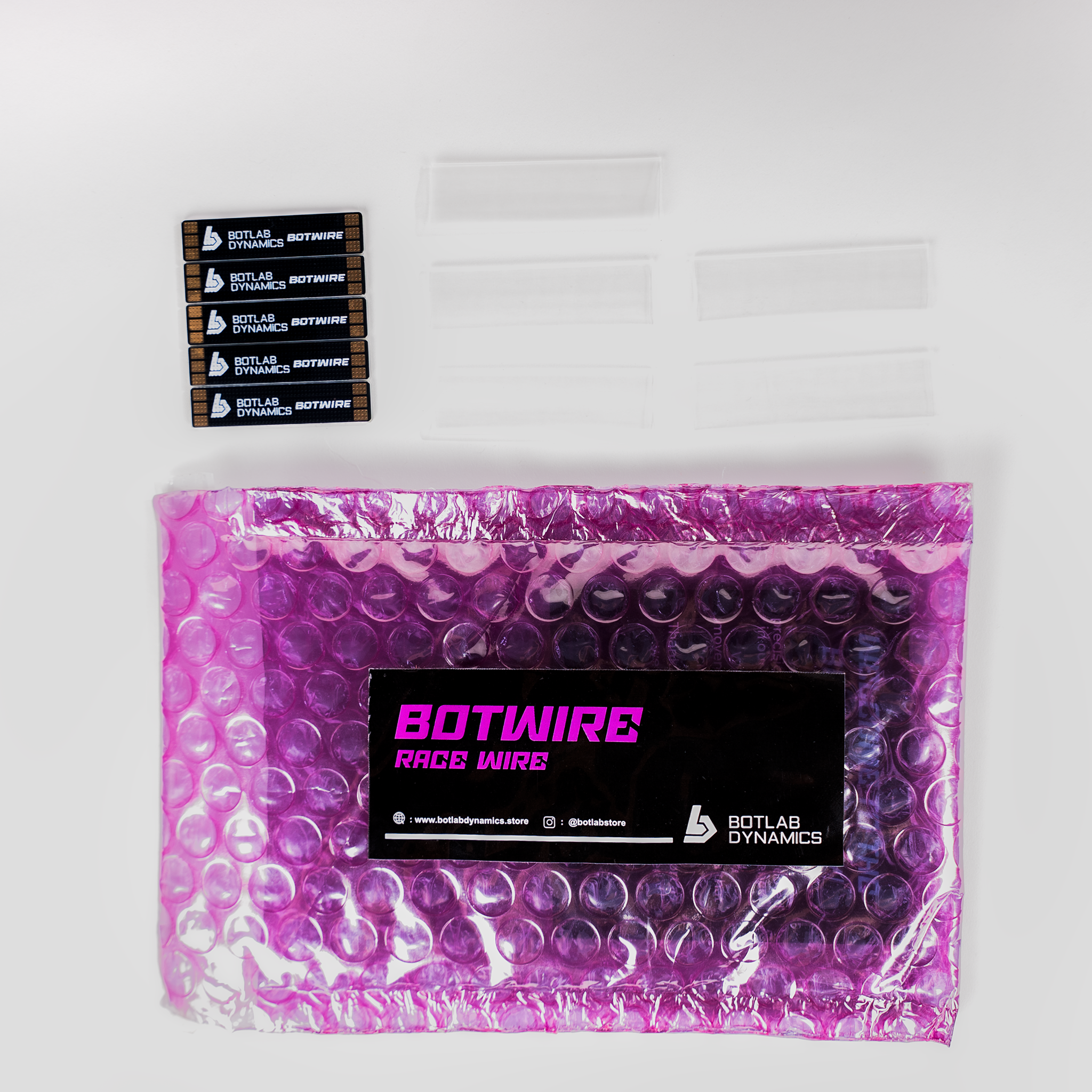

4. Make sure to wrap the entire Bot-wire and its connections with the included heatsink.
