ANENG AN9002Pro Digital Bluetooth Multimeter 6000 Counts Professional AutoMultimetro True RMS AC/DC Current Voltage Tester

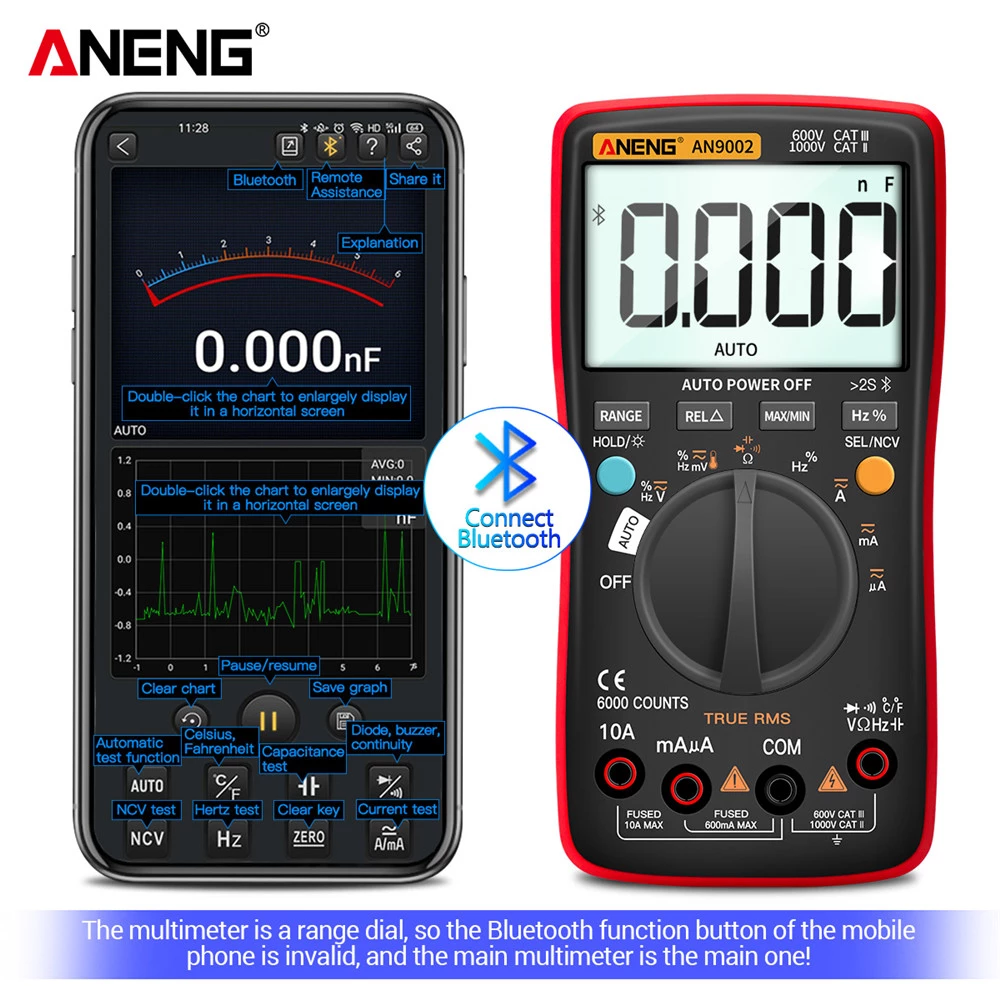

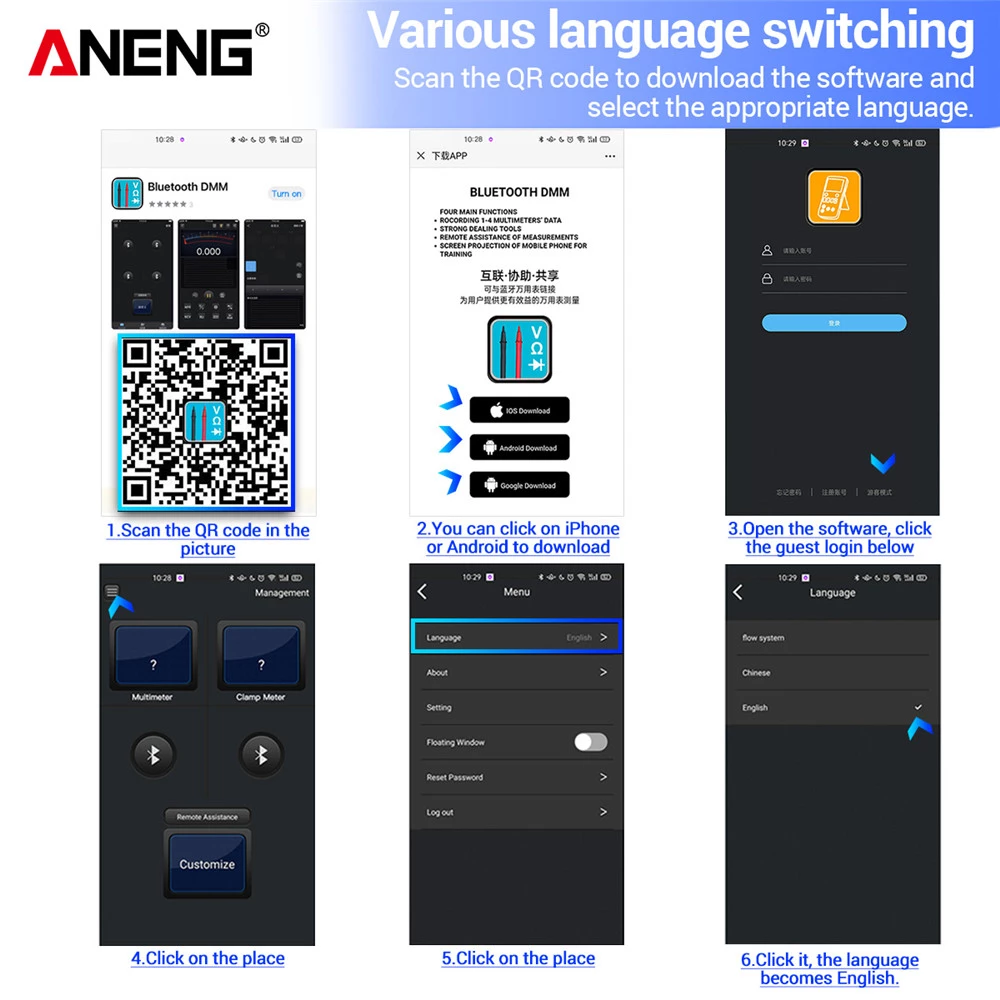

ANENG AN9002Pro is a newly upgraded professional multimeter, which can realize remote operation and measurement through Bluetooth technology. The measurement data of it is visualized and recordable through the Bluetooth of the mobile phone, It help us make the measurement more convenient and more accurate.Bluetooth software download link:
http://multimeter.szoyi.com:8081/share/OEM.htmlFeatures of ANENG AN9002Pro
http://multimeter.szoyi.com:8081/share/OEM.htmlFeatures of ANENG AN9002Pro

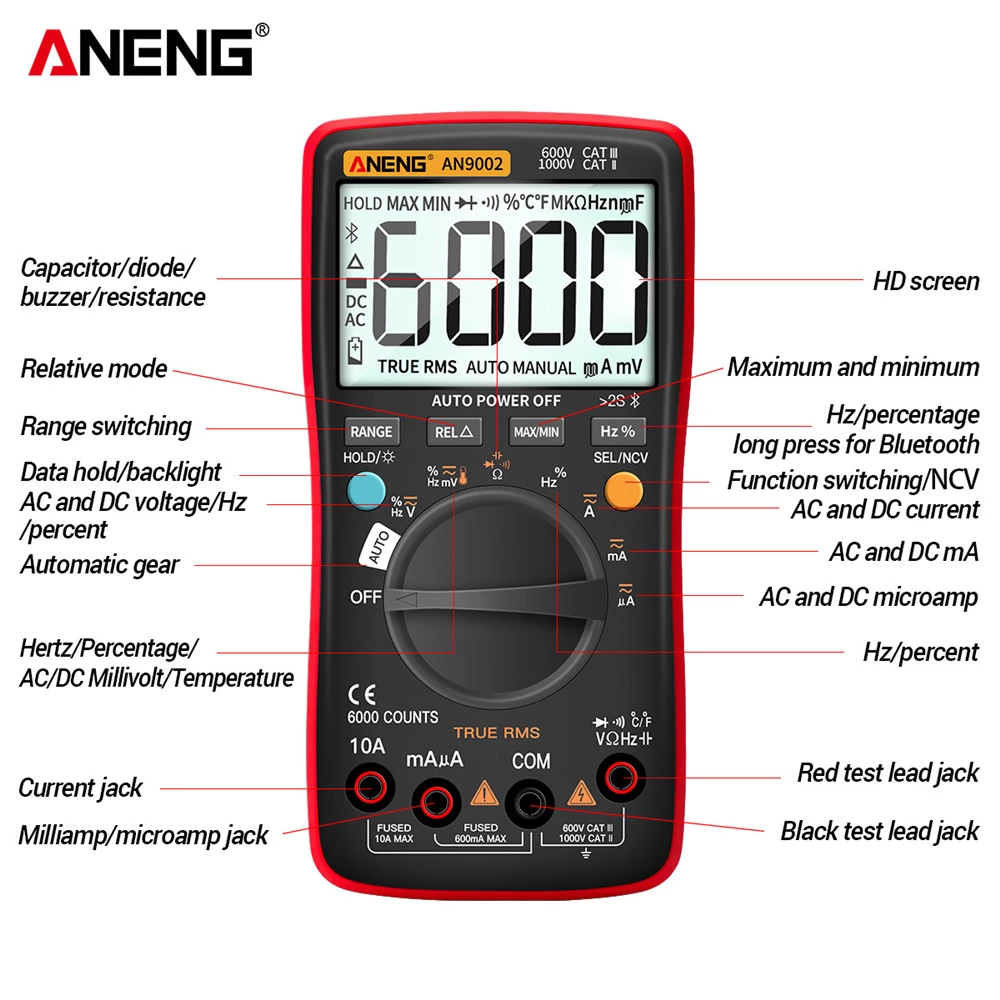

This products is a battery-powered ,ture-rms ,auto-ranging digital multimeter with a 6000 counts LCD display and a backlight.
Measure AC/DC Voltage
Measure AC/DC Current
Test Continuity/Diodes/Resistance
Measure Capacitance/Frequency
Measure Duty Cycle/TemperatureSpecification of ANENG AN9002Pro
Measure AC/DC Voltage
Measure AC/DC Current
Test Continuity/Diodes/Resistance
Measure Capacitance/Frequency
Measure Duty Cycle/TemperatureSpecification of ANENG AN9002Pro
| Brand | ANENG | Model | AN9002Pro |
| Display(LCD) | 6000 counts | Ranging | Auto/Manual |
| Material | ABS | Update Rate | 3 times/second |
| True RMS | yes | Data Hold | yes |
| Backlight | yes | Low Battery Indication | yes |
| Auto Power Off | yes | Battery Type | 2 * 1.5V AA Battery (Without) |
| Function | Range | Accuracy |
| DC Voltage | 60mV/600mV/6V/60V/600V/1000V | ±(0.5%+3) |
| AC Voltage | 60mV/600mV/6V/60V/600V/750V | ±(1%+3) |
| DC Current | 600uA/6000uA/60mA/600mA/6A/10A | ±(1.2%+3) |
| AC Current | 600uA/6000uA/60mA/600mA/6A/10A | ±(1.5%+3) |
| Resistance | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ | ±(0.5%+3) |
| 60MΩ | ±(1.5%+3) | |
| Capacitance | 9.999nF | ±(5.0%+20) |
| 99.99nF/999.9nF/9.999uF/99.99uF/999.9uF | ±(2.0%+5) | |
| 9.999mF | ±(5.0%+5) | |
| Frequency | 99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz | ±(0.1%+2) |
| Duty Cycle | 1%~99% | ±(0.1%+2) |
| Temperature | (-20~1000)℃/(-4~1832)℉ | ±(2.5%+5) |
| Diode : yes | Continuity : yes | Bluetooth : yes |

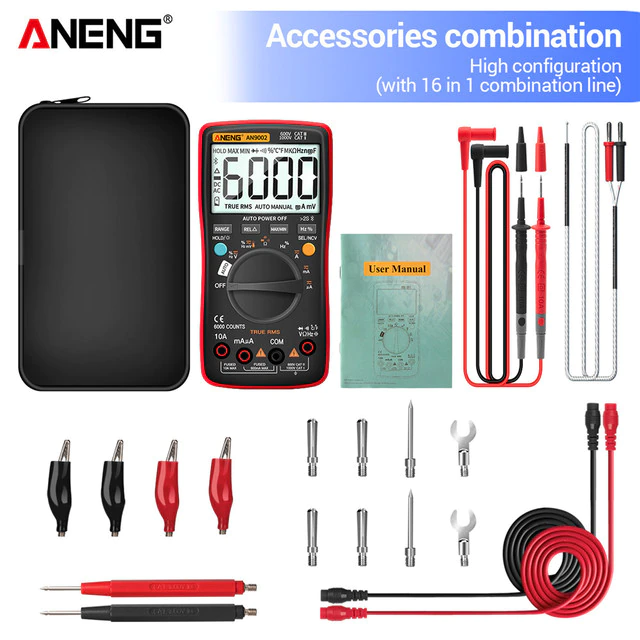

Package included:
1 * ANENG AN9002Pro digital multimeter (not including battery)
2 * Pair of electron probes
1 * Temperature measurement line
1 * User Manual
1 * Cloth bag/leather bag (choose according to package)
1 * 16 in 1 combination line (choose according to the package)
1 * ANENG AN9002Pro digital multimeter (not including battery)
2 * Pair of electron probes
1 * Temperature measurement line
1 * User Manual
1 * Cloth bag/leather bag (choose according to package)
1 * 16 in 1 combination line (choose according to the package)
