Featuresof ANENG AN113D Digital Multimeter
Specification of ANENG AN113D Digital Multimeter (Orange)
Display(LCD): 6000 counts
OperatingStorage: Temperature 0~40℃ Humidity <75%
OperatingStorage :Temperature -20~60℃ Humidity < 80%
DC Voltage : 60.00mV (0.01mV)/ 600mV (0.1mV) ±(0.5%+3)
AC Voltage : 6.000V (0.001V) / 60.00V (0.01V)/ 600.0V (0.1V)/ 750V (1V ) ±(1.0%+3)
AC Voltage : 60.00mV (0.01mV) / 600.0mV (0.1mV) ±(1.0%+3)
DC Current : 6.000A (0.001A) / 10.00A( 0.01A) ±(1.2%+3)
DC Current : 60.00mA (0.01mA)/600.0mA (0.1mA)
AC Current : 6.000A (0.001A) /10.00A (0.01A) ±(1.5%+3)
AC Current : 60.00mA (0.01mA)/ 600.0mA (0.1mA) ±(1.5%+3)
Resistance : 600.0Ω (0.1Ω)/6.000kΩ(0.001kΩ)/60.00kΩ (0.01kΩ) /600.0kΩ(0.1kΩ) / 6.000MΩ (0.001MΩ) ±(0.5%+3) /60.00MΩ (0.01MΩ) ±(1.5%+3)
Capacitance : 9.999nF(0.001nF) ±(5.0%+20) /99.99nF(0.01nF) 999.9nF(0.1nF)/ 9.999μF (0.001μF)/ 99.99μF(0.01μF)/ 999.9μF (0.1μF)±(2.0%+5) / 9.999mF (0.001mF) ±(5.0%+5)
Frequency : 99.99Hz (0.01Hz) /999.9Hz (0.1Hz)/ 9.999kHz (0.001kHz)/ 99.99kHz (0.01kHz)/ 999.9kHz (0.1kHz)/ 9.999MHz (0.001MHz) ±(0.1%+2)
Duty Cycle 1%~99% 0.1% ±(0.1%+2)
Temperature (-20~1000)℃ 1℃ ±(2.5%+5)1000℃ (-4~1832)℉ 1℉ 1832℉
Continuity :√
Package Includes:
1 x Multimeter
1 x Pair of test leads
1 x Thermocouple
1 x English user manual

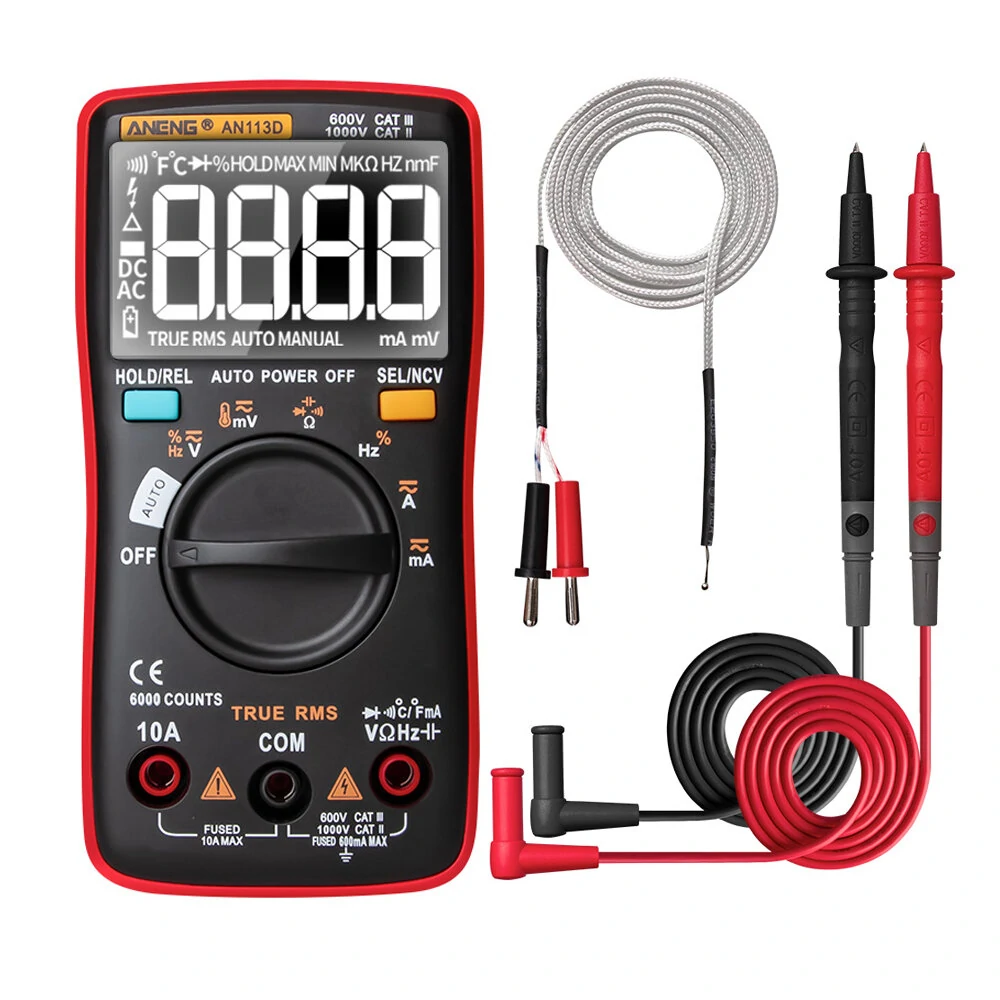

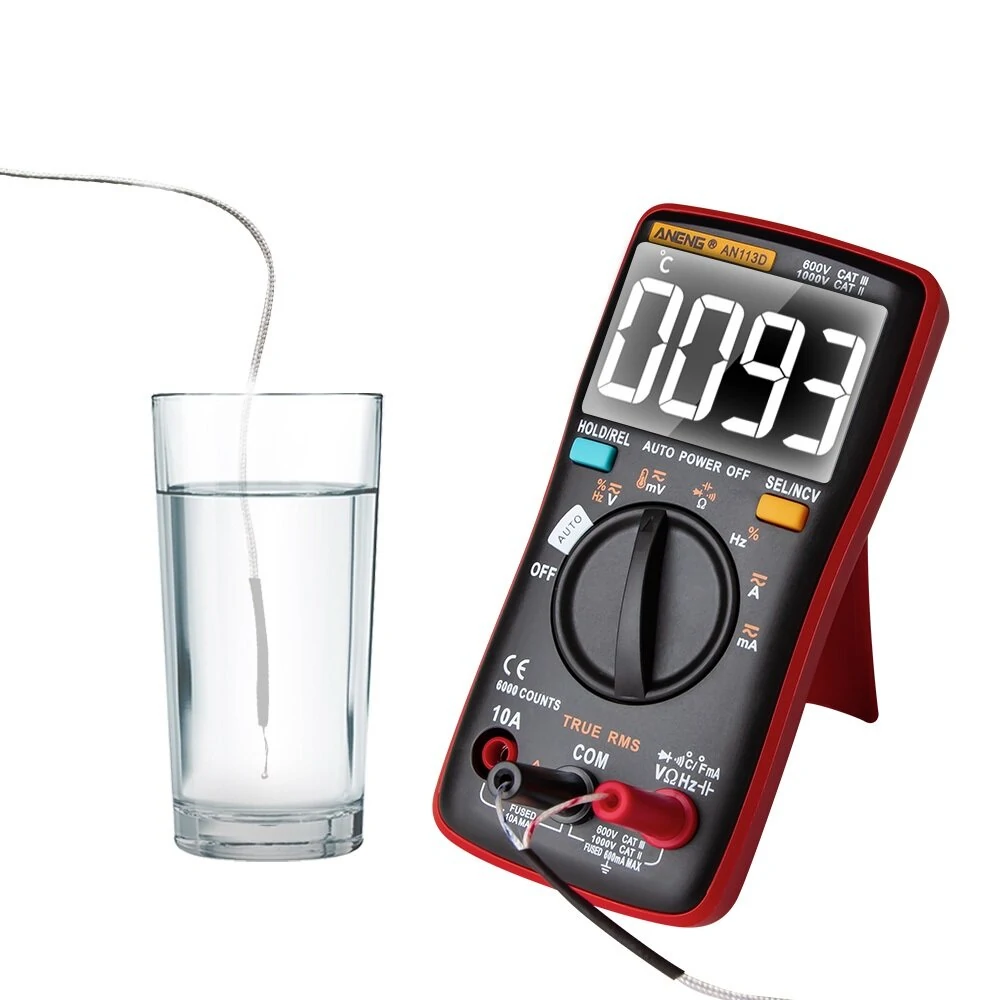

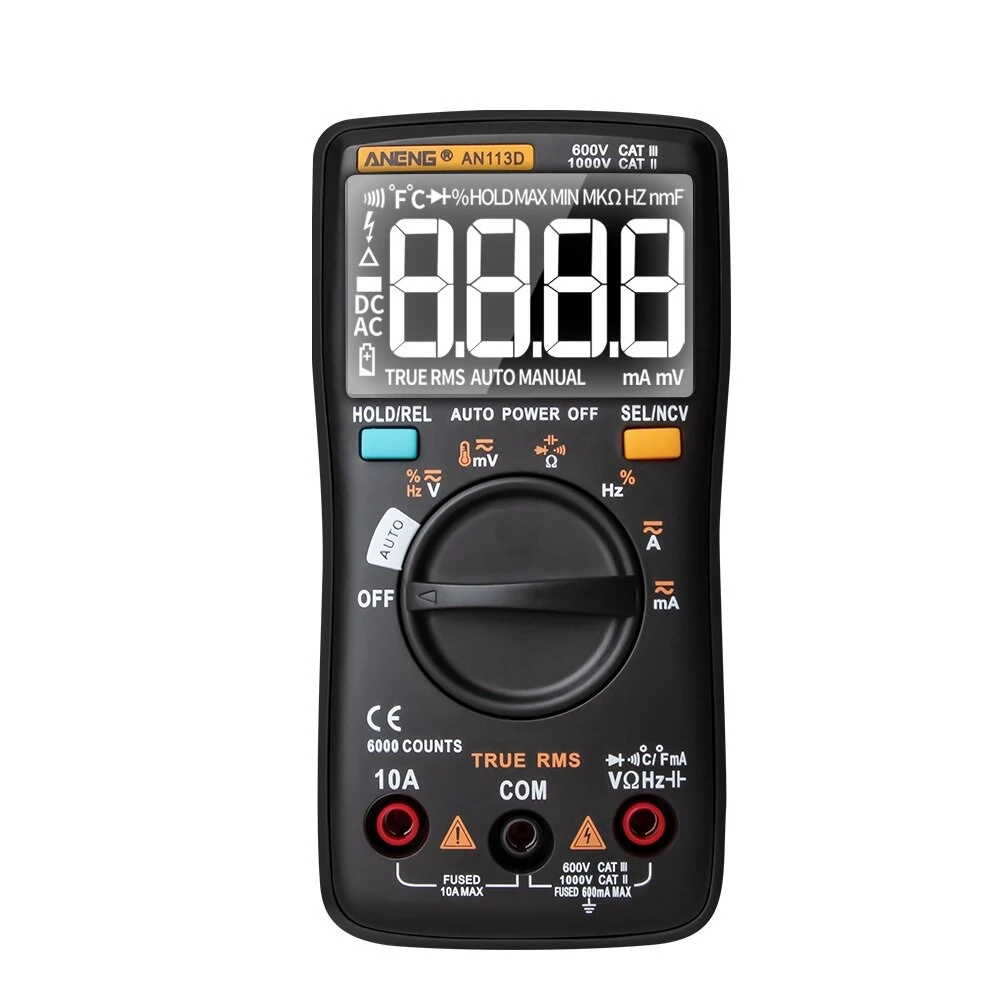

Details Pictures of ANENG AN113D Digital Multimeter
