ANENG 620A True RMS digital professional multimeter 6000 Counts Smart AC/DC Current Voltage Tester Analog Bar Auto Range Tools
A.Overview:

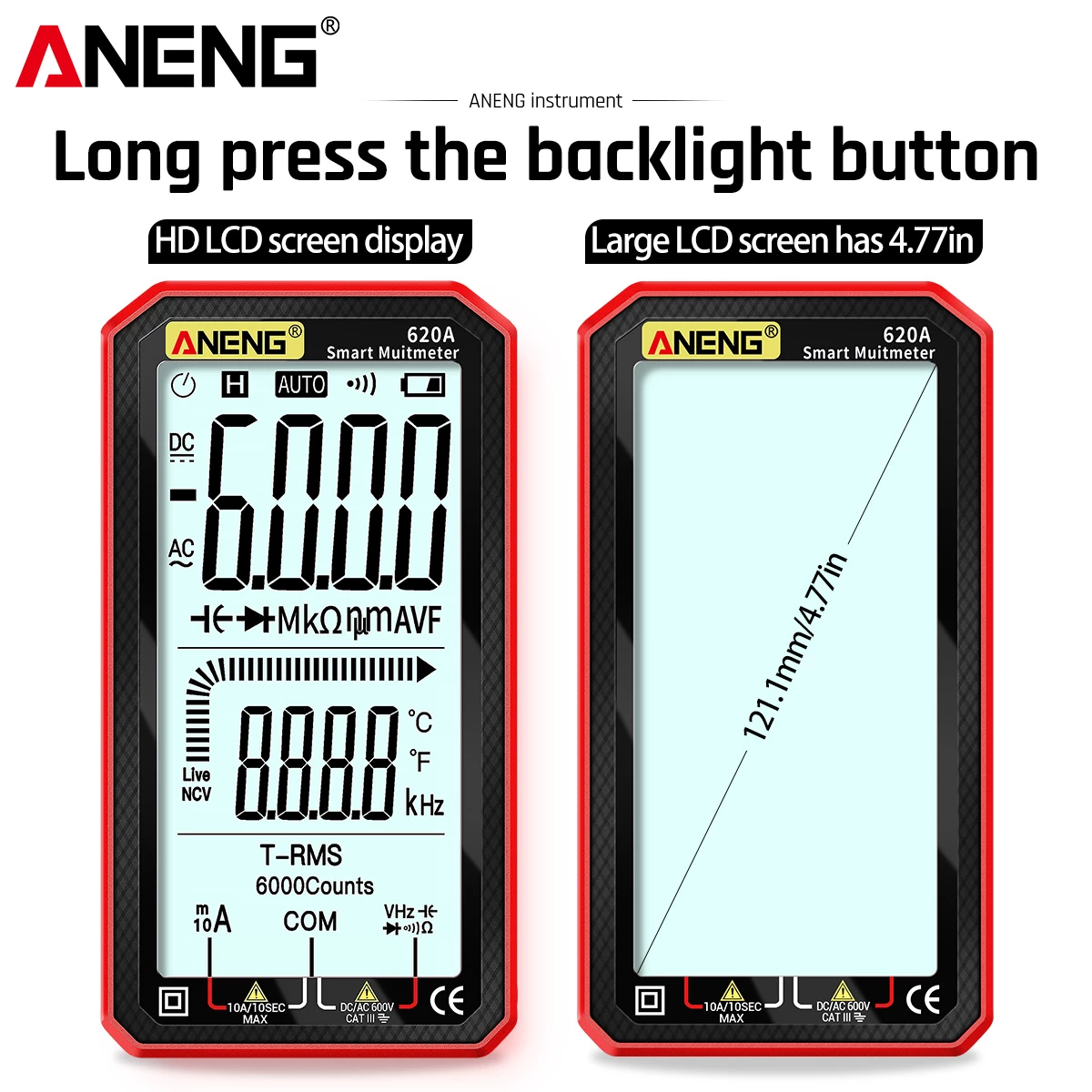

Display: LCD
Max. display value:6000 digit
Automatic shut down time:15 minutes
power supply:2*1.5V AAA Battery (Without)
The instrument specifies one year as a cycle,and shall be re-calibrated under 18℃~28℃,with relative humidity less than 75%.
B.Specification:
| Function | Range | Accuracy |
| AC Current | 6000mA/10A | +-(1.0%reading+8 digits) |
| DC Current | 6000mA/10A | +-(1.0%reading+5 digits) |
| DC Voltage | 6V/60V/600V | +-(0.5%reading+3 digits) |
| AC Voltage | 6V/60V/600V | +-(0.8%reading+5 digits) |
| Line on-off Test | — | 1Ω |
| Resistance | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ | +-(0.8%reading+3 digits) |
| Diode Test | — | 1V |
| Capacitor | 6nF | +-(10%reading+40 digits) |
| 60nF/6uF/60uF/600uF/6mF/60mF | +-(2.5%reading+20 digits) | |
| Temperature | -40~1000℃ | +-(1%reading+3℃) |
| -40~1832℉ | +-(1%reading+3℉) | |
| Frequency | 100Hz/1000Hz | +-(1.0%reading+5 digits) |
| 100Hz/1000Hz | +-(1.0%reading+5 digits) |

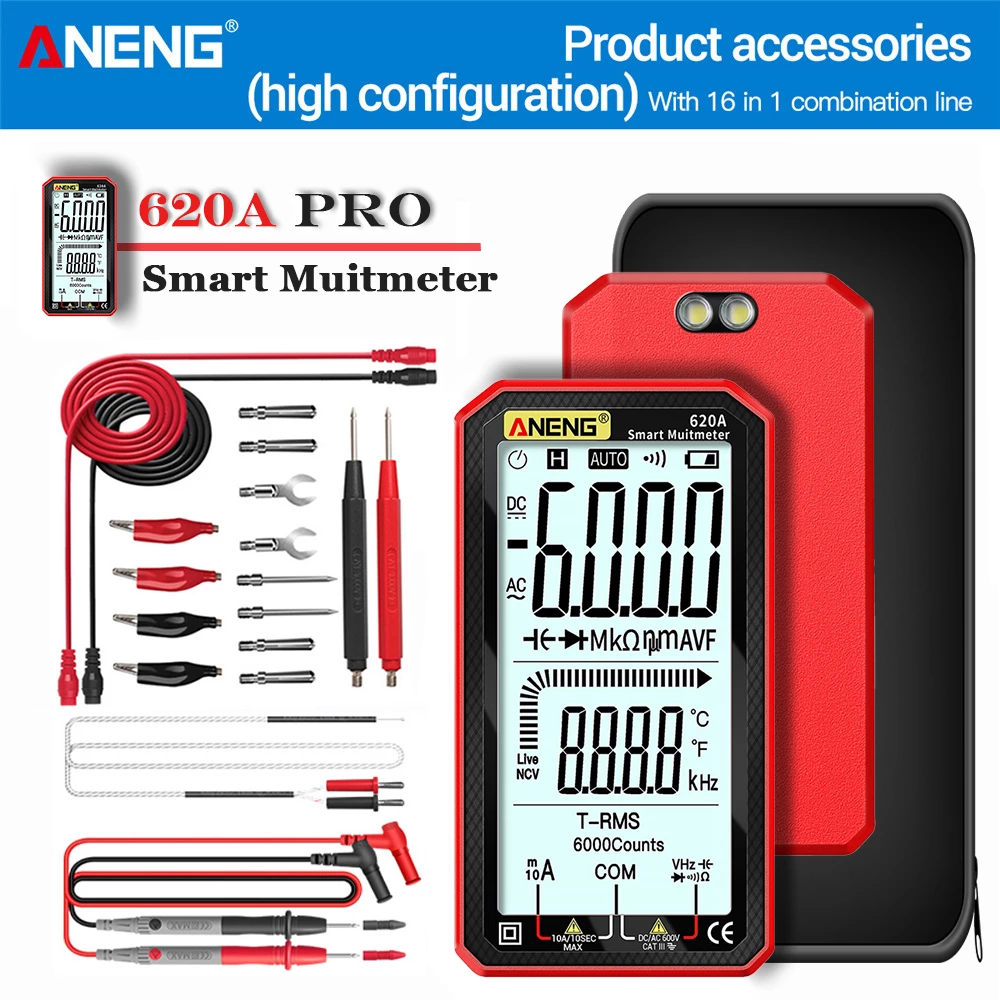

C.Package Include:
According to your choice
