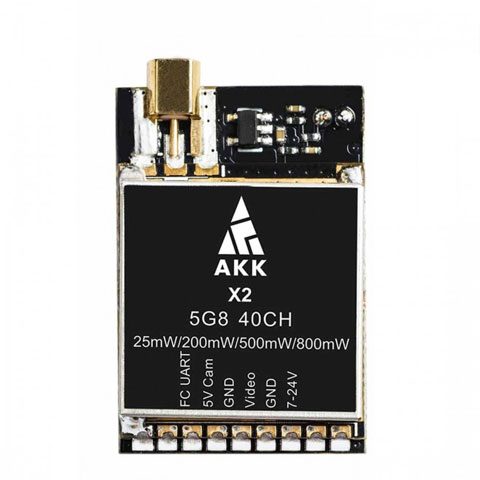

AKK X2 VTX has a lc filter, which can filter the power and make sure you get clean video. This FPV video transmitter supports parameter adjust and works with Betaflight, and compatible with BF OSD FC. It is worth mentioning that both mmcx and sma connector are available
- 25mW/200mW/500mW/800mW power switchable
- Support PIT-Mode and work with Betaflight,flight controller,OSD
- Super mini size and light weight,One button frequency and power setup.
- 7-24V input and can be provides 5V output for your camera.
- Filtered power ensure super clean video, born for racing.
For X2 VTX Table, please click here
Note: It comes with SMA connector not RPSMA
Specifications:
Input voltage: 7V-24V
Power supply: 5V Camera @ under 0.3A max.
Output power: 25mW: 100mA
200mW: 180mA
500mW: 250mA
800mW: 300mA @12V
Range: Up to 4 km with omnidirectional RHCP antennas
Port connector: JST, 6pin
Antenna connector: SMA Female
Package includes:
1x 5.8G X2MX transmitter
1x Cable
1 x MMCX – SMA pigtail
1x Product manual
Notice:
The VTX can supply 5V output for the Camera. Please make sure your camera is less than 300mA
