About this product

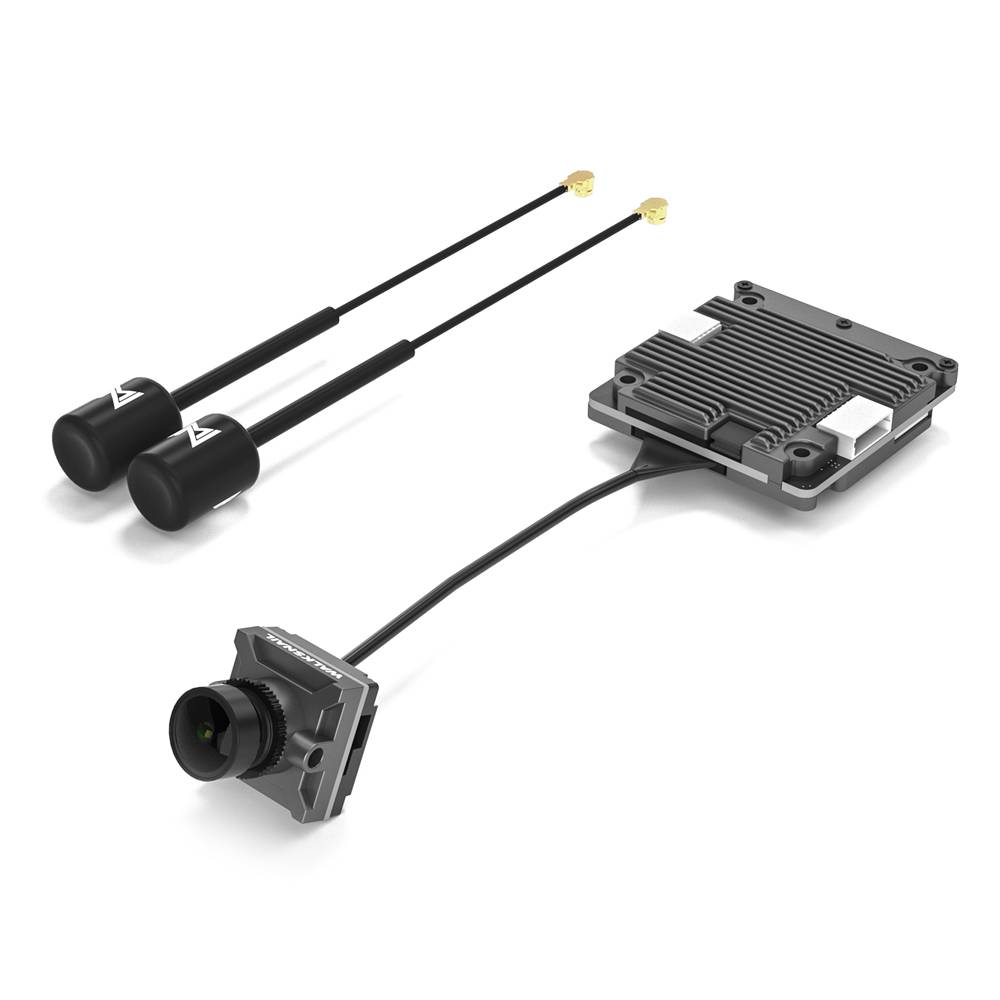

The Walksnail Avatar HD Nano Camera / VTX Kit features a digital camera and VTX that works with HD Goggles such as the Walksnail Avatar and Fat Shark HD Dominator. This HD VTX combo has lower latency than the competitor at an average of 22ms, with an onboard DVR, 5.8GHz frequency, 8Gb internal storage, and switchable aspect ratio.
Features
- Lower latency than the competitor at an average of 22ms
- Built-in 8Gb Internal Storage
- 1080p Screen Resolution
- Switchable Aspect Ratio
- Dual Antenna Design
- 5.8GHz Frequency
- Onboard DVR
- Canvas Mode
- 4km Range
- 170° FOV
- 6V-25.2V
Specifications

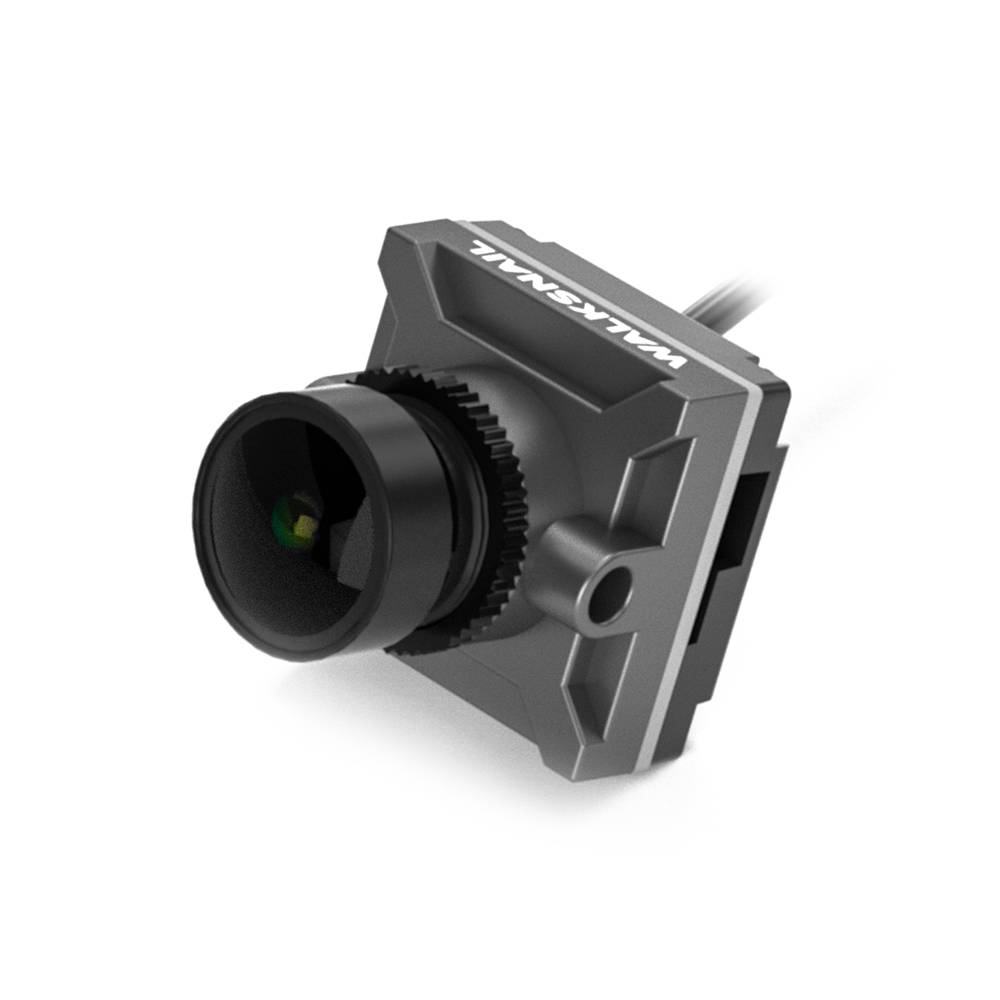

AVATAR HD CAMERA
- Resolution: 1080p 60FPS / 720P 120FPS / 720P 60FPS
- Aspect Ration: 16/9 and 4/3 Switchable
- Minimum Illumination: 0.001Lux
- Shutter Style: Rolling Shutter
- Dimensions: 14x14x17mm
- Cable Length: 90mm
- Image Sensor: 1/27″
- Field Of View: 170°
- Aperture: F 2.0
- Lens: 2.1mm
- Weight: 3.5g

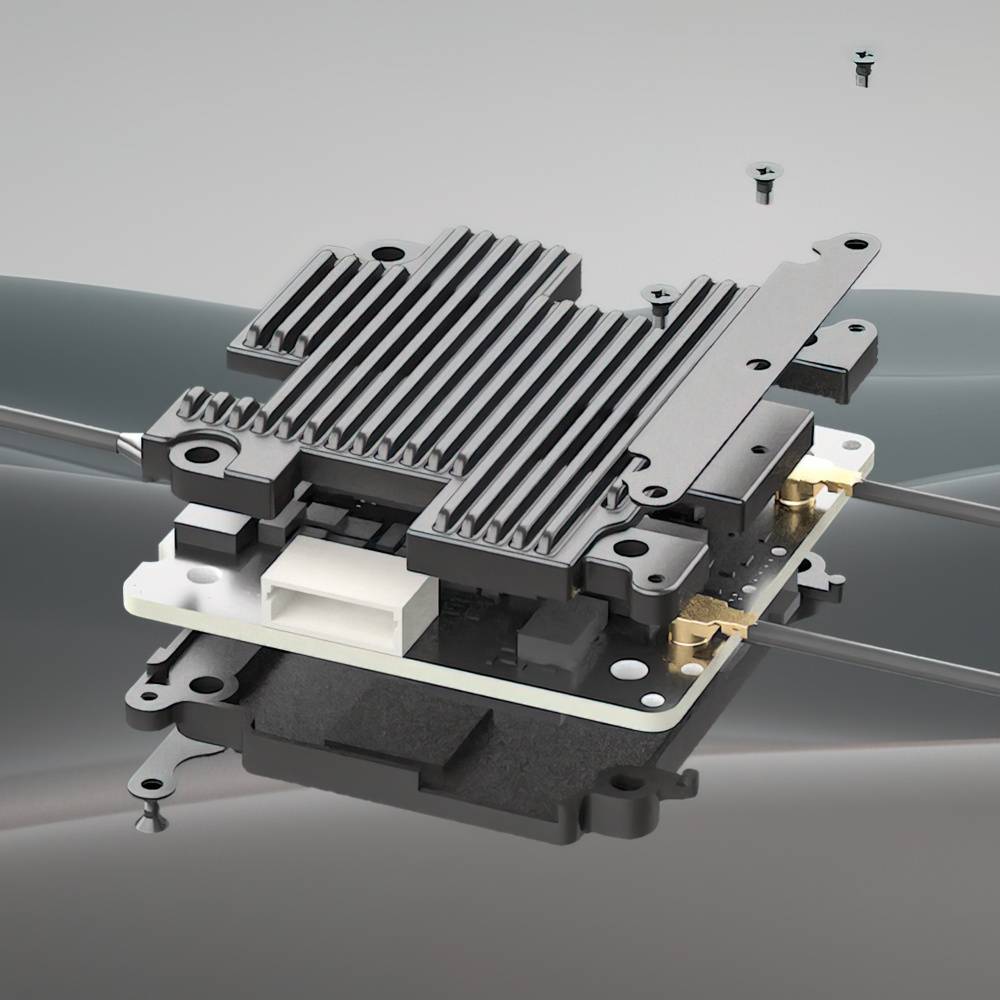

AVATAR VTX
- Transition Power: FCC<30dBm / CE <14dBm / SRRC <20dBm / MIC <25dB
- Operational Frequency: 5.725-5.850GHz
- Operating Temperature: -20° to 40°
- Supported FC Firmware: Betaflight
- USB Connection: JST x 4 to USB-A
- Video Resolution: 1080p / 720p
- FC Connection Port: JST1.0 x 6
- Dimensions: 33x33x9.5mm
- Antenna Connector: U.fl
- Latency: 22ms Average
- Input Voltage: 6-25.2V
- Internal Storage: 8GB
- Mounting: 25x25mm
- Weight: 16g
- Channels: 8
AVATAR ANTENNAS
- Radiation Efficiency: >= 98%
- Bandwidth: 5.6-5.9GHz
- Gain: 2dBi Average
- Polarization: LHCP
- Connector: U.fl
- Length: 90mm
- VSWR: <=1.4
- Weight: 1.5g

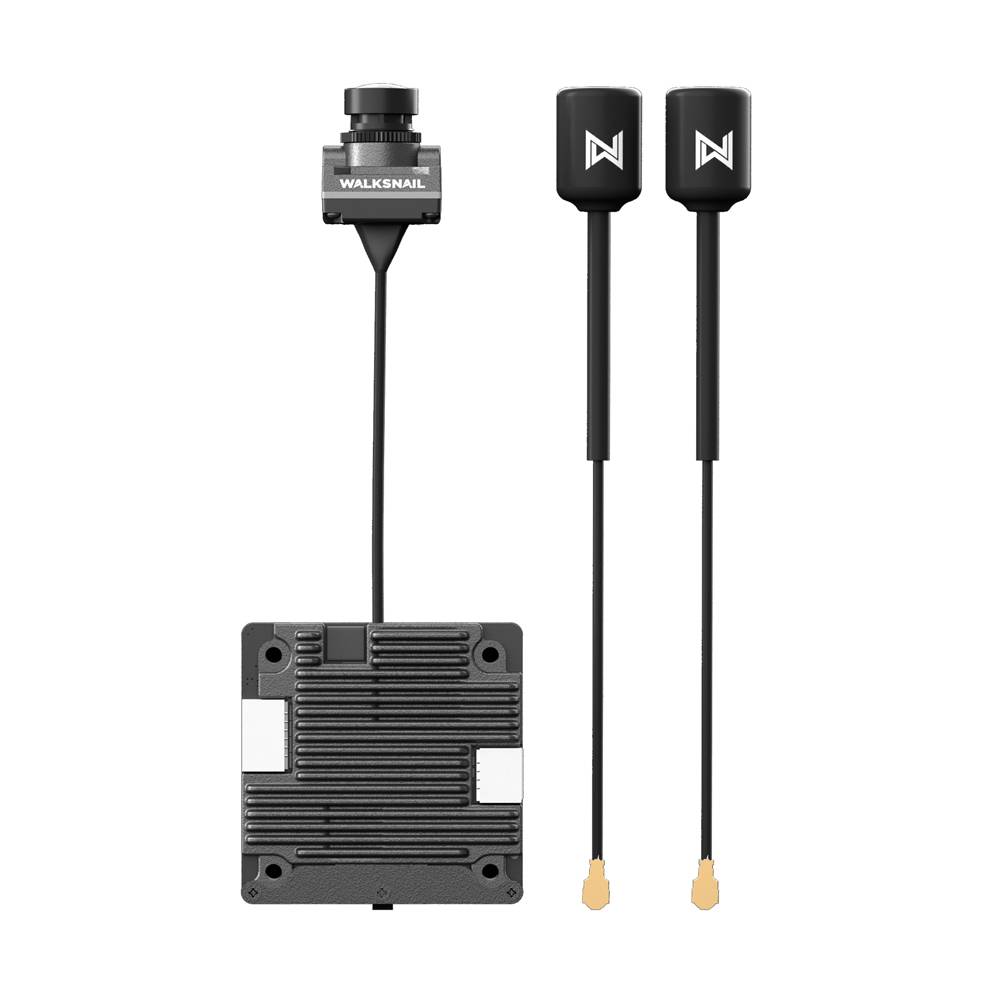

Includes
- 1x Walksnail Avatar Nano HD Camera w/ Avatar VTX
- 2x LHCP 5.8GHz Antennas
- 2x M1.2 1.5mm Screws
- 1x 6-Pin Silicone Cable
- 4x M2 3mm Screws
- 4x M2 4mm Screws
- 4x M2 5mm Screws
- 1x USB Data Cable
